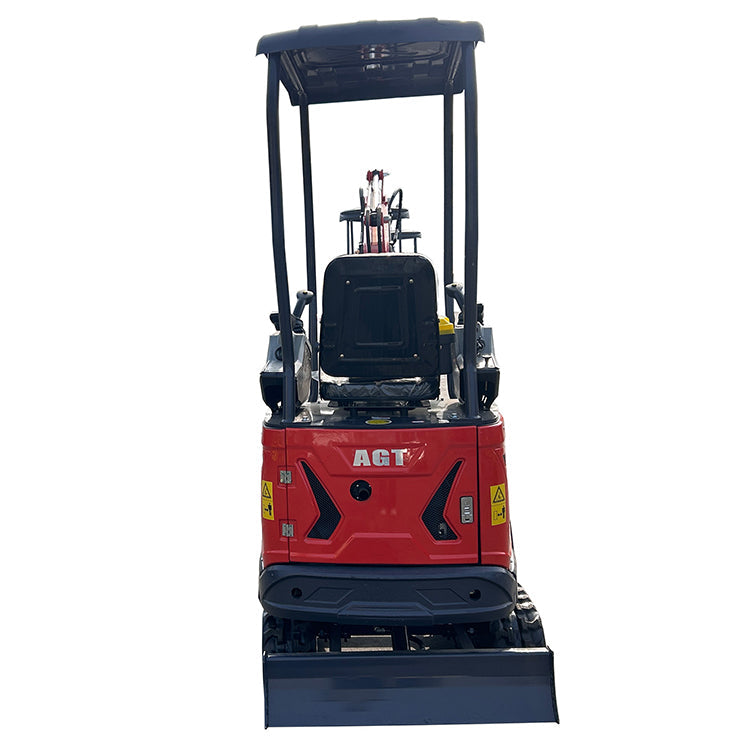

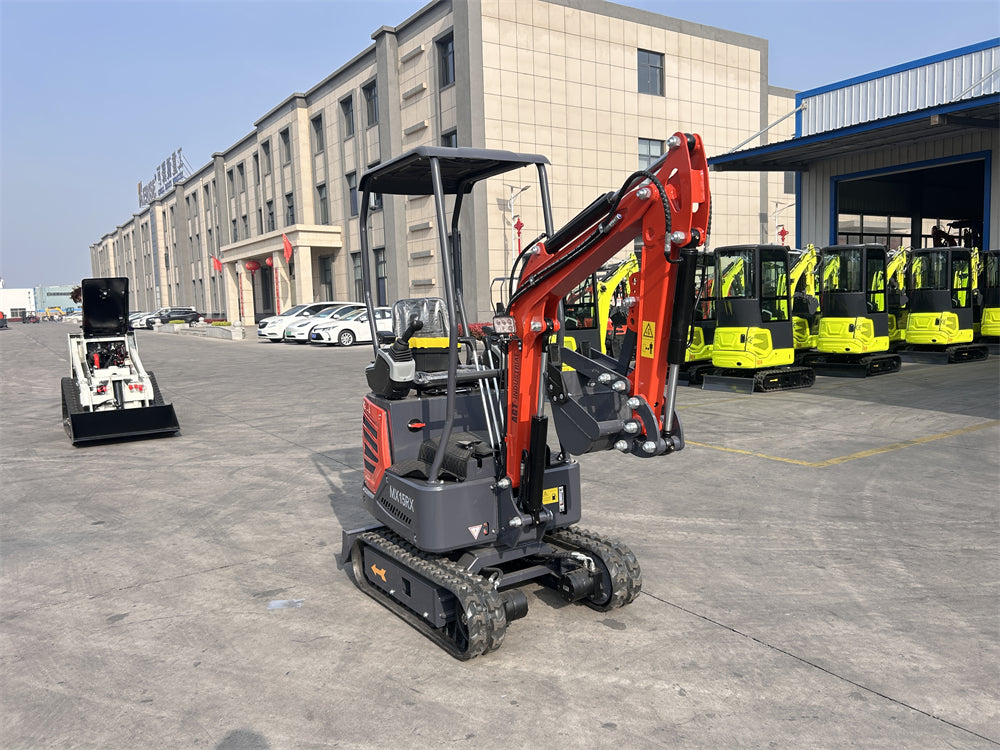

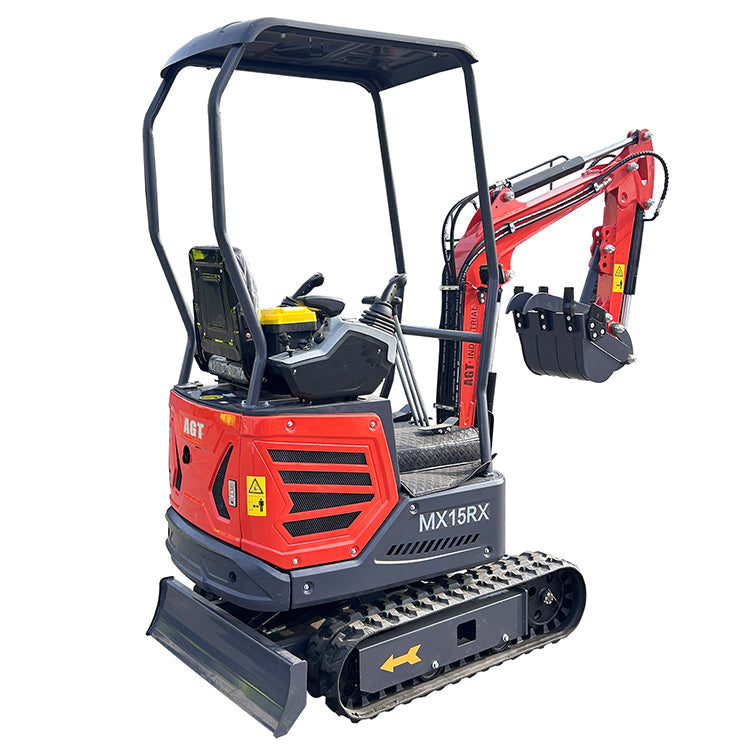

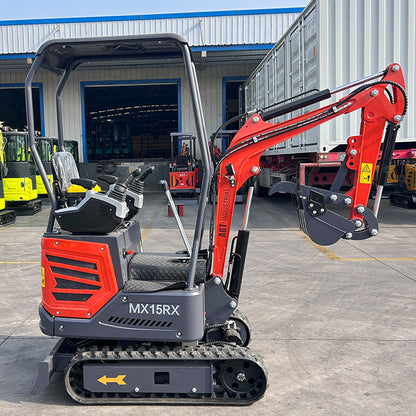

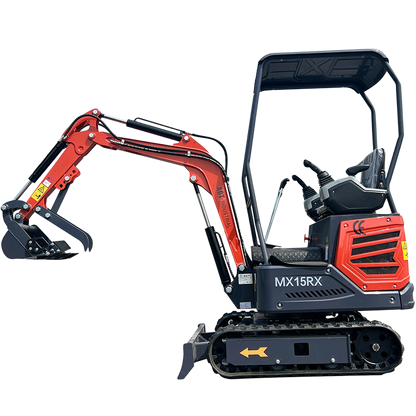

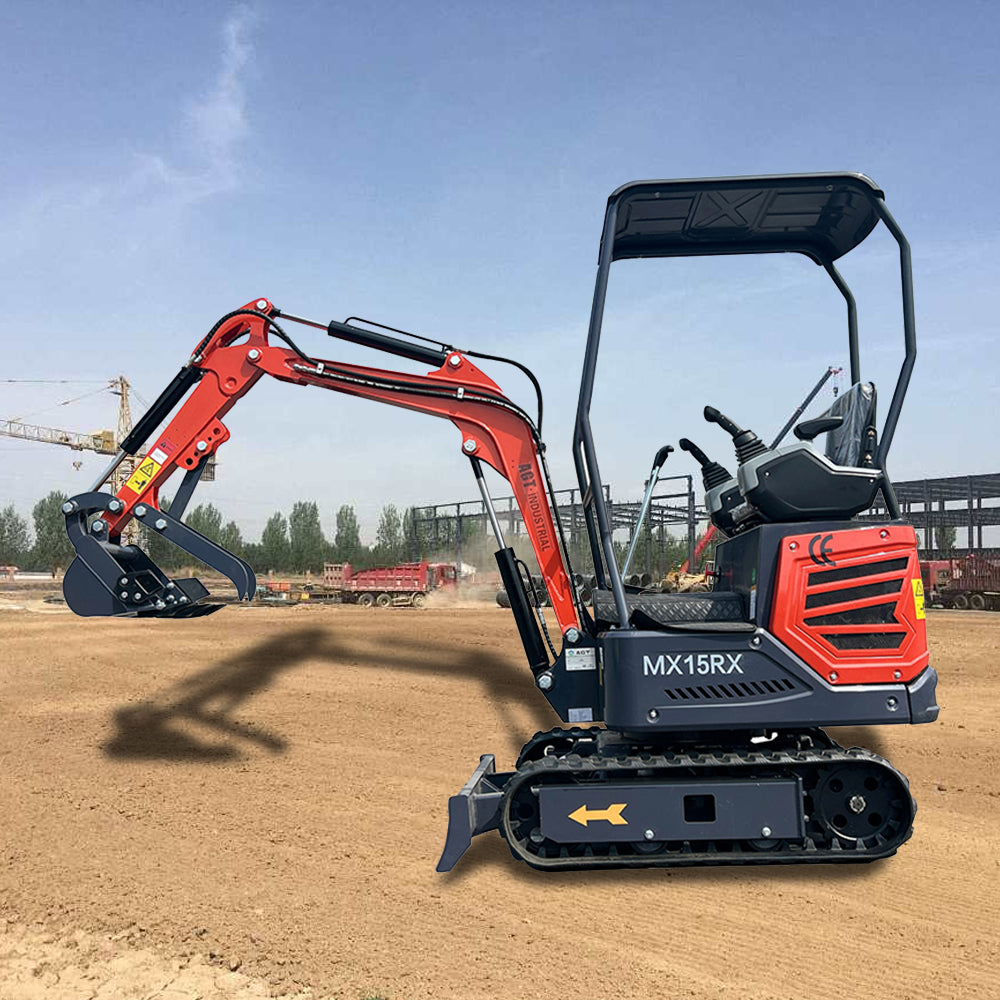

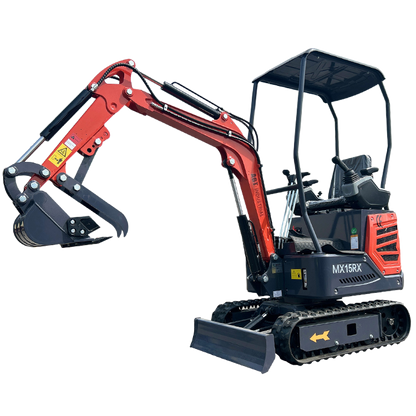

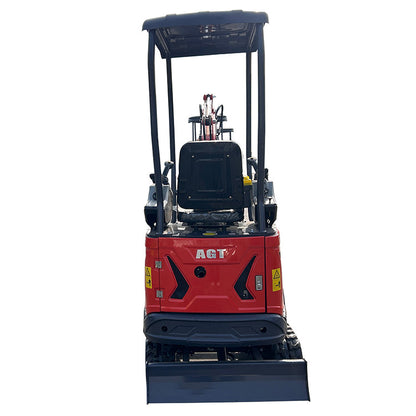

1 Ton 13.5 HP Mini Excavator with Rato R420D Gas Engine EPA | MX15RX
Regular price
$7,210.00
Sold out
SKU:MX15RX
1 Ton 13.5 HP Mini Excavator with Rato R420D Gas Engine EPA | MX15RX
1 Ton 13.5 HP Mini Excavator with Rato R420D Gas Engine EPA | MX15RX
Product Overview

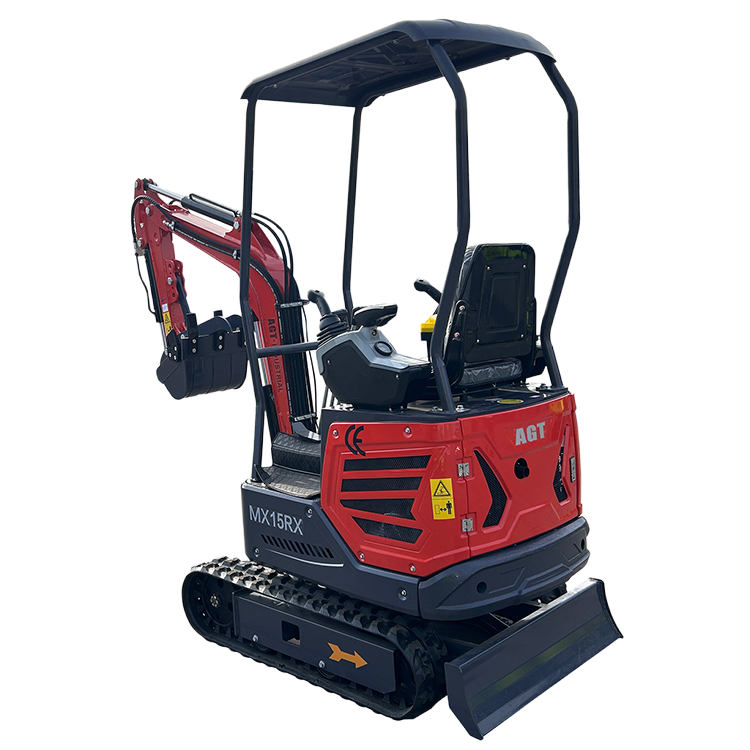

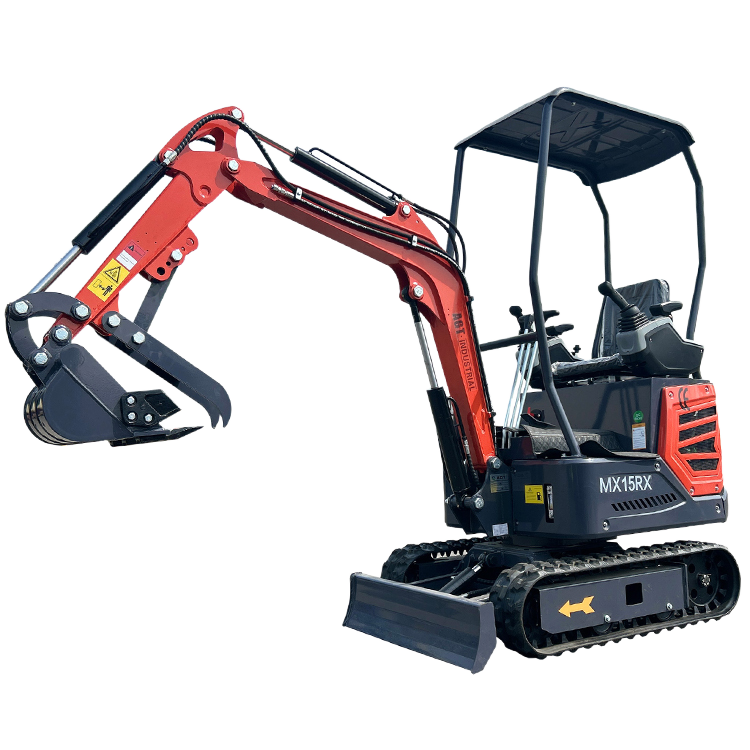

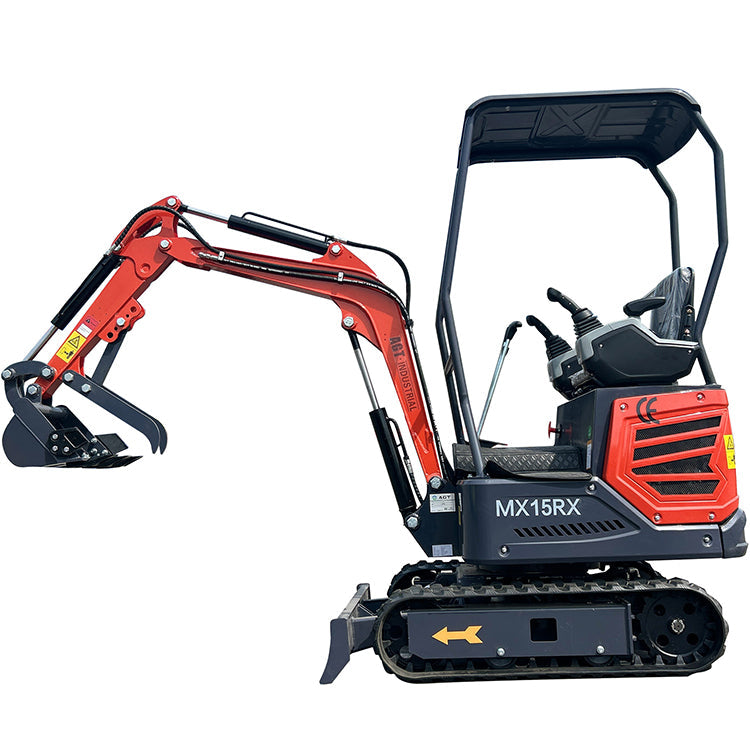

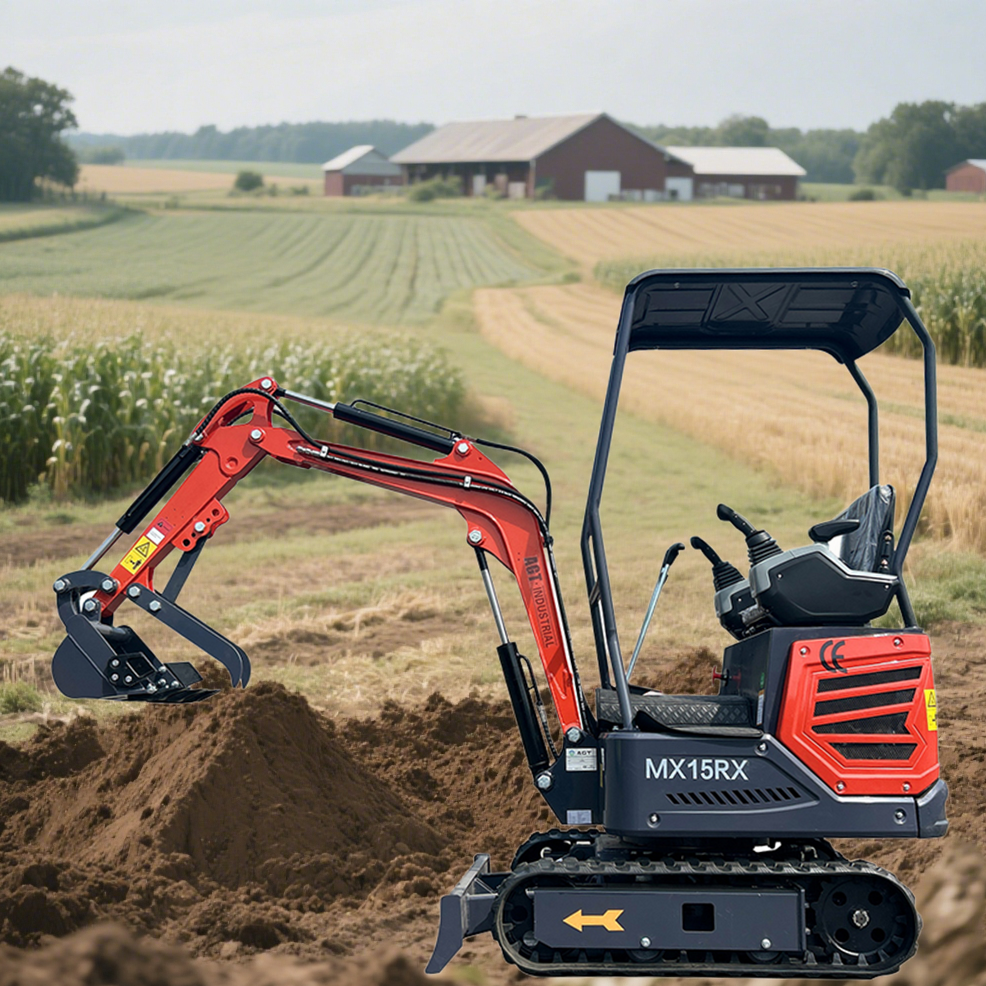

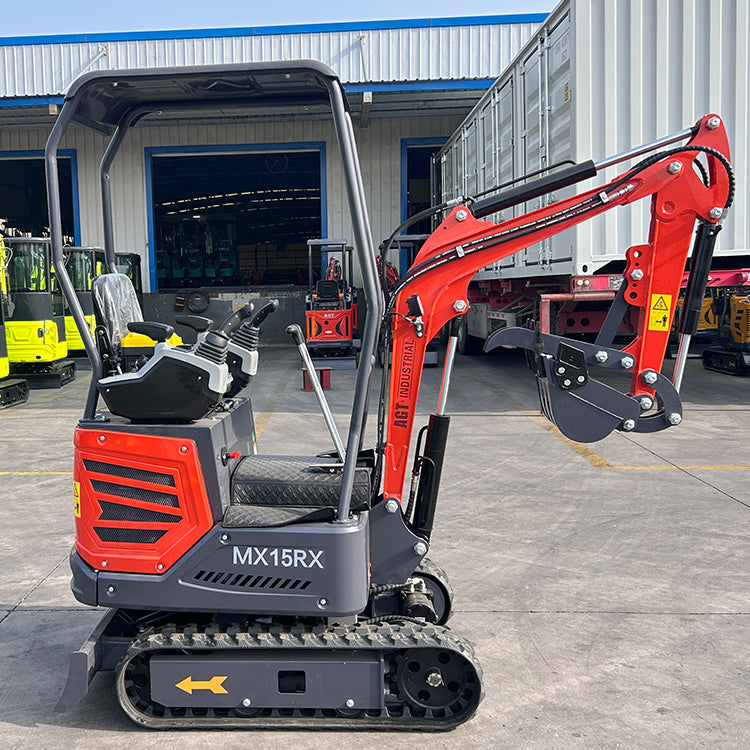

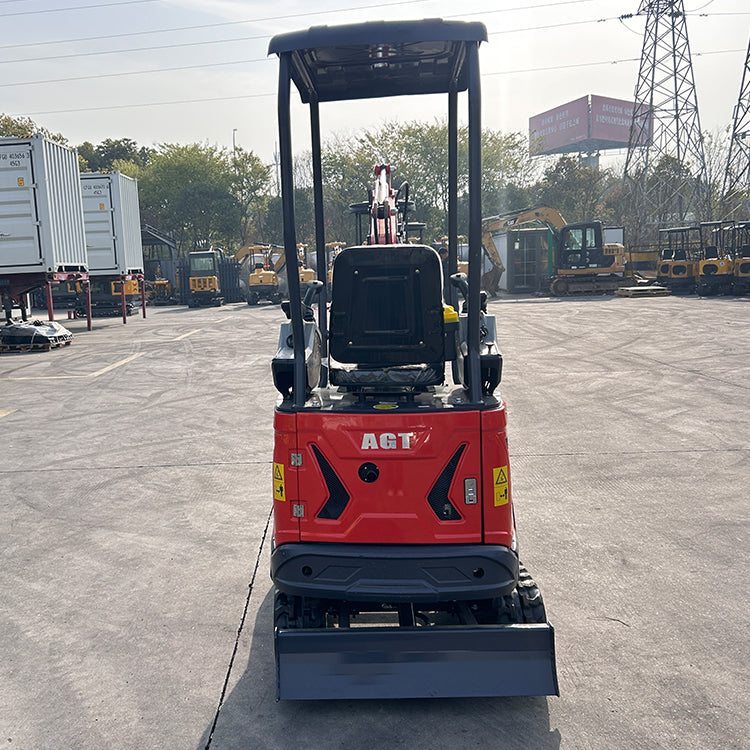

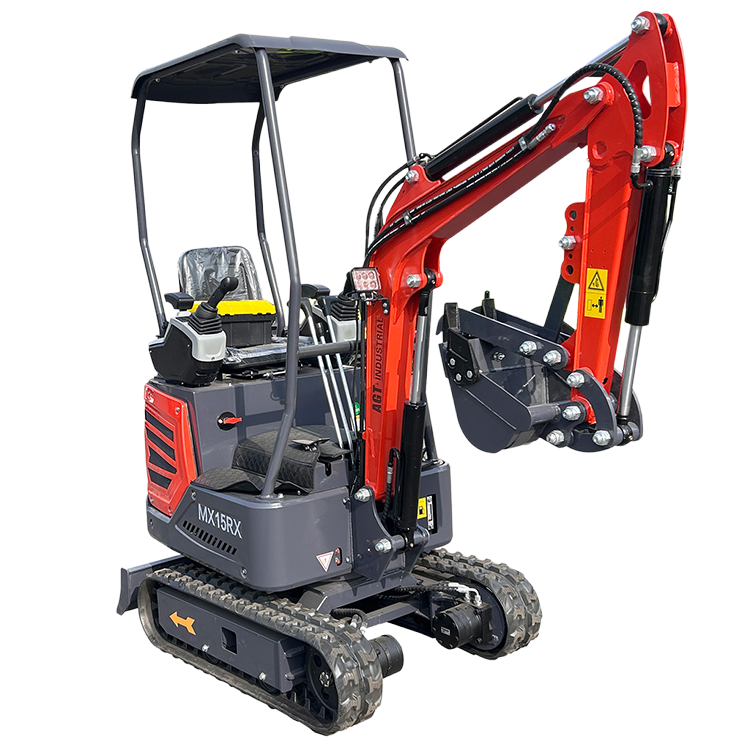

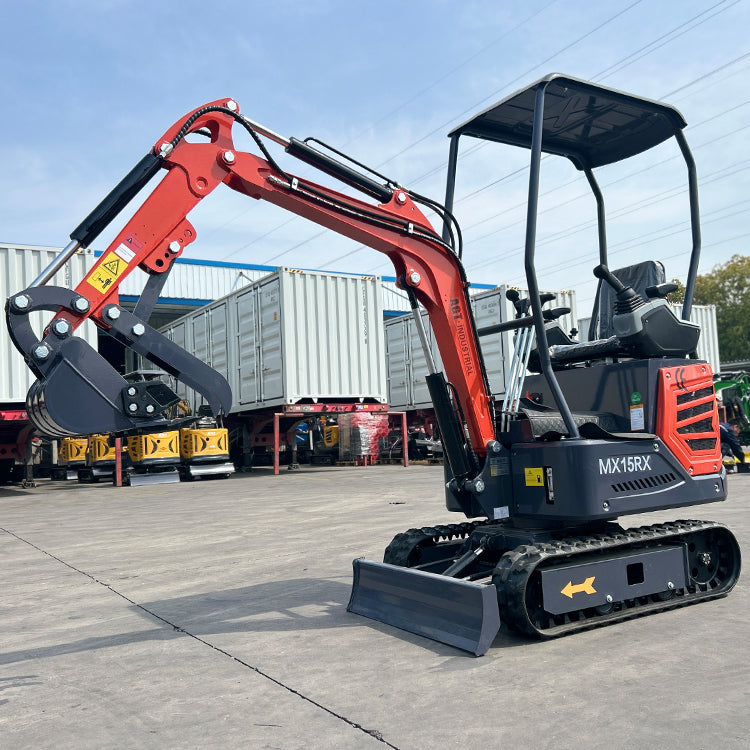

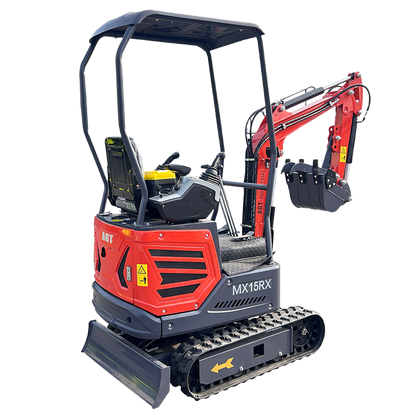

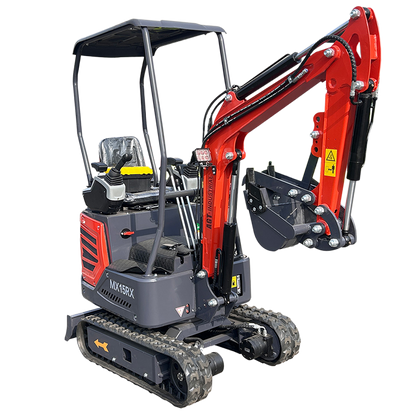

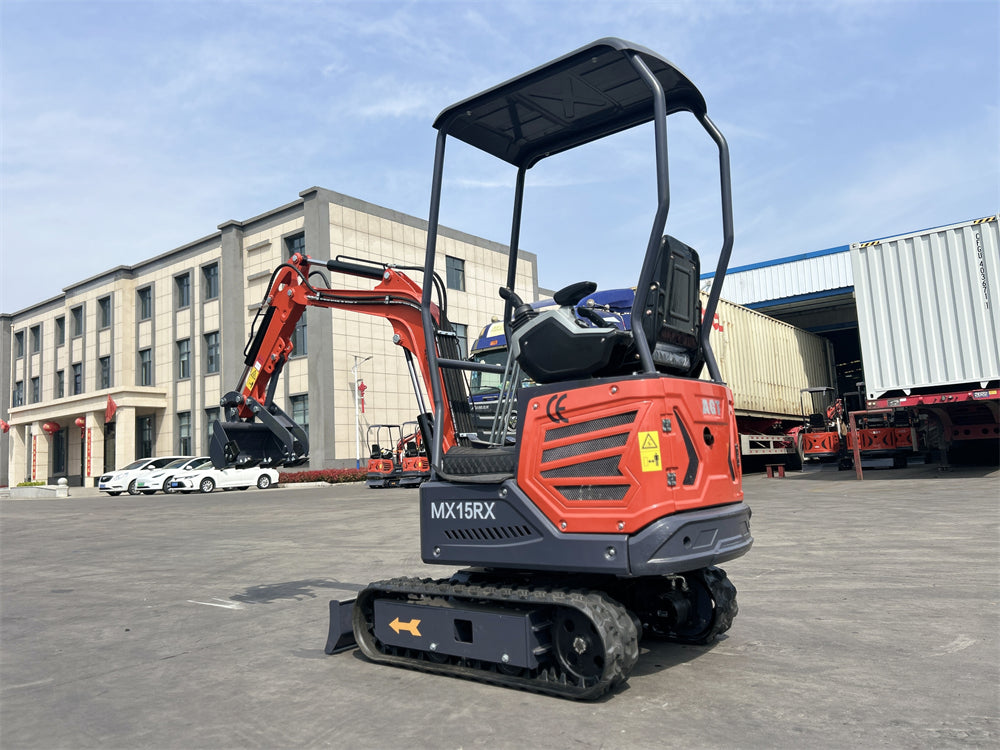

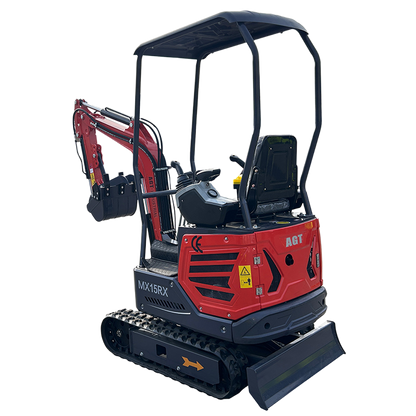

The AGT‑MX15RX is a professional 1‑ton class mini excavator powered by a 13.5 HP RATO gasoline engine (R420D), featuring rubber tracks, dual pilot controls, manual thumb, and integrated auxiliary hydraulics. With a 42‑in wide blade and a compact design, it delivers versatile digging, trenching, and grading performance in tight workspaces.
Dimension:
Working Range:
Engine:
Features:
Product Warranty
Specifications
| Model Information | |
|---|---|
| Configuration Status | √ Standard, △ Optional, × None |
| Model | MX15RX |
| Basic Performance Parameters | |
| Weight (kg) | 940 |
| Bucket capacity (m³) | 0.025 |
| Walking speed Low/High speed (Km/h) | 0–1.8 |
| Gradeability (%) | 30 |
| Speed of gyration (r/min) | 10 |
| Maximum digging force of the bucket (KN) | 6 |
| Maximum digging force of boom (KN) | 4 |
| A Maximum excavation height (mm) | 2583 |
| B Maximum unloading height (mm) | 1742 |
| C Maximum digging depth (mm) | 1769 |
| D Maximum vertical excavation depth (mm) | 1638 |
| E Maximum digging radius (mm) | 3041 |
| F Minimum radius of gyration (mm) | 1440 |
| G Minimum gyration radius of the tail (mm) | 828 |
| H Maximum lifting height of bulldozer | 162 |
| I Maximum digging height of bulldozer | 196 |
| Size | |
| J Total length (mm) | 2882 |
| K Total width (mm) | 962 |
| L Total height (mm) | 2219 |
| M Tread width (mm) | 900 |
| N Track gauge (mm) | 762 |
| Bulldozer width/height (mm) | 907 / 200 |
| Engine | |
| Engine Brand | RATO |
| Engine model | R420D |
| Max Horsepower (ps) | 13.5 |
| Maximum power (kW) | 9.8 |
| Maximum Rotation Speed (rpm) | 3600 |
| Number of cylinders | 1 |
| Cooling method | Forced air cooling |
| Engine oil change volume (L) | 1.1 |
| Fuel type | Gasoline |
| Fuel label | 92# |
| Hydraulic System | |
| Main pump type/model | 6＋3 |
| Main pump brand | Tianjin Walking |
| Rated set pressure (Mpa) | 16 |
| Max. flow rate of main pump (L/min) | 21.6 |
| Multi-way valve | 8-way semi hydraulic control multi way valve |
| Multi-way valve brand | Boxin |
| Rated set pressure (Mpa) | 16 |
| Walking hydraulic motor type | BMER3-350 |
| Walking motor brand | Orbit motor |
| Motor displacement | 350 |
| Rotary hydraulic motor type | BM1-315 |
| Displacement | 315 |
| Track | |
| 〇-Rubber (track width × pitch × number of sections) | 180×72×37 |
| Configuration | |
| Cab | — |
| Ceiling | ● |
| Armrest | ● |
| Thumb clip | ● |
| Counterweight | ● |
| Tensioning form | Mechanical tensioning |
| Tank | |
| Fuel tank (L) | 6.6 |
| Hydraulic tank (L) | 15.8 |
