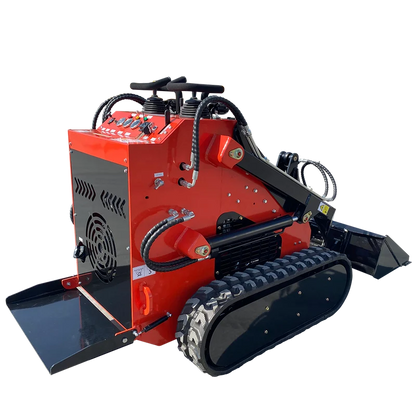

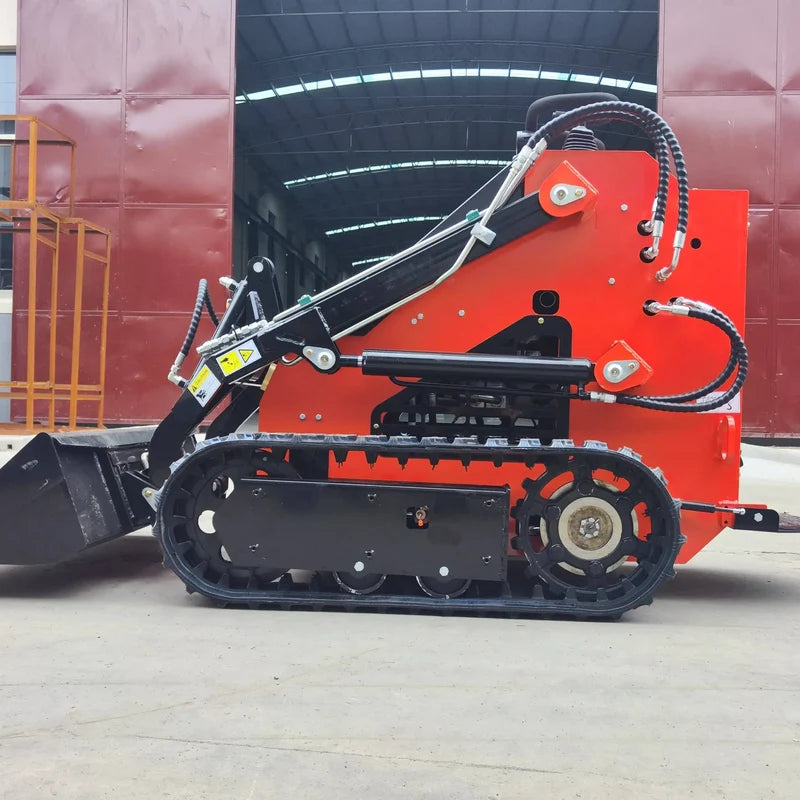

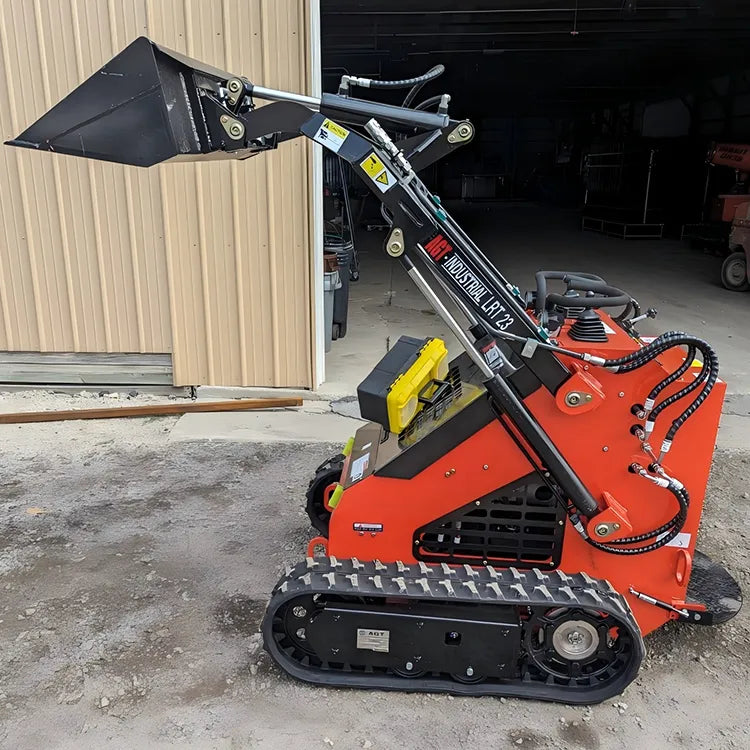

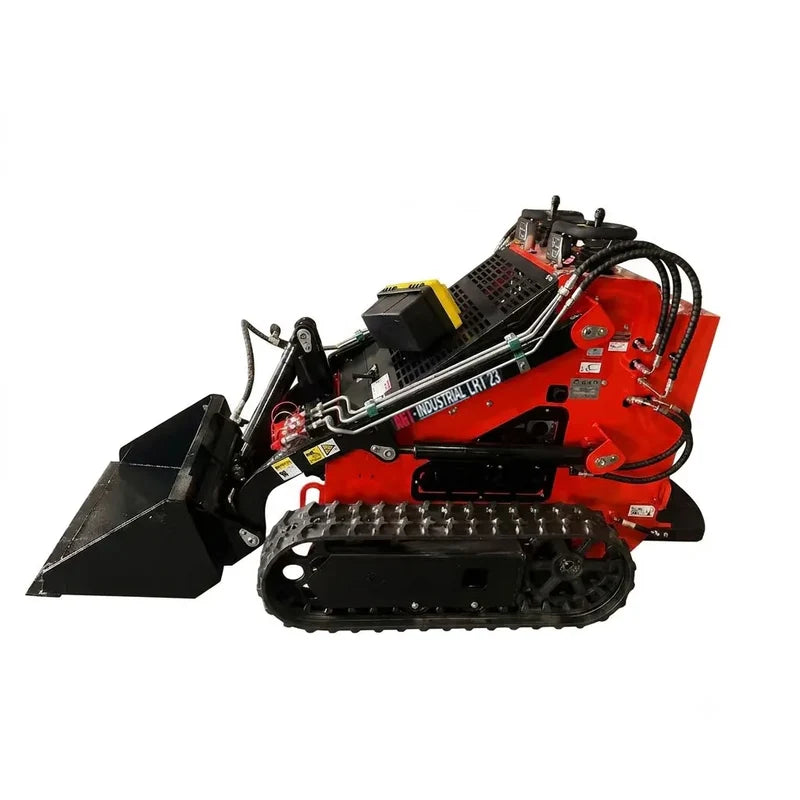

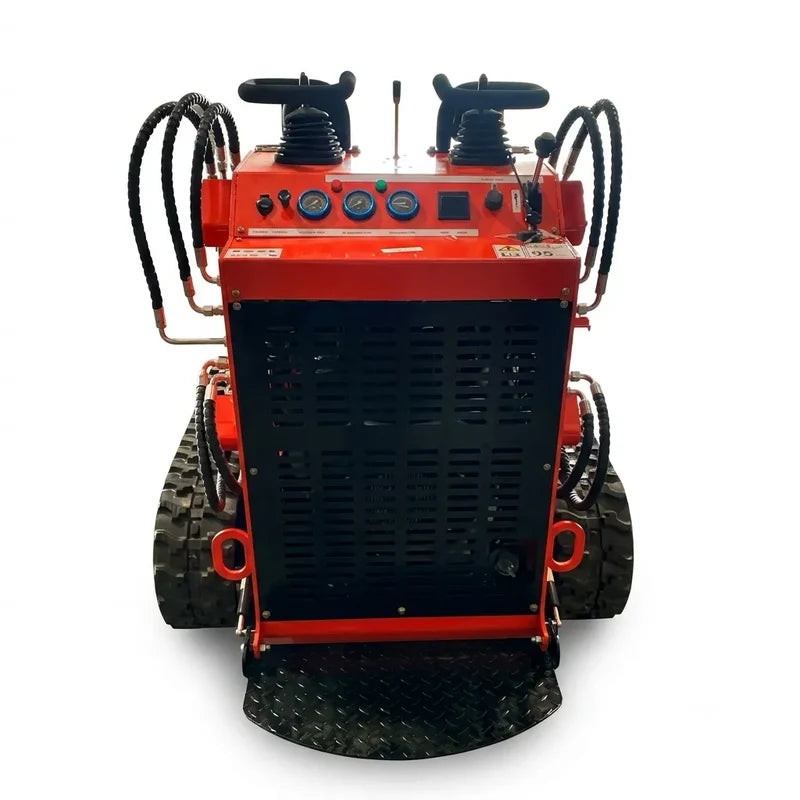

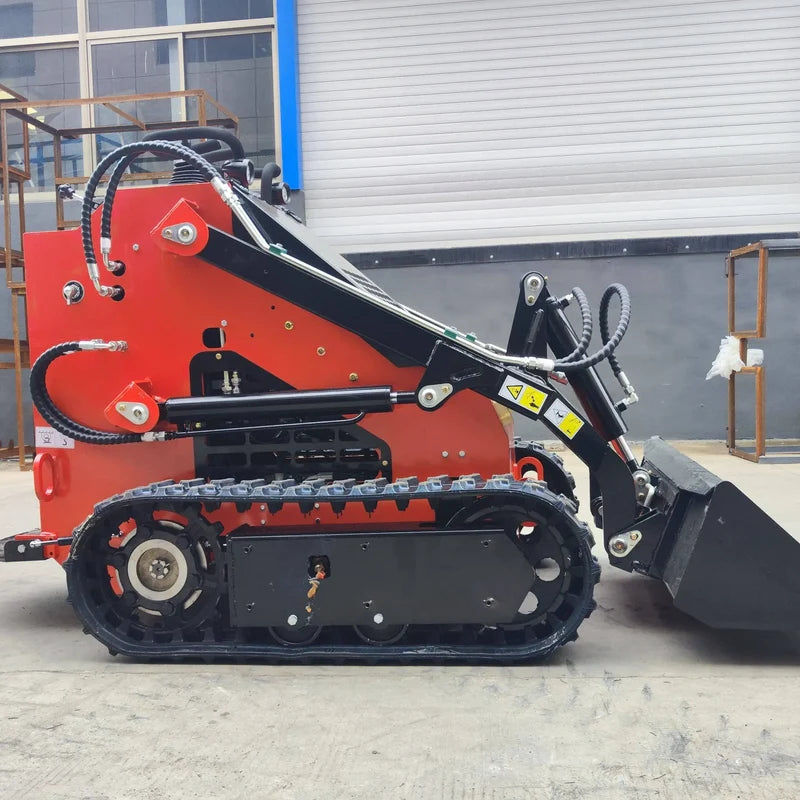

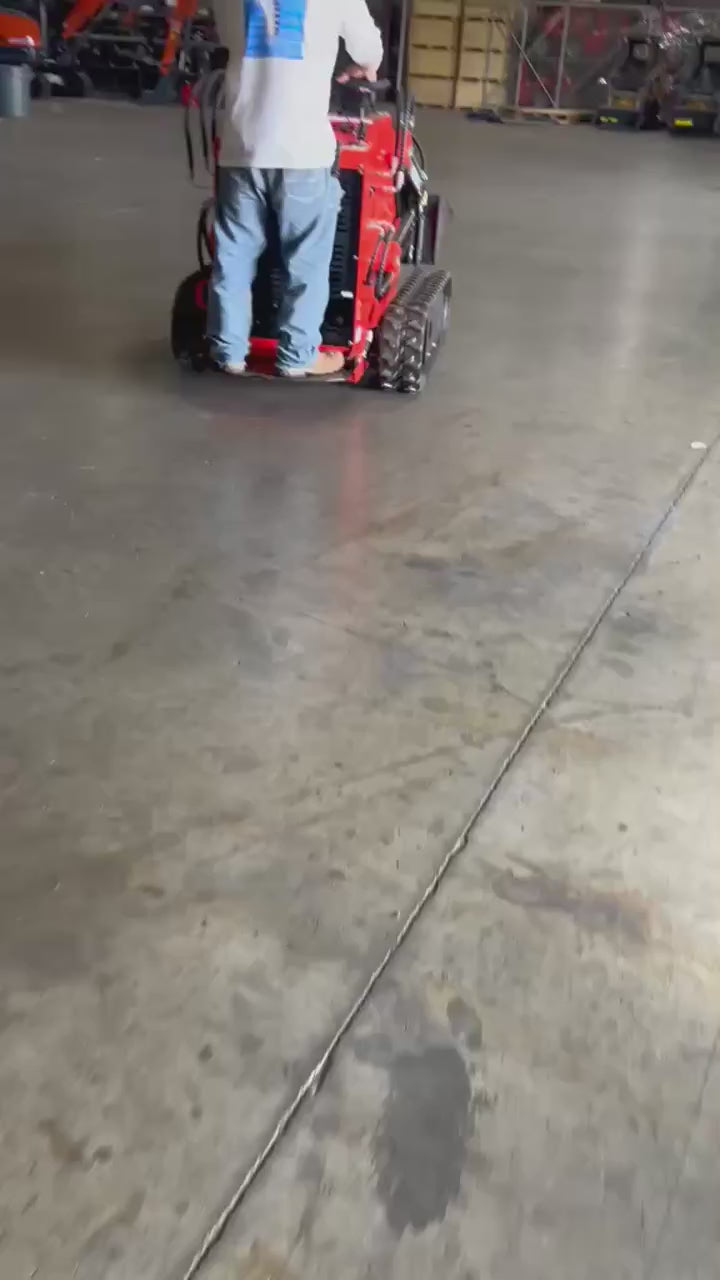

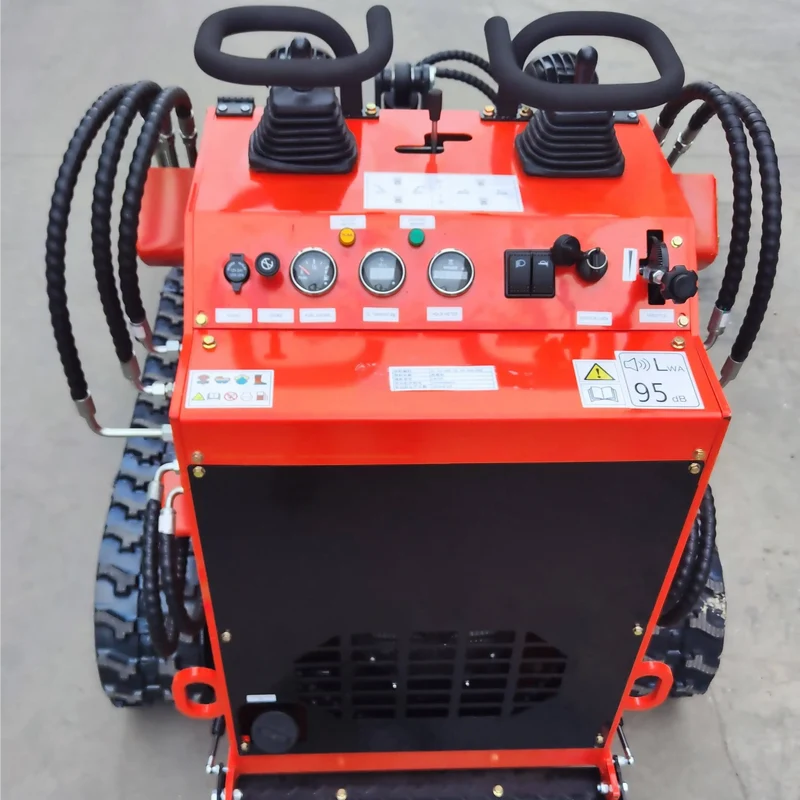

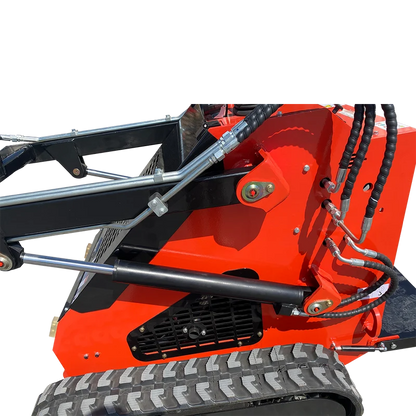

1 Ton Mini Skid Steer Track Loader w/ Rato R740D 23HP Gas Engine, 485 lbs Lifting Capacity | LRT23

TECHNICAL SPECIFICATIONS:

• Equipment Type: Mini Skid Steer Track Loader

• Operating Weight: 880 kg (1,940 lbs / 0.97 Ton)

• Max Lifting Capacity / Force: 220 kg (485 lbs)

• Standard Bucket Capacity: 0.12 m³ (4.24 cu ft)

• Bucket Width: 1,150 mm (45.3 in)

• Travel Speed: 4 km/h (2.5 mph)

• Climbing Ability (Gradeability): 25% (approx. 14°)

DIMENSIONS:

• Overall Length (w/ Bucket): 2,285 mm (90 in)

• Overall Width: 1,090 mm (42.9 in)

• Overall Height: 1,270 mm (50 in)

• Upper Body Width: 810 mm (31.9 in)

• Wheelbase / Track Ground Length: 760 mm (29.9 in)

• Ground Clearance: 110 mm (4.3 in)

• Turning Radius: 1,300 mm (51.2 in)

• Rubber Track Size: 200 * 72 * 32 (7.87 in Width)

WORKING RANGE:

• Max Working Height: 2,100 mm (82.7 in)

• Max Pin Height: 1,800 mm (70.9 in)

• Max Unloading Height: 1,480 mm (58.3 in)

• Dump Reach at Max Unloading Height: 430 mm (16.9 in)

• Bucket Discharge Angle: 30°

ENGINE:

• Engine Brand: Rato

• Model: R740D

• Fuel Type: Gasoline (92#)

• Max Horsepower: 23 HP (16.8 kW) @ 3,600 rpm

• Displacement: 740 cc (739.3 cc)

• Number of Cylinders: 2 (V-Twin Cylinder, Air-Cooled)

• Engine Oil Capacity: 1.6 L (0.42 gal)

• Fuel Tank Capacity: 18 L (4.75 gal)

HYDRAULIC SYSTEM:

• Main Pump Type: Gear Pump

• Main Pump Max Flow Rate: 75.6 L/min (20 GPM)

• Main Pump Rated Pressure: 22 MPa (3,190 PSI)

• Travel Hydraulic Motor: Danfoss Cycloid Motor

• Travel System Rated Pressure: 16 MPa (2,320 PSI)

• Multi-Way Valve: 2-Group Manual Control Valve

• Hydraulic Tank Capacity: 30 L (7.93 gal)

• Tensioning Form: Hydraulic Tensioning

FEATURES & CONFIGURATIONS:

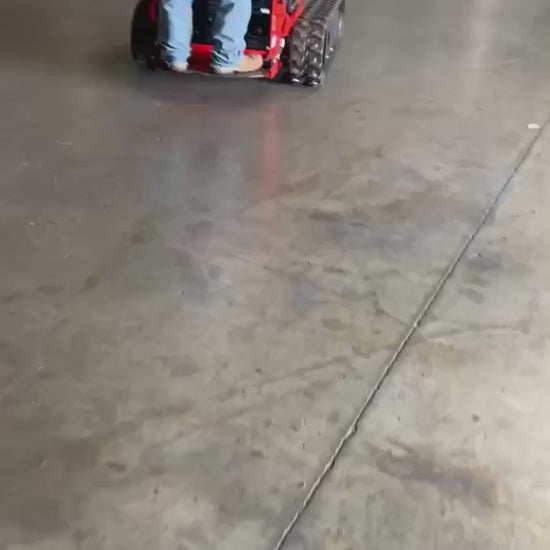

• Stand-On Mini Track Loader

• Danfoss Travel Hydraulic Motors

• 200 mm Heavy-Duty Rubber Tracks

• Hydraulic Track Tensioning System

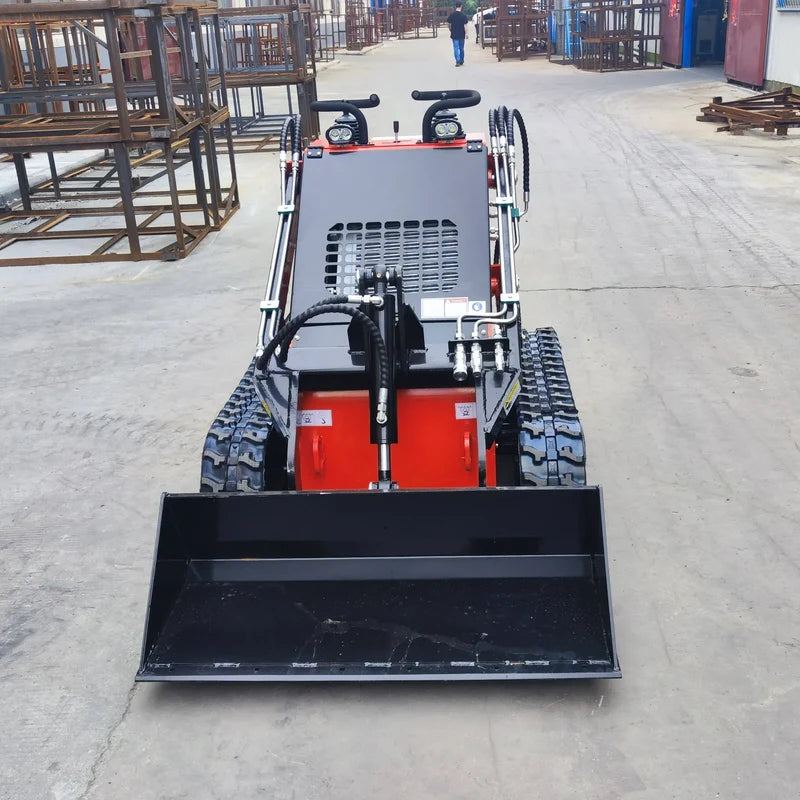

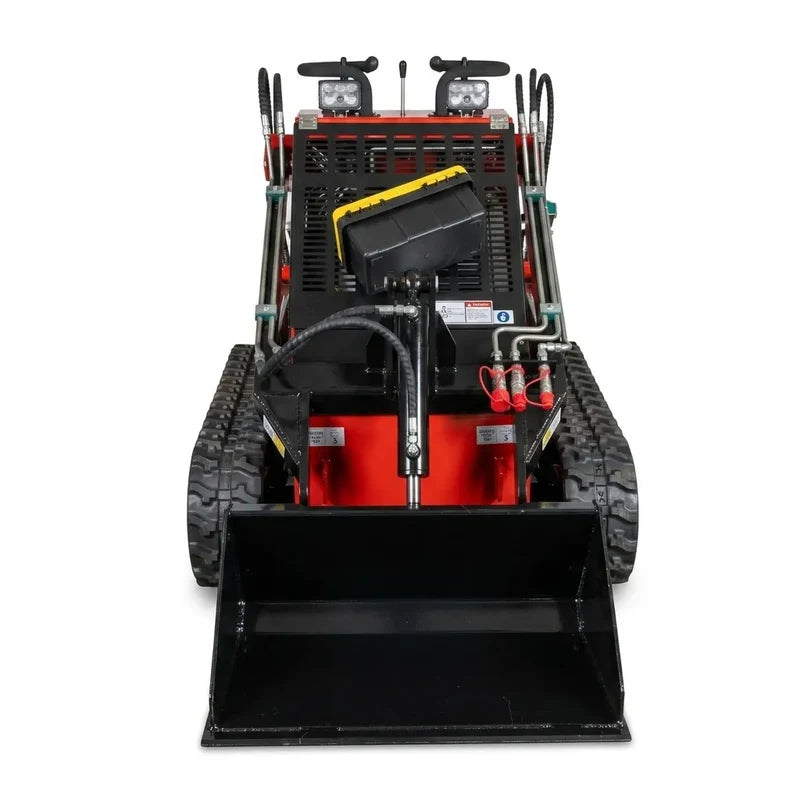

• Standard Quick Attach Compatible Bucket

• Handrail Operating Guard
