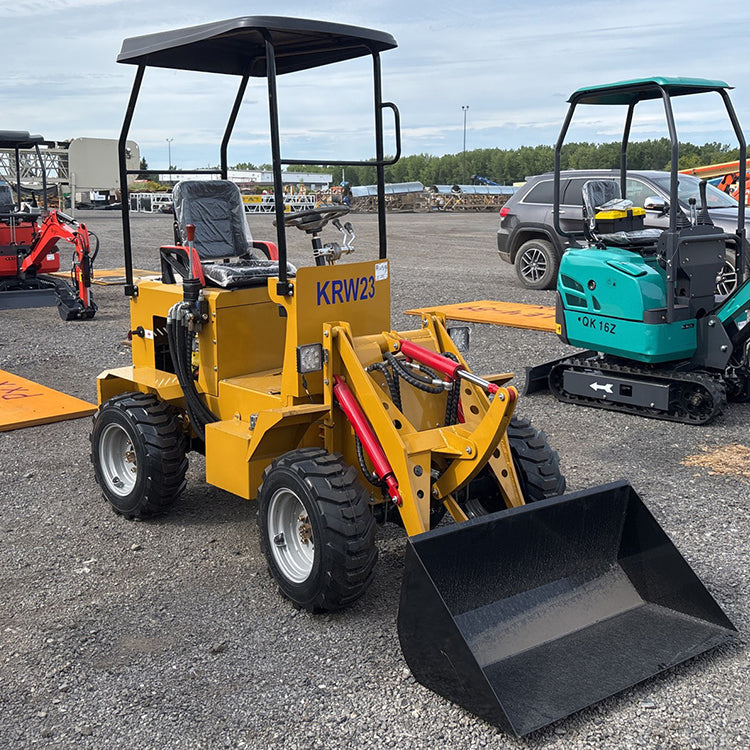

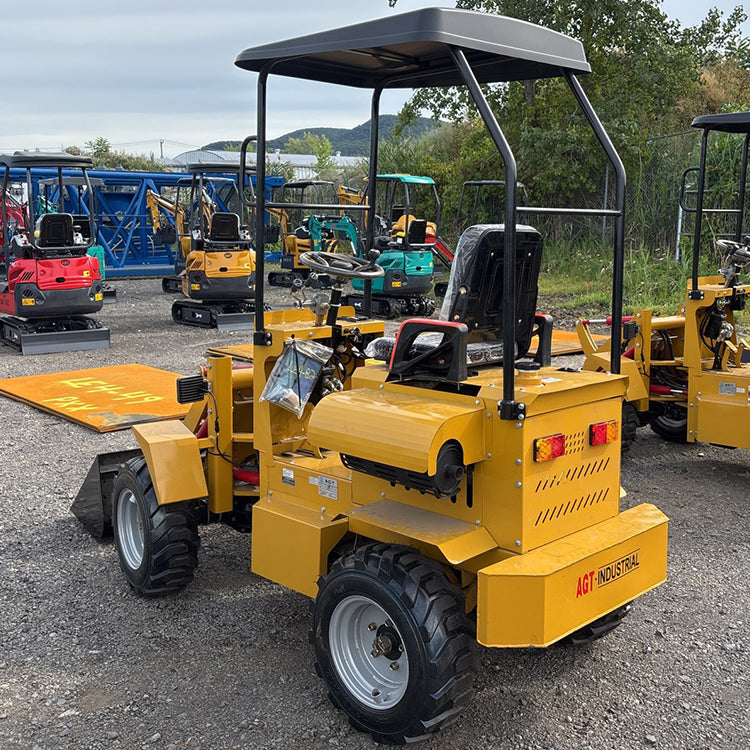

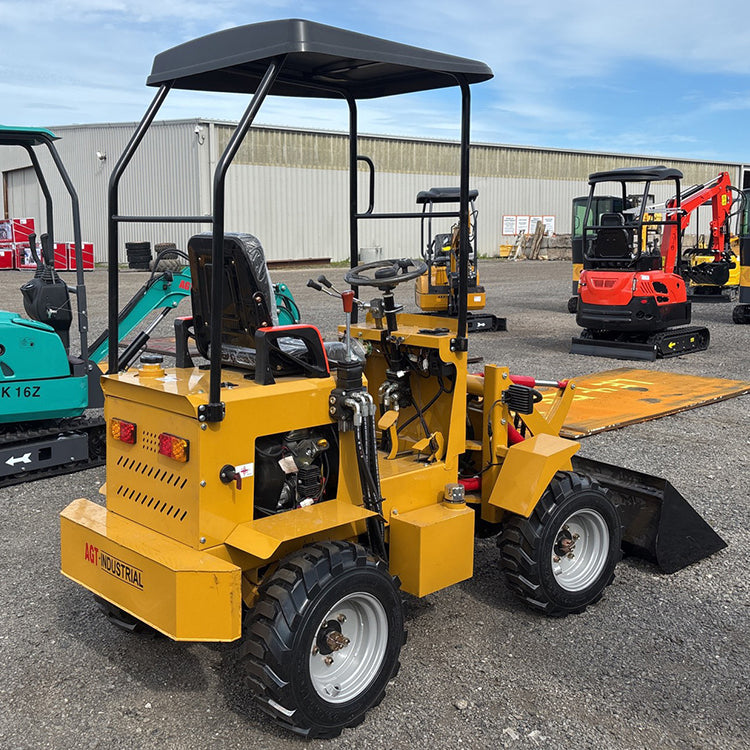

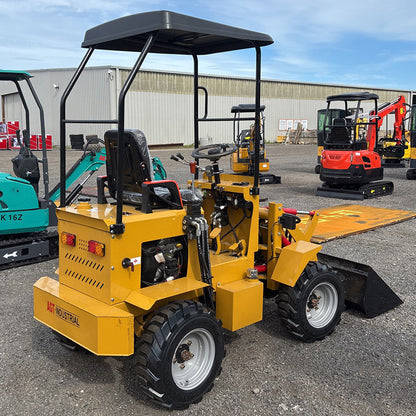

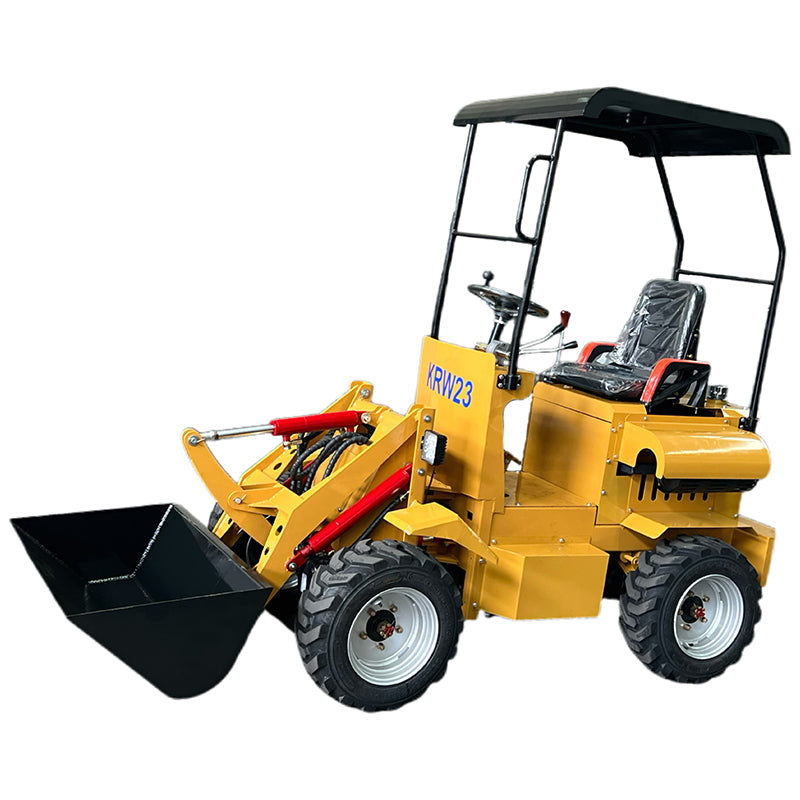

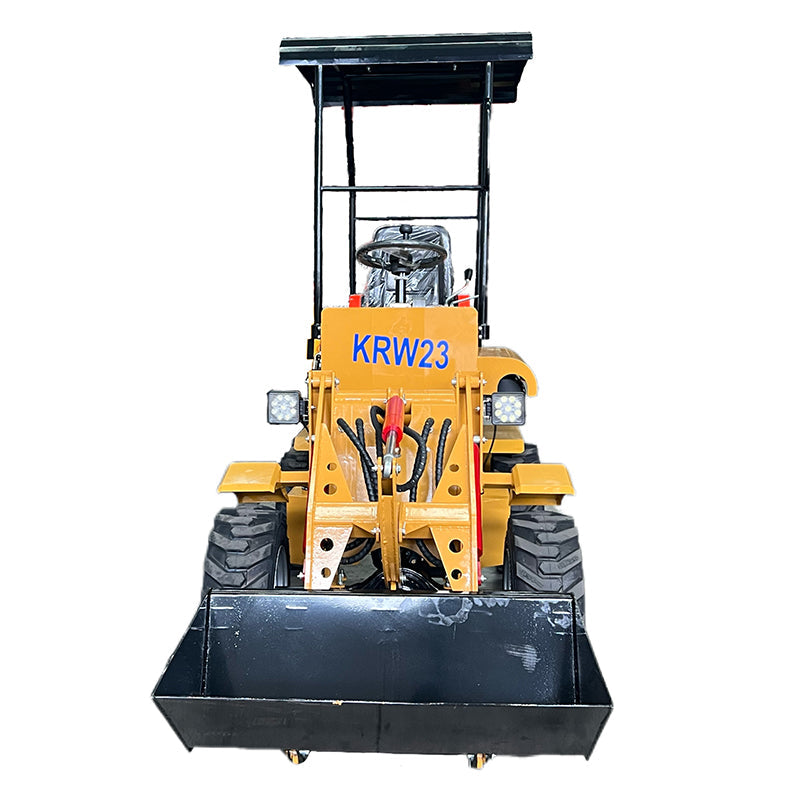

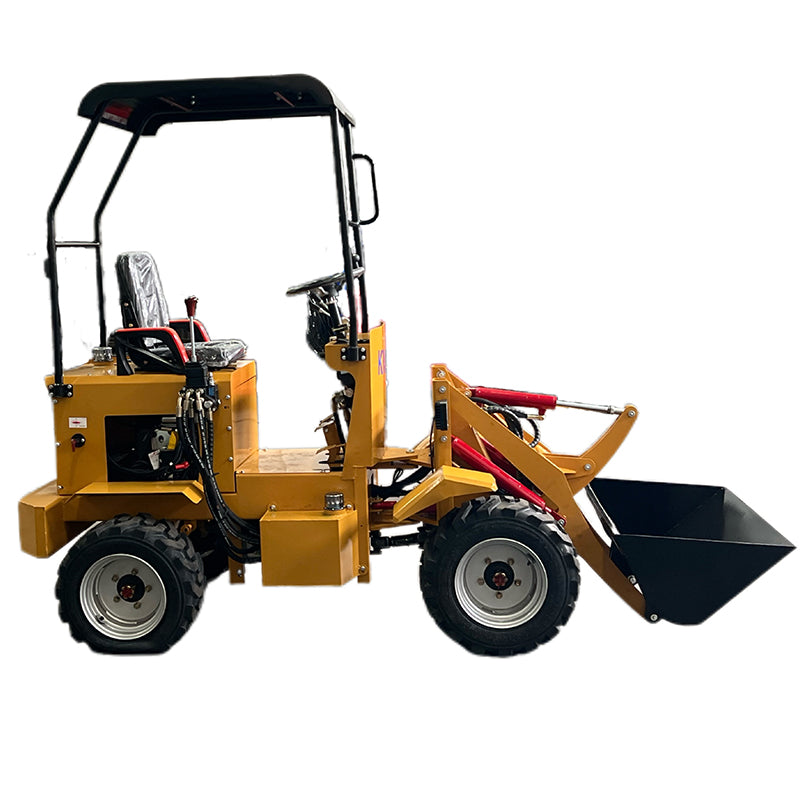

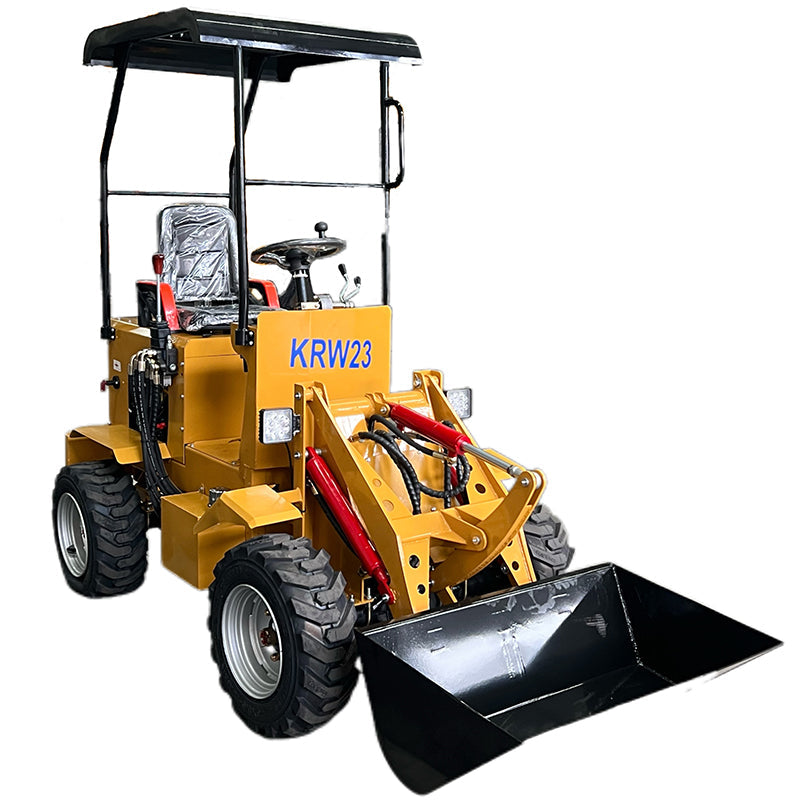

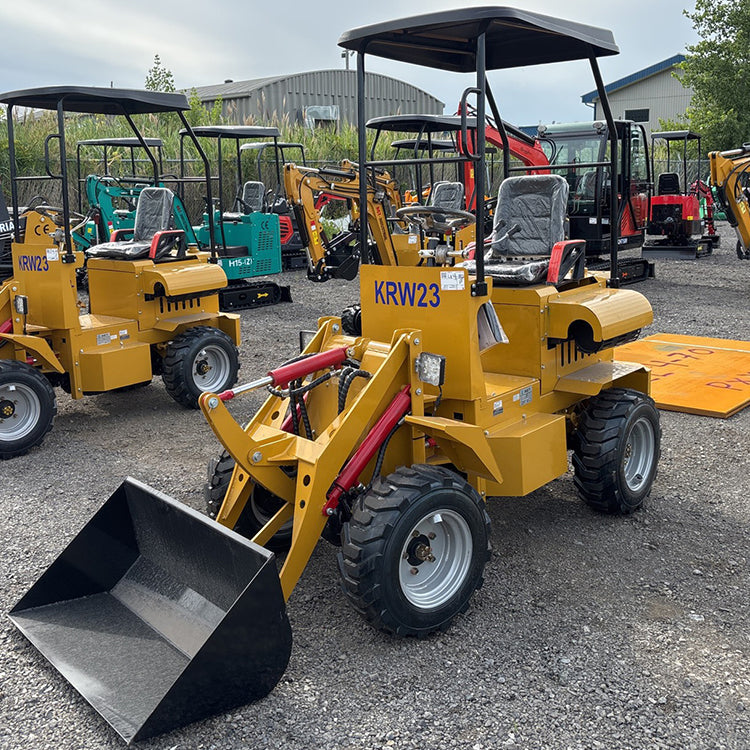

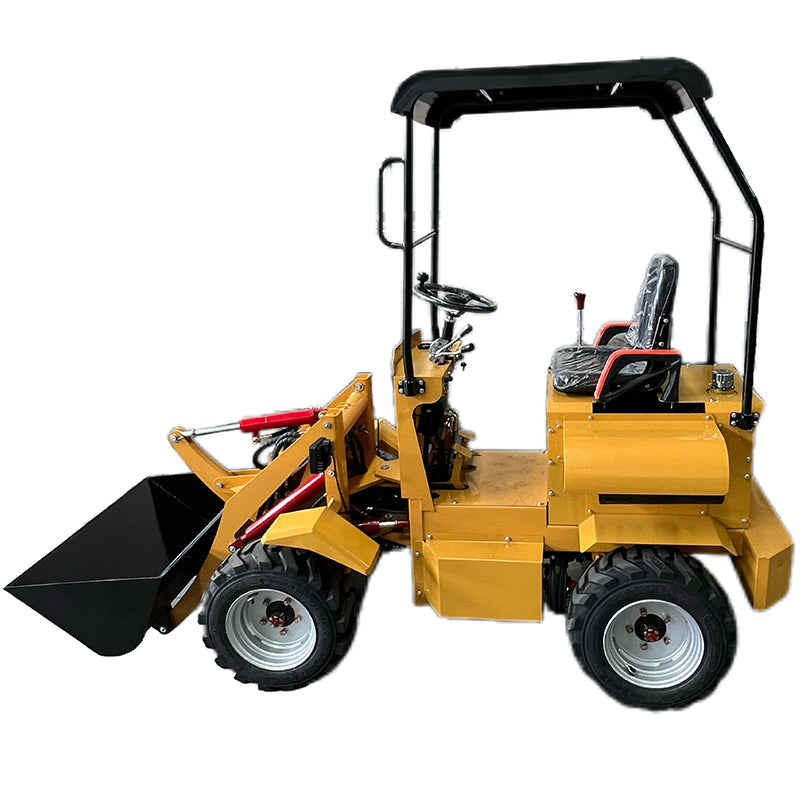

0.8 Ton Mini Wheeled Skid Steer Loader w/ R740D 24HP Gas Engine | KRW23

With a maximum lifting force of 300 kg and a working height of 2300 mm, it efficiently handles small to medium lifting tasks, meeting the needs of light construction, logistics, and other scenarios.

Boasting a traveling speed of 10-15 km/h, it saves time on position adjustment. Its compact size (2900 × 1100 × 2000 mm) and 1400 mm wheelbase allow for flexible operation even in narrow spaces.

Equipped with a 24 HP Rato engine, it operates stably. The air-cooled design simplifies maintenance; using 92# gasoline with a fuel consumption of 5 L/h, it effectively reduces operating costs.

The bucket has a capacity of 0.25 m³, matching its power performance. The 1000 mm width combined with a 90° discharge angle greatly improves loading and unloading efficiency.

Featuring a gear pump (20 L/min flow rate), it enables smooth and precise operation, enhancing working comfort while reducing safety risks.

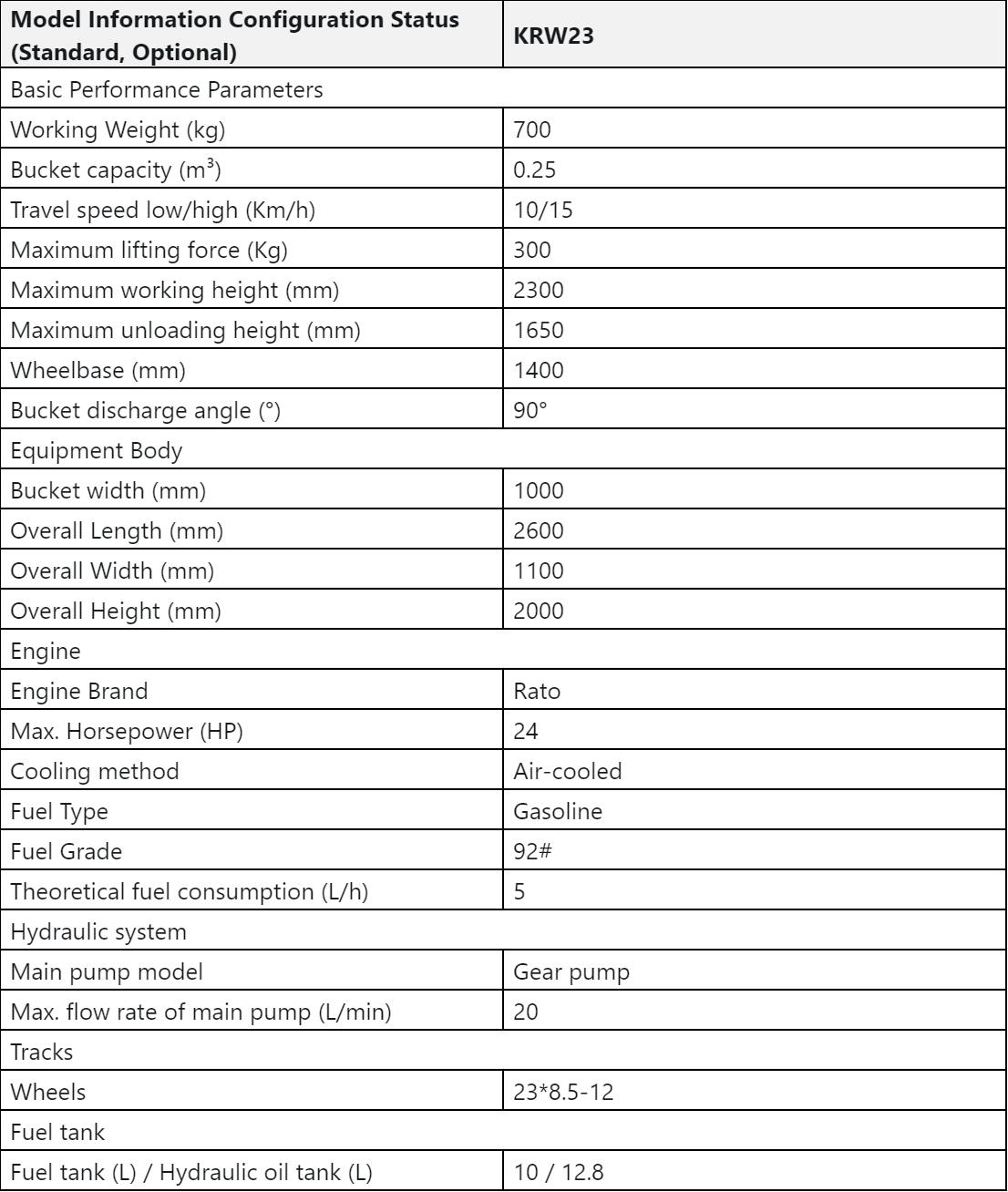

TECHNICAL SPECIFICATIONS:

• Equipment Type: Mini Wheeled Skid Steer Loader

• Working Weight: 700 kg (1,543 lbs)

• Max Lifting Capacity / Force: 300 kg (661 lbs)

• Standard Bucket Capacity: 0.25 m³ (8.83 cu ft)

• Bucket Width: 1,000 mm (39.4 in / approx. 40 in)

• Travel Speed (Low / High): 10 / 15 km/h (6.2 / 9.3 mph)

• Climbing Ability: 30% (approx. 16.7°)

DIMENSION:

• Overall Length: 2,900 mm (114.2 in)

• Overall Width: 1,100 mm (43.3 in)

• Overall Height: 2,200 mm (86.6 in)

• Body Width: 900 mm (35.4 in)

• Wheelbase: 1,400 mm (55.1 in)

• Ground Clearance: 200 mm (7.9 in)

• Turning Radius: 2,700 mm (106.3 in)

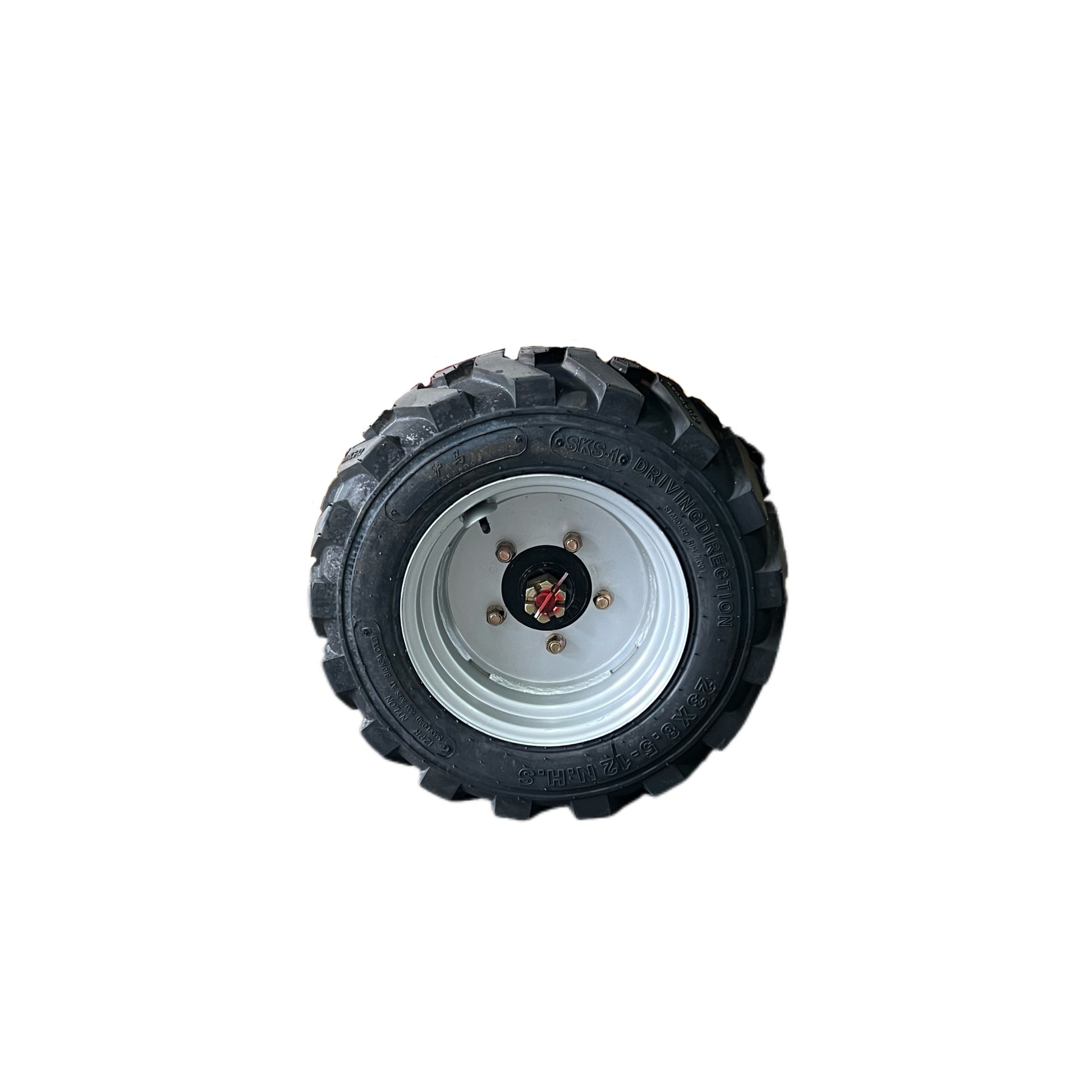

• Wheel / Tire Specification: 23*8.5-12NHS

WORKING RANGE:

• Max Working Height: 2,300 mm (90.6 in)

• Max Pin Height: 2,010 mm (79.1 in)

• Max Unloading Height: 1,650 mm (65 in)

• Loading Distance at Max Unloading Height: 600 mm (23.6 in)

• Bucket Discharge Angle: 90°

ENGINE:

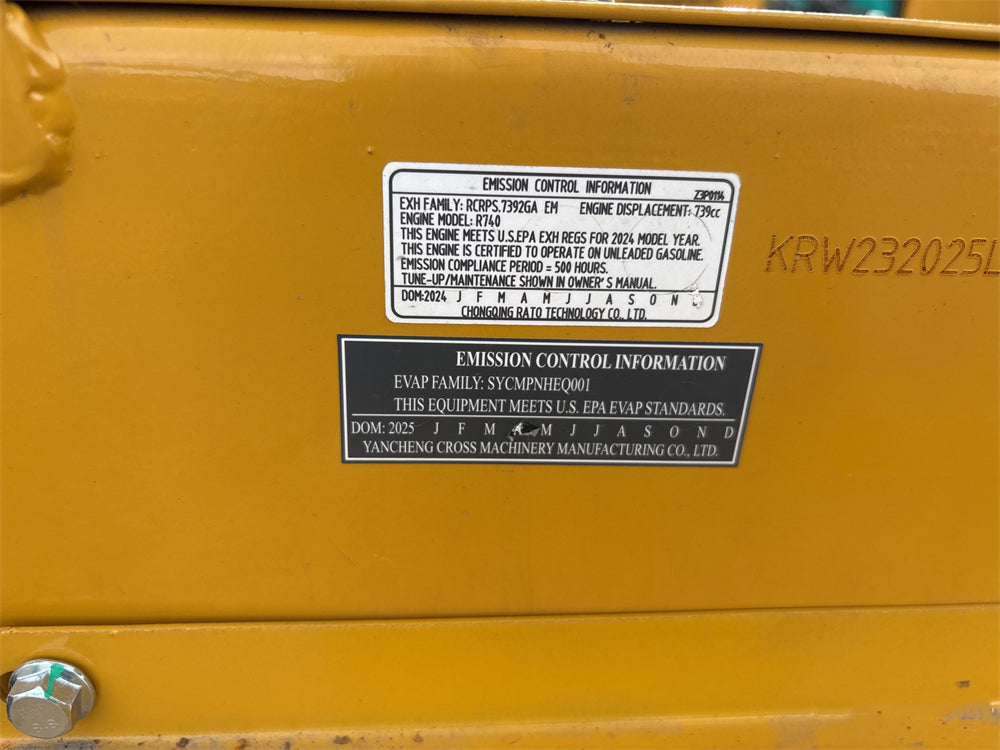

• Engine Brand: Rato

• Model: R740D

• Displacement: 740 cc

• Fuel Type: Gasoline (92#)

• Max Horsepower: 24 HP (17.9 kW) @ 3,600 rpm

• Number of Cylinders: 2 (Twin-Cylinder)

• Cooling Method: Air Cooled

• Engine Oil Capacity: 1.6 L (0.42 gal)

• Fuel Tank Capacity: 9–10 L (2.38–2.64 gal)

• Theoretical Fuel Consumption: 5 L/hr

HYDRAULIC SYSTEM:

• Main Pump Type: Gear Pump

• Main Pump Max Flow Rate: 20 L/min (5.3 GPM)

• Main Pump Rated System Pressure: 20 MPa (2,900 PSI)

• Travel Motor Set Pressure: 16 MPa (2,320 PSI)

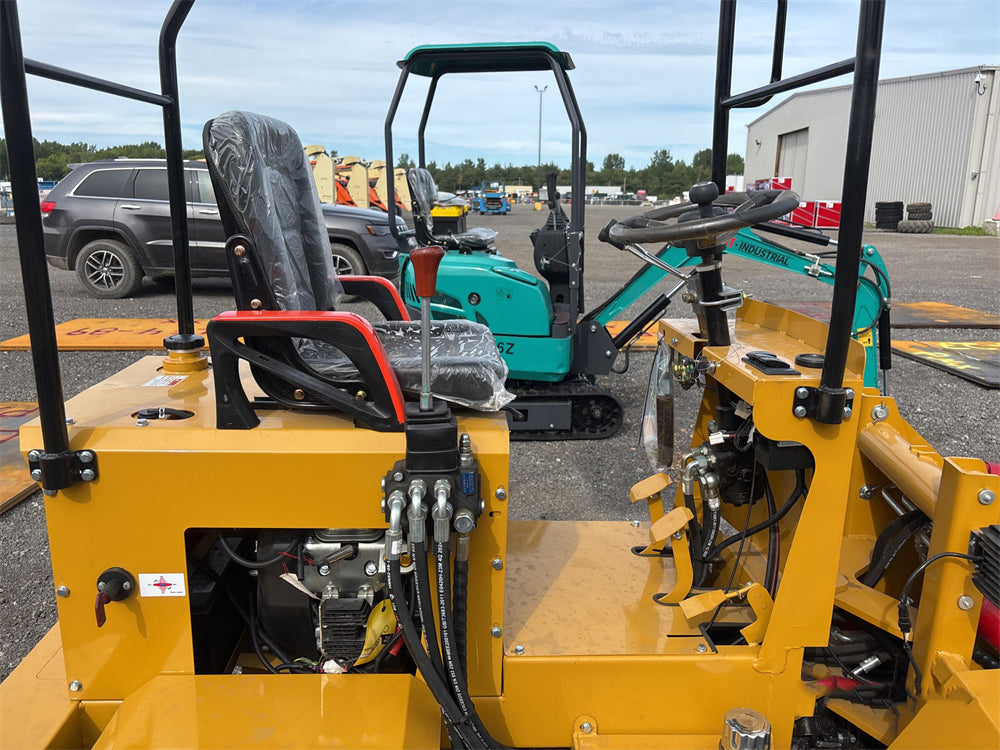

• Multi-Way Valve: 2-Way Manual Control Valve

• Hydraulic Oil Tank Capacity: 12.8 L (3.38 gal)

FEATURES & CONFIGURATIONS:

• Compact Wheel Loader Chassis

• 2-Spool Manual Control Valves

• Heavy-Duty ROPS Canopy Frame

• 23*8.5-12NHS Pneumatic Tires

• Standard Quick Attach Compatible Bucket
