0.8 Ton Mini Stand-On Tracked Skid Steer Loader w/ Rato R740D 23HP Engine | MX-CRT23

Manual

Exploded View Parts List

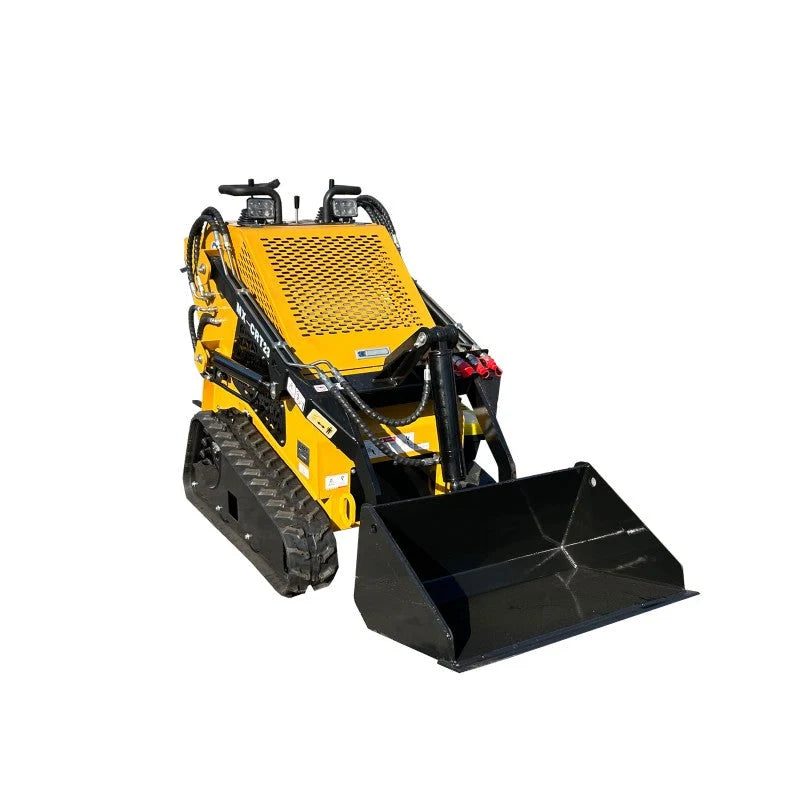

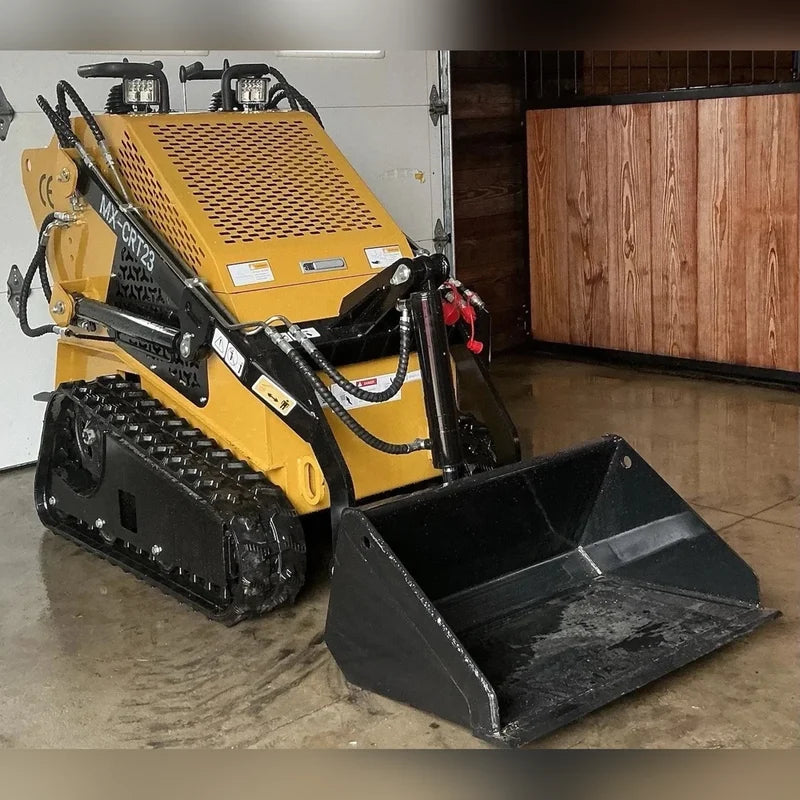

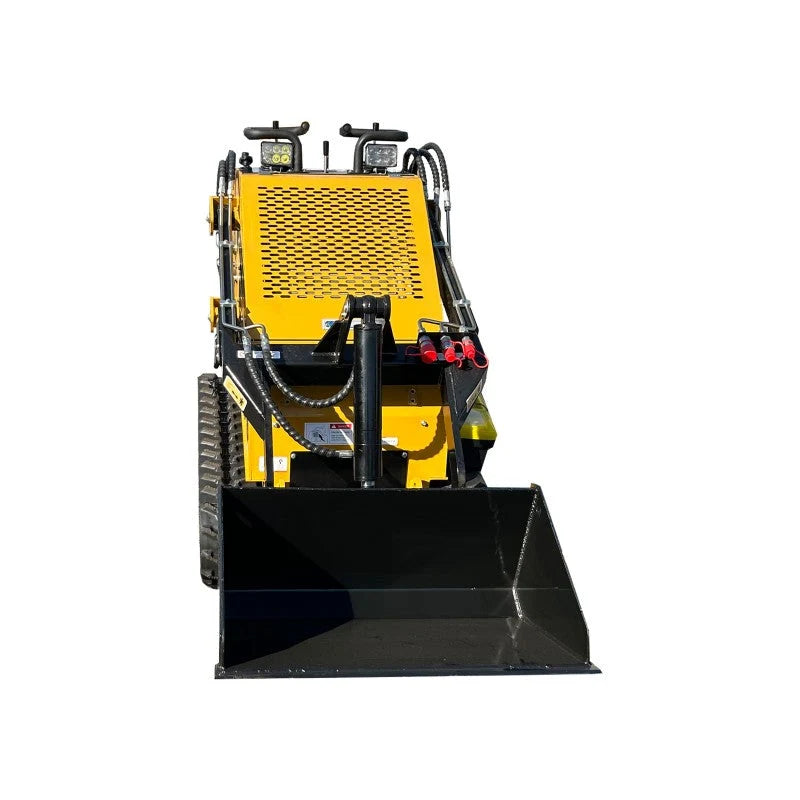

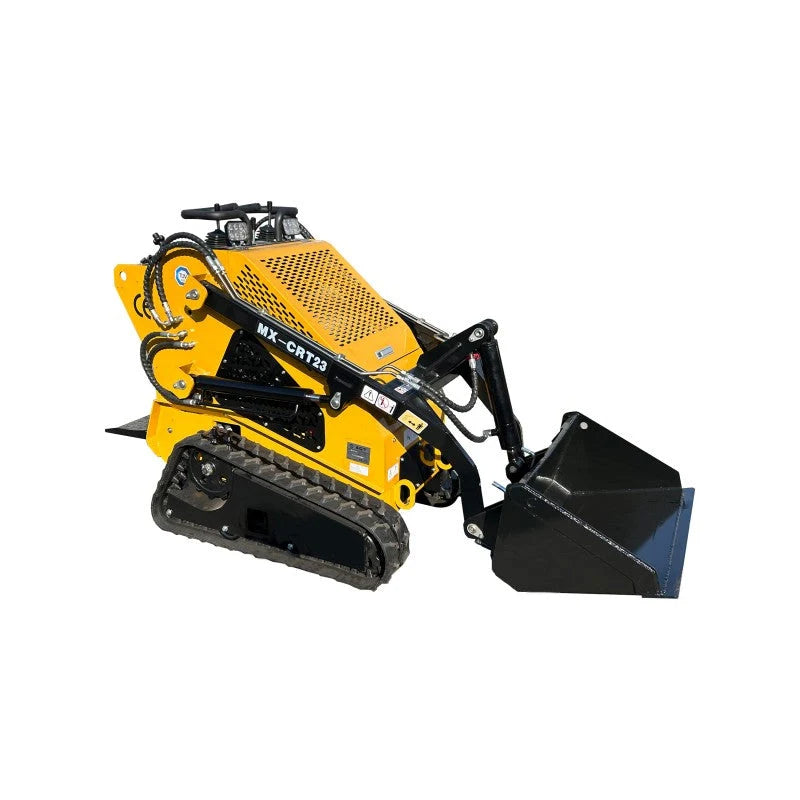

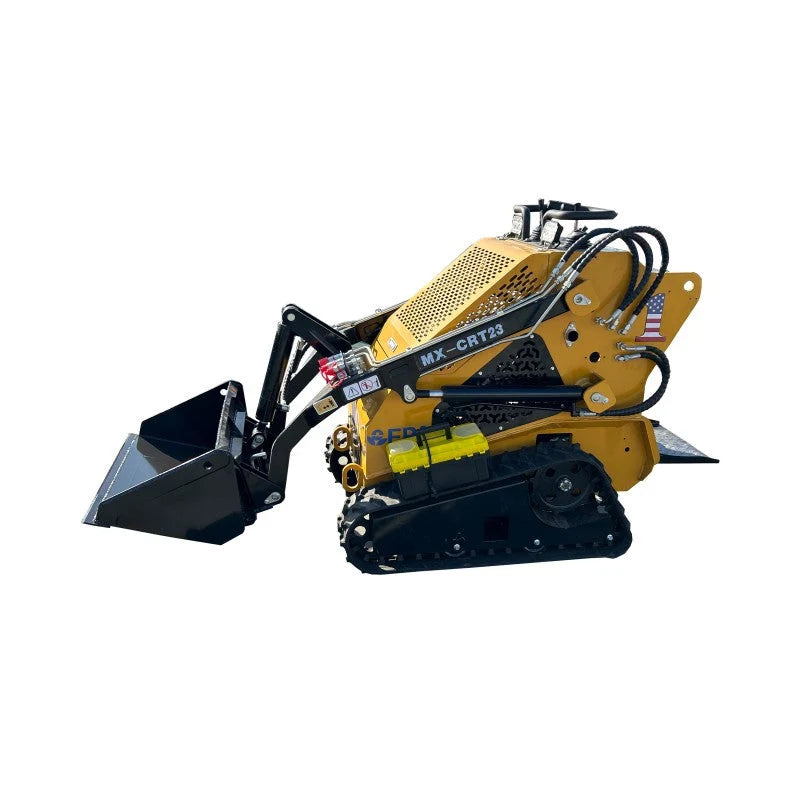

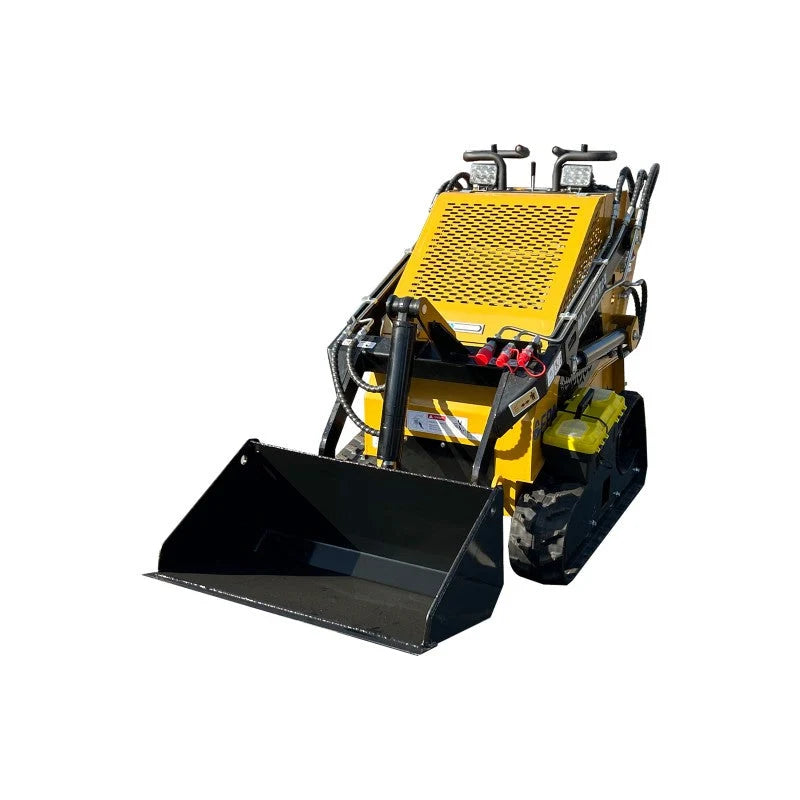

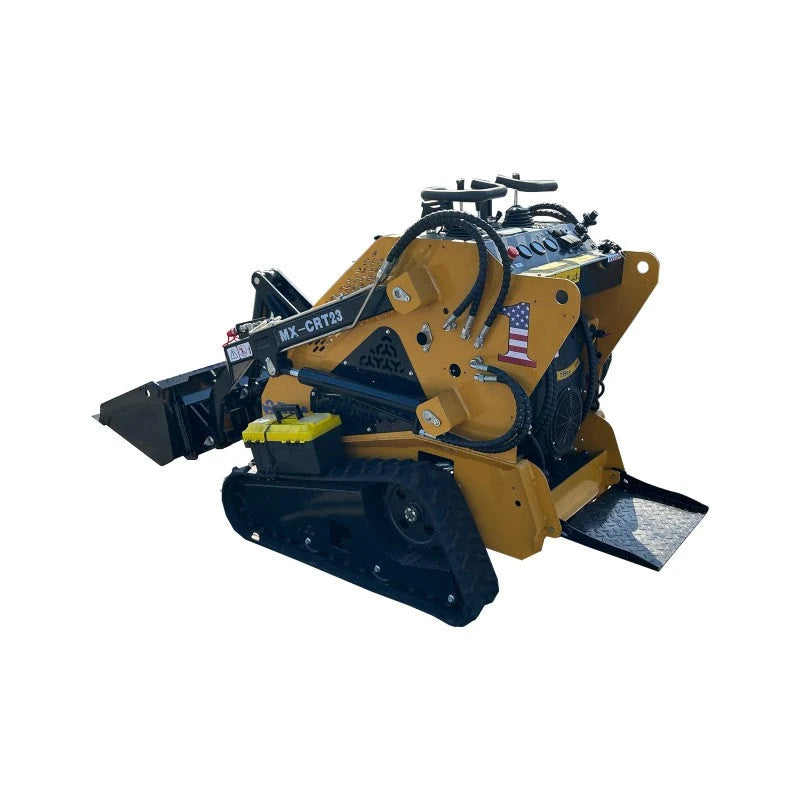

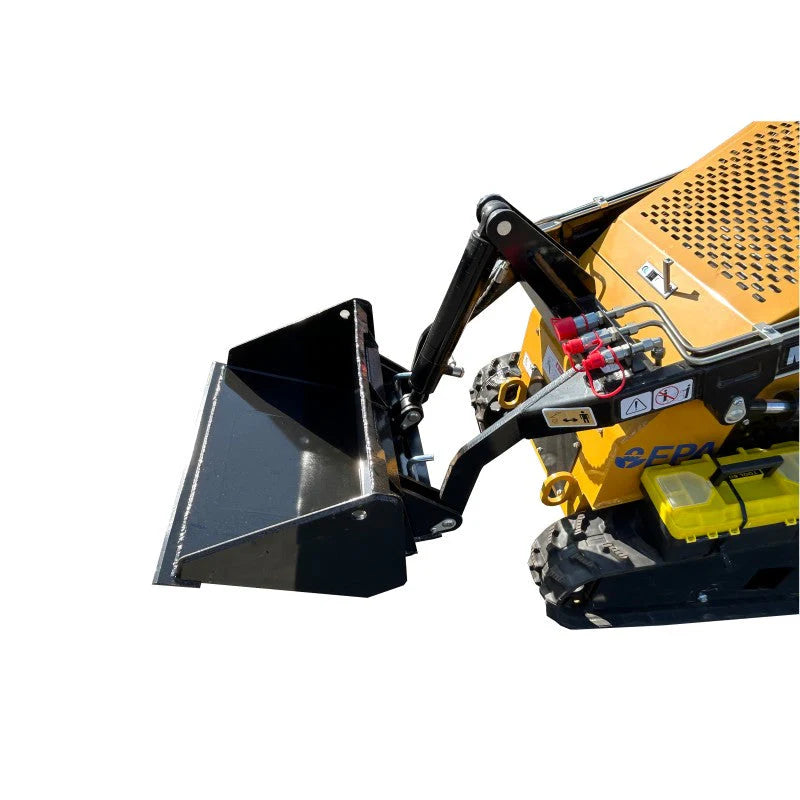

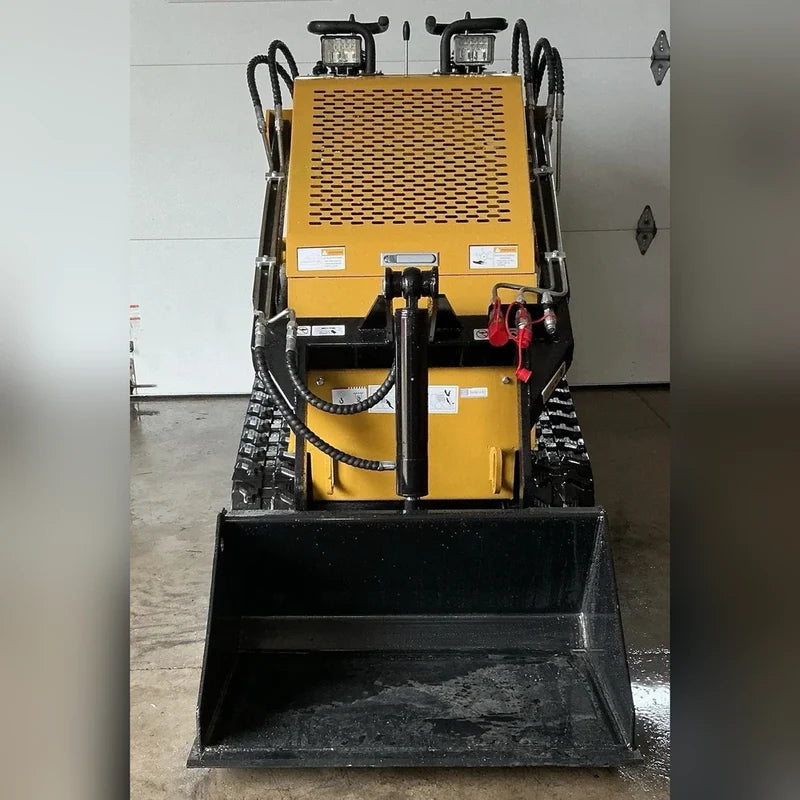

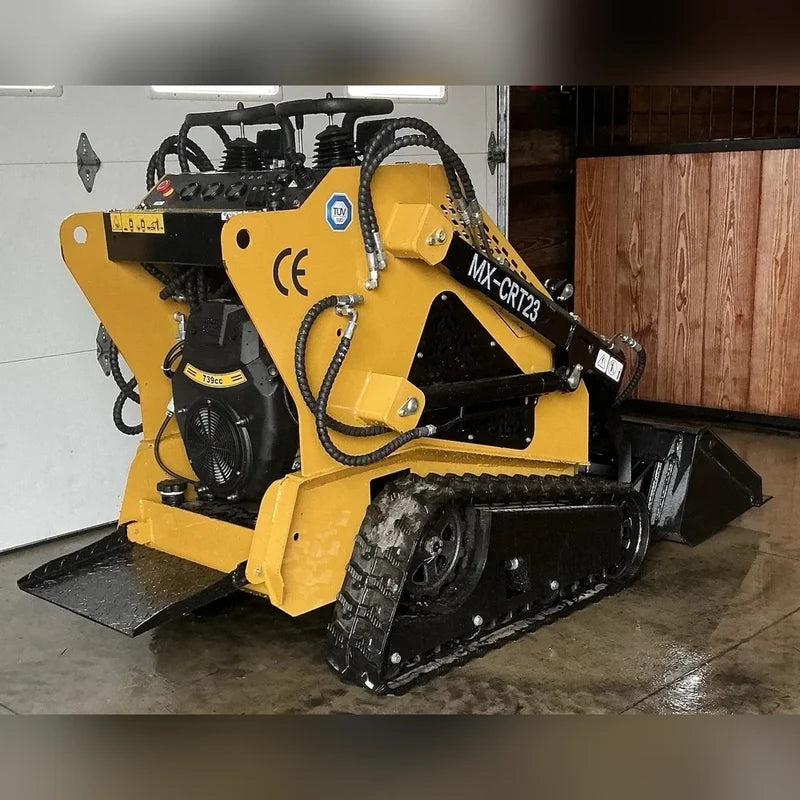

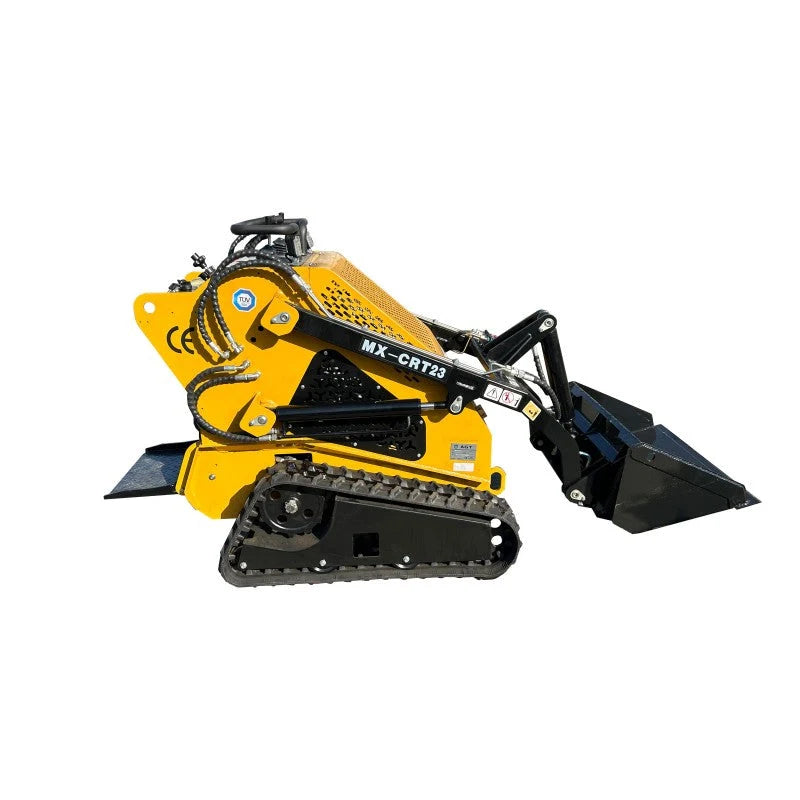

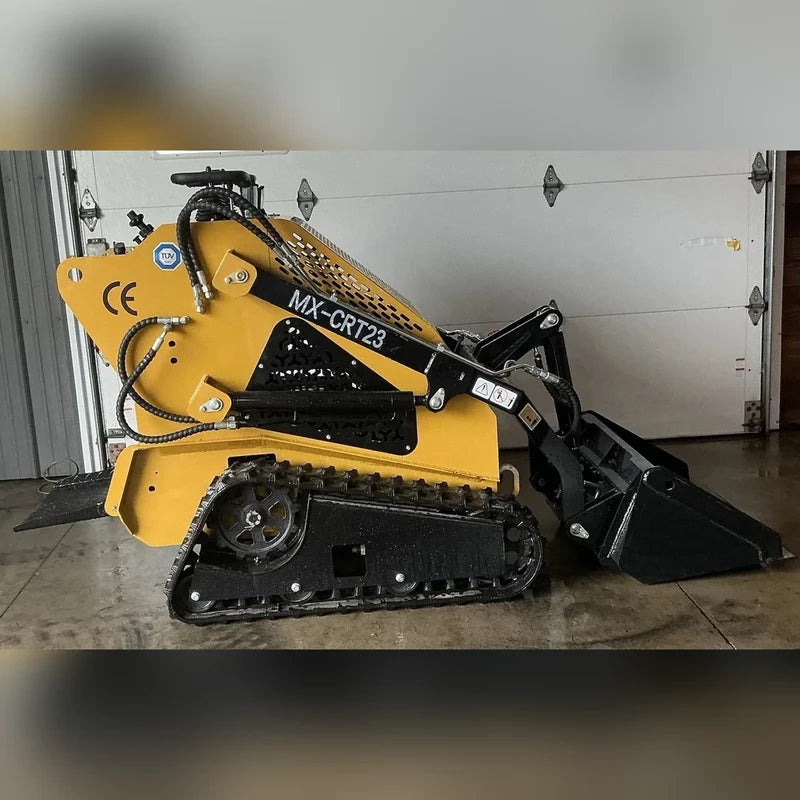

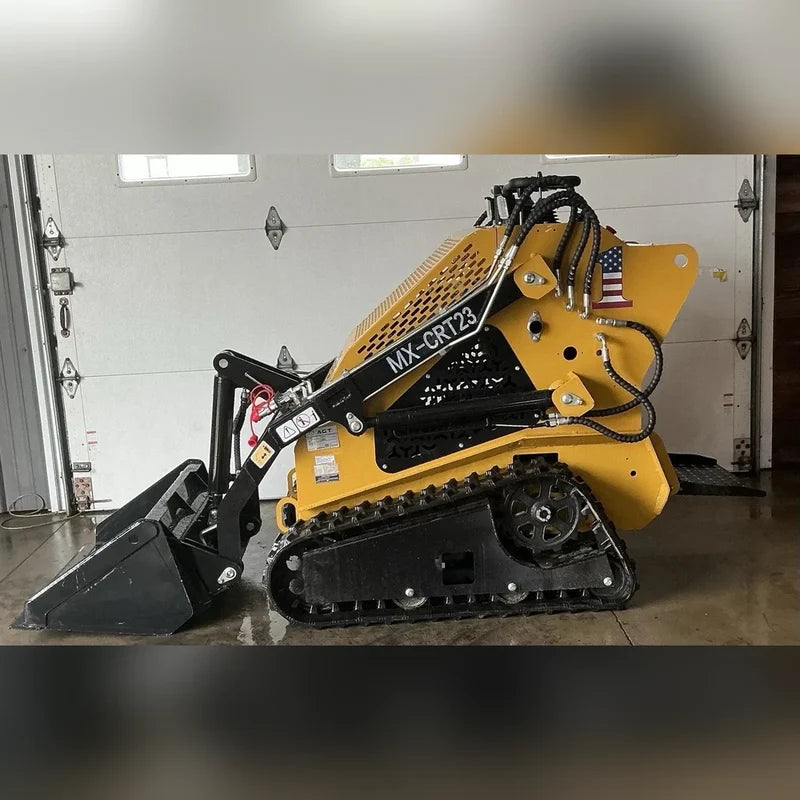

The AGT MX-CRT23 Mini Stand-On Tracked Skid Steer Loader combines heavy-duty performance with an ultra-compact footprint, making it the perfect equipment for light-duty material handling, landscaping, and tight-access job sites.

Powered by a high-torque RATO R740D 23HP (17 kW, 740cc) 2-cylinder air-cooled gasoline engine, this loader delivers impressive hydraulic capacity with a 43.2 L/min (11.4 GPM) main pump flow. Designed with a narrow 31.9-inch body width, 180mm rubber crawler tracks, and a 23° bucket discharge angle, the MX-CRT23 easily maneuvers through narrow gates and doorways while comfortably handling lift capacities up to 441 lbs.

TECHNICAL SPECIFICATIONS:

• Equipment Type: Mini Stand-On Tracked Skid Steer Loader

• Model: MX-CRT23

• Operating Weight: 780 kg (1,720 lbs / 0.8 Ton Class)

• Rated Operating Capacity (Max Lifting Force): 200 kg (441 lbs)

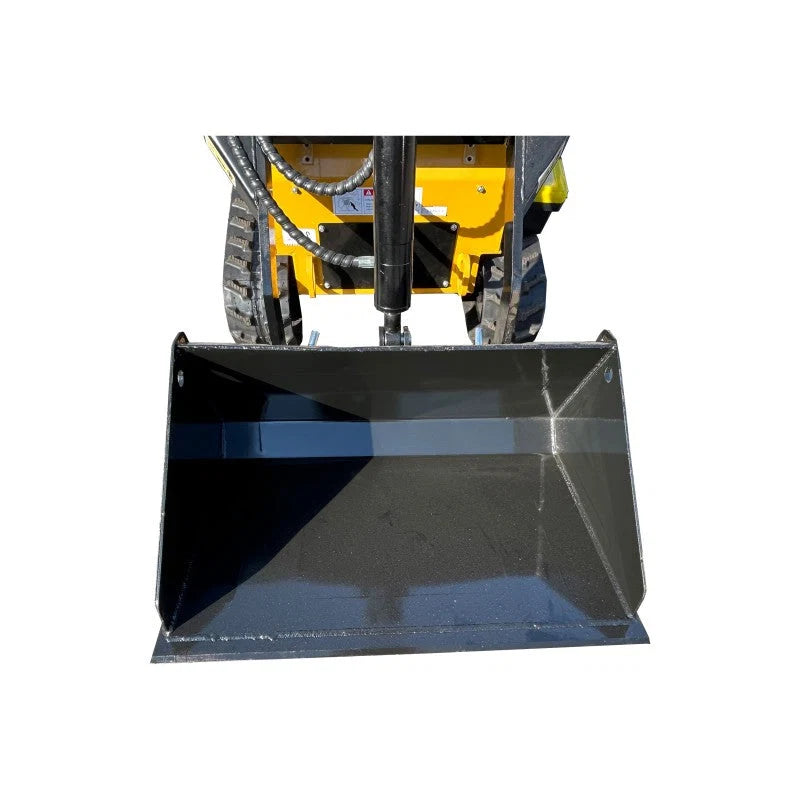

• Bucket Capacity: 0.1 m³ (3.53 cu ft)

• Travel Speed: Up to 4 km/h (2.49 mph)

• Max Gradeability: 30% (approx. 16.7°)

DIMENSIONS & WORKING RANGE:

• Overall Length (J/K): 2,432 mm (95.7 in)

• Overall Width (N): 904 mm (35.6 in)

• Body Width (O): 810 mm (31.9 in)

• Overall Height (D): 1,364 mm (53.7 in)

• Bucket Width (E): 1,120 mm (44.1 in)

• Wheelbase / Track Base (H): 905 mm (35.6 in)

• Ground Clearance (F): 163 mm (6.42 in)

• Max Working Height (C): 2,285 mm (89.96 in)

• Max Pin Height (B): 1,967 mm (77.4 in)

• Max Unloading Height (A): 1,575 mm (62.01 in)

• Reach at Max Unloading Height (G): 661 mm (26.0 in)

• Turning Radius (M): 1,493 mm (58.8 in)

• Bucket Discharge Angle (L): 23°

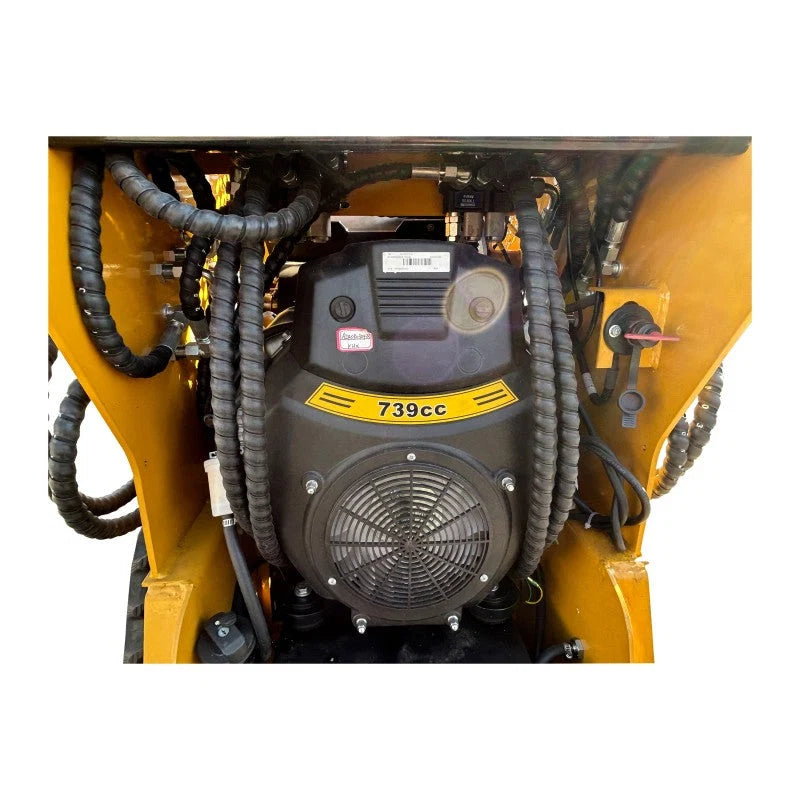

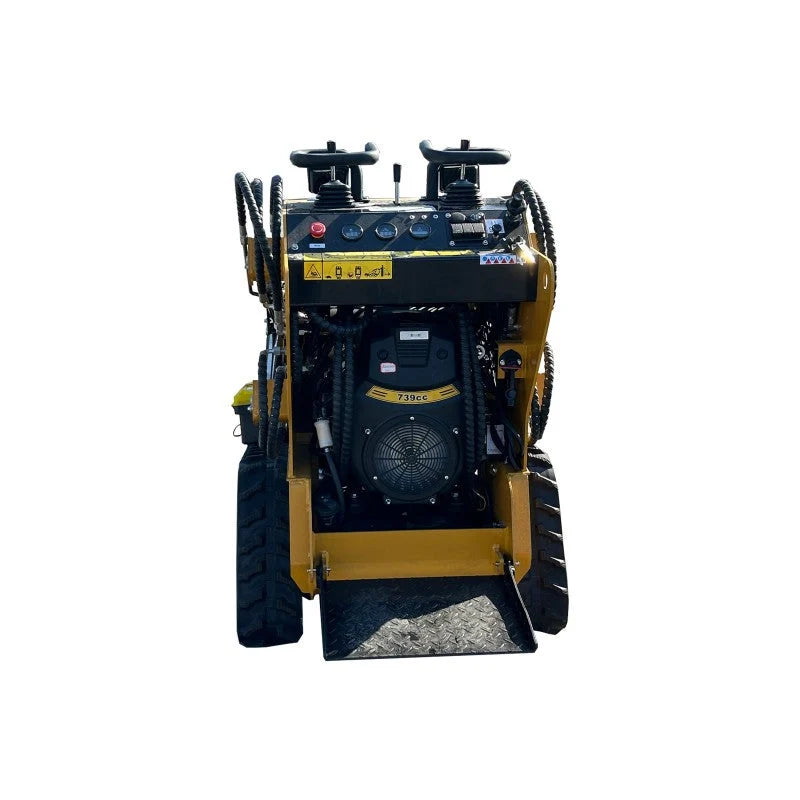

ENGINE:

• Engine Brand: RATO

• Engine Model: R740D

• Fuel Type: Gasoline (92# Unleaded)

• Max Power: 17 kW (23 HP) @ 3,600 rpm

• Displacement: 740 cc

• Number of Cylinders: 2 (V-Twin, Air Cooled / Fan Cooled)

• Engine Oil Capacity: 1.6 L (0.42 gal)

• Fuel Tank Capacity: 6.6 L (1.74 gal)

HYDRAULIC SYSTEM:

• Main Pump Brand / Type: Dual Gear Pump (6+6)

• Main Pump Max Flow Rate: 43.2 L/min (11.4 GPM)

• Rated System Pressure: 16–22 MPa (2,320–3,190 PSI)

• Multi-Way Valve: 2+3 Spool Mechanical Valve

• Travel Hydraulic Motor: BMER-350 Cycloid Motor

• Motor Displacement: 350 cc

• Hydraulic Tank Capacity: 33 L (8.72 gal)

TRACKS & UNDERCARRIAGE:

• Track Type: Heavy-Duty Rubber Crawler Tracks

• Track Dimension (Width x Pitch x Links): 180 x 72 x 37 mm

• Track Tensioning Method: Mechanical Tensioning

KEY FEATURES:

• High-Performance RATO R740D 23HP Twin-Cylinder Gasoline Engine

• Ultra-Narrow 31.9" Body Width to Pass Through Standard Gate Openings

• German-Style High-Flow Hydraulic Pump System (43.2 L/min)

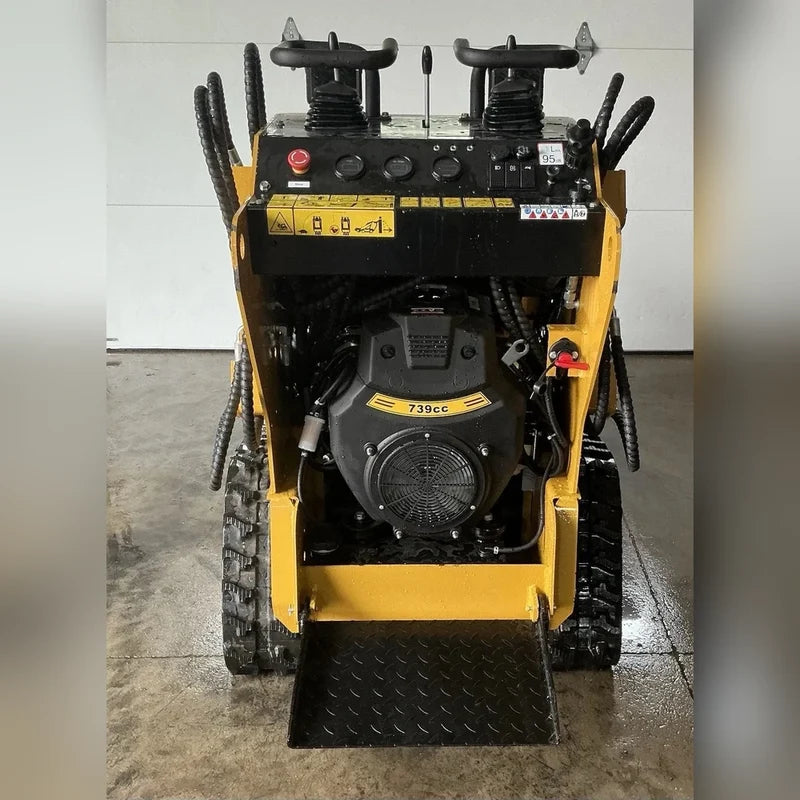

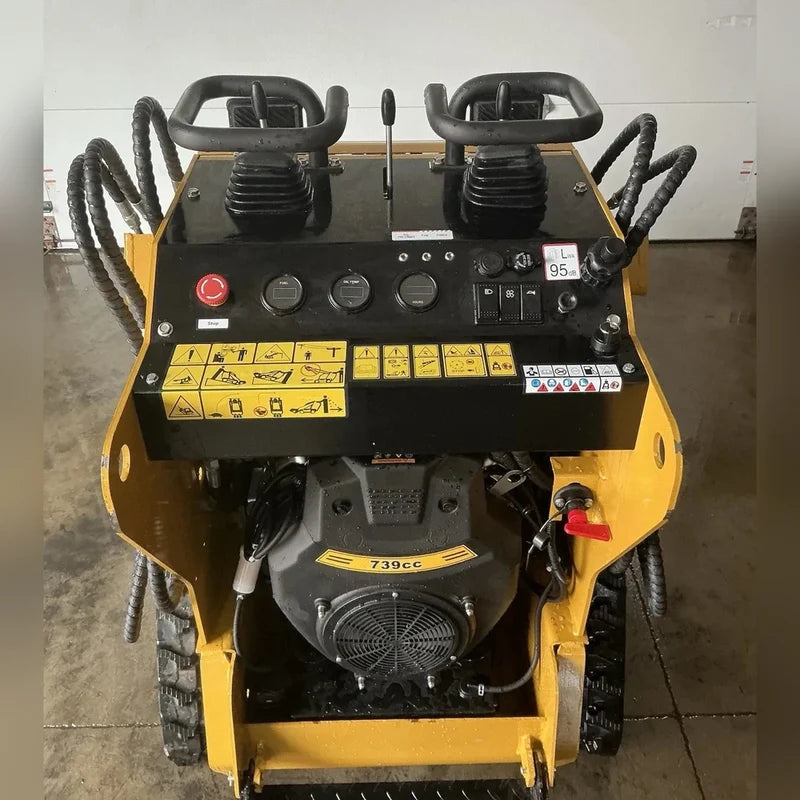

• Comfortable Stand-On Platform with Cushion Pad & Legroom Space

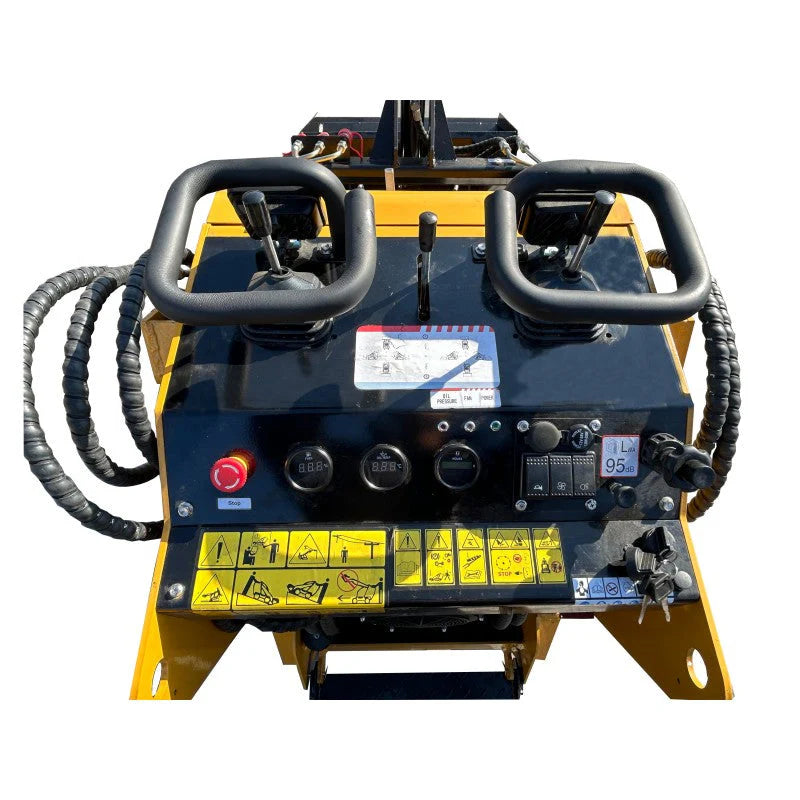

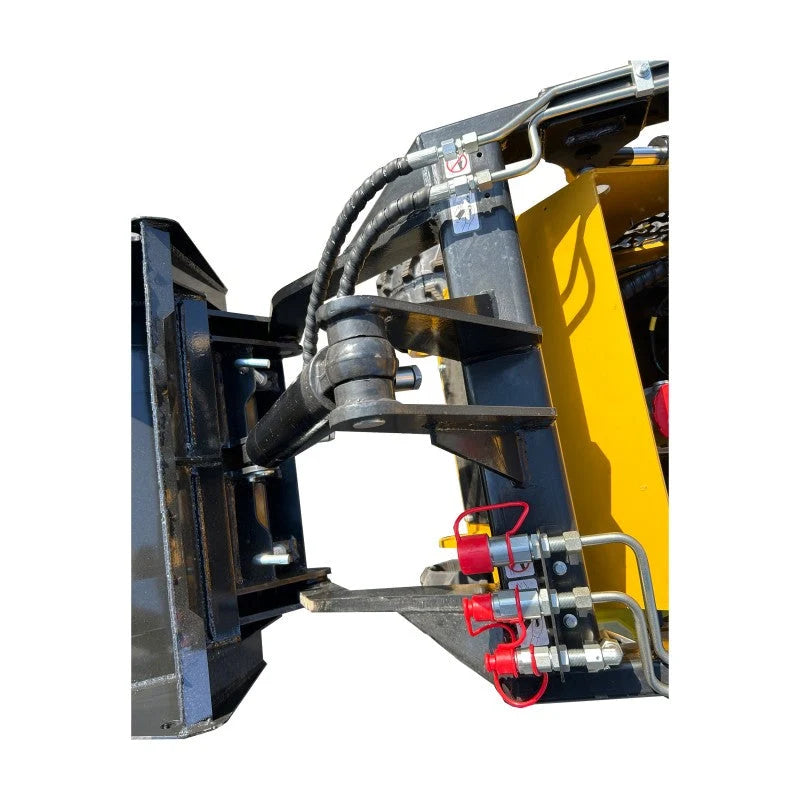

• Hydraulic Pilot-Operated Controls & Auxiliary Quick-Connect Tool Joints

• Heavy-Duty 180mm Rubber Crawler Tracks for Superior Traction & Stability

• TLED Work Headlights for Enhanced Nighttime Operation
