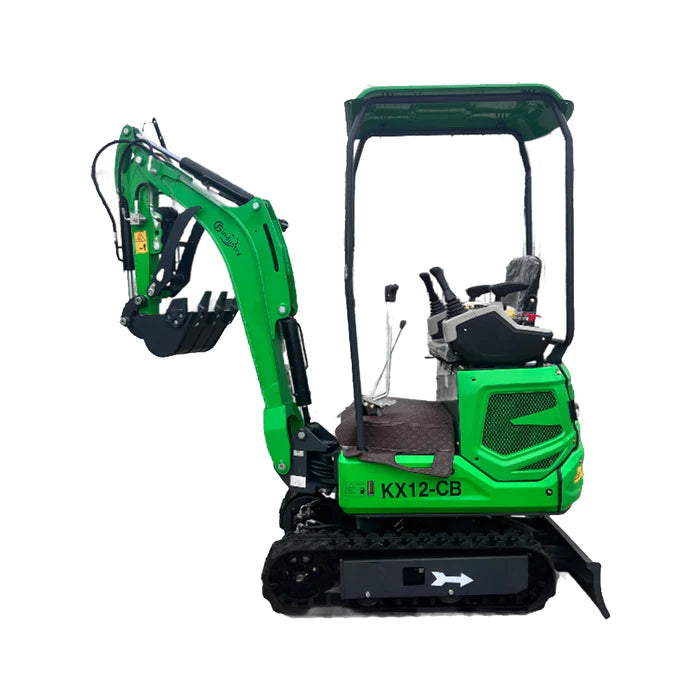

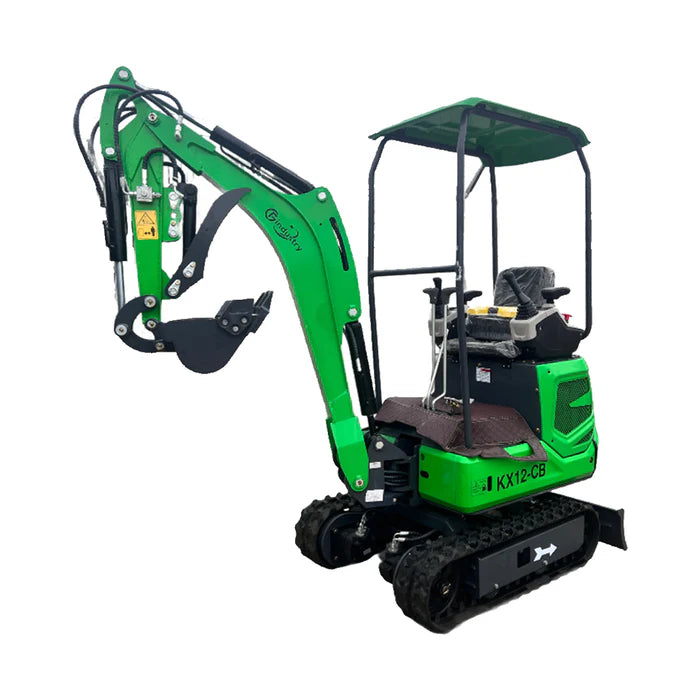

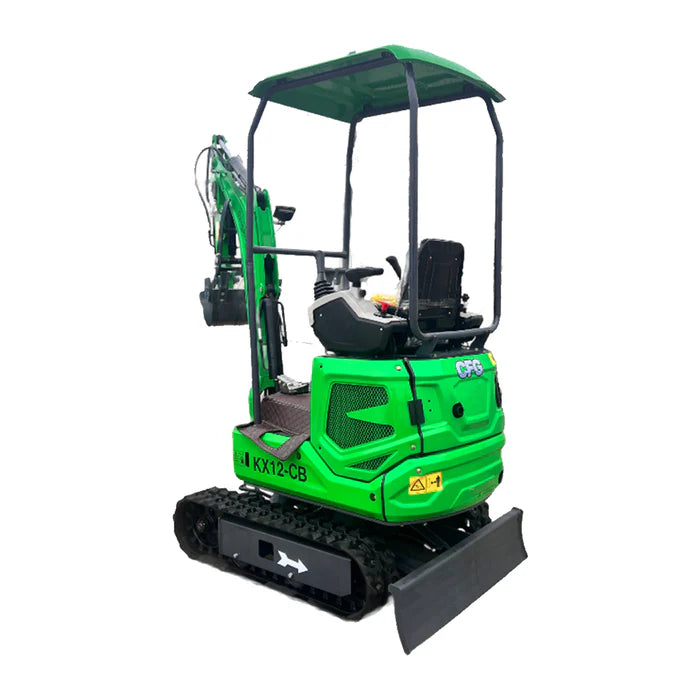

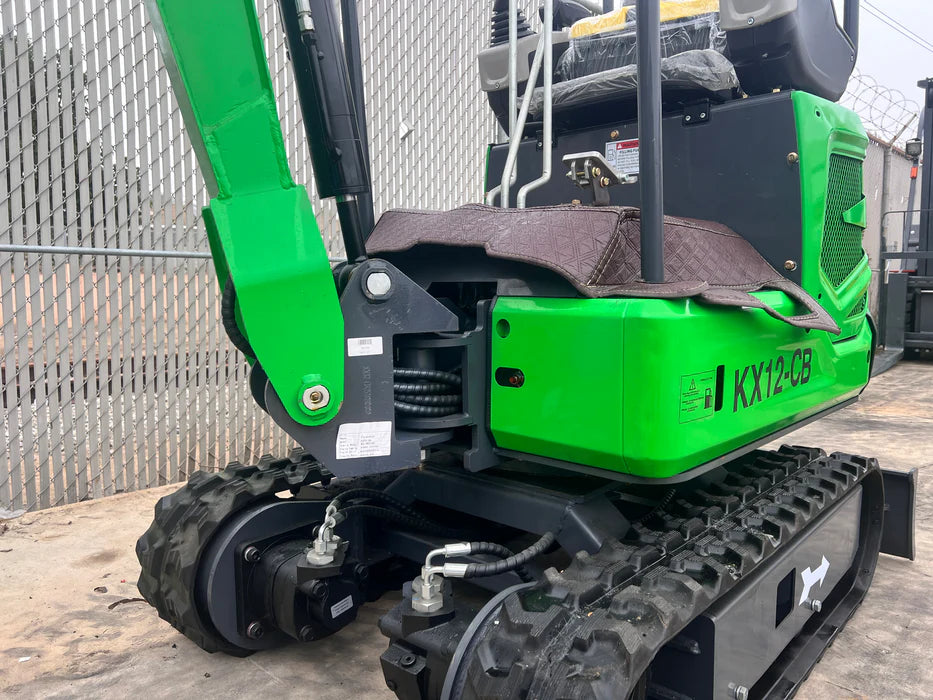

1 TON, B&S ENGINE MINI SMALL EXCAVATOR W/ HYDRAULIC THUMB & SWING BOOM | KX12-CB

We will need a direct phone number for the carrier to contact you with for final delivery

DIMENSION

• Operating Weight: 0.9 Tons (1,984 lbs)

• Overall Length: 3,240 mm (127.5 in)

• Overall Width: 990 mm (39 in)

• Overall Height: 2.200 mm (86.5 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)


WORKING RANGE

• Max Digging Height: 2,900 mm (114 in)
• Max Dumping Height: 2,100 mm (82.5 in)

• Max Reach at Ground: 3,250 mm (128 in)

• Blade Width: 950 mm (37 in)

• Blade Height: 230 mm (9 in)

• Blade Max Lifting Height: 190 mm (7.5 in)
• Blade Max Drop Depth: 190 mm (7.5 in)

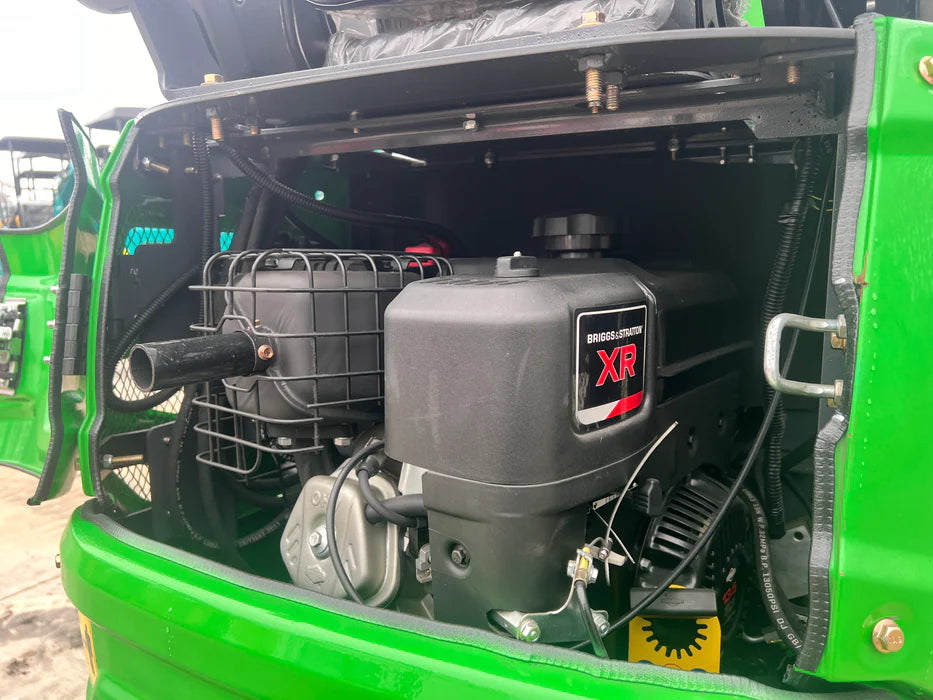

ENGINE

• Engine Brand: B&S
• Fuel Type: Gasoline
• Model: XR

• Rated Power: 10 kW (13.3 HP)

• Displacement: 420 cc

• Fuel Capacity: 6.6 L(1.7 gal)

• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
• Hydraulic Pressure: 16 MPa (2320 PSl)

• Hydraulic Tank Capacity: 18 L (4.7 gal)
• Battery: 12V, 45-60 Ah


FEATURES

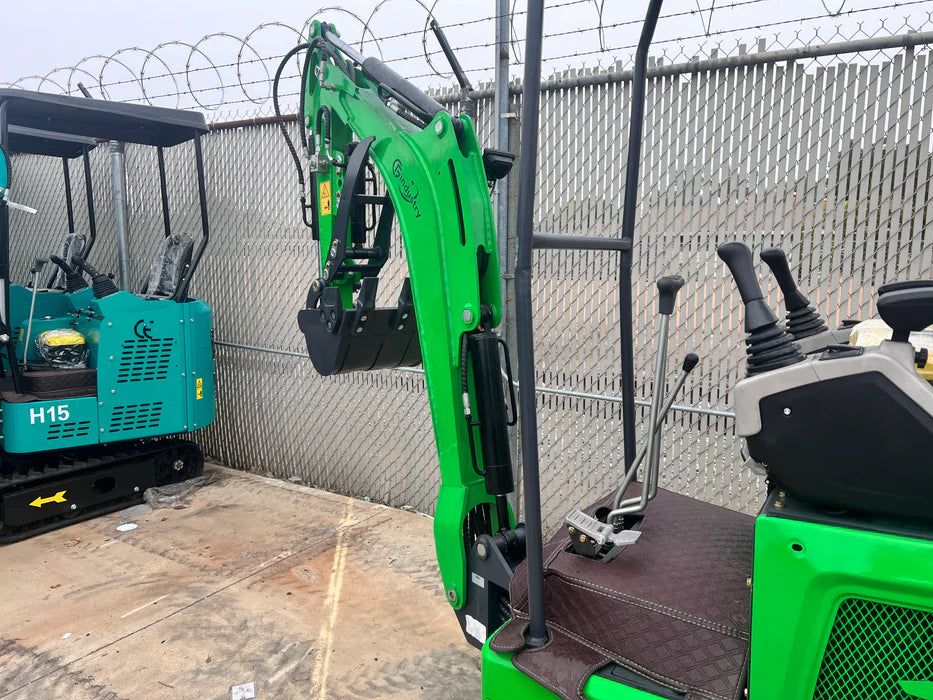

• Swing Boom

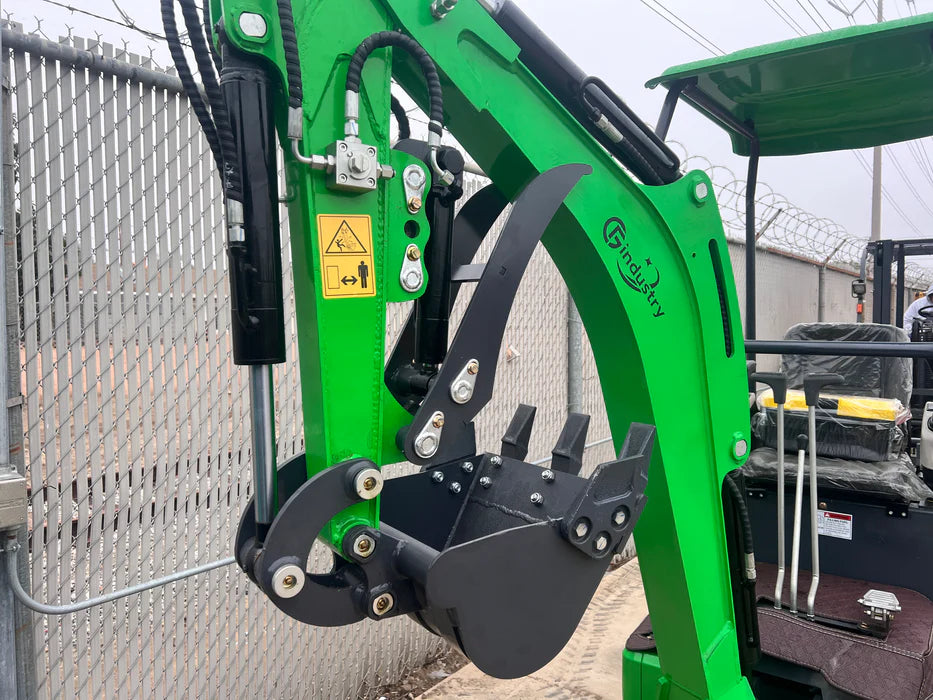

• Hydraulic Thumb

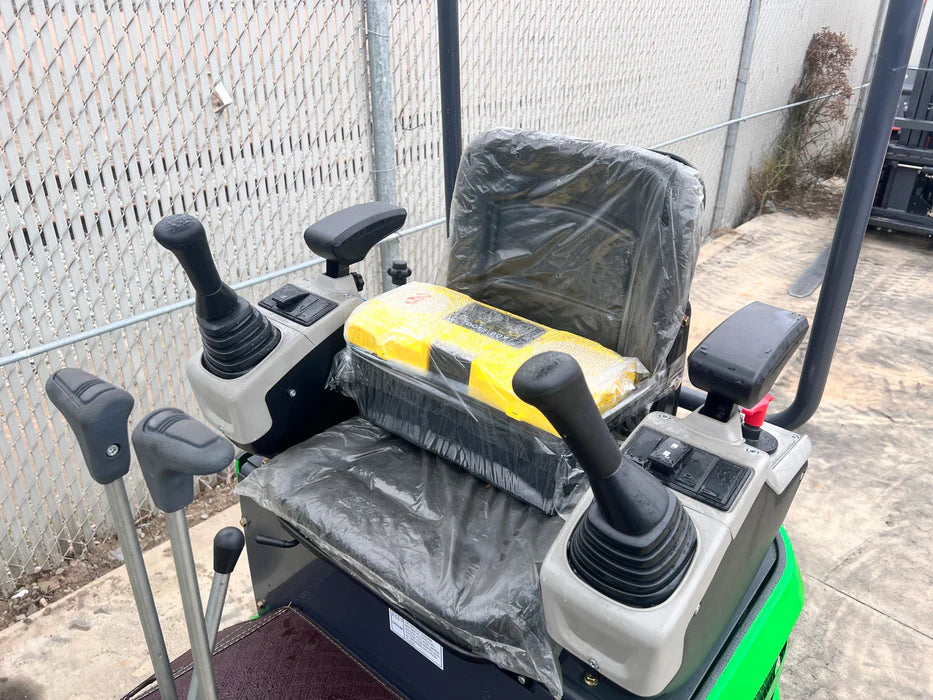

• Pilot Control

• Inverted Boom Cylinder
