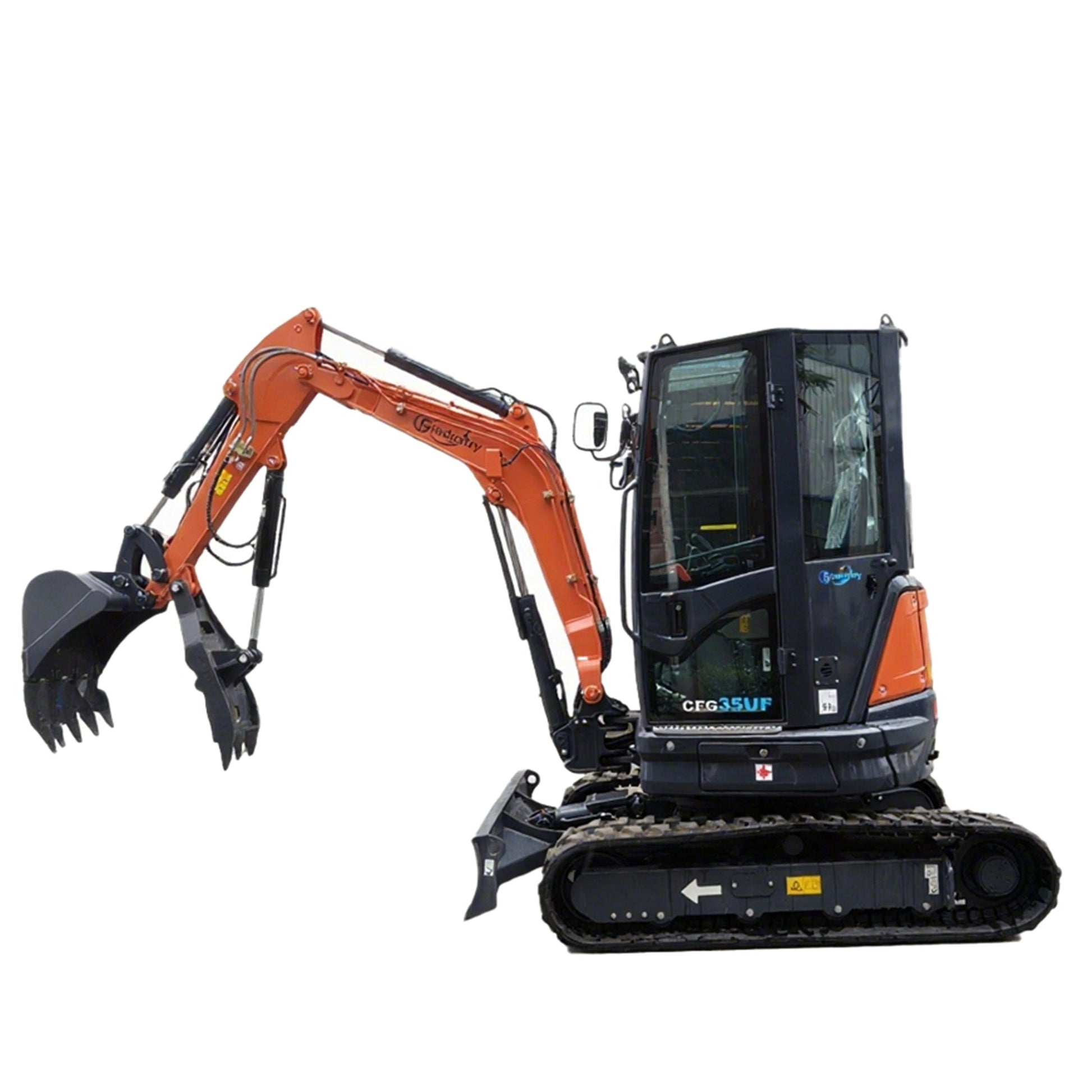

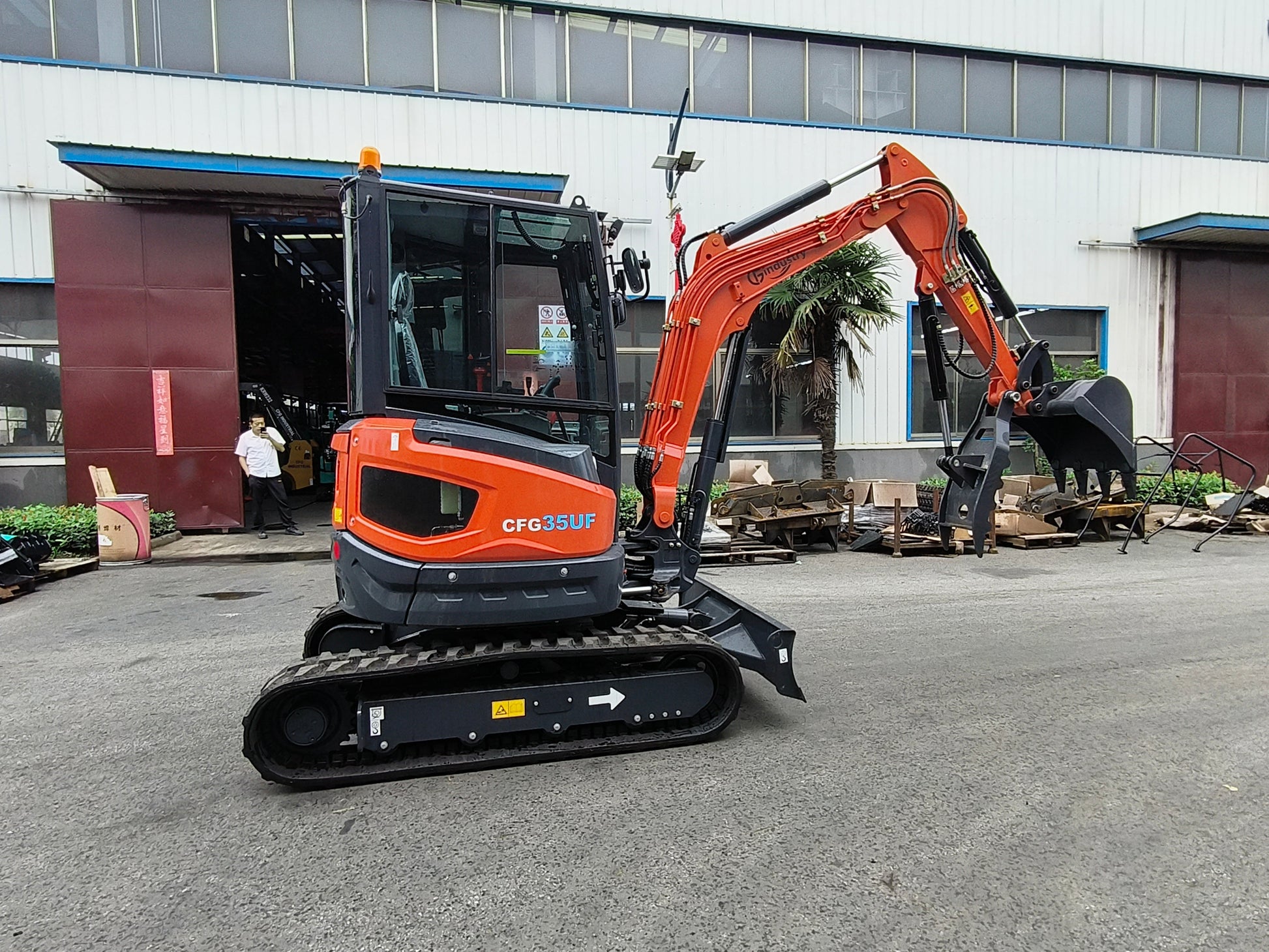

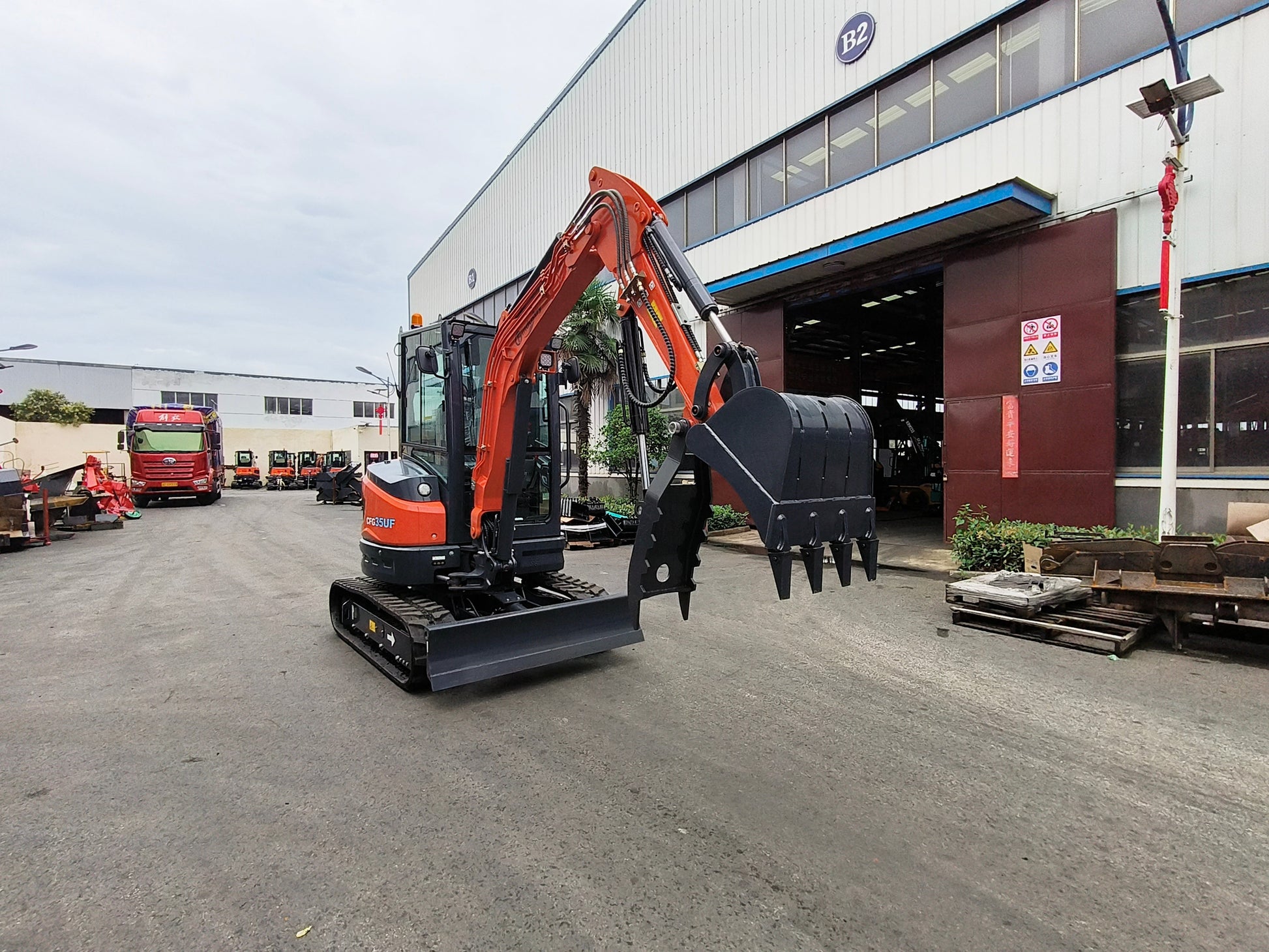

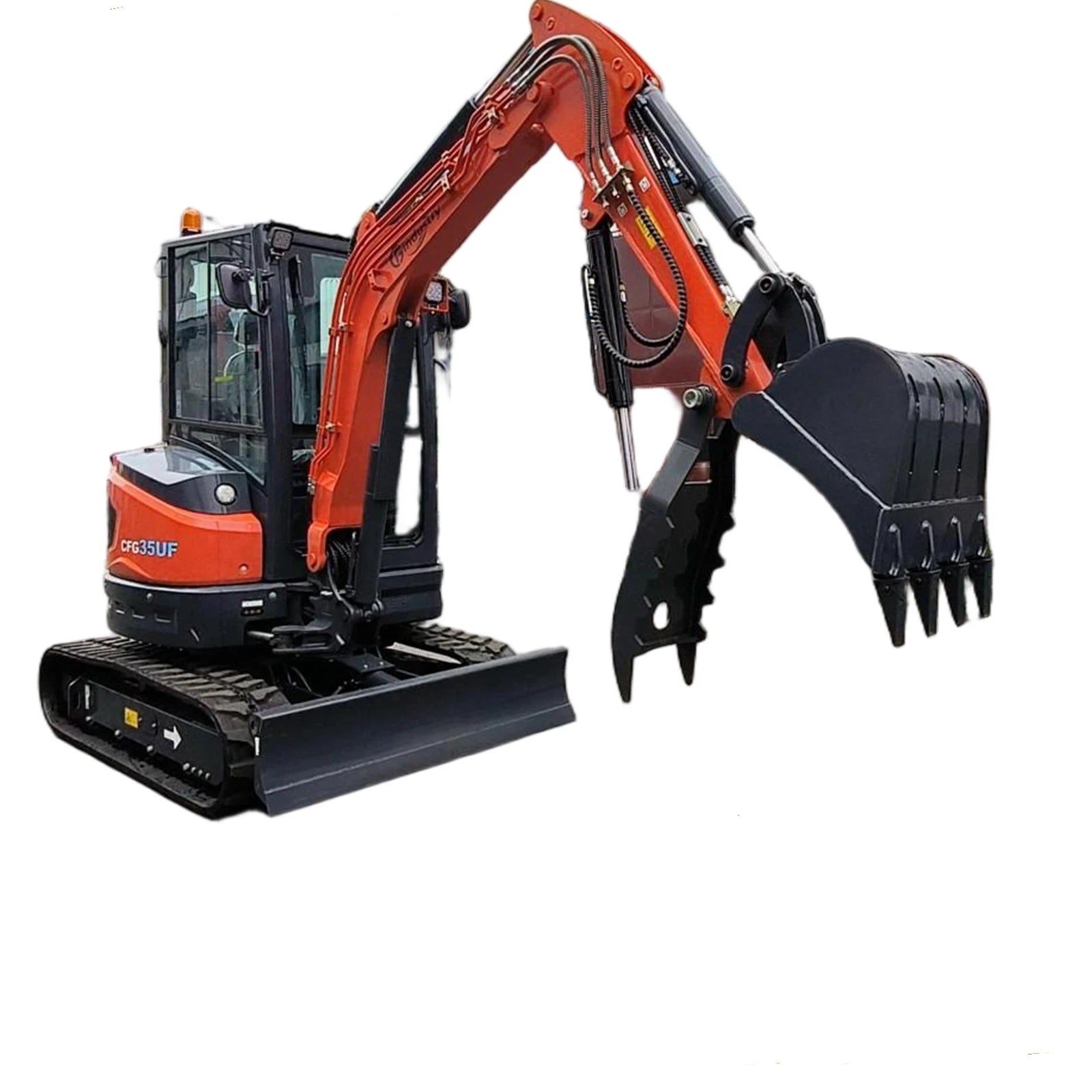

3.5 Ton Kubota Diesel Mini Excavator w/ Hydraulic Thumb | CFG35UF

• Operating Weight: 2.8 Ton (5,600 lbs)

• Overall Length: 4,150 mm (163 in)

• Overall Width: 1,500 mm (59 in)

• Overall Height: 2,510 mm (99 in)

• Wheelbase: 1,560 mm (61.4 in)

• Overall Length of Track: 1,990 mm (78.3 in)

• Track Size: 300*55*78 (Width*Pitch Length*Links)

• Track Height: 475 mm (18.7 in)

• Chassis Ground Clearance: 325 mm (12.8 in)

• Platform Ground Clearance: 570 mm (22.4 in)

• Tail Swing Radius: 765 mm (30.1 in)

• Upper-Structure Width: 1,450 mm (57.1 in)

• Max Digging Depth: 2,800 mm (110 in)
• Max Vertical Digging Depth: 2,590 mm (102 in)
• Max Digging Height: 4,235 mm (167 in)
• Max Dumping height: 3,040 mm (120 in)
• Max Reach at Ground Level: 4,665 mm (184 in)
• Digging Radius: 4,780 mm (188 in)
• Bucket Capacity: 0.04–0.13 m³ (1.41–4.59 cu ft)
• Dozer Blade Width: 1,500 mm (59 in)
• Dozer Blade Height: 325 mm (13 in)
• Blade Max Lifting Height: 325 mm (12.8 in)
• Blade Max Drop Depth: 300 mm (11.8 in)
• Side Swing Angle (L/R): 65° / 50°

PERFORMANCE:

• Travel Speed (Low/High): 2.3 / 4.0 km/h (1.4 / 2.5 mph)

• Climbing Ability: 57% (30°)

• Engine Brand: Kubota
• Fuel Type: Diesel
• Model: D1105
• No. of Cylinders: 3
• Cooling Method: Water Cooling
• Rated Power: 15.4 kw (20.6 HP)
• Displacement: 1,123 cc
• Fuel Capacity: 26 L (6.9 gal)

HYDRAULIC & ELECTRICAL:

• Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
• Hydraulic Pressure: 24.5 MPa (3,553 psi)
• Hydraulic Tank Capacity: 24 L (6.3 gal)
• Battery: 12V, 63Ah

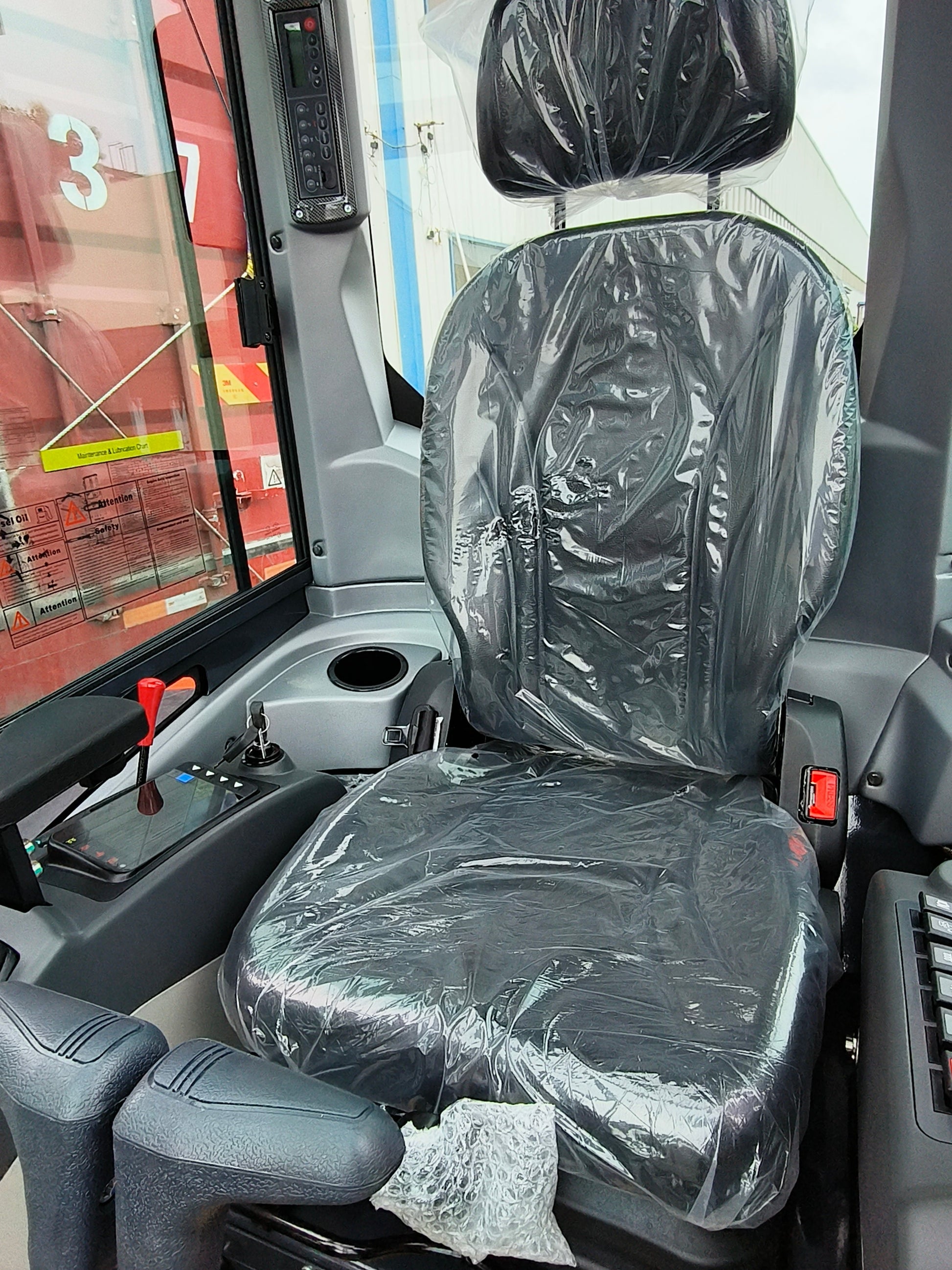

• Enclosed Cab with Heater & Adjustable Seat

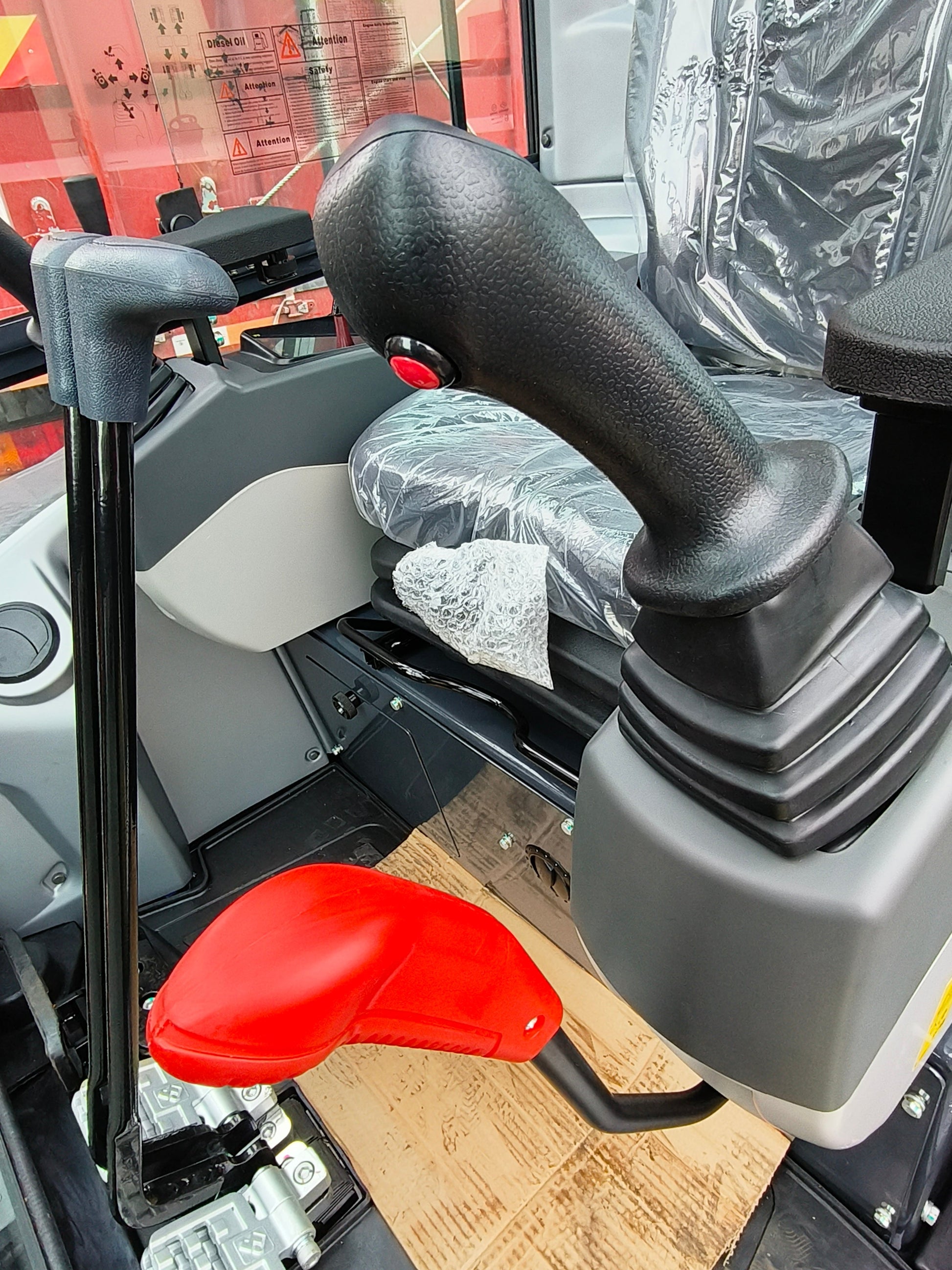

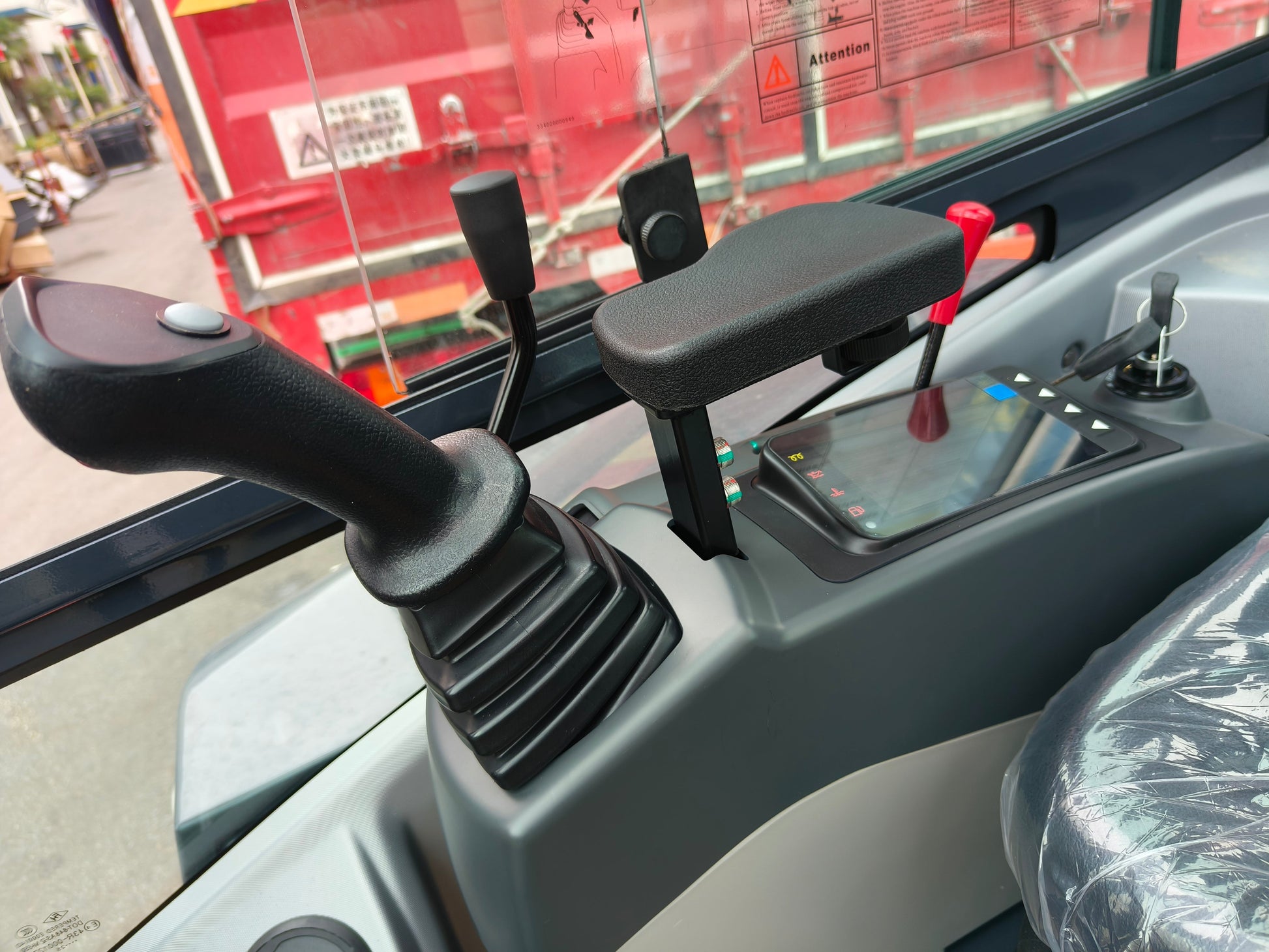

• Pilot Control (Intelligent Electrified Handles)

• Hydraulic Thumb

• Side Swing Boom

• Variable Speed Travel Motor (High/Low)

• LED Headlights

• Full Opening Engine Cover
