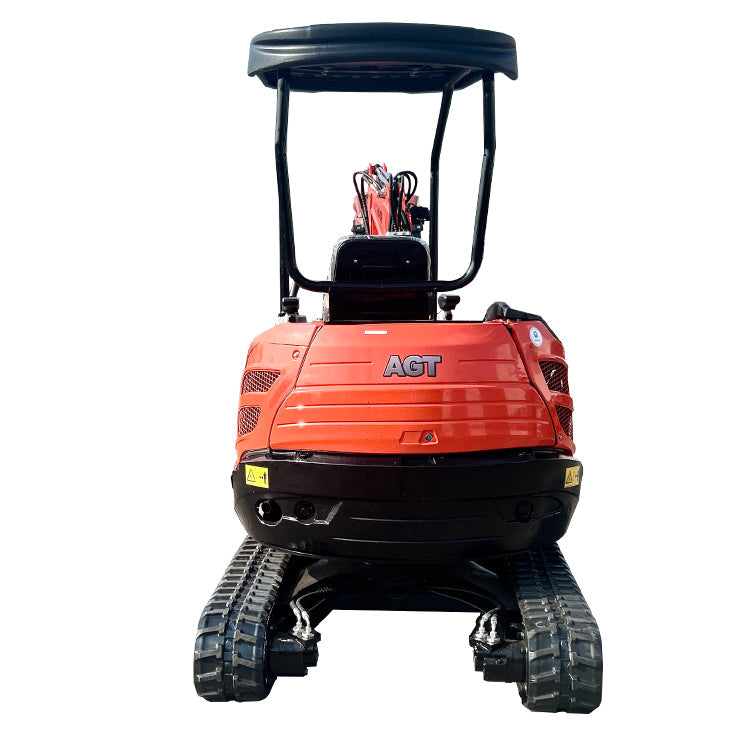

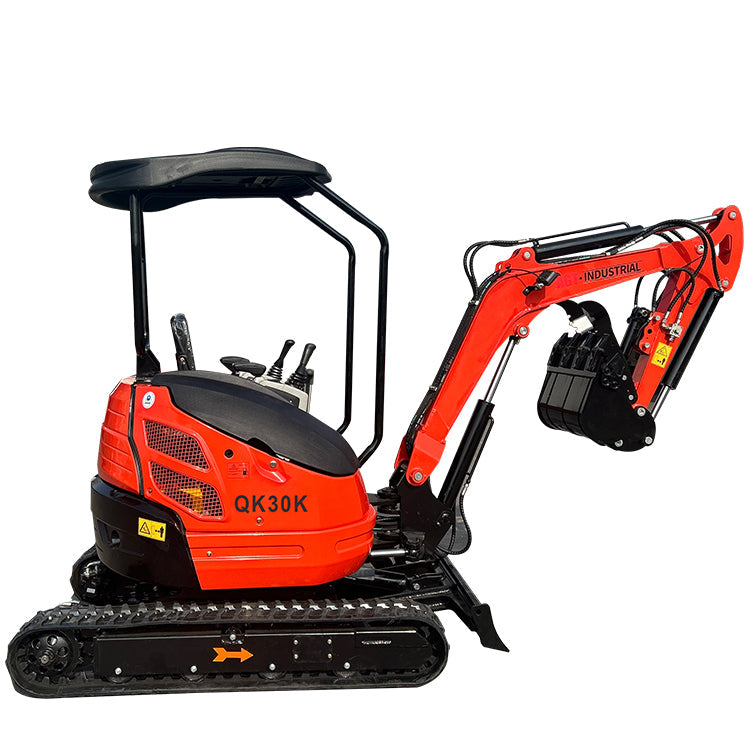

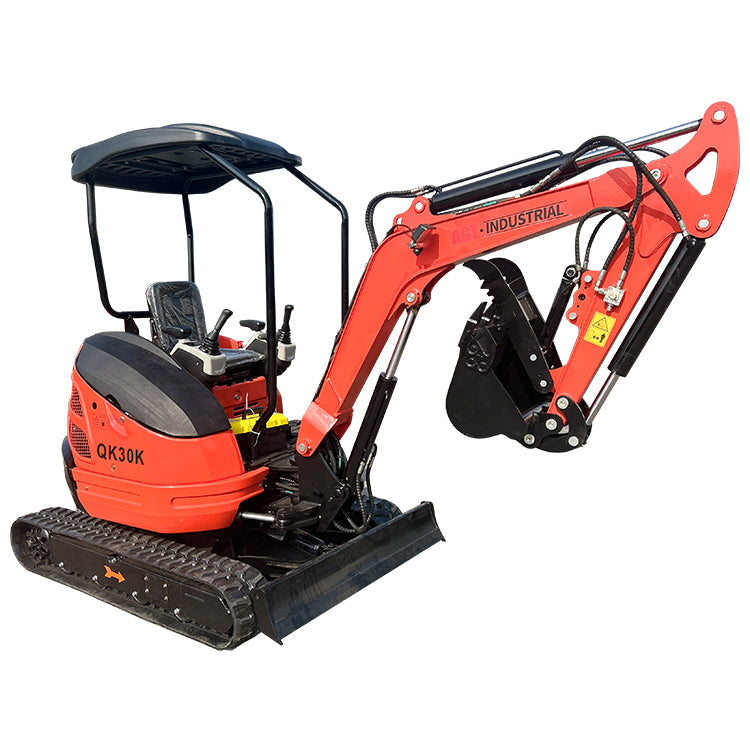

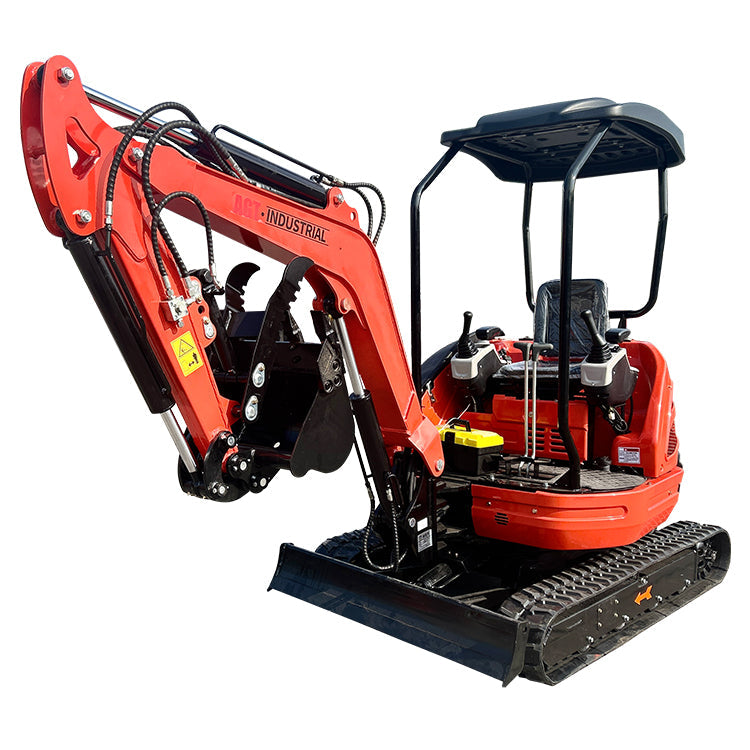

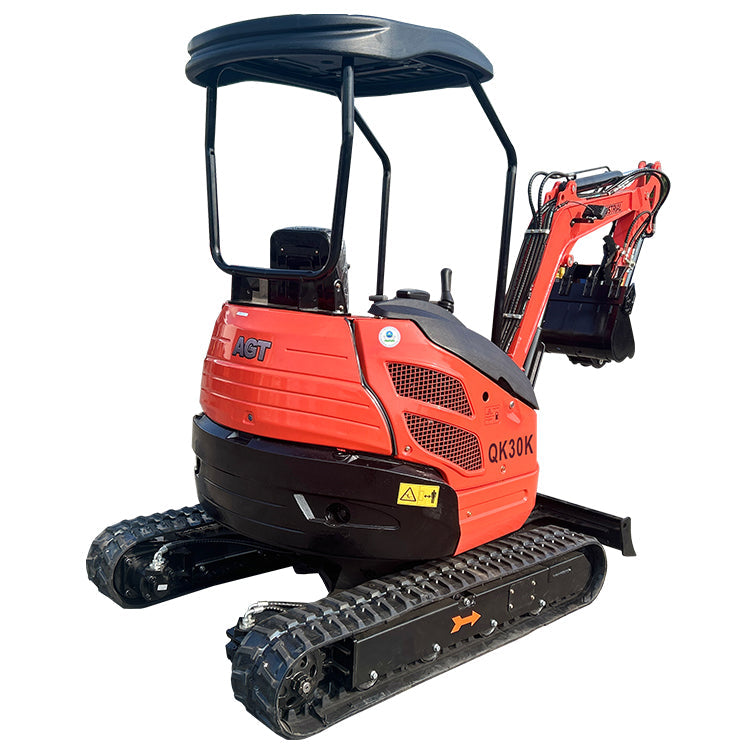

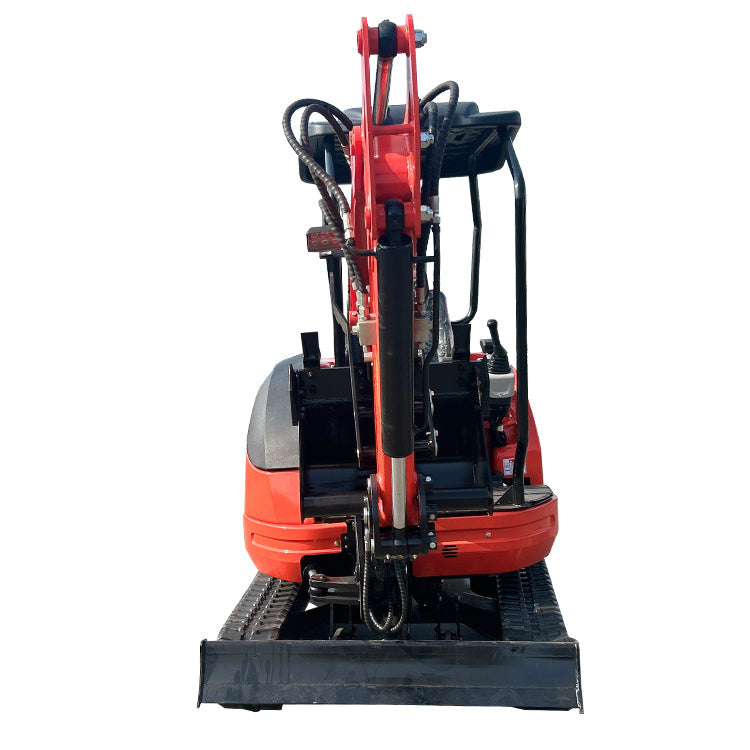

2.8 Ton Kubota Diesel Engine Mini Excavator W/ Enclosed Cab | QK30K

TECHNICAL SPECIFICATIONS:

• Equipment Type: Mini Crawler Excavator

• Operating Weight: 2.8 Ton (6,173 lbs / 2,800 kg)

• Standard Bucket Capacity: 0.08 m³ (2.82 cu ft)

• Travel Speed: 0–1.8 km/h (0–1.12 mph)

• Gradeability / Max Climbing Angle: 11% (approx. 6.3°)

DIMENSION:

• Overall Length / Transport Length: 2,290 mm (90 in)

• Overall Width / Chassis Width: 1,290 mm (51 in)

• Overall Height: 2,245 mm (88.5 in)

• Track Size: 230*72*54 (Width*Pitch Length*Links)

• Minimum Front Radius of Gyration: 1,860 mm (73.2 in)

• Minimum Tail Gyration Radius: 660 mm (26 in)

WORKING RANGE:

• Max Reach at Ground / Digging Radius: 3,700 mm (145.5 in)

• Dozer Blade Width: 1,300 mm (51 in)

• Dozer Blade Height: 220 mm (8.5 in)

• Blade Max Lifting Height: 365 mm (14.5 in)

• Blade Max Drop Depth: 220 mm (8.5 in)

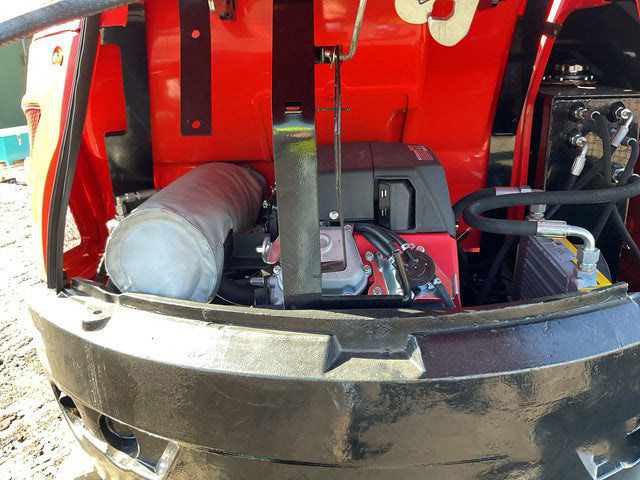

ENGINE:

• Engine Brand: Kubota

• Model: D1105

• Fuel Type: Diesel

• Rated Power: 20.5 kW (27.5 HP)

• Displacement: 1,100 cc

• Cooling Method: Water Cooling

• Fuel Tank Capacity: 26 L (7 gal)

• Fuel Consumption Rate: 0.8 L/hr

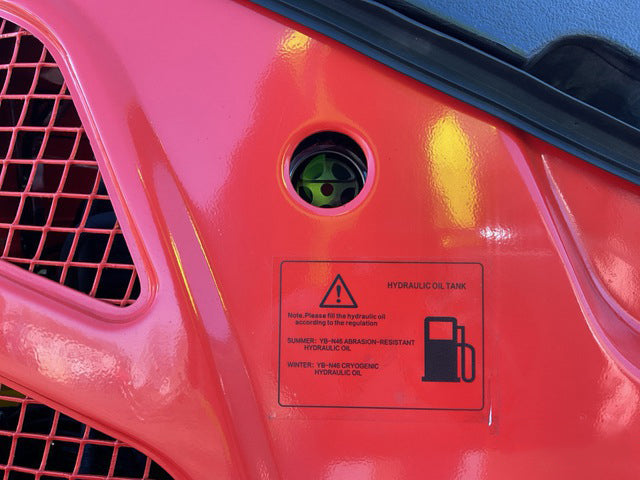

HYDRAULIC SYSTEM:

• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)

• Hydraulic System Pressure: 16.8 MPa (2,437 PSI)

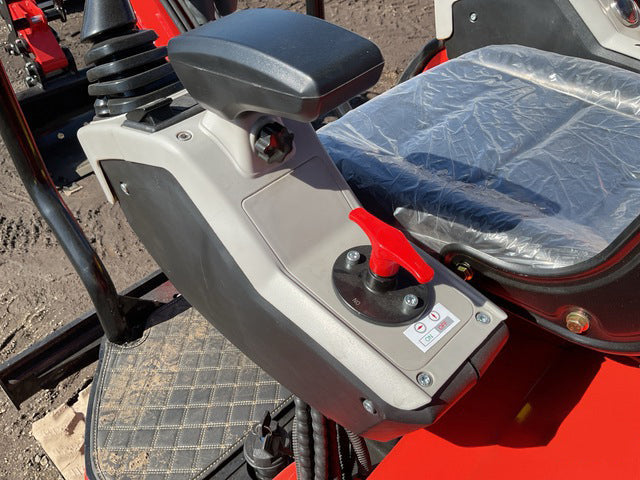

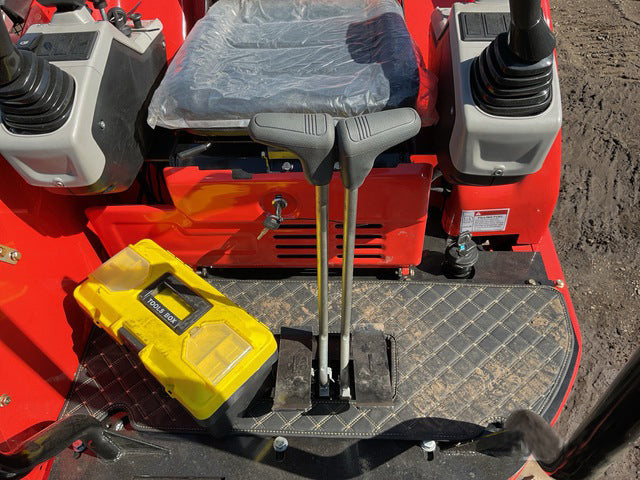

• Control Type: Hydraulic Pilot Control Rod

FEATURES & CONFIGURATIONS:
