1 Ton Mini Excavator w/ R740D 23.5HP Engine, Enclosed Cab w/ A/C & Pilot Control | QK20R

The QK20R Mini Excavator is a compact yet powerful machine designed to handle demanding tasks in tight working environments. Ideal for digging, trenching, and material handling, the QK20R combines strength, precision, and operator comfort. Its hydraulic thumb, side swing boom, and enclosed cab with air conditioning make it a highly versatile choice for residential contractors, farmers, and landscapers who need reliable performance day after day.

Powered by a robust 23 HP RATO gasoline engine, the QK20R offers smooth operation and high fuel efficiency. Its rugged build, combined with advanced hydraulic controls and EPA-certified compliance, ensures long-term durability and efficiency across a wide range of job sites.

In-Action Video

TECHNICAL SPECIFICATIONS:

• Equipment Type: Mini Crawler Excavator

• Operating Weight: 980 kg (2,160 lbs / 1 Ton)

• Standard Bucket Capacity: 0.03 m³ (1.06 cu ft)

• Travel Speed: 0–1.8 km/h (0–1.12 mph)

• Climbing Ability / Max Angle: 11°

DIMENSION:

• Overall Length / Transport Length: 2,925 mm (115 in)

• Overall Width / Chassis Width: 958 mm (37.7 in)

• Overall Height (w/ Enclosed Cab): 2,422 mm (95.4 in)

• Track Size: 180*72*41 (Width*Pitch Length*Links)

WORKING RANGE:

• Max Digging Depth: 1,700 mm (67 in)

• Max Digging Height: 2,560 mm (100.8 in)

• Max Dumping / Unloading Height: 1,800 mm (70.9 in)

• Max Reach at Ground / Digging Radius: 3,075 mm (121.1 in)

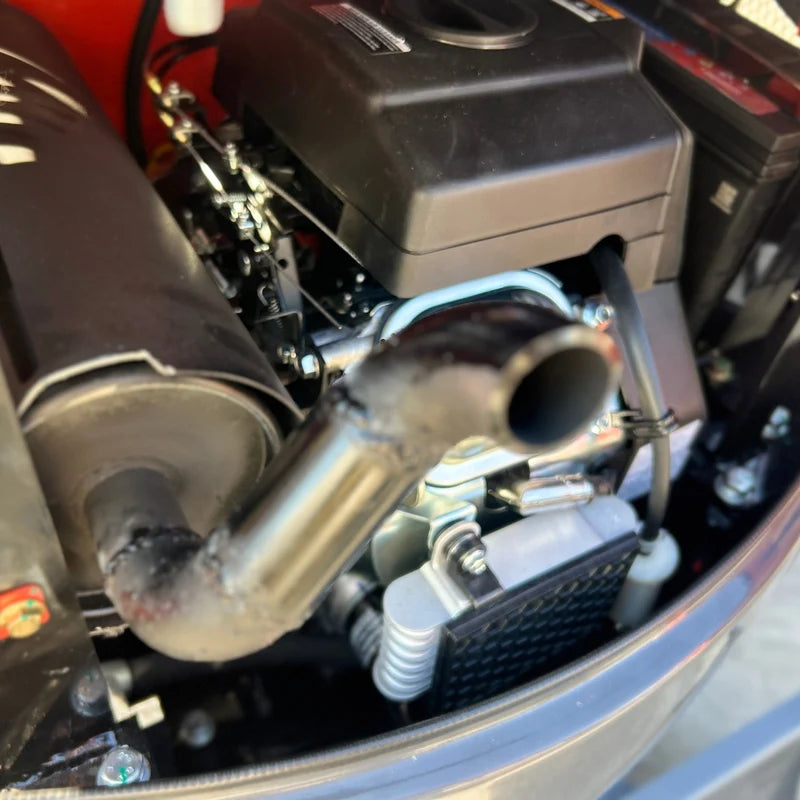

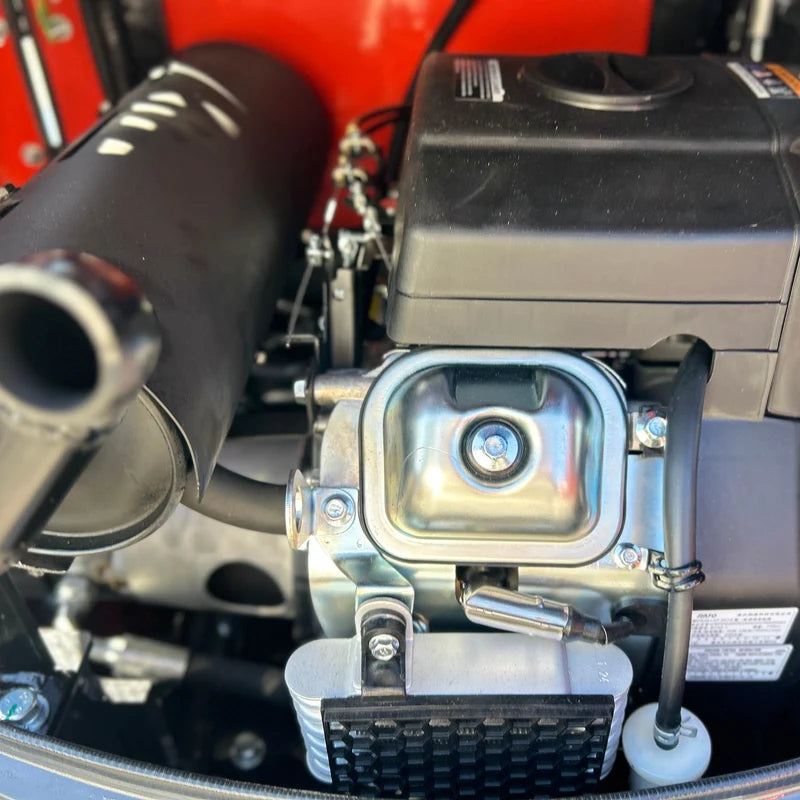

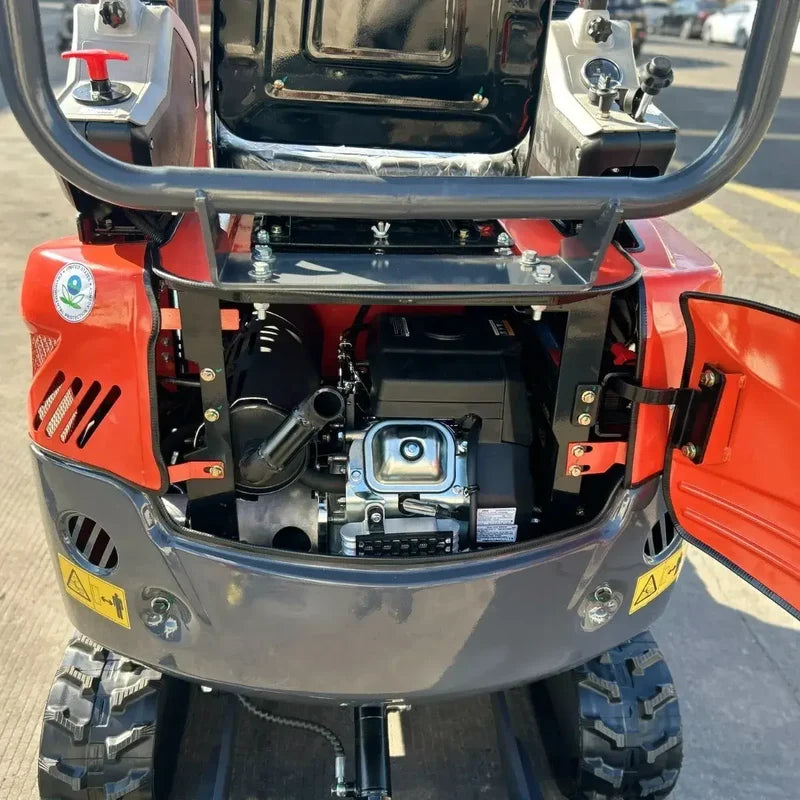

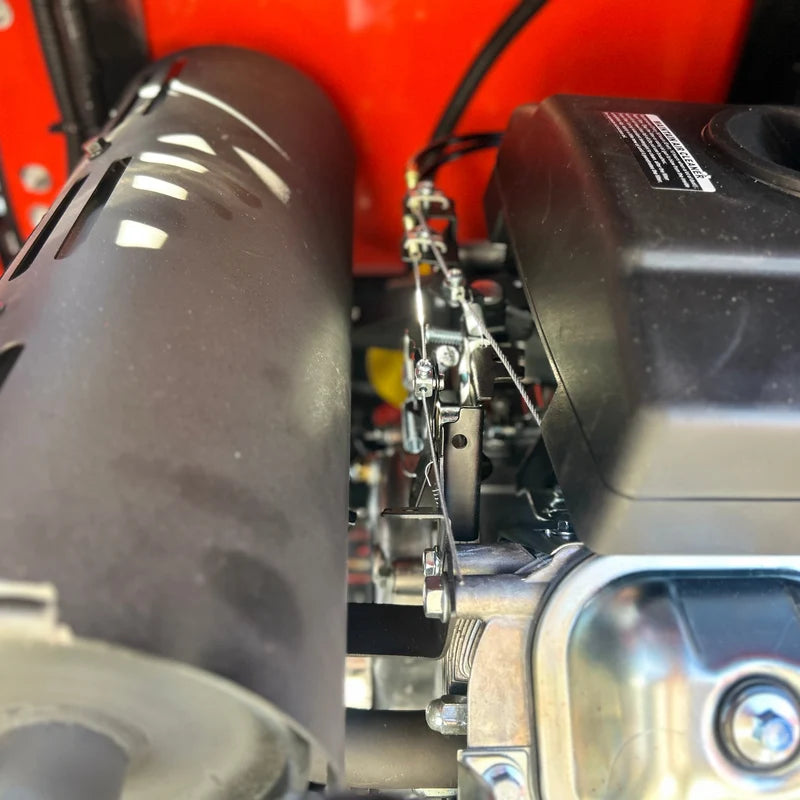

ENGINE:

• Engine Brand: Rato

• Model: R740D

• Fuel Type: Gasoline (#95)

• Rated Power: 17.5 kW (23.5 HP)

• Displacement: 740 cc

• No. of Cylinders: 2

• Cooling Method: Air Cooling

• Rated Speed: 3600 rpm

• Engine Oil Change Volume: 1.4 L (0.37 gal)

• Fuel Tank Capacity: 6.6 L (1.74 gal)

• Theoretical Fuel Consumption: 0.5–2 L/hr

HYDRAULIC SYSTEM:

• Main Pump Model / Brand: GP5183 Gear Pump

• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)

• Hydraulic System Pressure: 16.8 MPa (2,437 PSI)

• Control Valve: 4 Mechanical + 4 Hydraulic Valve

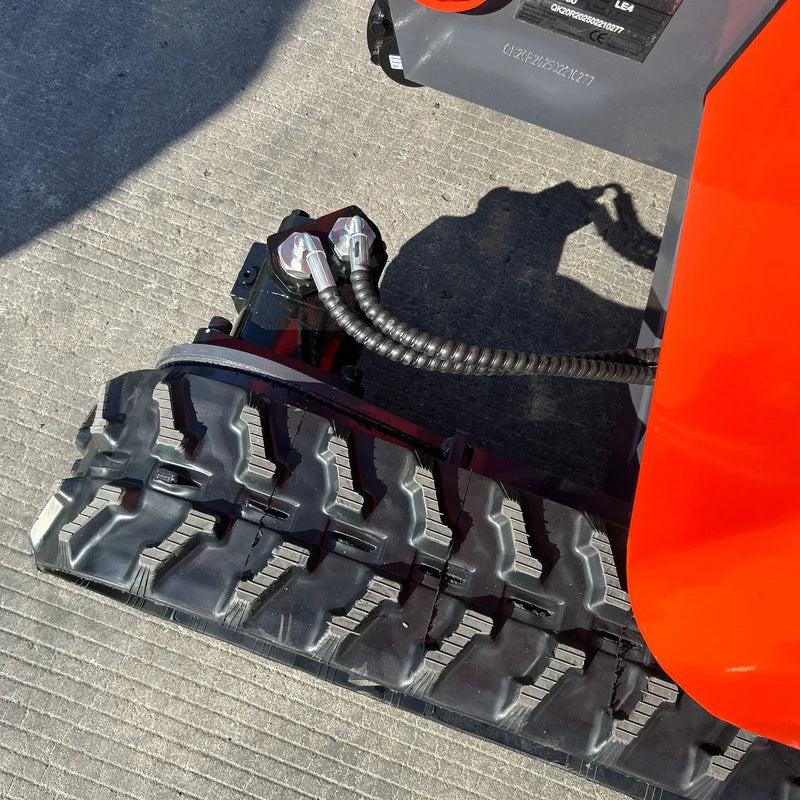

• Traveling Hydraulic Motor: BM6-390

• Rotary Hydraulic Motor: BM2-315

FEATURES & CONFIGURATIONS:

• Enclosed Cab with A/C & Heater

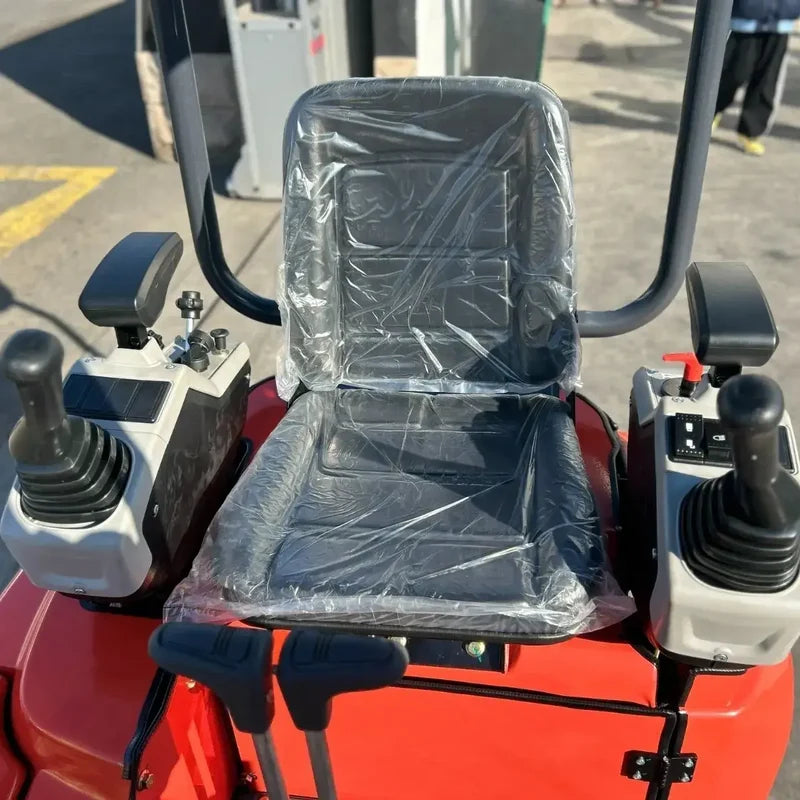

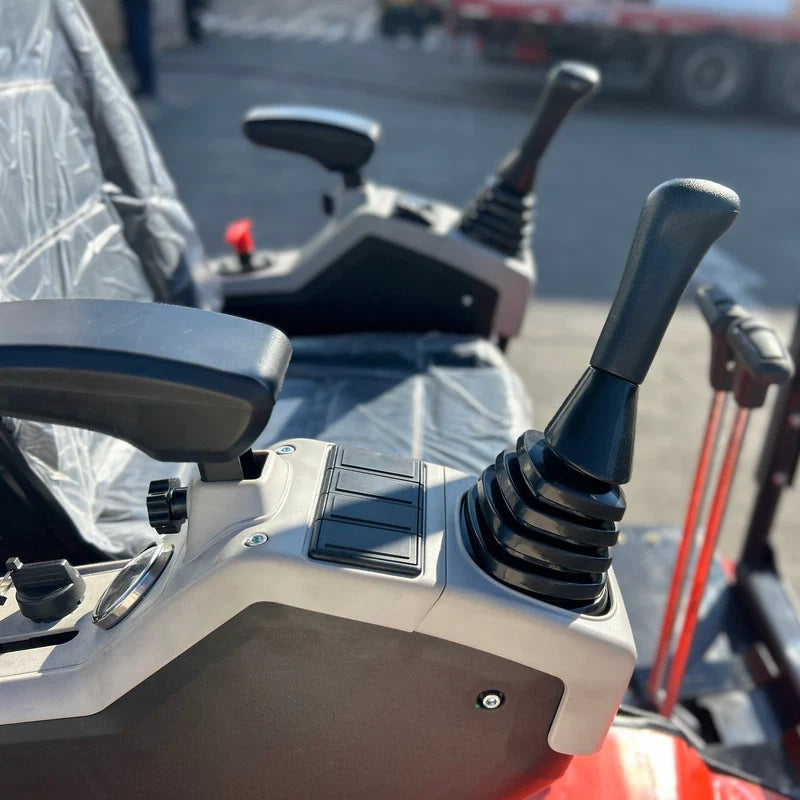

• Pilot Control

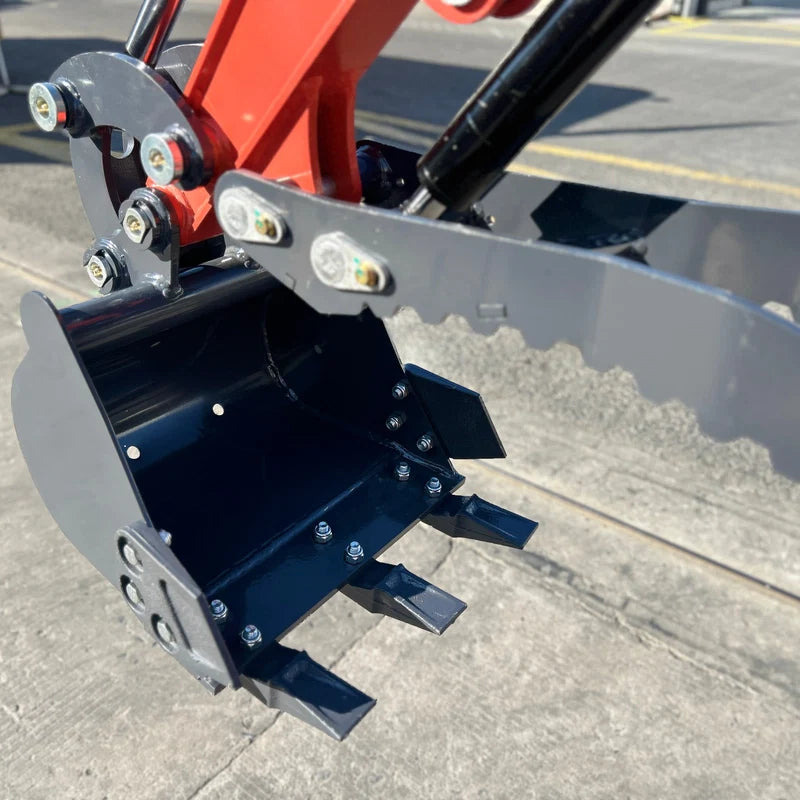

• Auxiliary Hydraulic Thumb (Standard)

• LED Work Light
