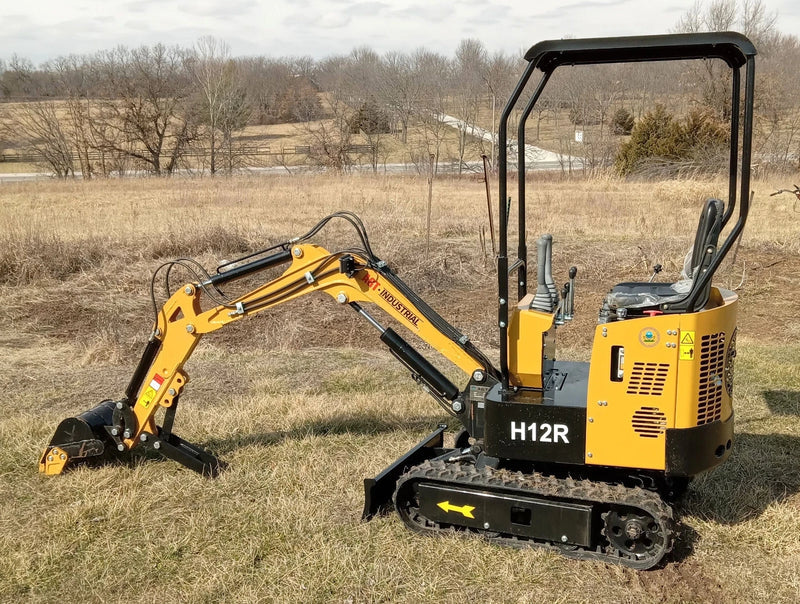

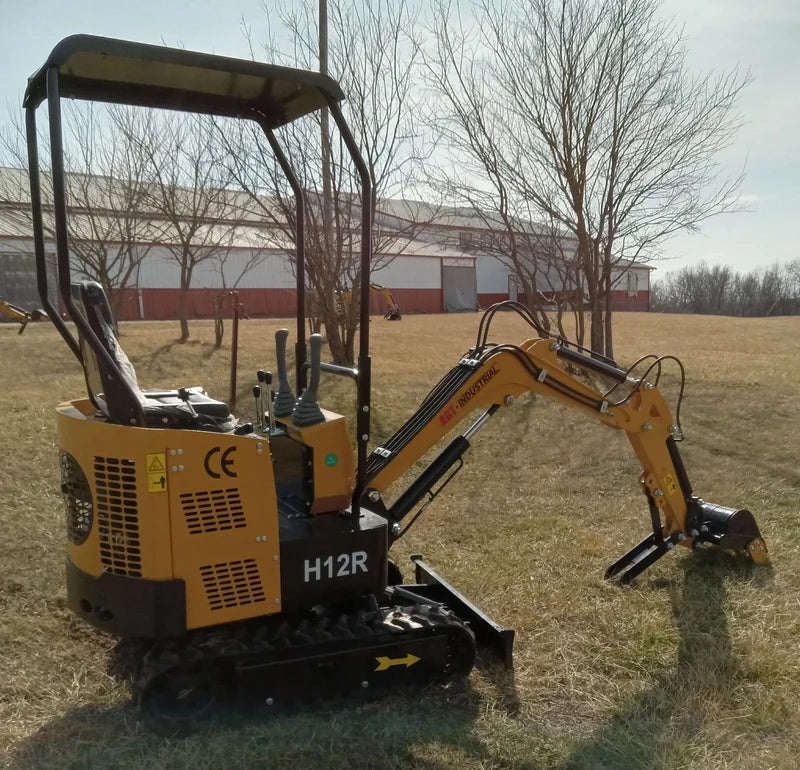

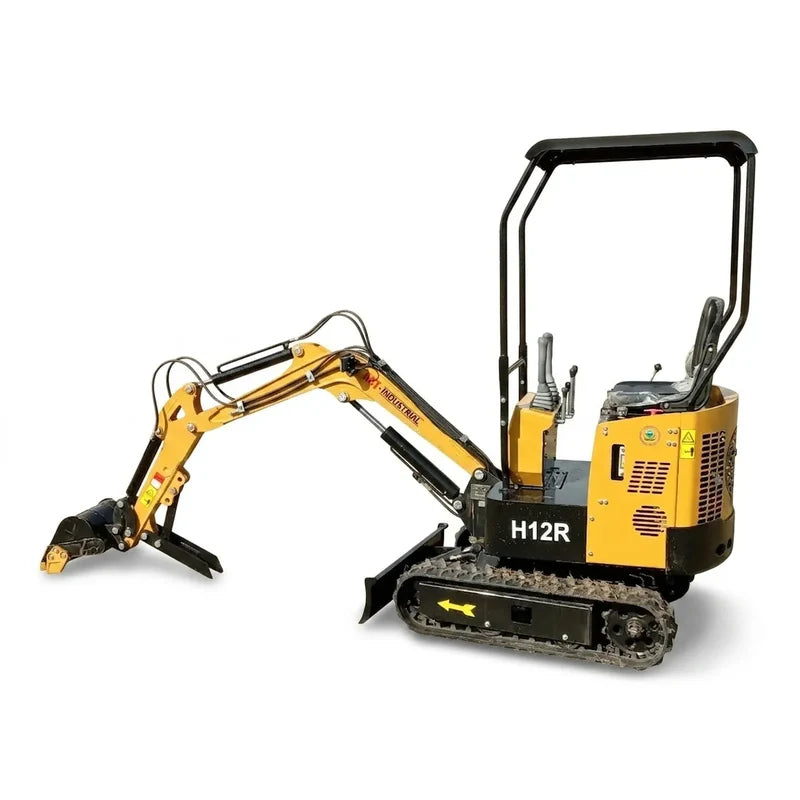

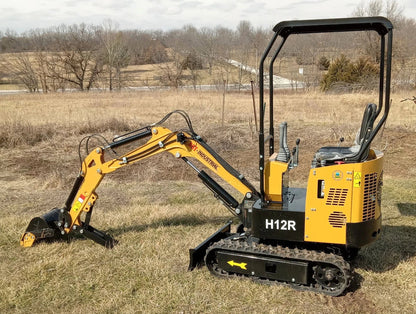

1 Ton Mini Excavator with Rato 13.5HP Engine w/ Hydraulic Thumb | AGT-H12R

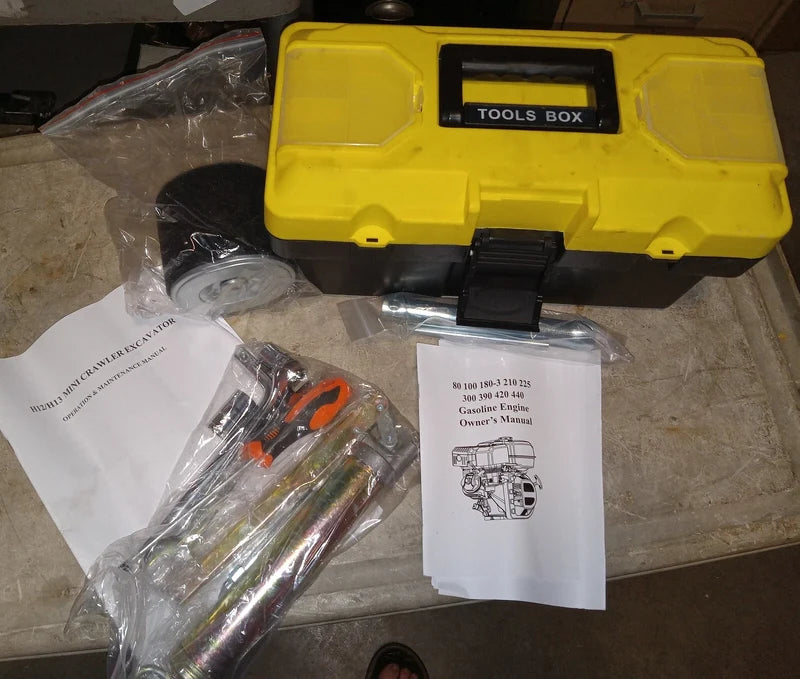

Manual

Item specifics:

• Maximum unloading height (mm): 1780
• Engine model: R420D
• Max Dig Depth: 5' - 6'
• MPN: AGT-H12R
• Rotary hydraulic motor type: BM2-250
• Maximum power(Kw): 9.8/13.5HP

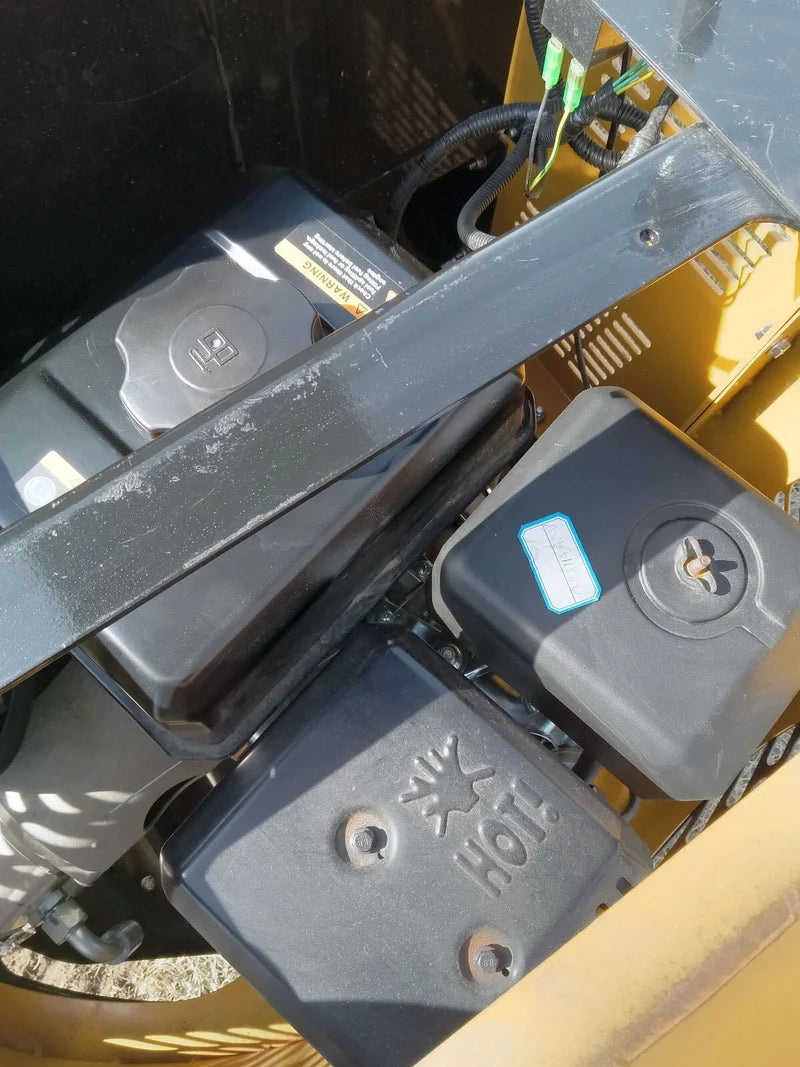

• Engine brand: RATO
• Machine working weight (kg): 855
• Operating Weight: Under 3,000 lbs
• Main pump brand: Tianjin walking
• Armrest: YES
• Rated set pressure (Mpa): 23.5
• Bucket capacity (m³): 0.025
• Maximum excavation depth (mm): 1644
• Maximum excavation height (mm): 2550
• Multi-way valve: 8 joint multi-way valve

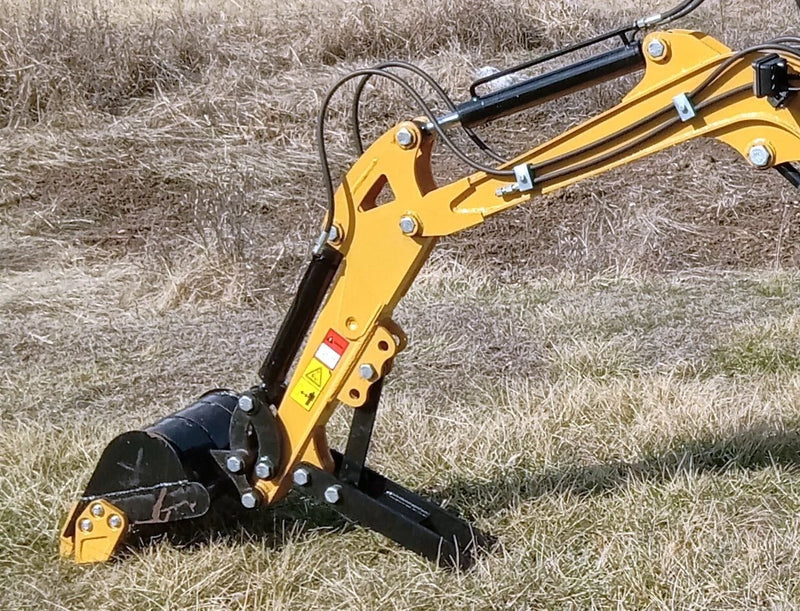

• Thumb clip: YES
• Hydraulic oil tank(L): 16
• Maximum digging radius (mm): 2960
• Counterweight: YES
• Ceiling: YES
• Equipment Type: Mini Excavator
• Net Horsepower (HP): 10 - 20
• Certificate of Conformity (COC): EPA
• Main pump type/model: Gear Pump/06
• O-rubber (bandwidth pitch number): 180x72x37
• Maximum flow rate of main pump (L/min): 21.6
• Maximum speed (rpm): 3600
• Fuel label: 92#
• Fuel tank (L): 6.6
• Gradeability(%): 30
• Fuel form: Gasoline
