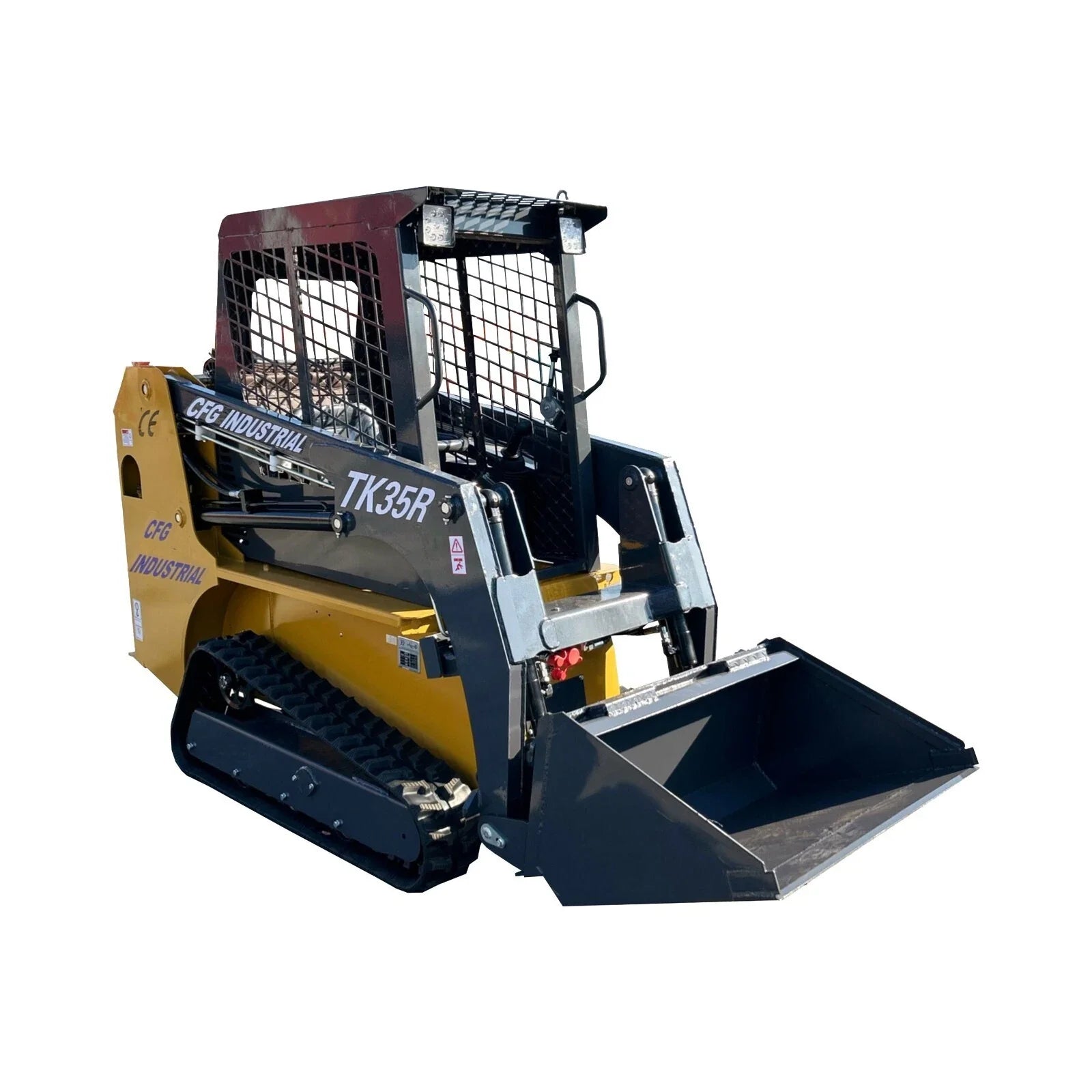

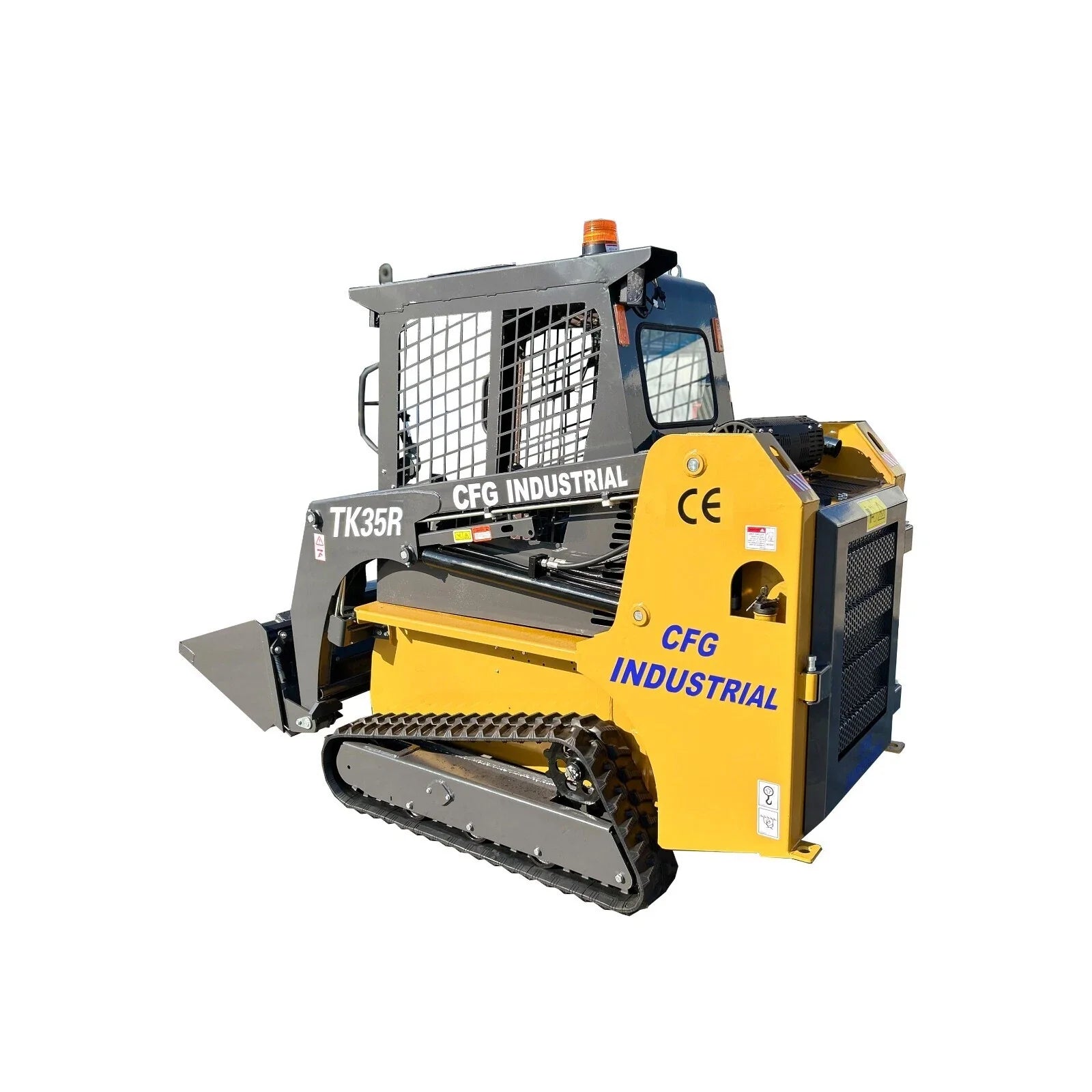

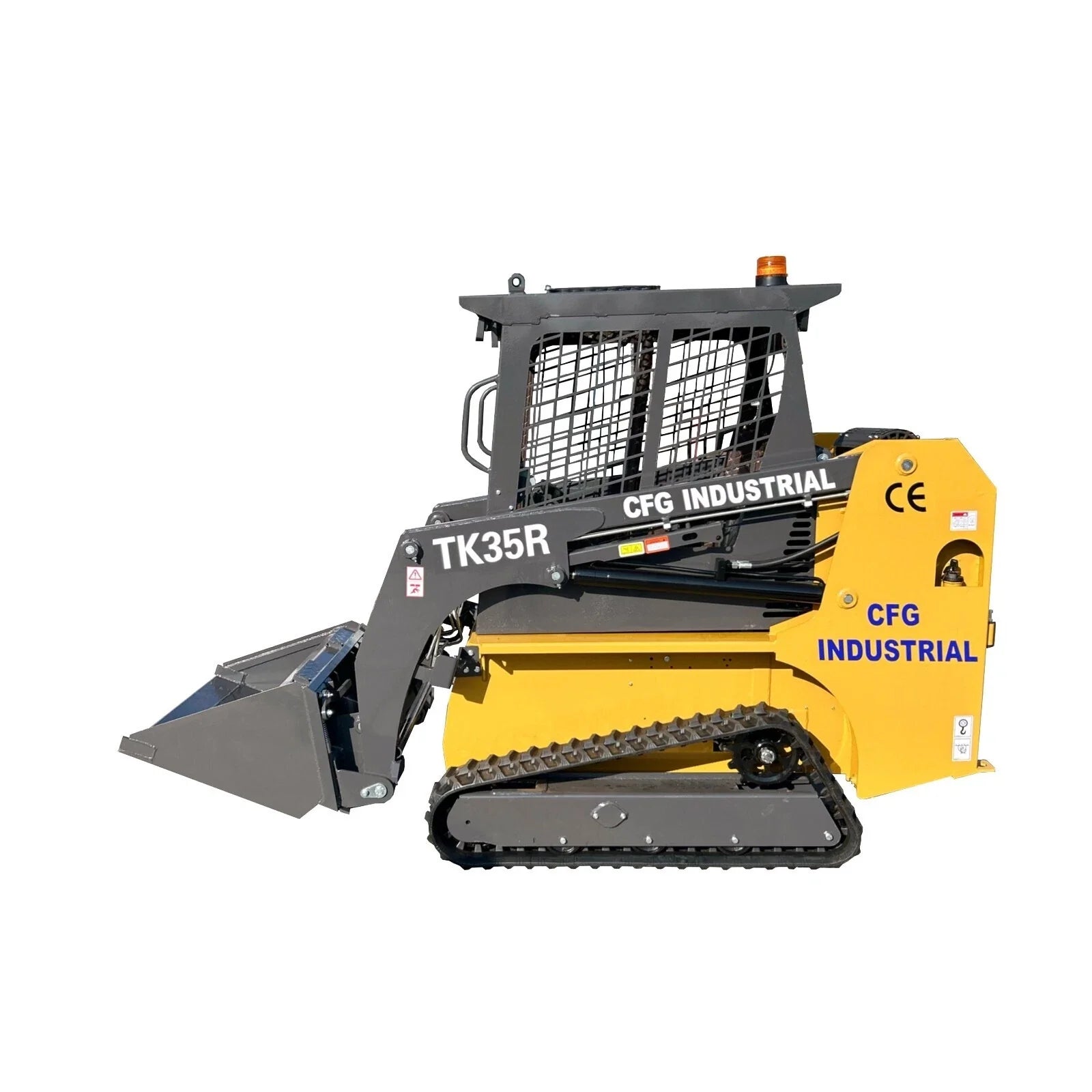

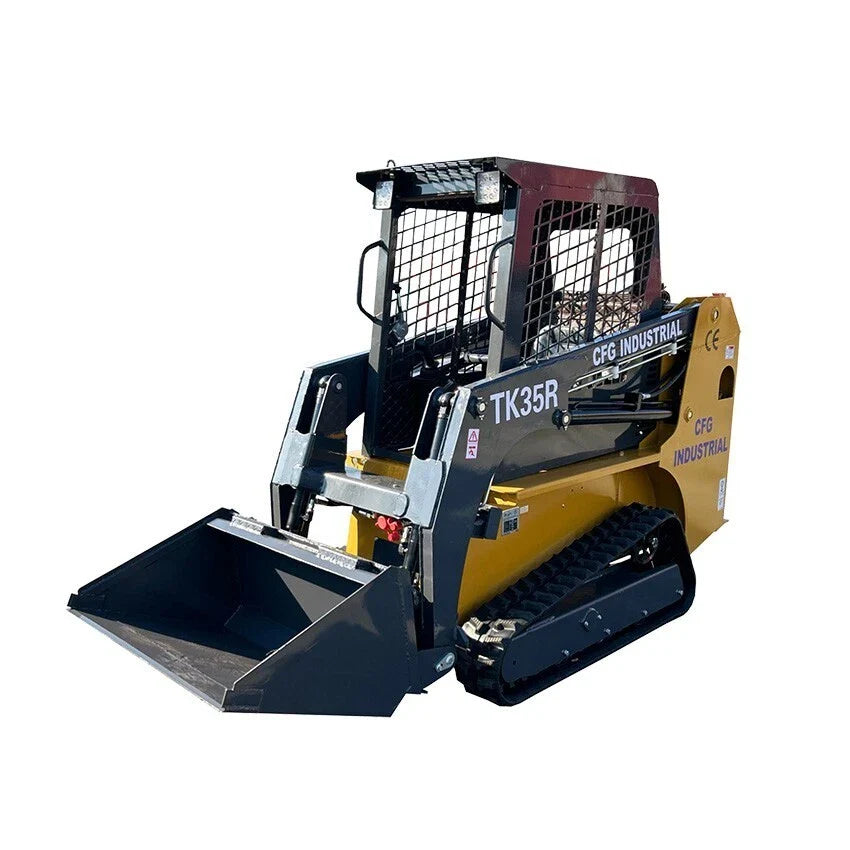

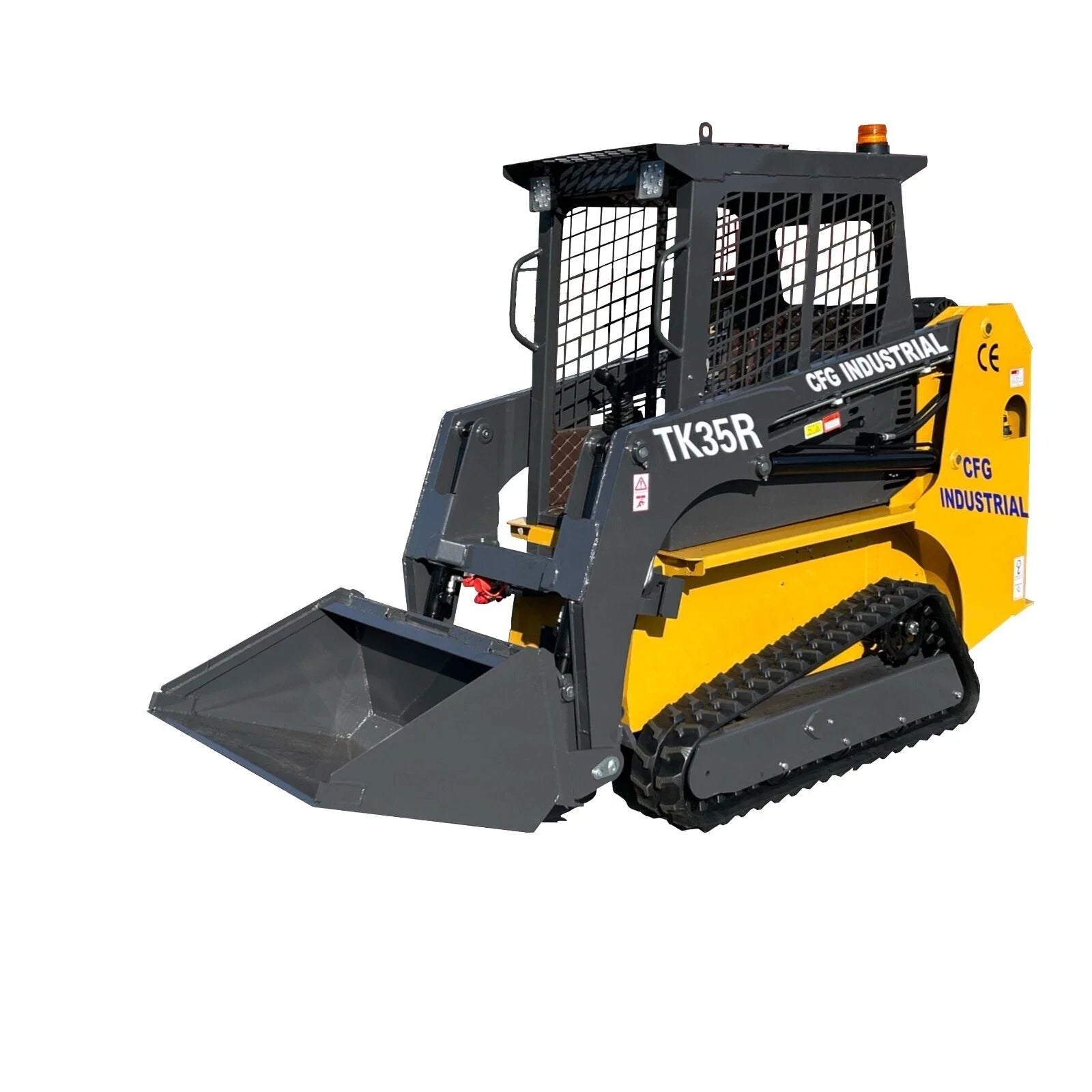

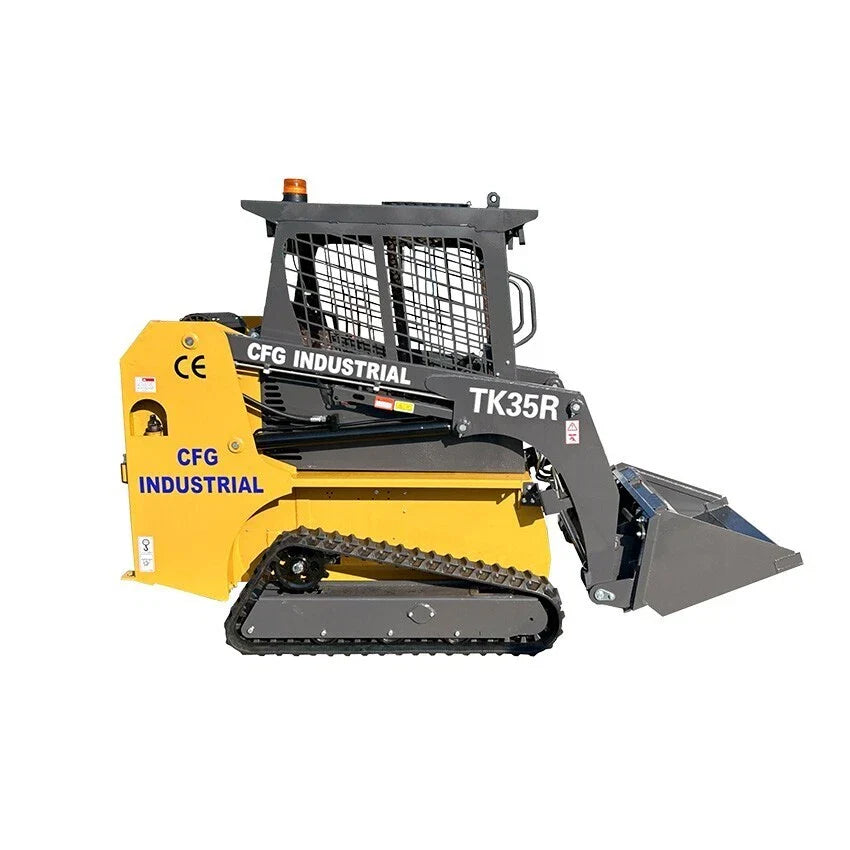

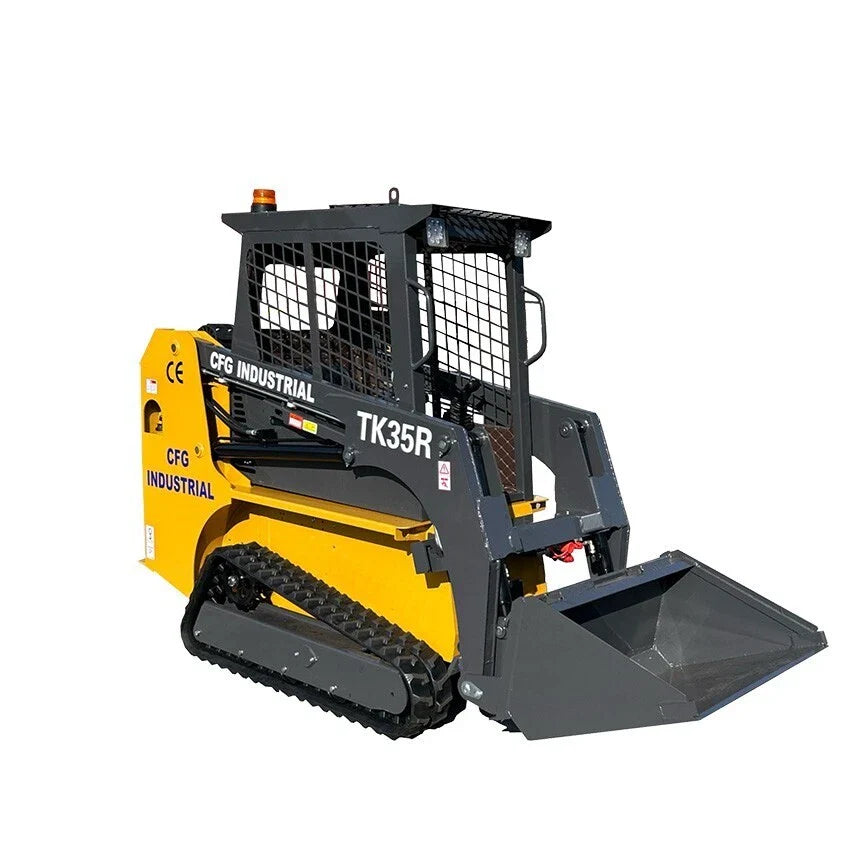

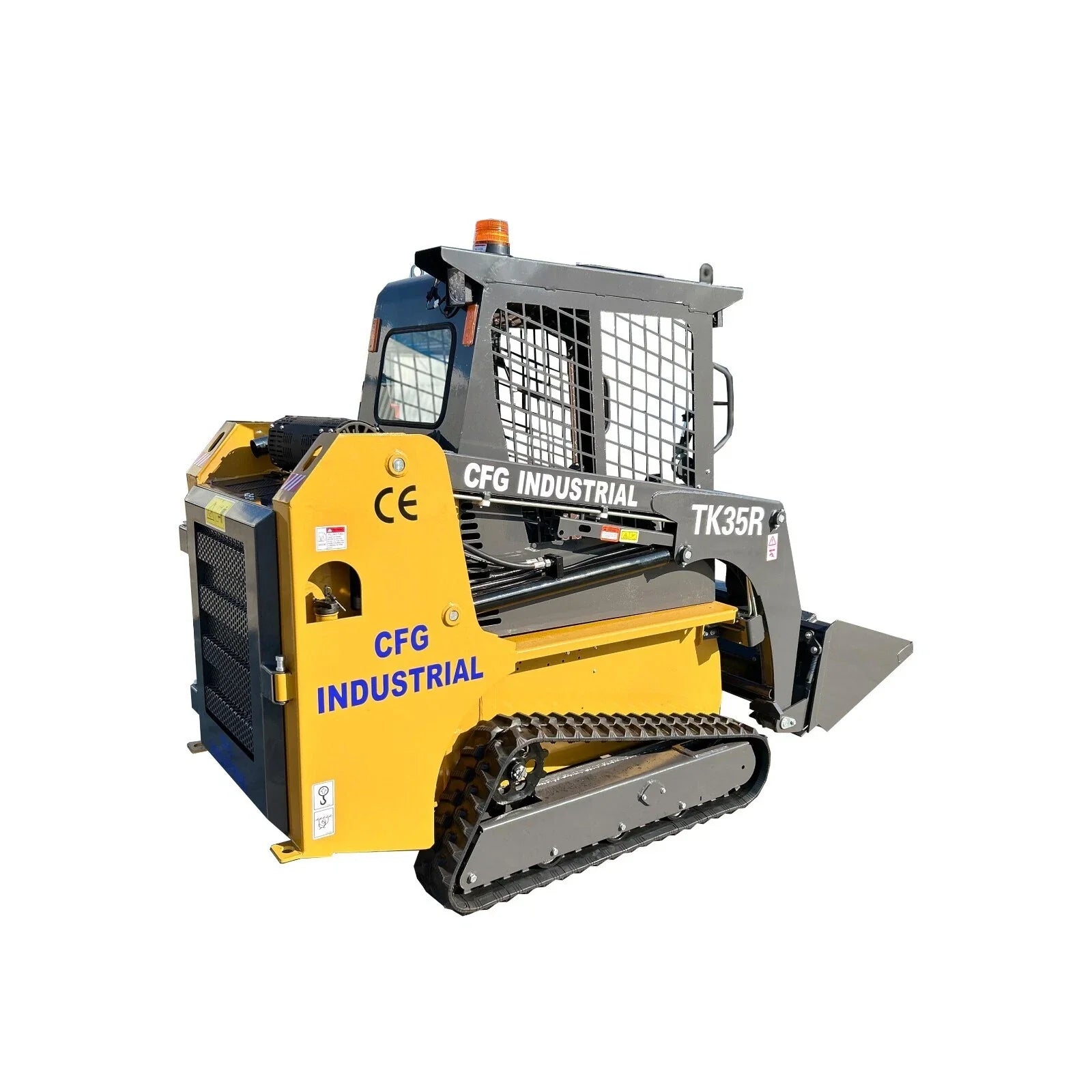

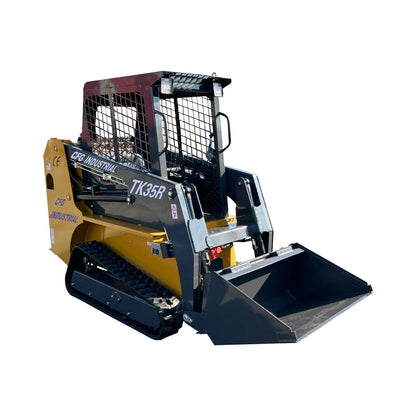

Agrotk 1.5ton Mini Skid Steer Track Loader 32.8HP Gasoline RATO 999 Engine | TK35R

Agrotk 1.5ton Mini Skid Steer Track Loader 32.8HP Gasoline RATO 999 Engine | TK35R

1 14
$11,850.00
$13,400.00 Save$1,550.00 Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
  • American Express
  • Diners Club
  • Discover
  • JCB
  • Mastercard
  • Visa
  • Afterpay
View full details

Product Overview

The AGT-12EX-PZ20 is a 20-inch rake attachment built from high-quality wear-resistant steel, designed to make land clearing, soil conditioning, and debris removal more efficient. With its strong tines and compact width, this rake is ideal for 1-ton mini excavators working in landscaping, site prep, and utility projects.

Benefits:

  • Efficiently clears roots, branches, rocks, and construction debris

  • Reduces time spent on site preparation and cleanup

  • Provides better soil aeration and conditioning compared to buckets

  • Built tough to handle repeated use in rugged environments

Applications:

  • Landscaping and property clearing

  • Site preparation and soil conditioning

  • Removing roots, rocks, and light demolition debris

  • Agricultural, utility, and light construction projects

This is a rake attachment for 25mm Pin Excavators which you can find here:

AGT-H12/AGT-QH12/AGT-L12/MX12/KX12-CDB/DM12/QH13/DM13/AGT-DY14/AGT-H15/MX15/KH16/DY16/NT18/KH18/QK20/DM20/MX20

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

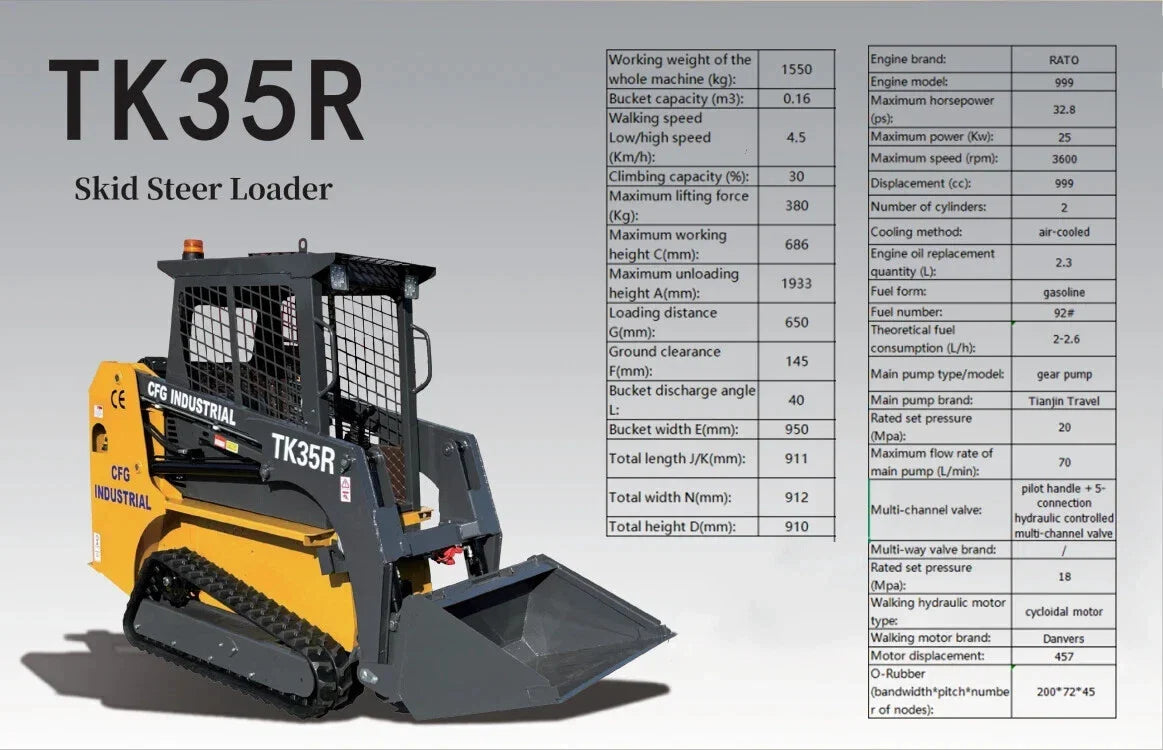

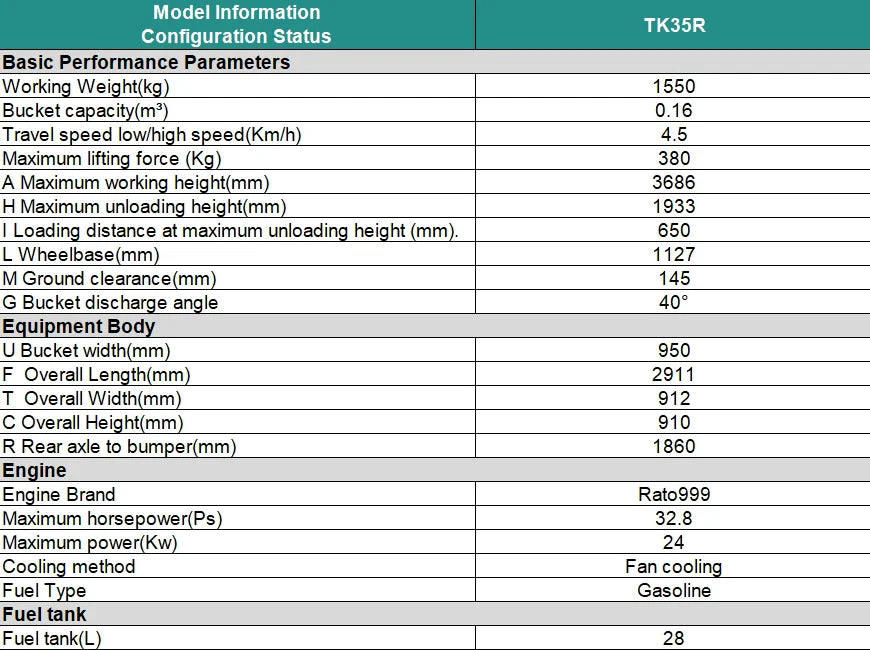

Specifications

< < < <
TECHNICAL DATA
Bucket Capacity 0.16 m³
Max Lifting Force 380 kg
Max Working Height 3686 mm
Max Unloading Height 1933 mm
Reach at Max Unloading Height 650 mm
Wheelbase 1127 mm
Ground Clearance 145 mm
Bucket Discharge Angle 40°
DIMENSION
Operating Weight 1.5 Ton (3,307 lb)
Overall Length 2,511 mm (114.5 in)
Overall Width 912 mm (36 in)
Overall Height 910 mm (36 in)
Bucket Width 914 mm (36 in)
Bucket Capacity 0.16 m³ (0.2 yd³)

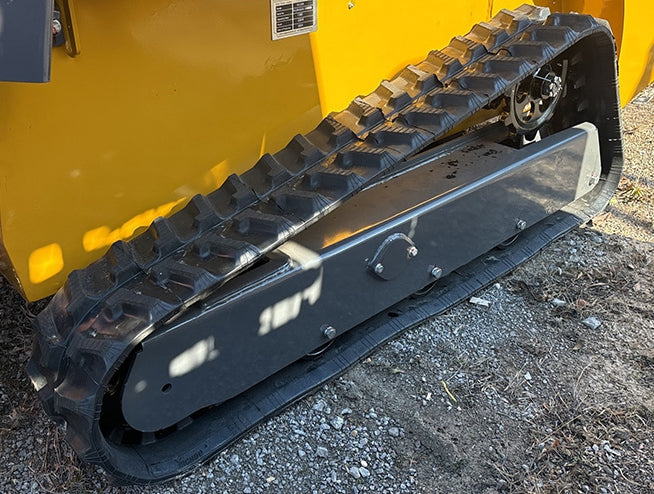

Tracks Size 200*72*45(W*P*L)
WORKING RANGE
Max Working Height 3,686 mm (145 in)
Max Unloading Height 1,933 mm (76 in)
Max Lifting Force 380 kg (838 lb)
Max Travel Speed 9 km/h (5.6 mph)

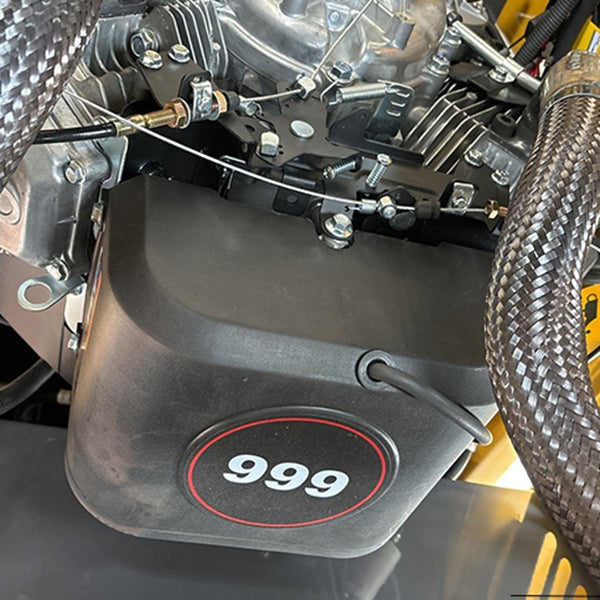

ENGINE
Brand / Model Rato 999D
Fuel Type Gasoline
Max Power 18.2 kW (24.4 HP)
Displacement 999 cc
Fuel Tank 28 L (7.4 gal)
Hydraulic Tank Capacity 40 L (10.5 gal)
