SKU:CFG-40UF

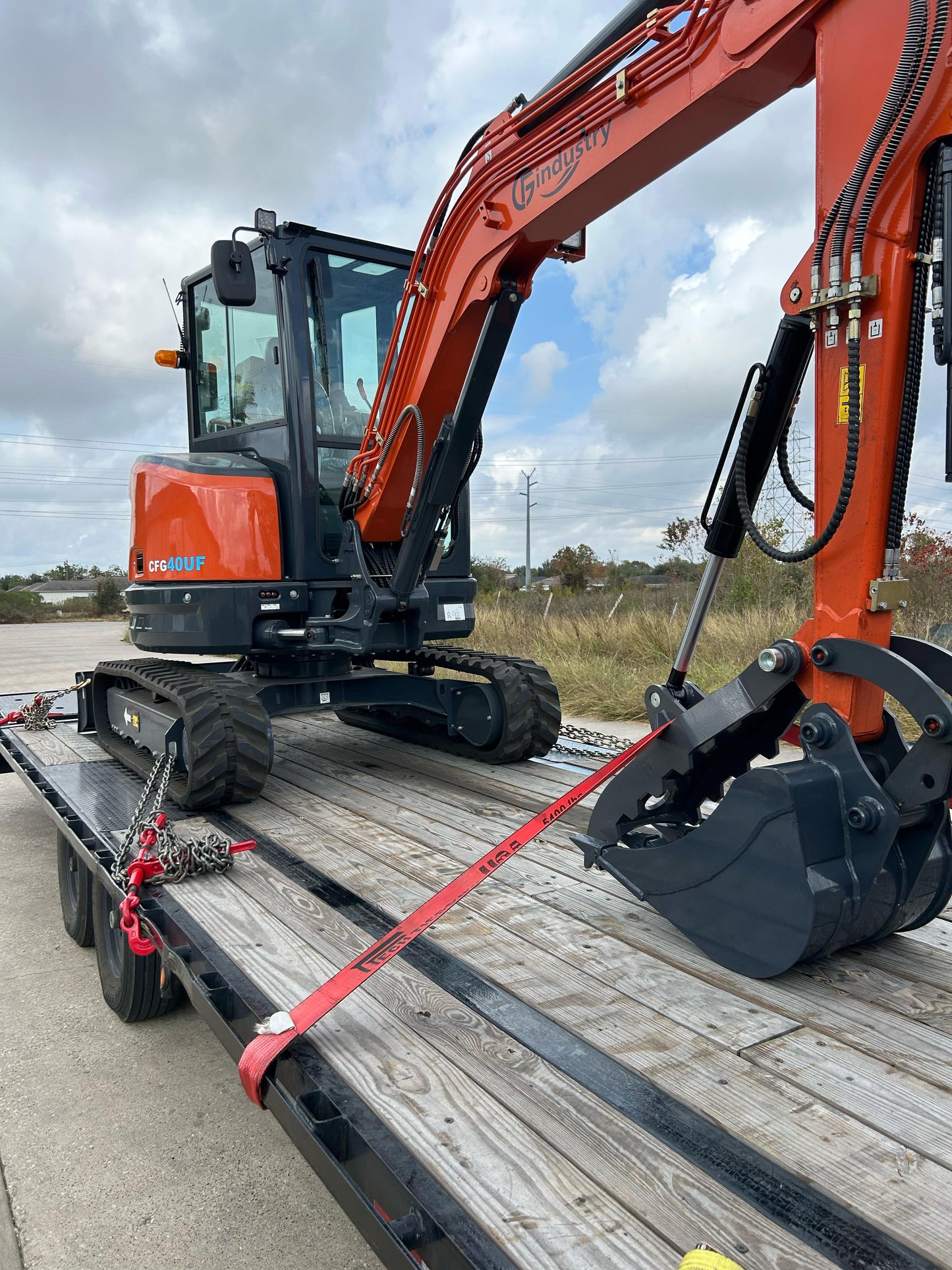

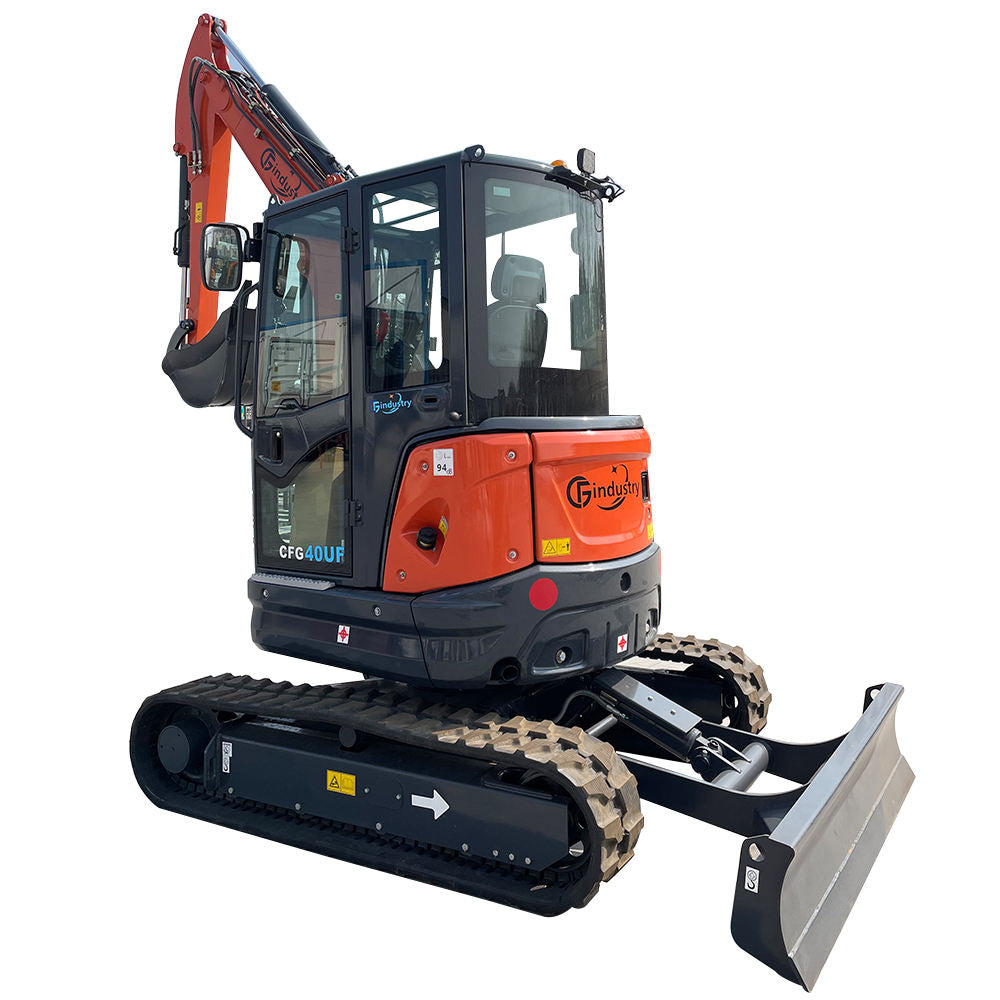

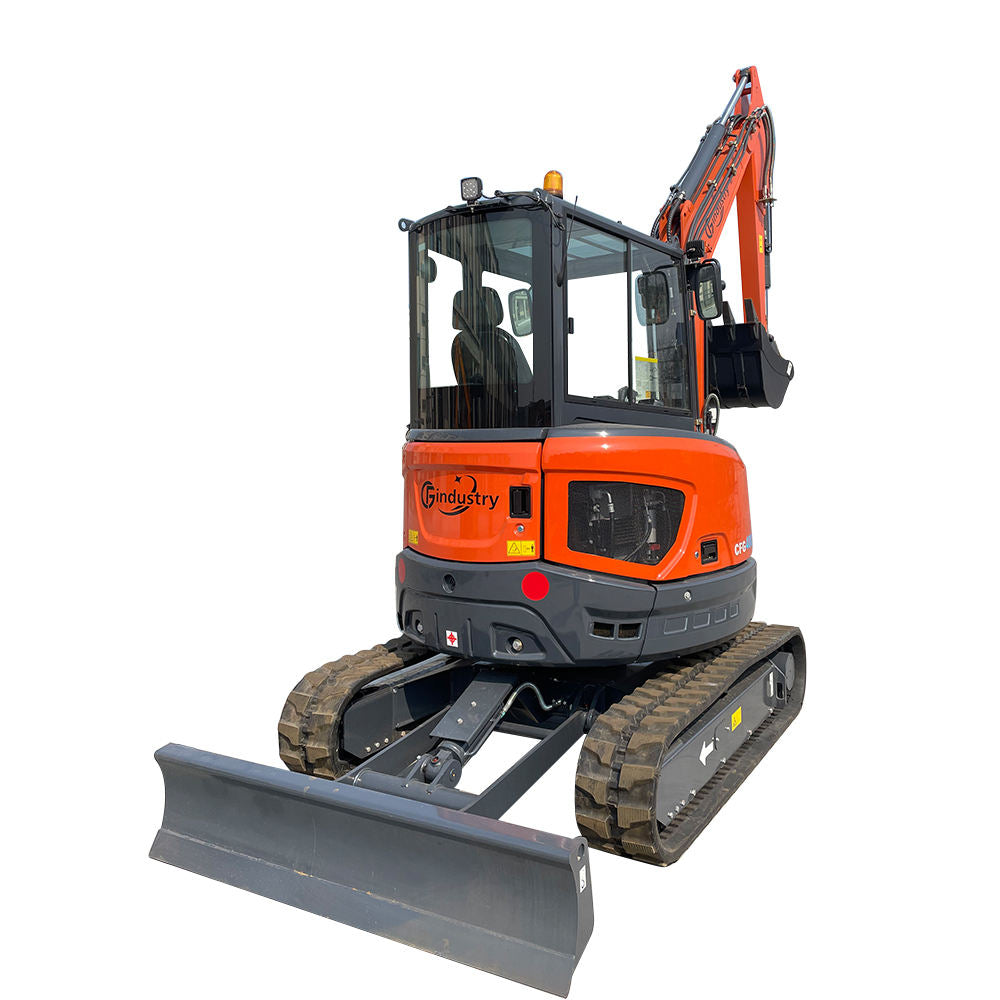

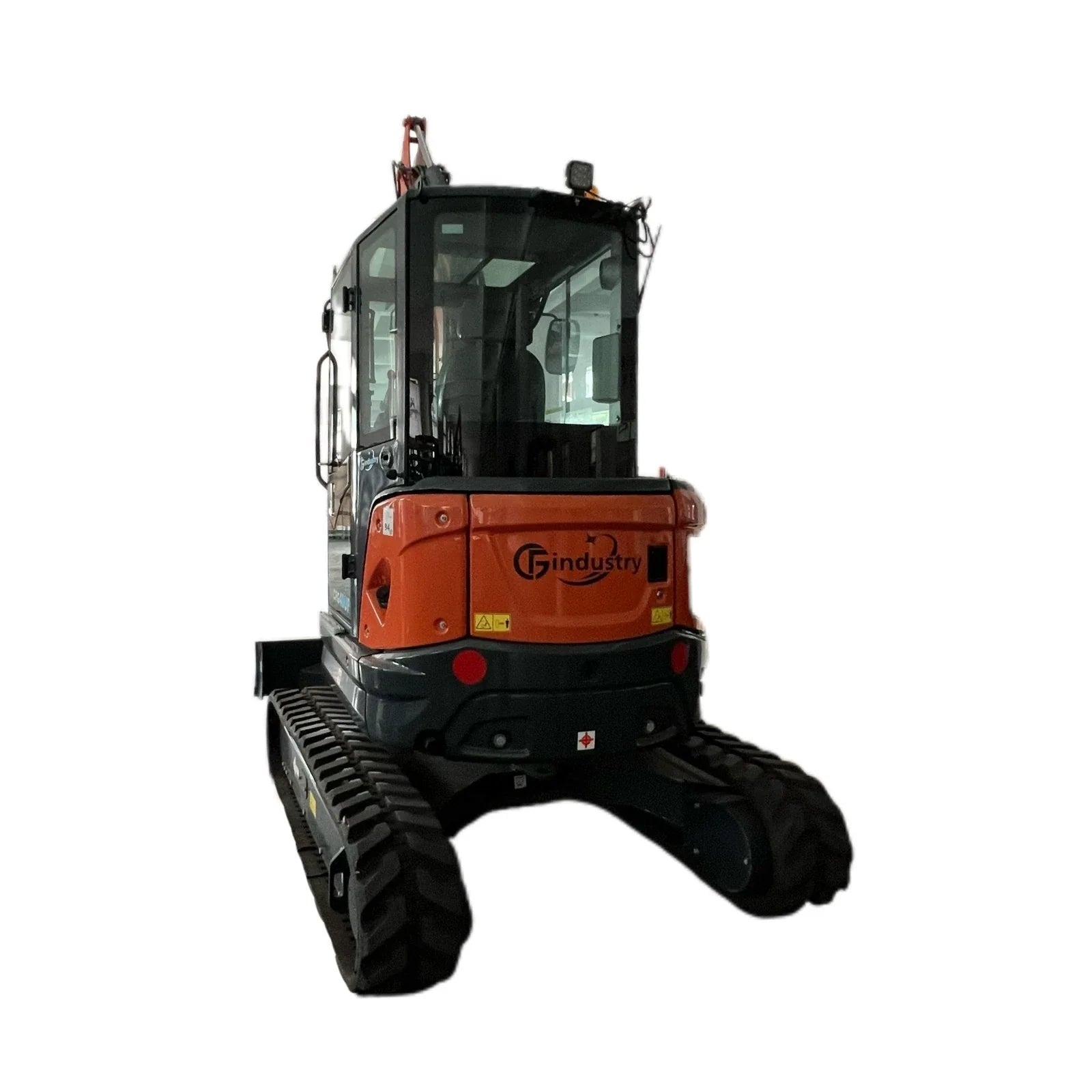

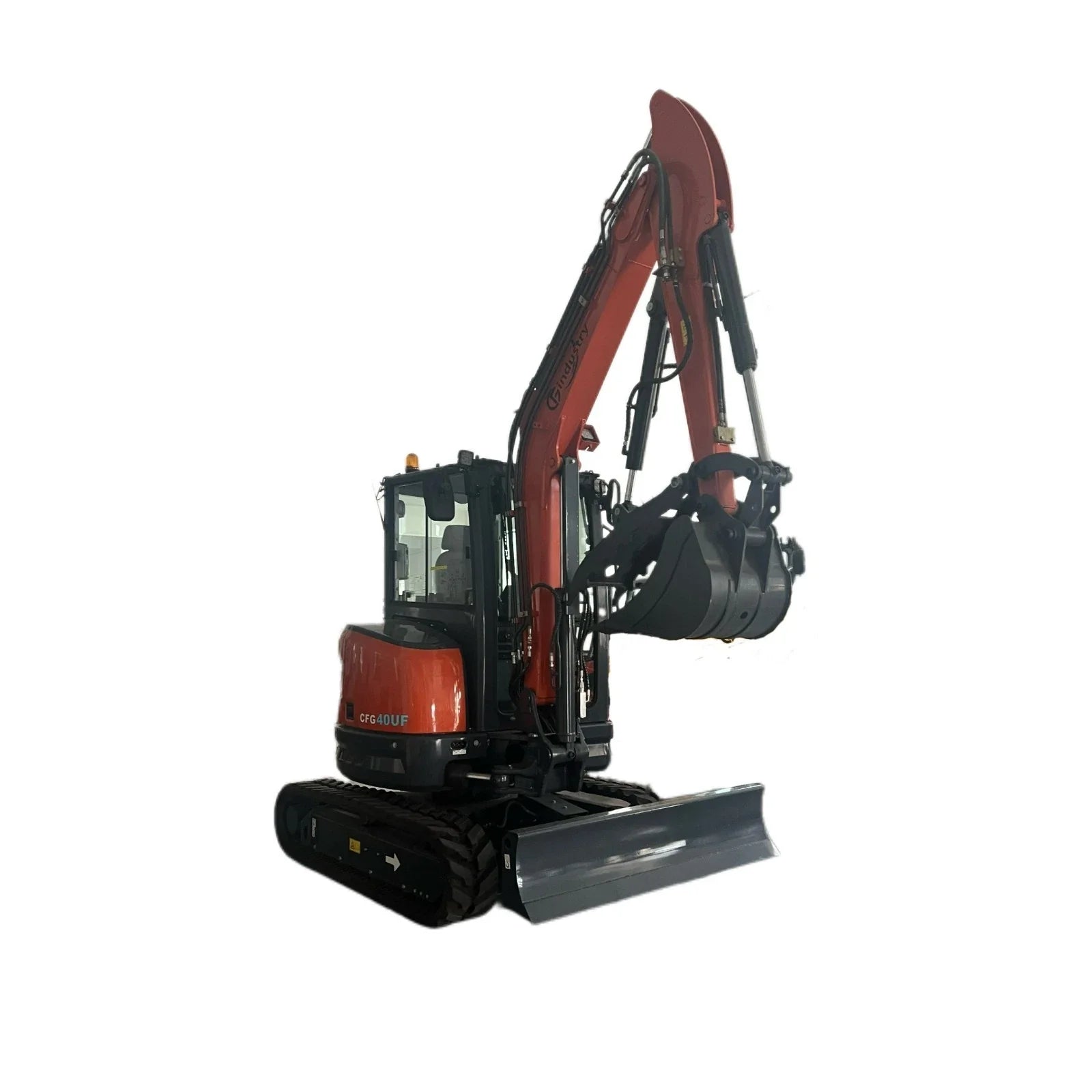

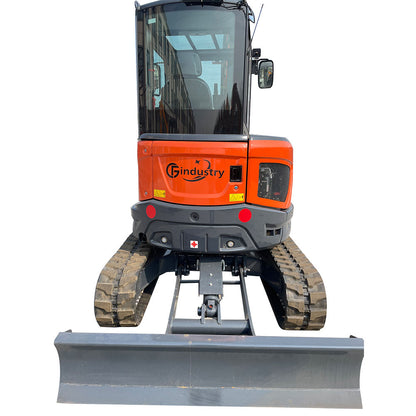

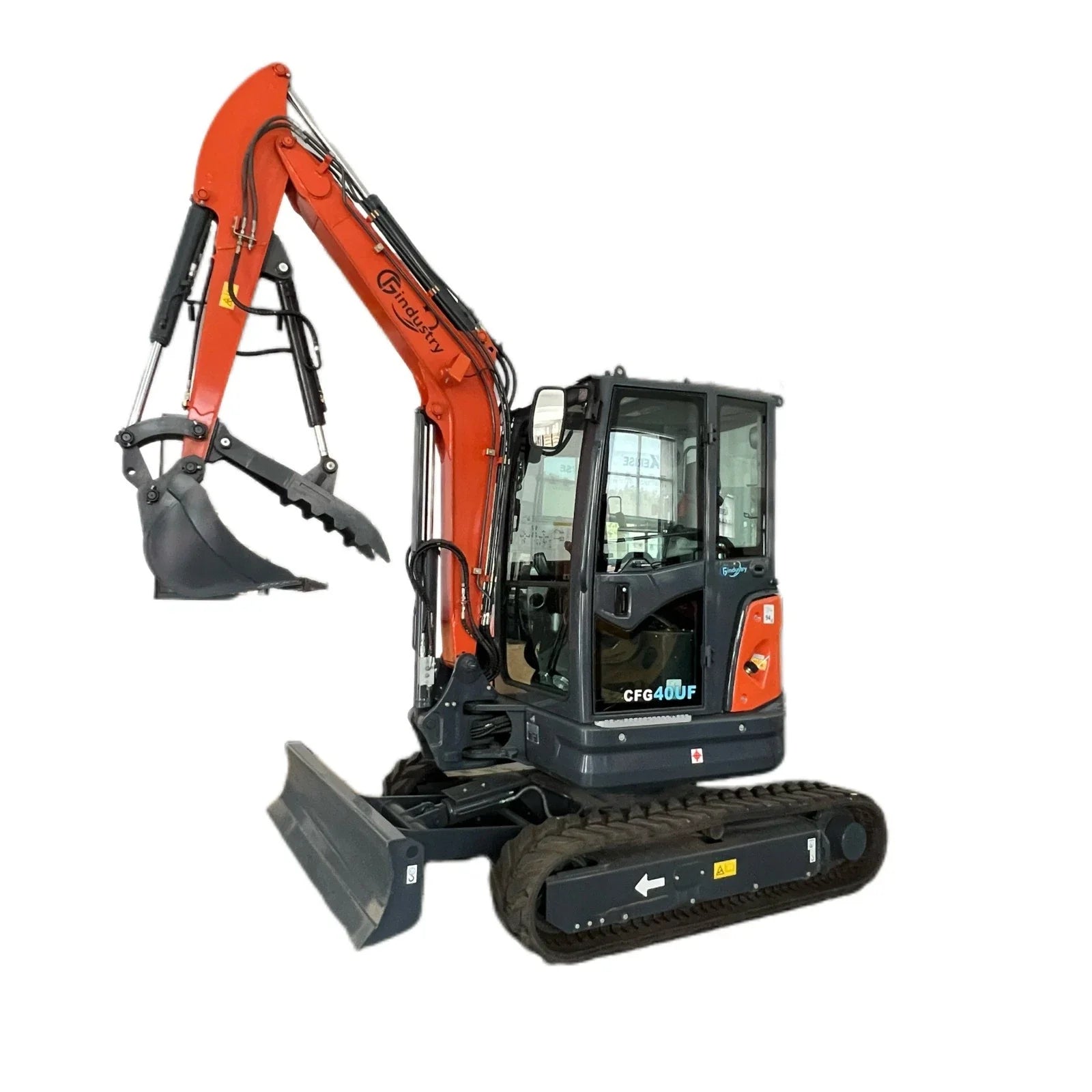

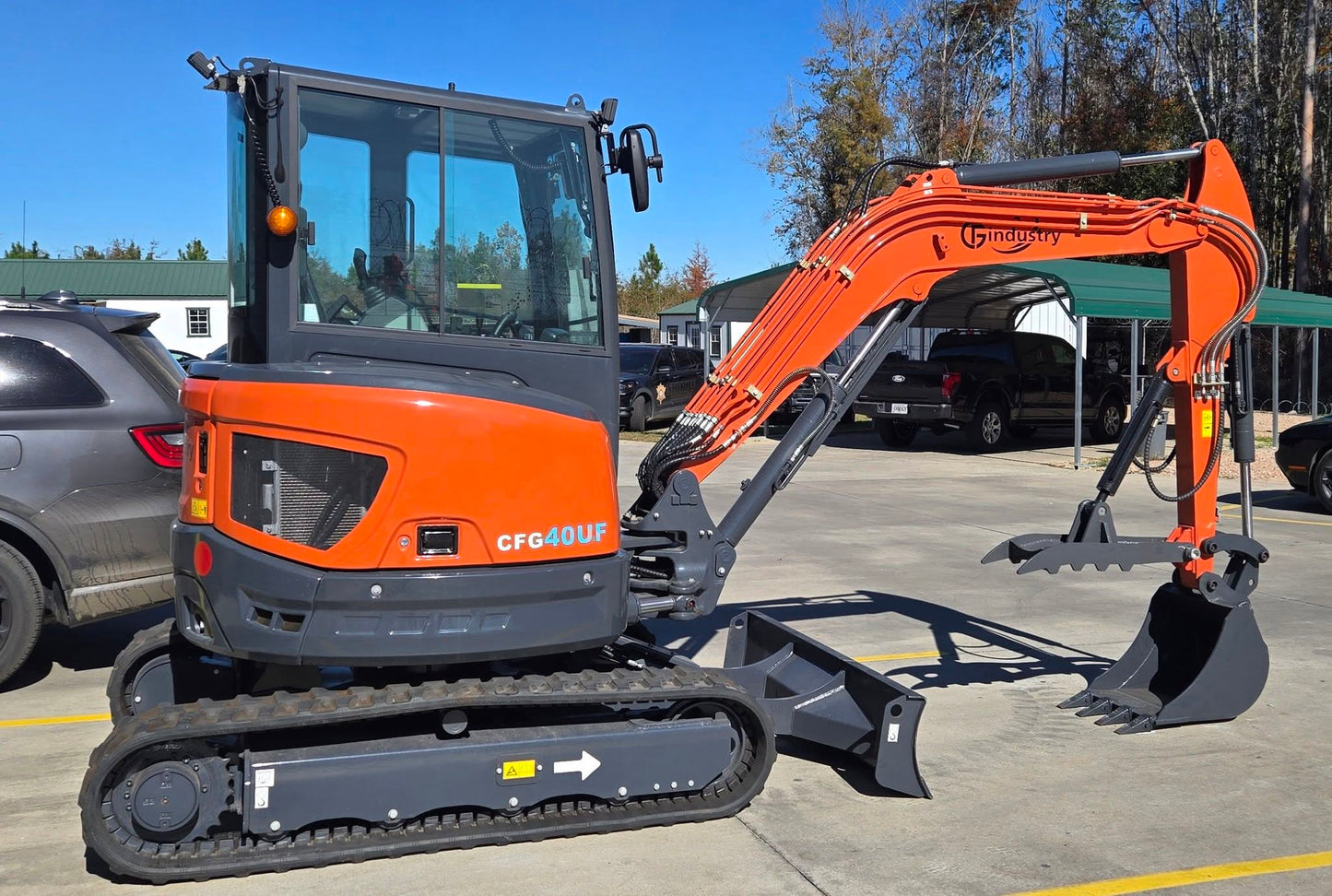

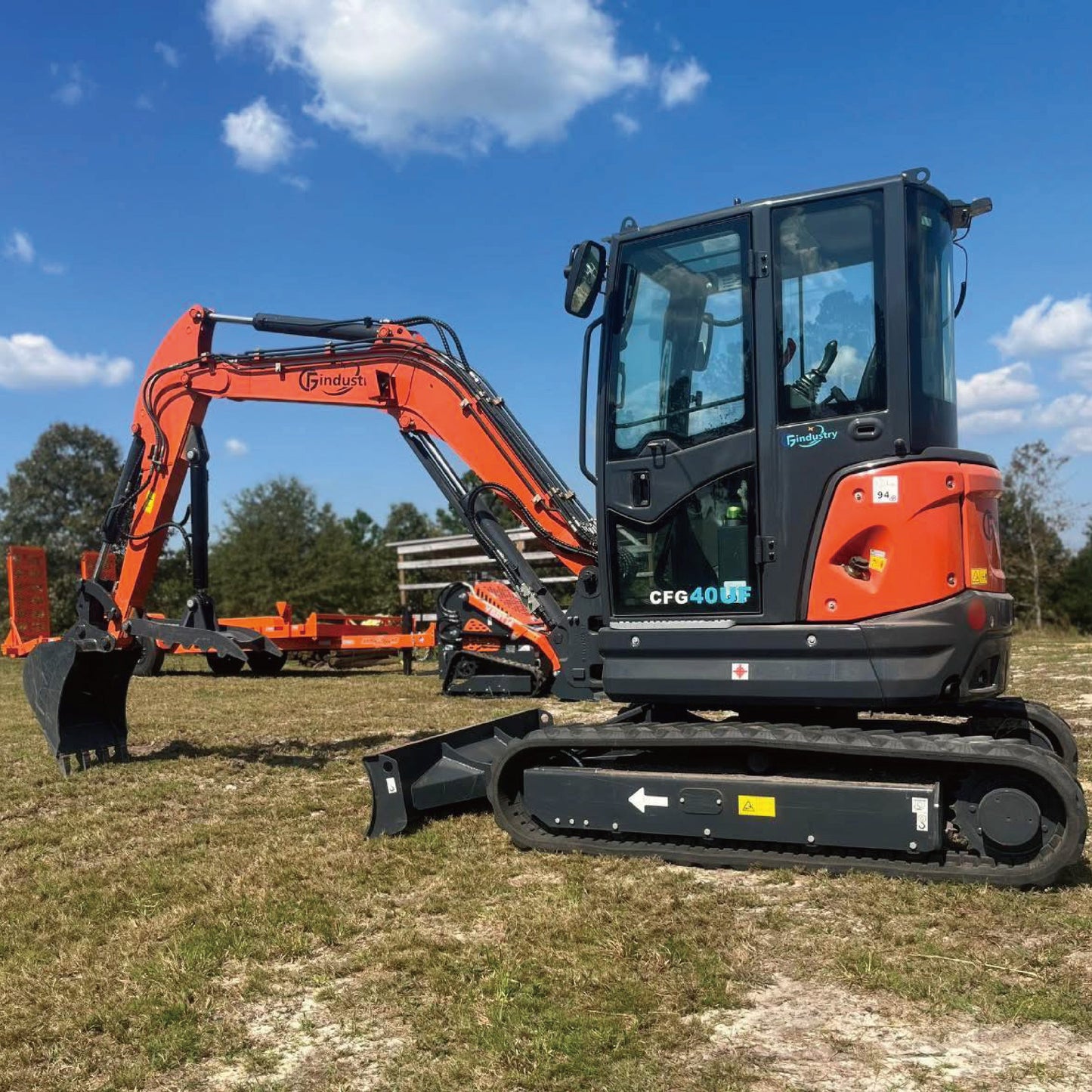

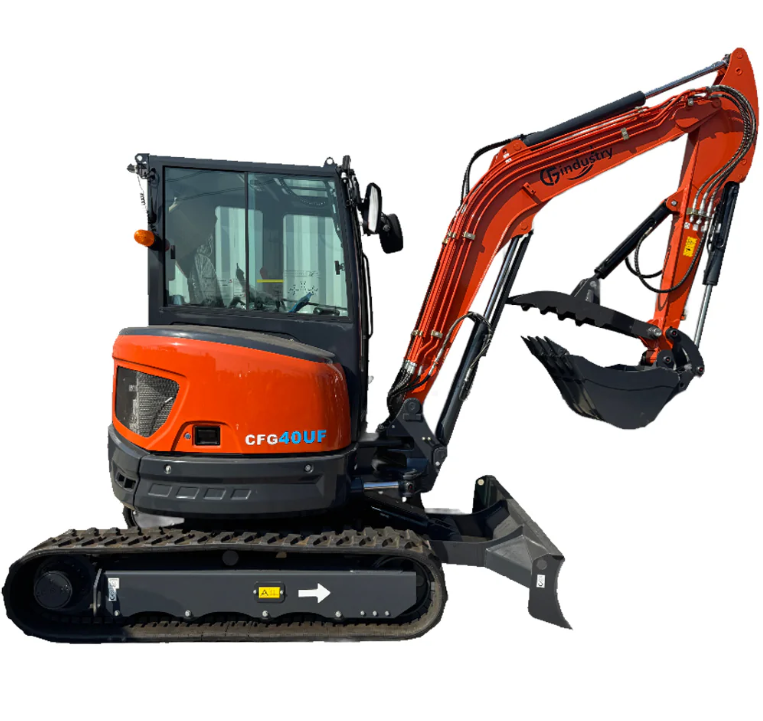

4 Ton Mini Excavator with Kubota Engine & Hydraulic Thumb | CFG-40UF

Name: 4 Ton Mini Excavator with Kubota Engine & Hydraulic Thumb | CFG-40UF
Brand: Agtindustrial
SKU: CFG-40UF
Price: 31733.49 USD
Availability: OutOfStock

1 19

$31,733.49

Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

View full details

Product Overview

This versatile excavator offers a cabin/canopy option and delivers exceptional performance with a Kubota D1703-E4B-SWD-1 engine, 0.11m³ (3.88 cu ft) bucket capacity, and maximum digging depth of 122.8". Designed for precision and power, it features rubber or steel tracks, a hydraulic thumb, and excellent reach, with a maximum digging force of 31.8kN. Easy to maneuver and maintain, it's ideal for demanding tasks in construction and landscaping.

Video

In Action Video

Manual

Parts List

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

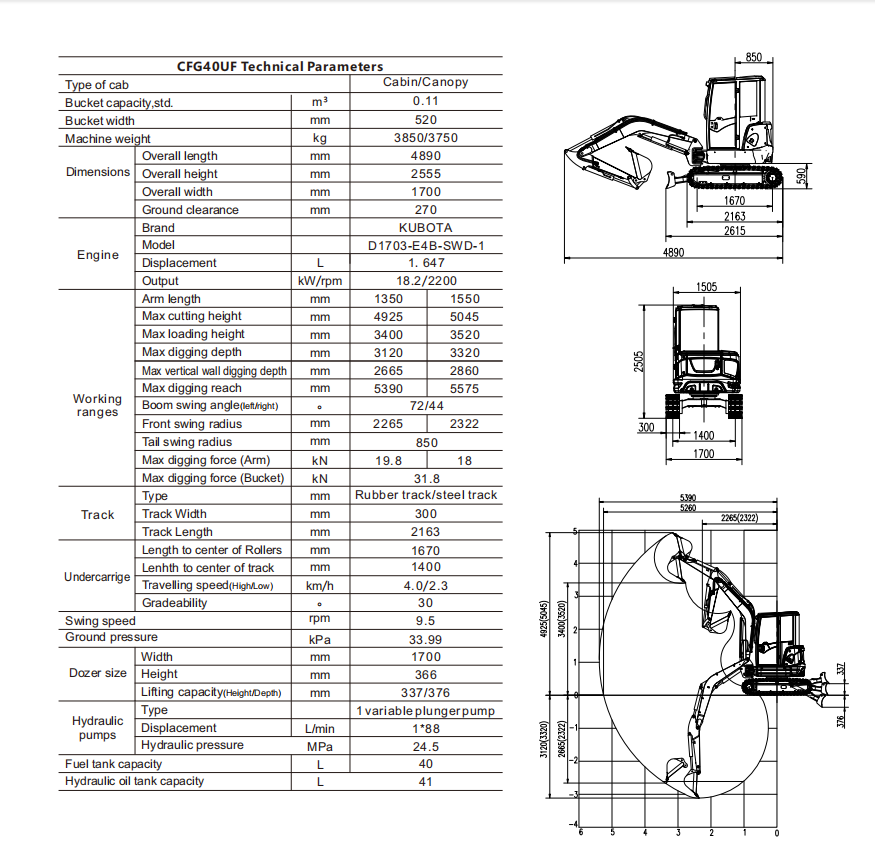

TECHNICAL SPECIFICATIONS:

Equipment Type: Mini Crawler Excavator
Operating Weight: 3,850 kg (8,488 lbs)
Bucket Capacity: 0.11 m³ (3.88 cu ft)
Bucket Width: 520 mm (20.5 in)
Bucket Breakout Force: 31.8 kN (7,149 lbf)
Arm Digging Force: 18–19.8 kN (4,046–4,451 lbf)
Side Swing Angle (L/R): 72/44
Swing Speed: 9.5 rpm
Travel Speed (Low/High): 2.3 / 4.0 km/h (1.4 / 2.5 mph)
Climbing Ability: 70°
Ground Pressure: 33.99 kPa

DIMENSION:

Overall Length: 4,890 mm (192.5 in)
Overall Width: 1,700 mm (67 in)
Overall Height: 2,555 mm (100.5 in)
Ground Clearance: 270 mm (10.6 in)
Track Width: 300 mm (11.8 in)
Length to Center of Rollers: 1,670 mm (65.7 in)
Track Overall Length: 2,163 mm (85.2 in)
Track Gauge (Center to Center): 1,400 mm (55.1 in)
Track Size: 300*55*84 (W*P*L)
Front Swing Radius: 2,265 mm (89.2 in)
Tail Swing Radius: 850 mm (33.5 in)

WORKING RANGE:

Arm Length: 1,350mm (53.2 in)
Max Digging Depth: 3,120 mm (122.8 in)
Max Digging Height: 4,925 mm (193.9 in)
Max Digging Radius: 5,390 mm (212.2 in)
Max Unloading Height: 3,400 mm (133.9 in)
Max Vertical Wall Digging Depth: 2,665 mm (104.9 in)
Boom Swing Angle (Left / Right): 72° / 44°

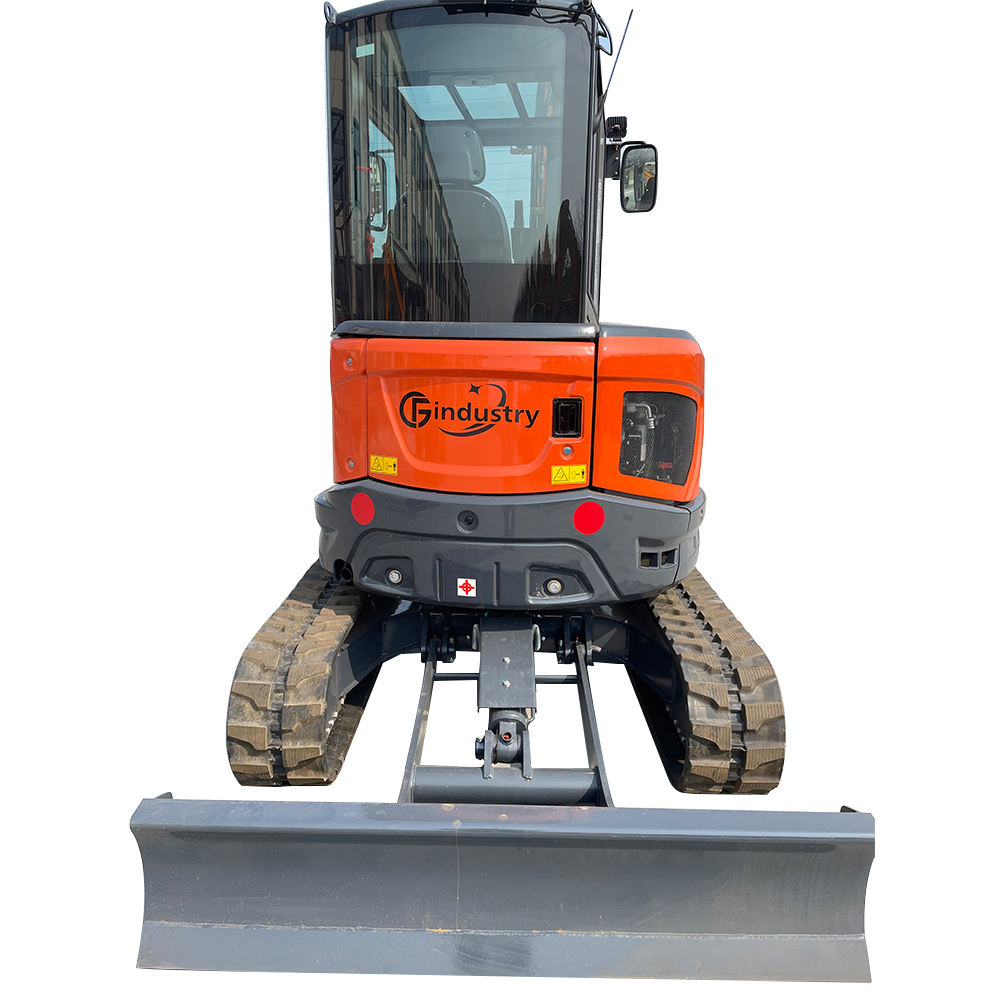

Dozer Blade Width: 1,700 mm (67 in)
Dozer Blade Height: 366 mm (14.4 in)
Dozer Blade Lift Height: 337 mm (13.3 in)
Dozer Blade Drop Depth: 376 mm (14.8 in)

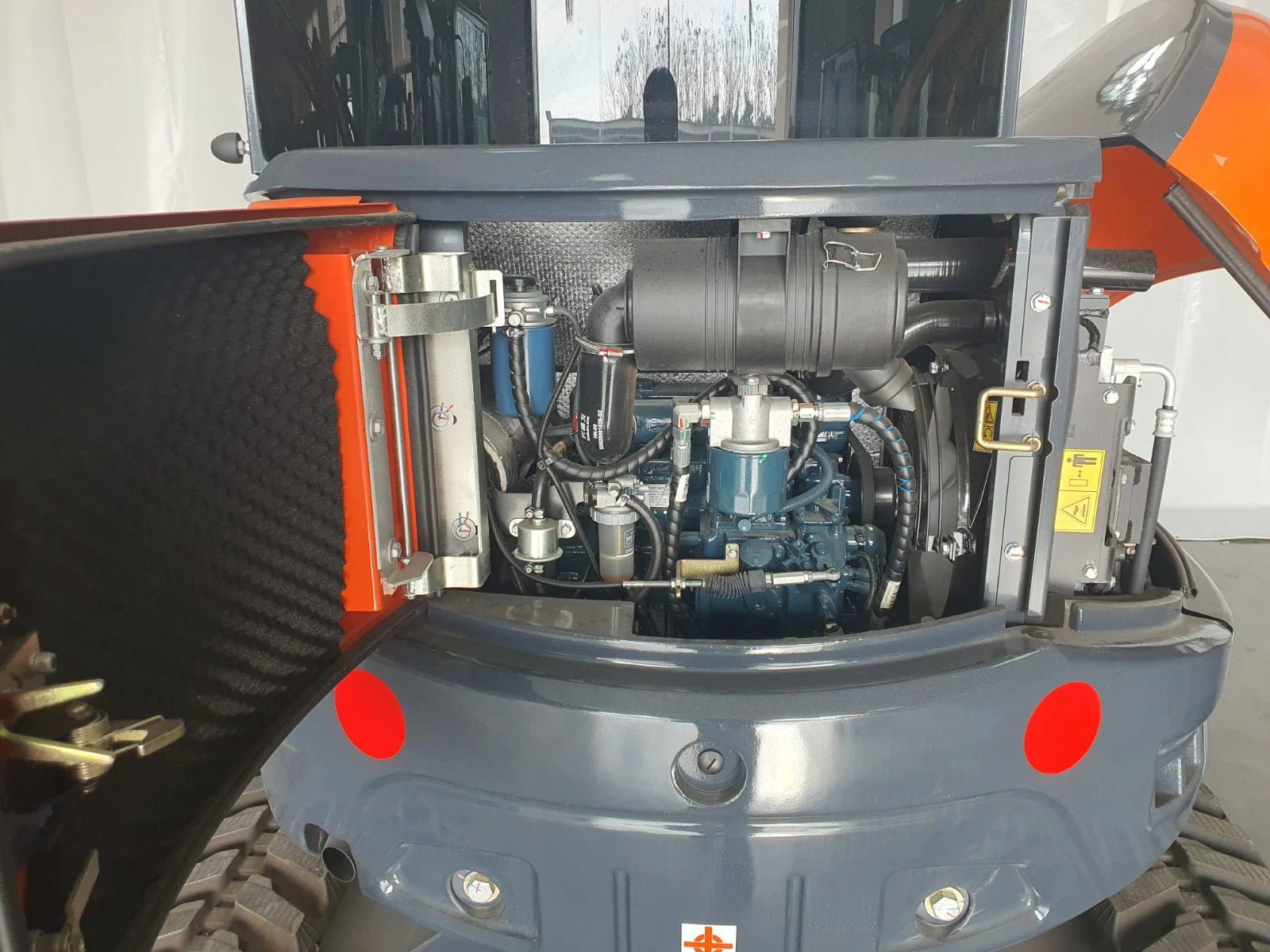

ENGINE:

Engine Brand: KUBOTA
Model: D1703-E4B-SWD-1
Fuel Type: Diesel
Rated Power: 18.2 kW (24.4 HP) @ 2200 rpm
No. of cylinder: 3
Cooling method: Cooling
Displacement: 1.647 L (1,647 cc)
Fuel Tank Capacity: 40 L (10.6 gal)

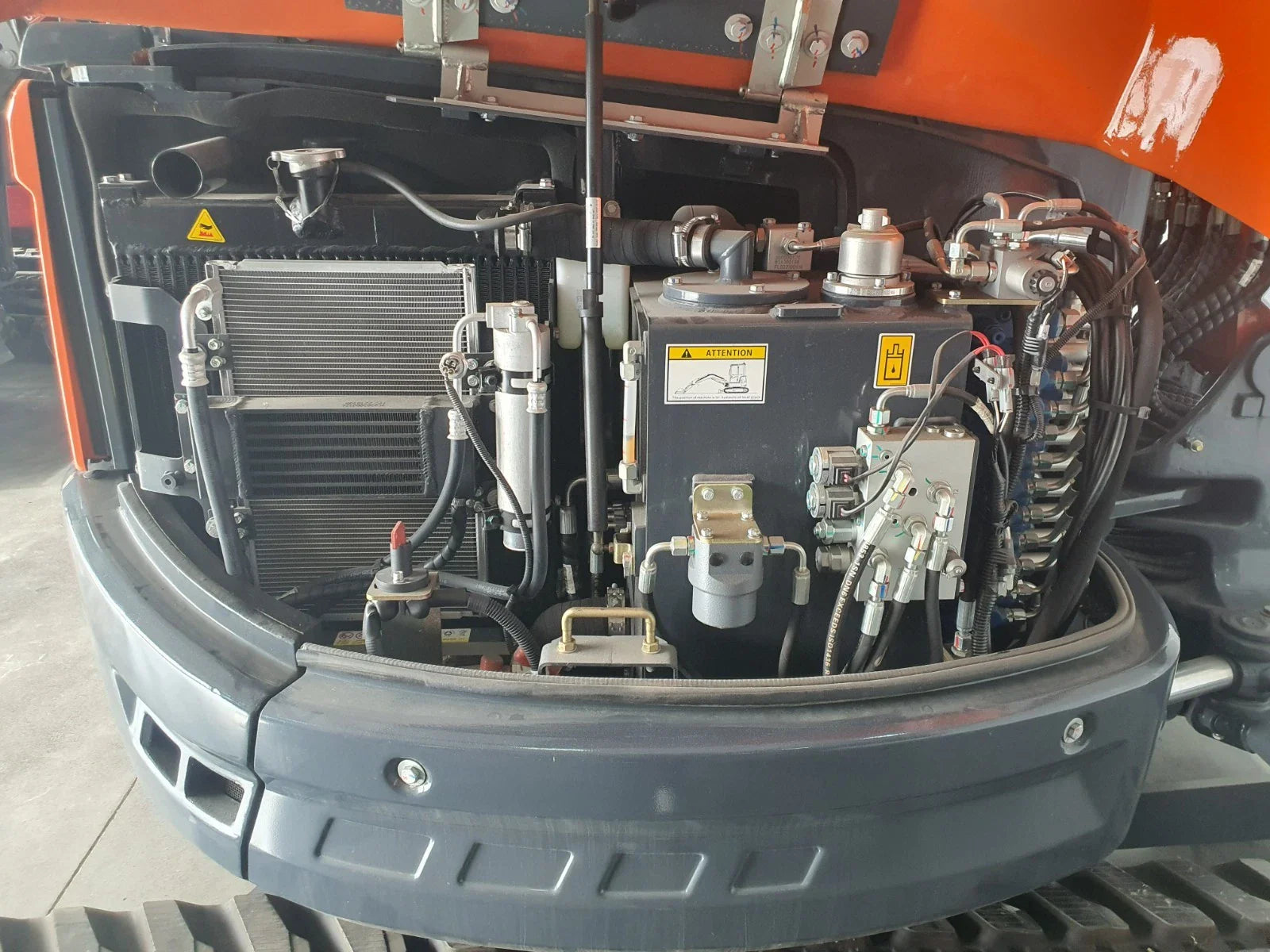

HYDRAULIC SYSTEM & ELECTRICAL:

Hydraulic Pump Type: 1 Variable Plunger Pump
Hydraulic Flow Rate: 88 L/min (23.2 GPM)
Hydraulic System Pressure: 24.5 MPa (3,553 PSI)
Hydraulic Tank Capacity: 41 L (10.8 gal)
Battery: 12V

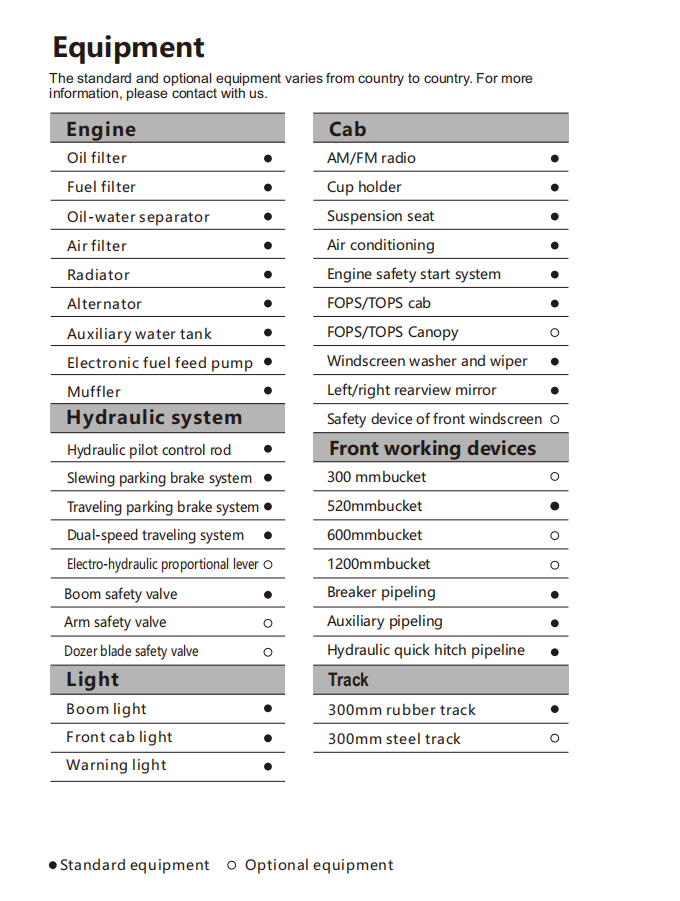

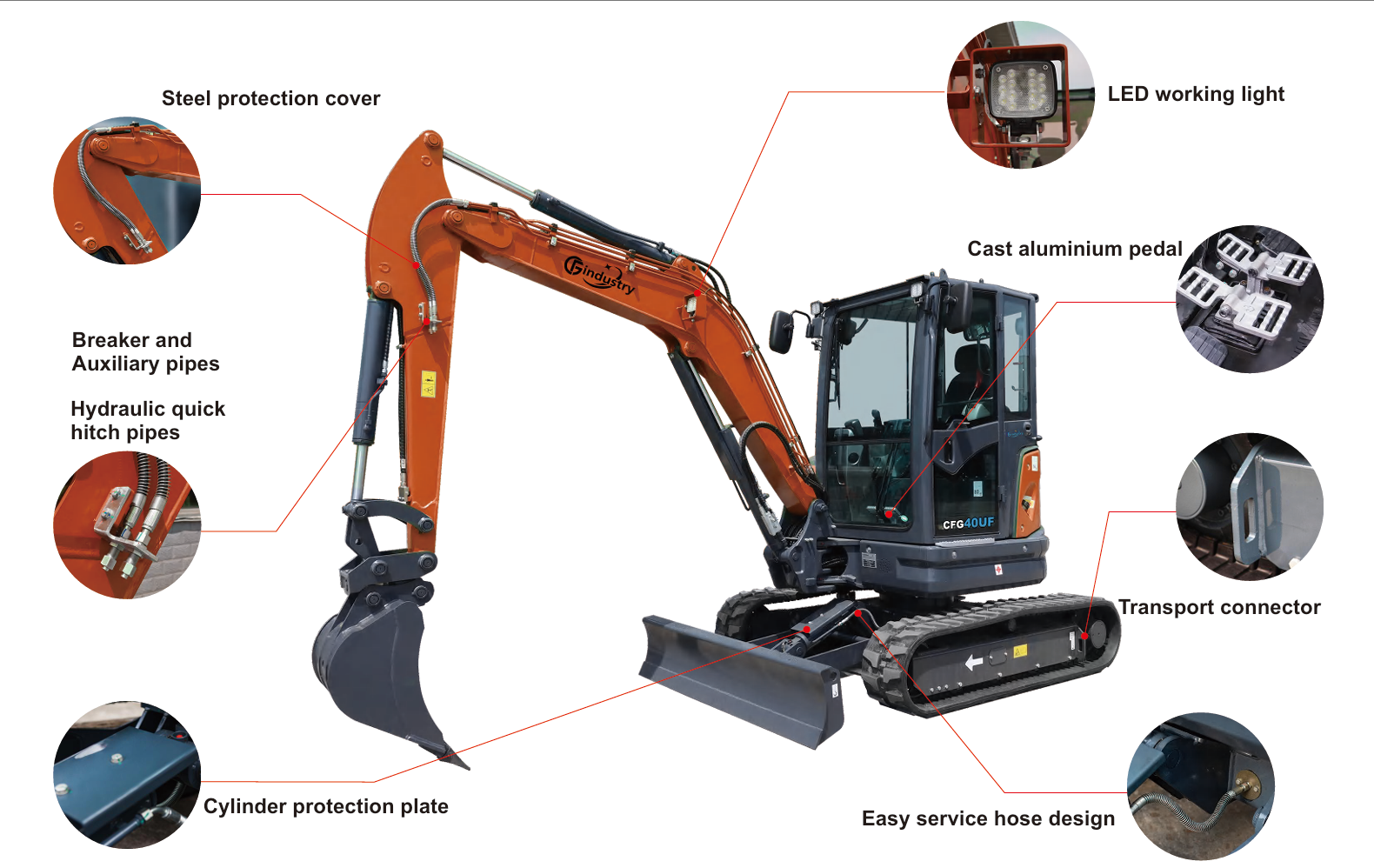

Features:

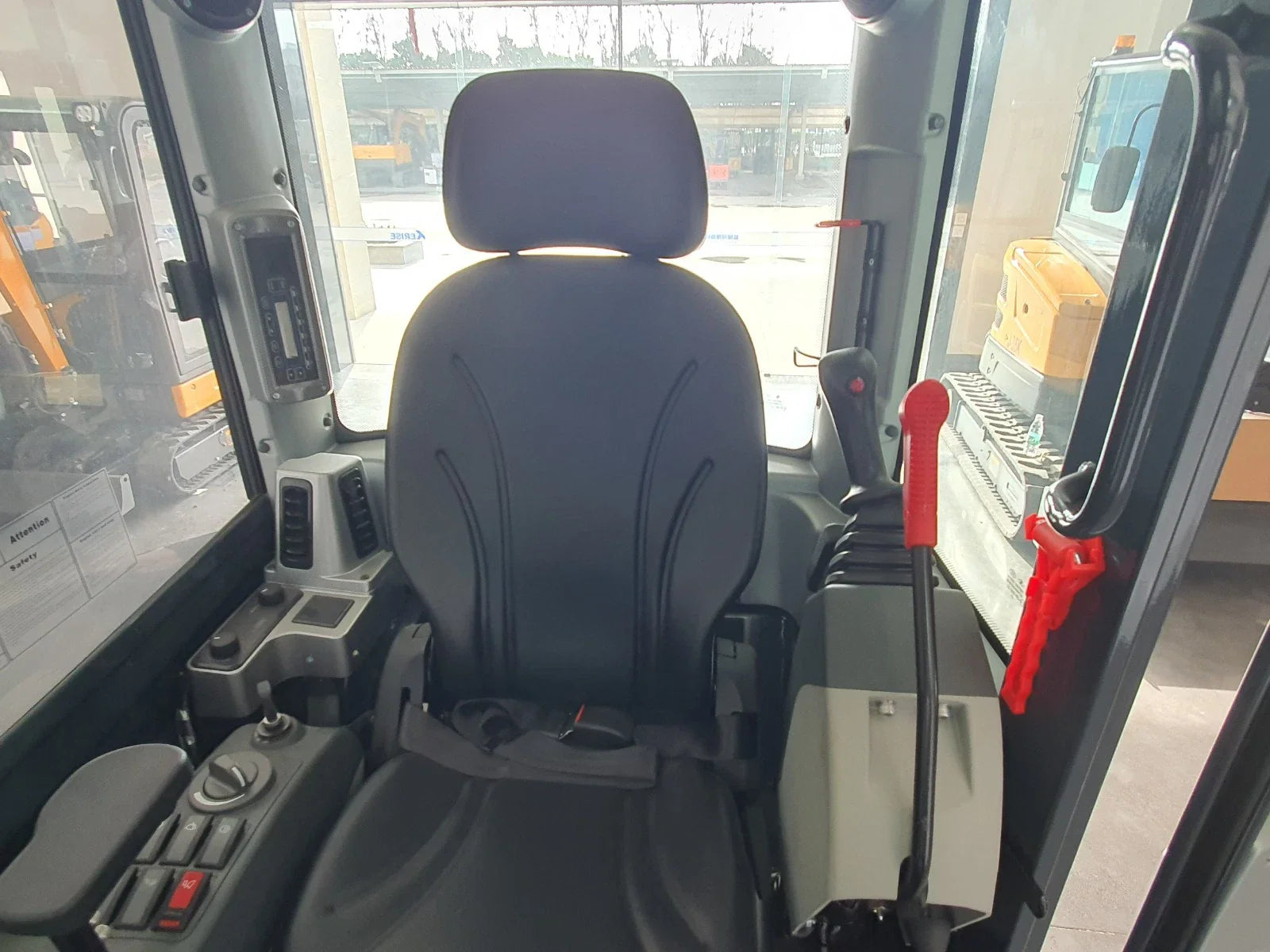

Enclosed Cab with A/C & Heater (FOPS/TOPS Certified)
LED Boom & Front Cab Lights + Warning Light
AM/FM Radio
Rearview Mirror (Left & Right)

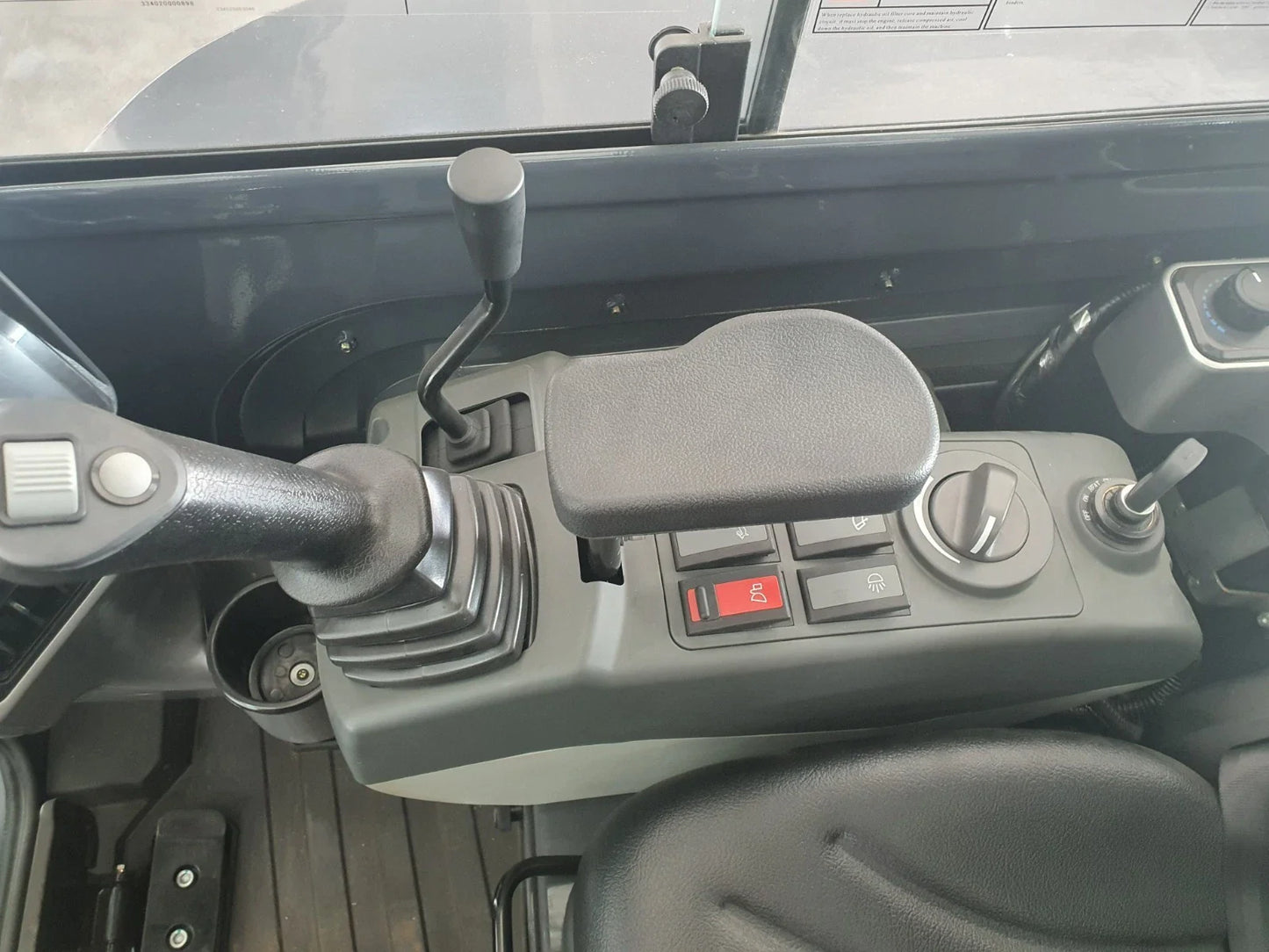

Pilot Control
Side Swing Boom
Dual-Speed Traveling System

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

DIMENSION
Operating Weight	3.8 Ton	8377 lb
Overall Length	4890 mm	192.5 in
Overall Width	1700 mm	67 in
Overall Height	2555 mm	100.5 in
Track Size	3005584 (WPL)
WORKING RANGE
Max Digging Depth	3320 mm	131 in
Max Digging Height	5045 mm	198 in
Max Dumping Height	3520 mm	138 in
Max Reach at Ground	5575 mm	219 in
Dozer Blade Width	1700 mm	67 in
Dozer Blade Height	366 mm	14 in
Blade Max Lifting Height	336 mm	13 in
Blade Max Drop Depth	336 mm	13 in
ENGINE
Engine Brand	Kubota
Fuel Type	Diesel
Model	D1703-E4B
Rated Power	18.2 kW	24.4 HP
Displacement	1647 cc
Fuel Capacity	40 L	10.6 gal
Hydraulic Flow Rate	67.2 L/min	17.75 gal/min
Hydraulic Pressure	24.5 MPa	3553 psi
Hydraulic Tank Capacity	41 L	10.8 gal
Battery	12V
