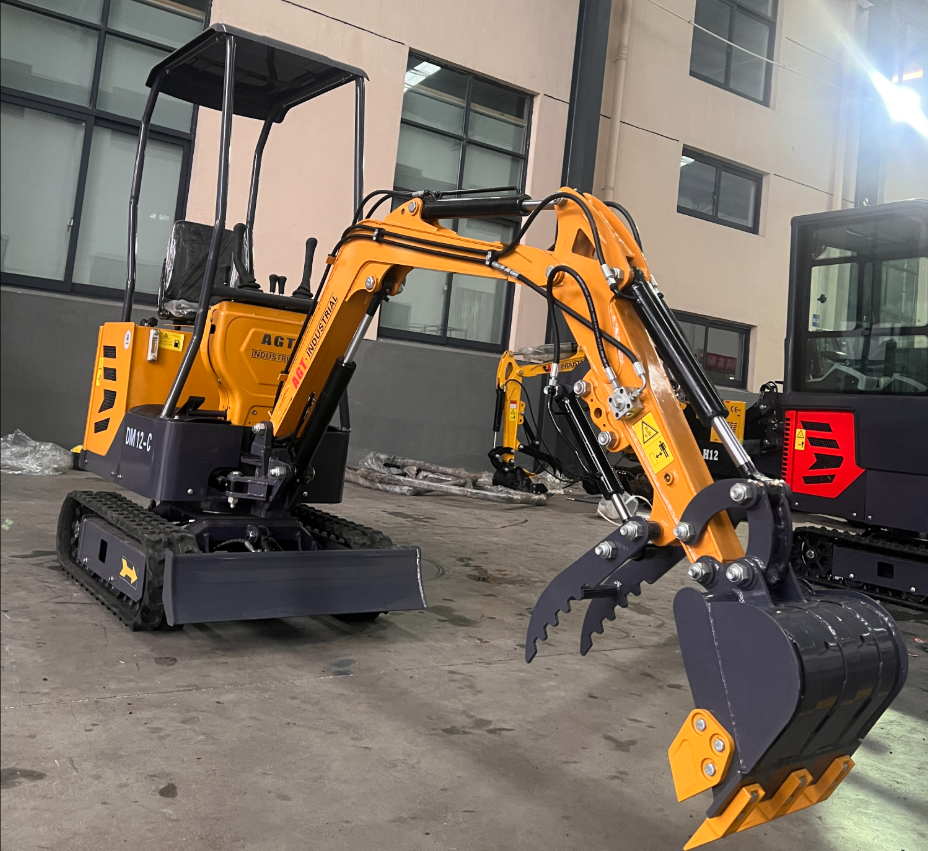

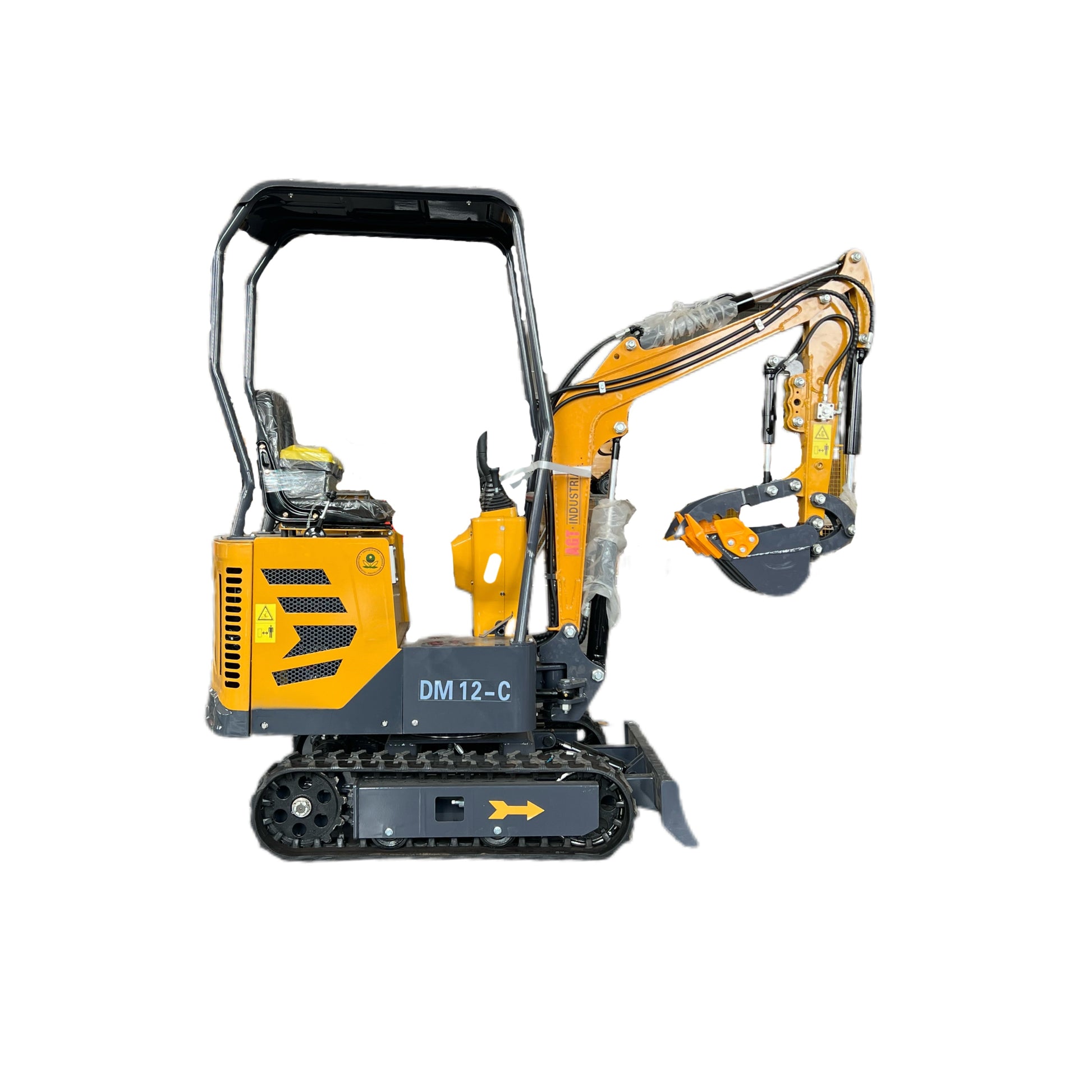

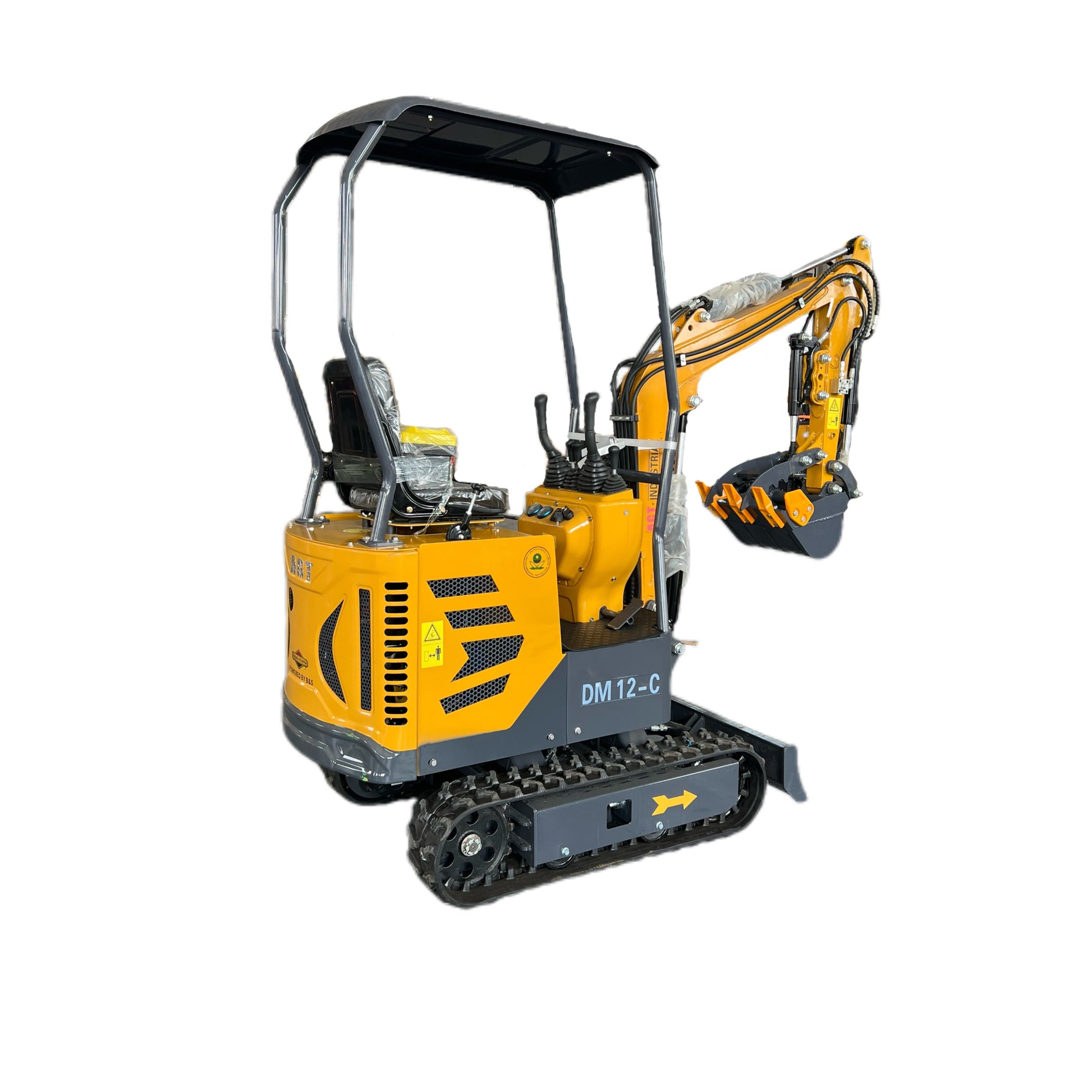

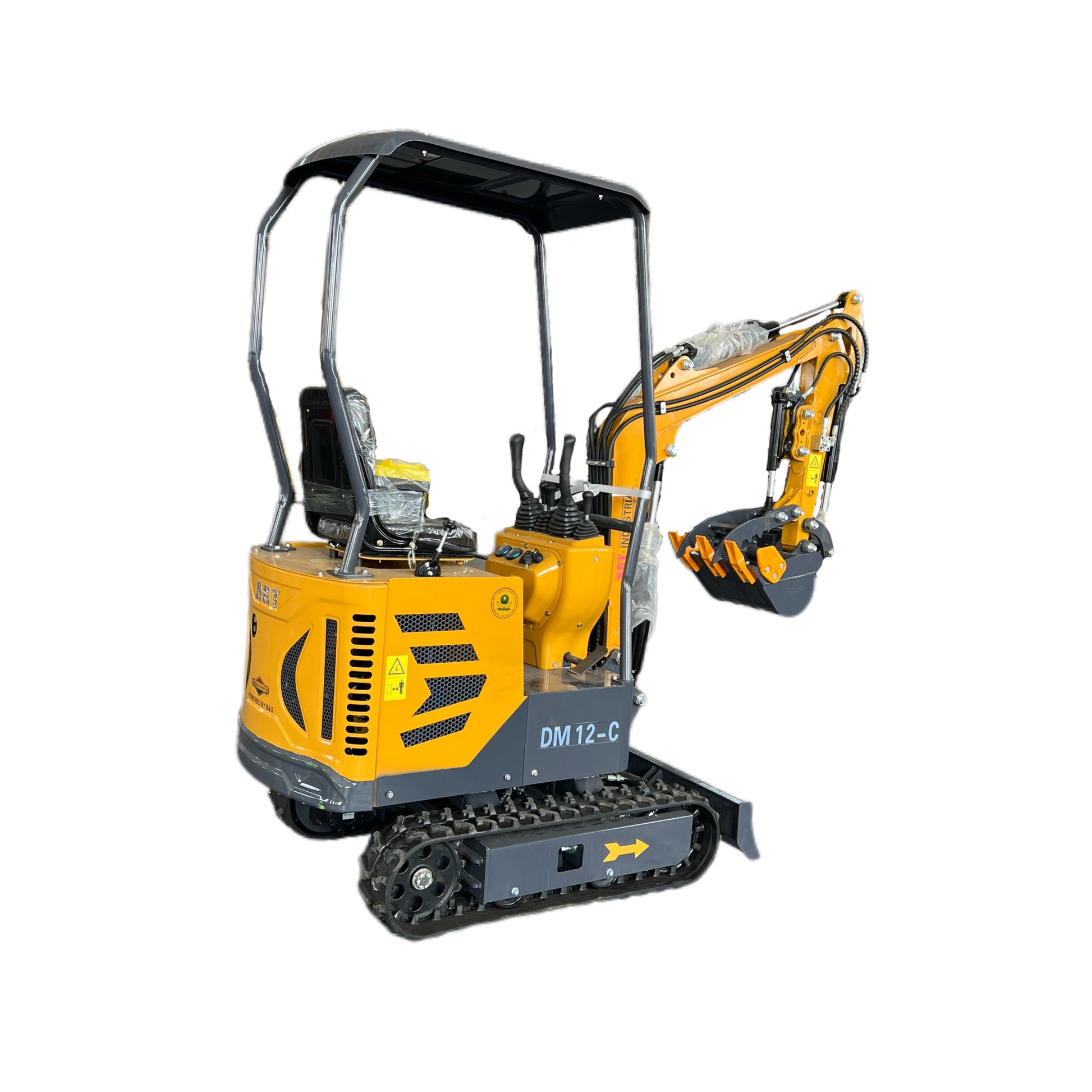

1 Ton Mini Excavator, 13.5 HP B&S Gas Engine | AGT-DM12-C

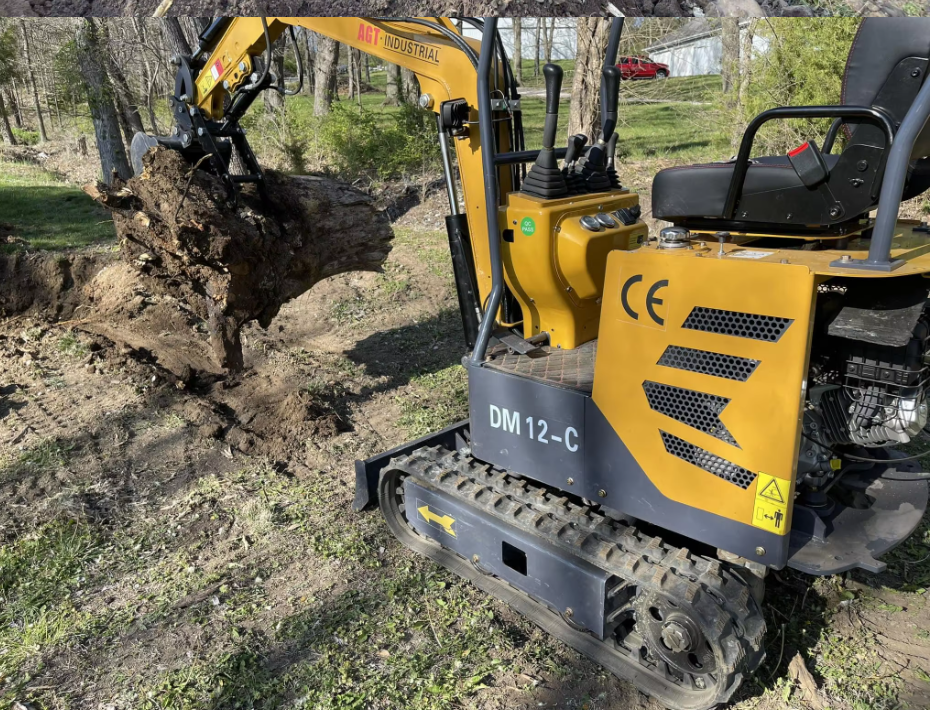

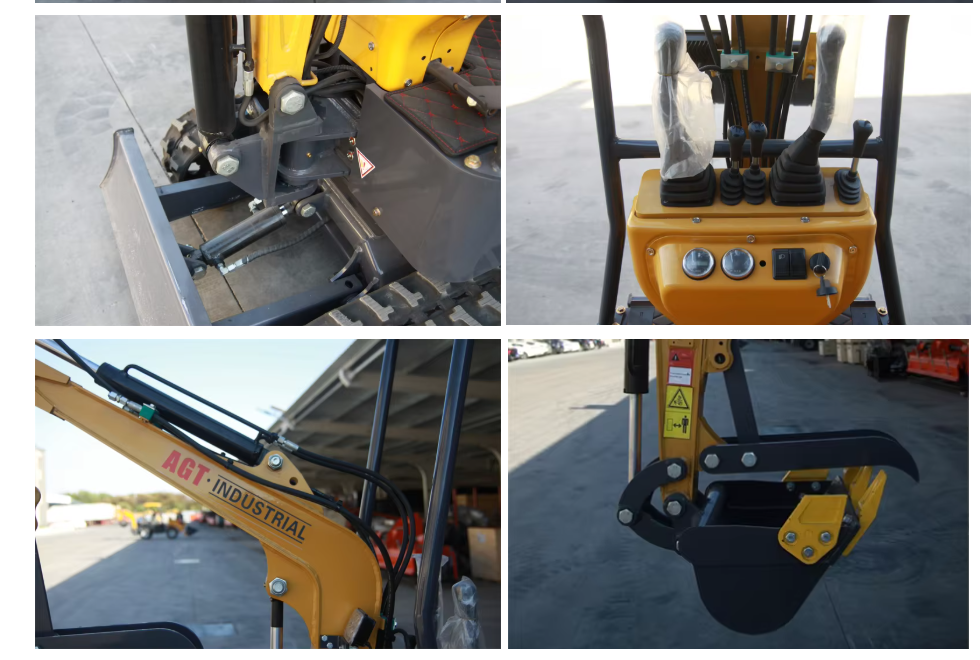

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.52 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.

In-action Video

AGT-DM12-C Maintenance Instructions

AGT-DM12-C Manual

Technical Specifications:

• Equipment Type: Mini Crawler Excavator

• Operating Weight: 870 kg (1,918 lbs / 0.96 Ton)

• Standard Bucket Capacity: 0.03 m³ (1.06 cu ft)

• Bucket Digging Force: 6 kN (1,348 lbf)

• Arm Digging Force: 4 kN (899 lbf)

• Swing Speed: 10 rpm

• Travel Speed: 0–2 km/h (0–1.24 mph)

• Climbing Ability / Gradeability: 30% (approx. 16.7°)

Dimension:

• Overall Length / Transport Length: 2,738 mm (107.8 in)

• Overall Width / Transport Width: 935 mm (36.8 in)

• Overall Height (w/ Canopy): 2,209 mm (87 in)

• Wheelbase: 900 mm (35.4 in)

• Track Gauge / Track Width: 762 mm (30 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)

• Track Tensioning Form: Mechanical Tensioning

• Minimum Front Swing Radius: 1,501 mm (59.1 in)

• Tail Swing Radius: 845 mm (33.3 in)

Working Range:

• Max Digging Depth: 1,684 mm (66.3 in / 66 in)

• Max Digging Height: 2,795 mm (110 in)

• Max Dumping / Unloading Height: 1,863 mm (73.3 in)

• Max Digging Radius: 3,112 mm (122.5 in)

• Dozer Blade Width: 907 mm (35.7 in)

• Dozer Blade Height: 200 mm (7.9 in)

• Dozer Blade Lift Height: 213 mm (8.4 in)

• Dozer Blade Dig Depth: 210 mm (8.3 in)

• Side Swing Angle (L/R): 30°

Engine:

• Engine Brand: Briggs & Stratton (B&S)

• Model: 13.5HP XR2100 Series

• Fuel Type: Gasoline (92#)

• Rated Power: 9.8 kW (13.5 HP)

• Rated Speed: 3600 rpm

• Number of Cylinders: 1

• Cooling Method: Forced Air Cooling

• Engine Oil Change Volume: 1.1 L (0.29 gal)

• Fuel Tank Capacity: 6.6 L (1.7 gal)

• Theoretical Fuel Consumption: 0.5–1.2 L/hr

Hydraulic system:

• Main Pump Type / Model: Gear Pump / 06

• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)

• Hydraulic Pressure: 16 MPa (2,300 PSI)

• Control Valve: 8-Way Manual Multi-Way Valve

• Traveling Hydraulic Motor: BMER3-350

• Rotary Hydraulic Motor: BM1-315

• Hydraulic Tank Capacity: 18 L (4.8 gal)
