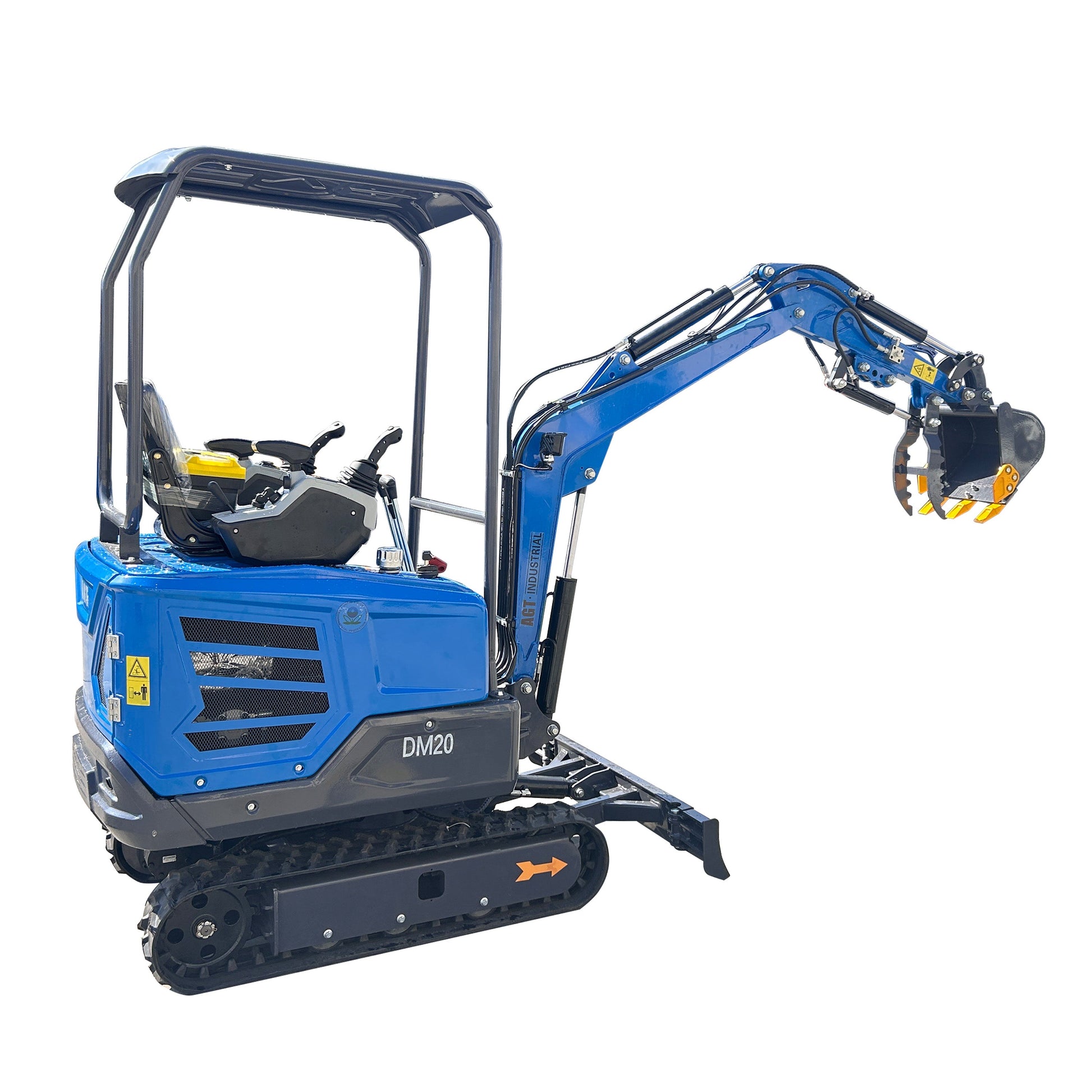

1.3 Ton Mini Crawler Excavator with 13.7HP Diesel Kubota EPA Engine | DM20

Name: 1.3 Ton Mini Crawler Excavator with 13.7HP Diesel Kubota EPA Engine | DM20
Brand: Agtindustrial
SKU: DM20
Price: 11436.99 USD
Availability: OutOfStock

1 25

$11,436.99

~~$13,500.00~~ Save$2,063.01 Sold out

FREE SHIPPING, Liftgate service available for an additional fee at checkout.

Details

Delivery in 5 - 15 Business Days

Details

Payment:

View full details

Product Overview

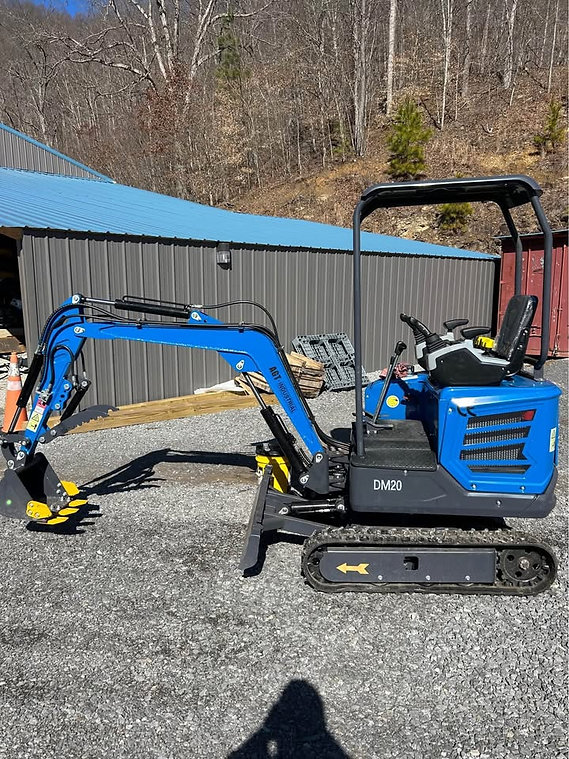

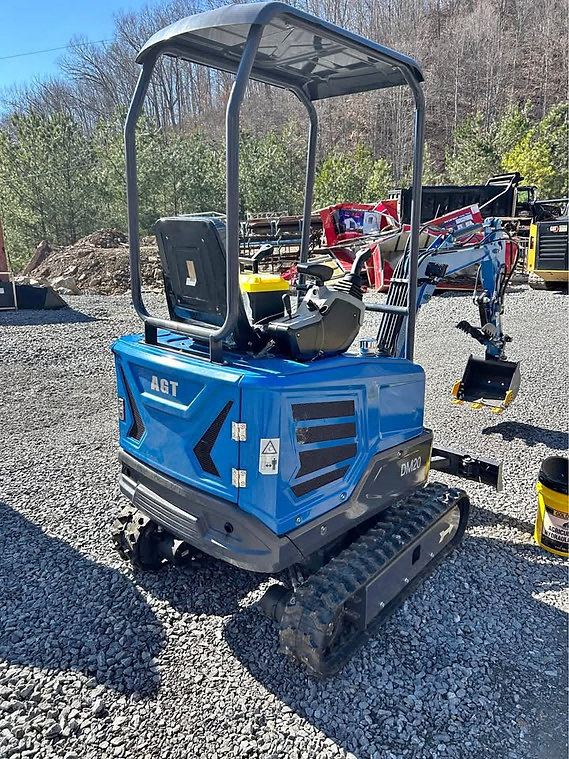

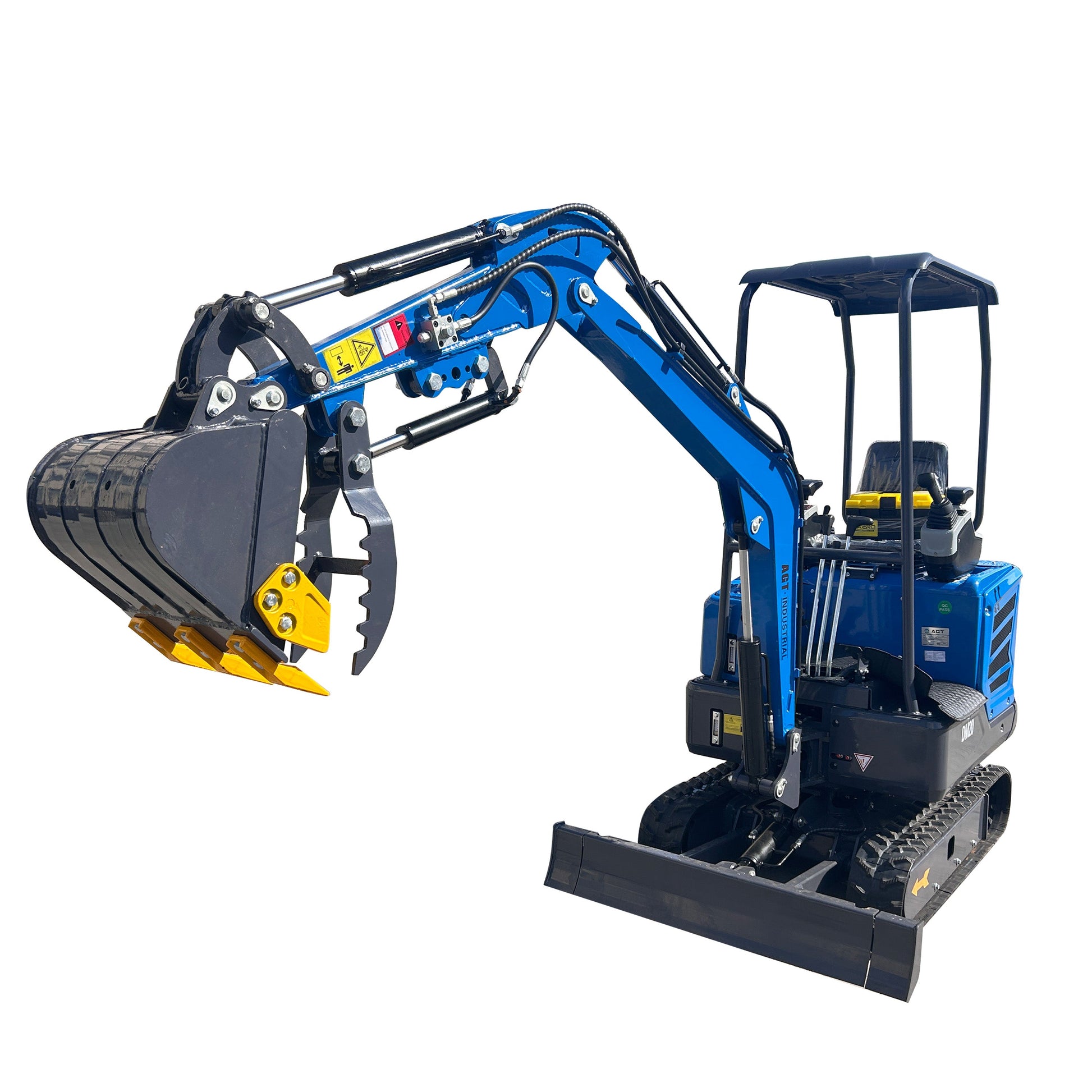

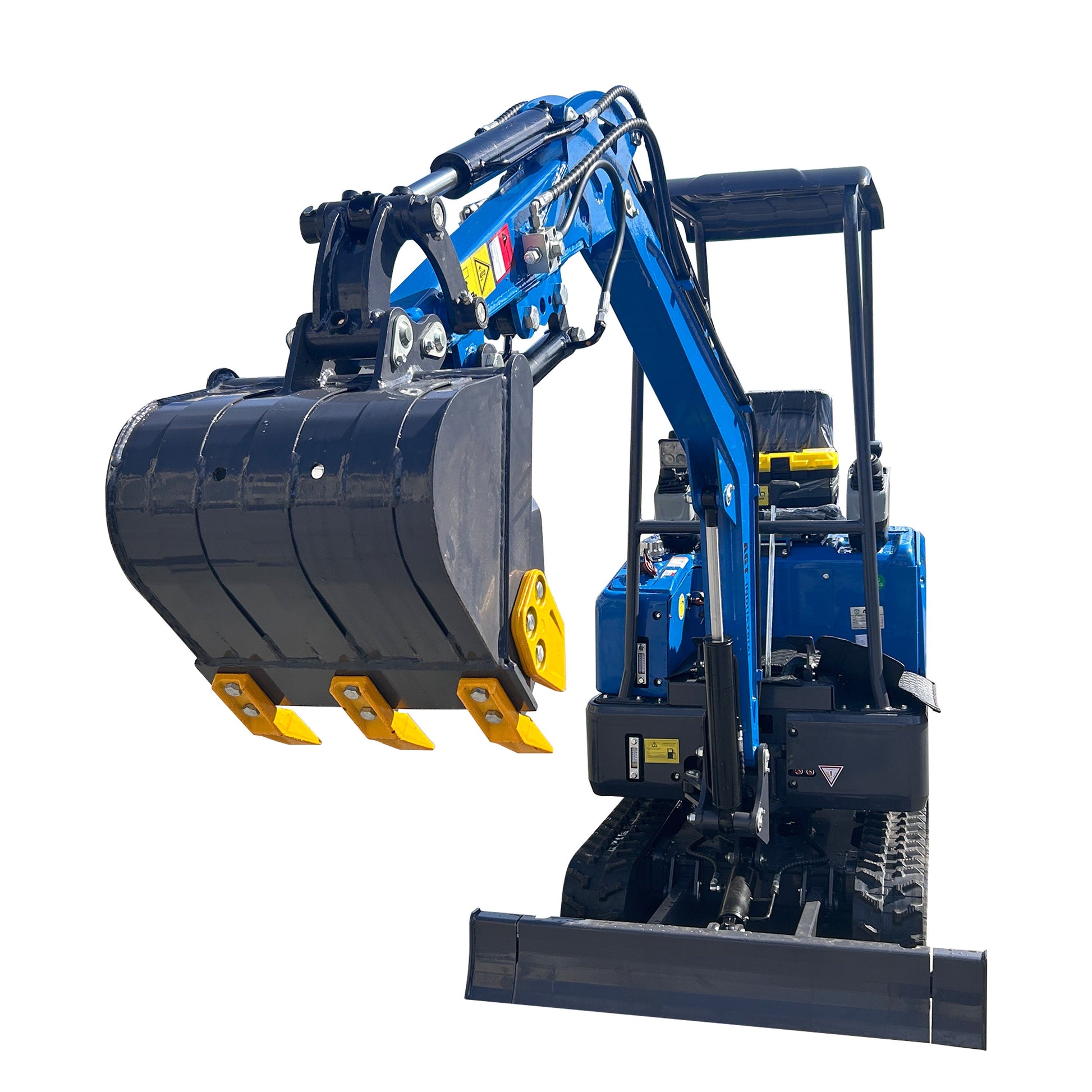

Designed for medium-sized projects. With a compact design, 1.3-ton operating weight, and a digging depth of 7.4 feet, the AGT DM20 delivers reliable power and efficiency in tight workspaces like farms, gardens, orchards, and construction sites. Powered by a Kubota D722 diesel engine, the DM20 features a 3-cylinder water-cooled system, expandable tracks, and a reinforced structure built for daily use.

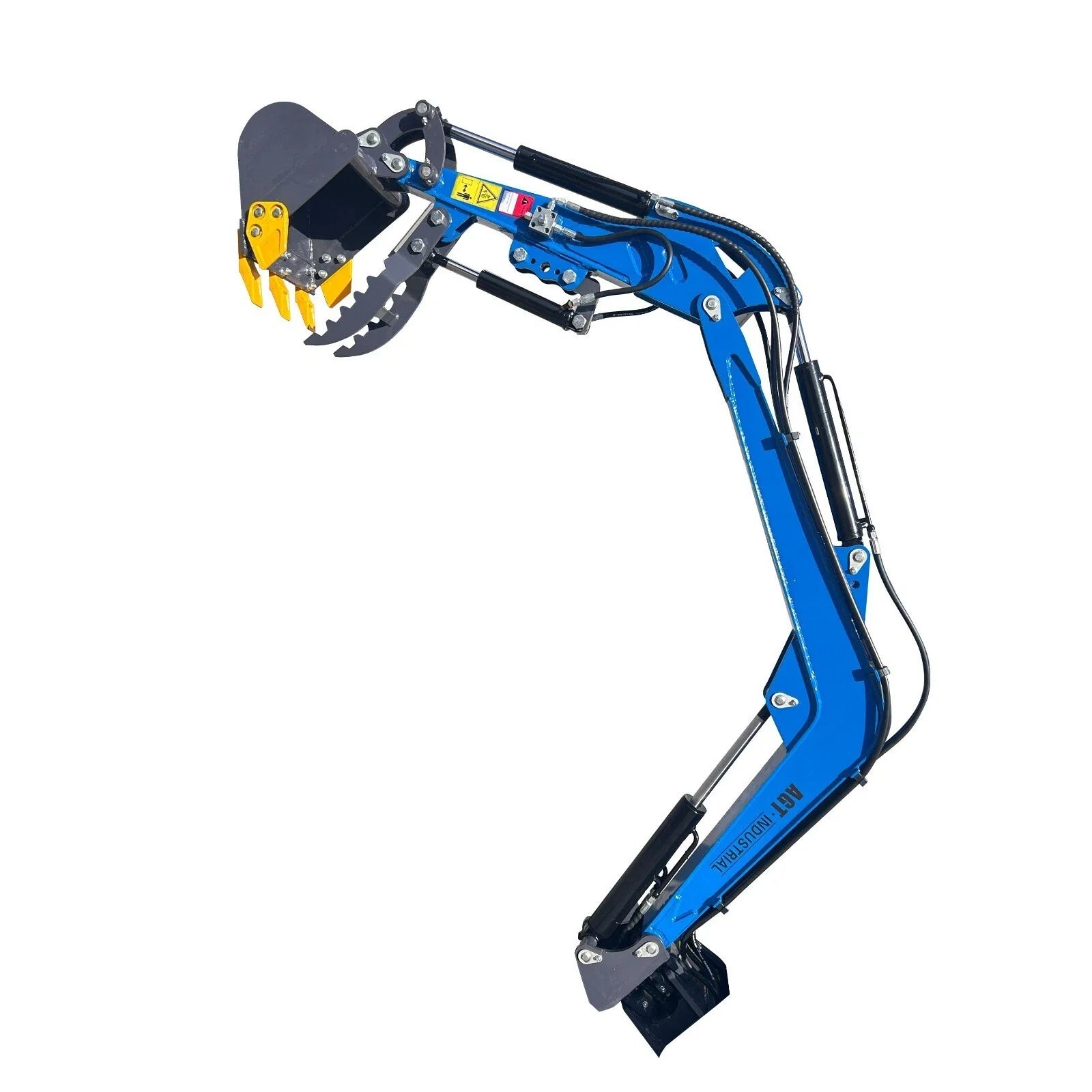

The hydraulic blade and side-swing boom provide versatility, while the factory-installed hydraulic thumb and auxiliary line make it attachment-ready. Ideal for augers, rakes, tilt buckets, grapples, and more.

Walk-Around Video

Manual

Dimension:

Operating Weight: 1.3 Ton (2,600 lbs)
Overall Length: 3,200 mm (126 in)
Overall Width: 936 mm (37 in)
Overall Height: 2,210 mm (87 in)
Track Size: 180*72*41 (Width*Pitch Length*Links)

Working Range:

Max Digging Depth: 2,257 mm (89 in)
Max Digging Height: 2,890 mm (114 in)
Max Dumping Height: 1,958 mm (77 in)
Max Reach at Ground: 3,305 mm (130 in)
Blade Width: 1,000 mm (39 in)
Blade Height: 200 mm (7.5 in)
Blade Max Lifting Height: 288 mm (11 in)
Blade Max Drop Depth: 146 mm (5.5 in)

Engine:

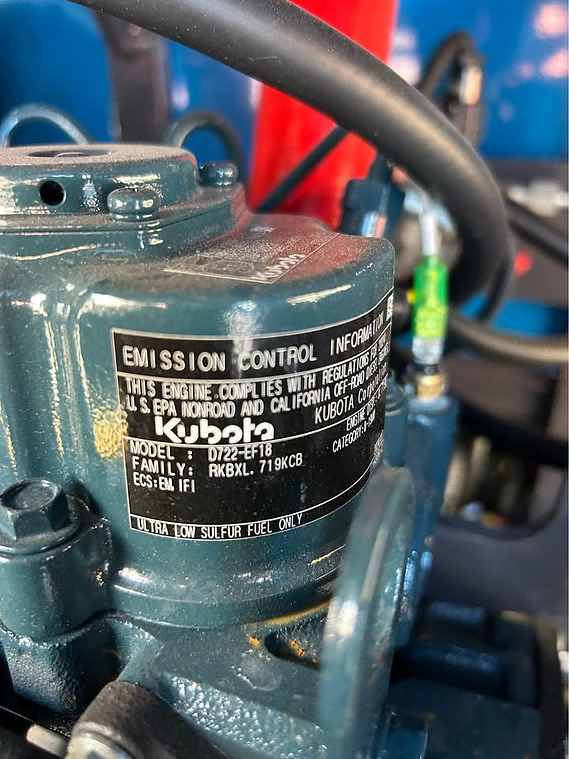

Engine Brand: Kubota
Fuel Type: Diesel
Model: D722
Rated Power: 10.5 kW (13.5 HP)
Displacement: 720 cc
Fuel Capacity: 8.7 L (2.3 gal)
Hydraulic Tank Capacity: 14 L (3.7 gal)

Features:

KUBOTA Diesel Engine
Side Swing Boom

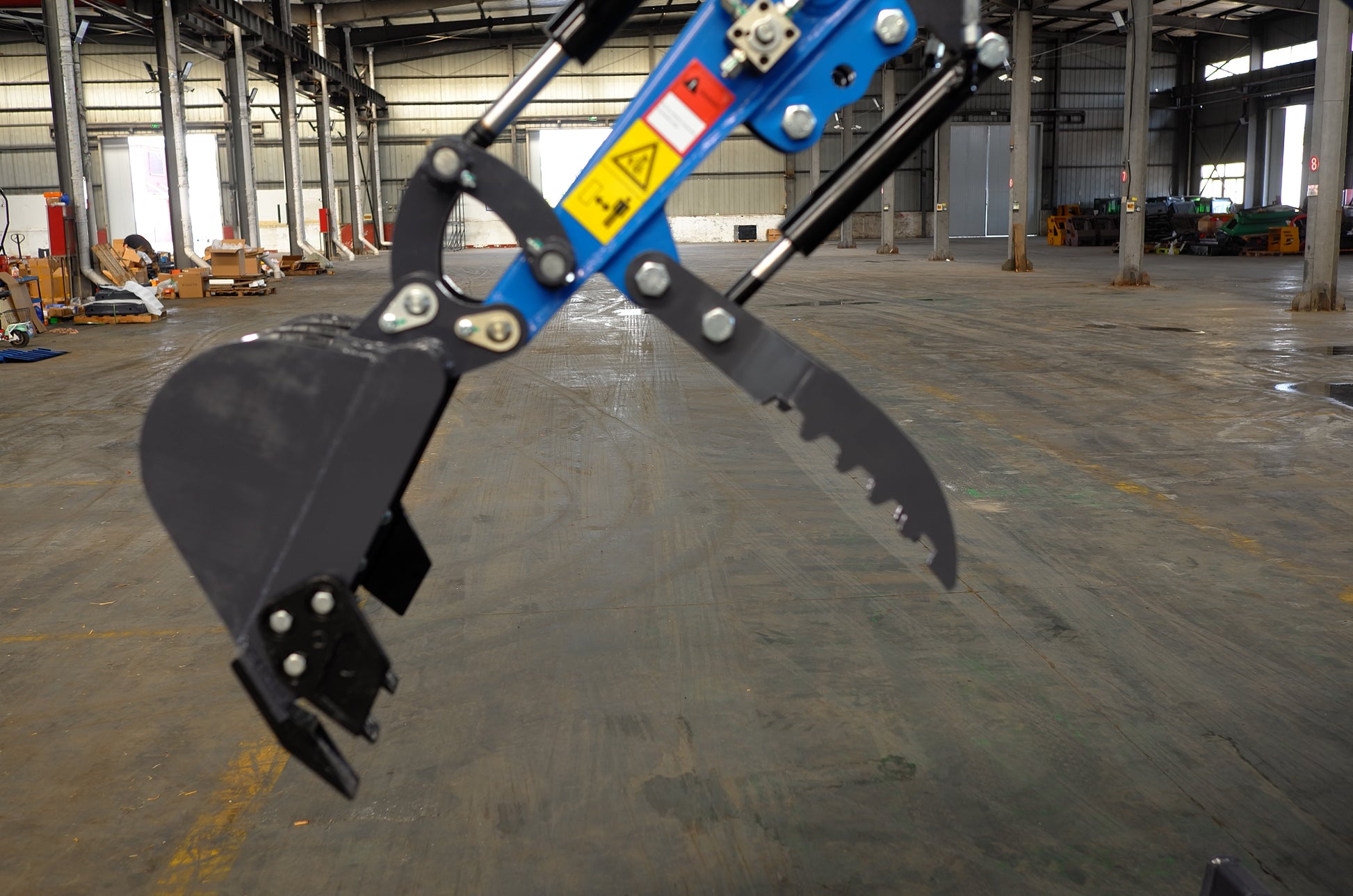

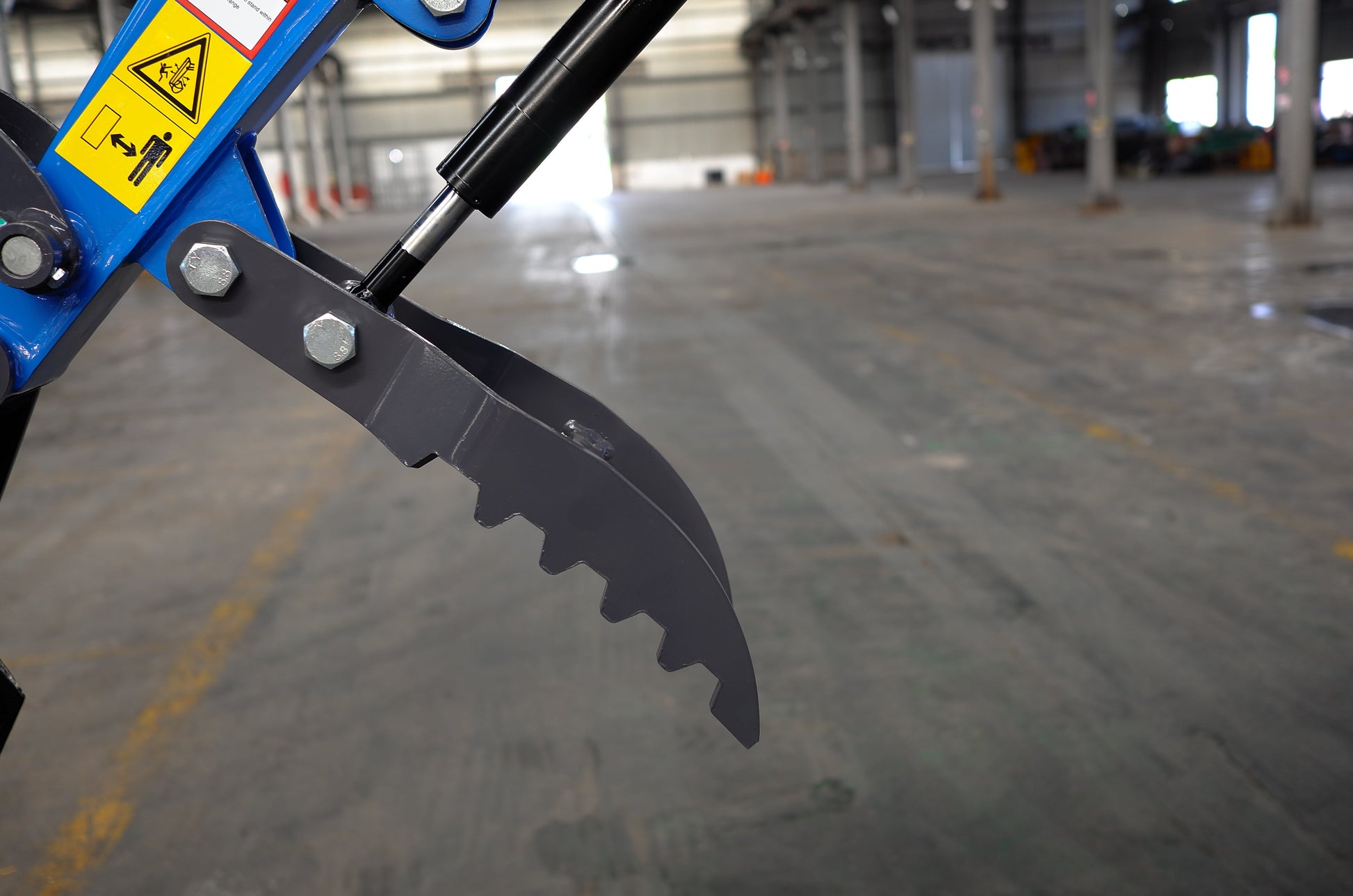

Hydraulic Thumb

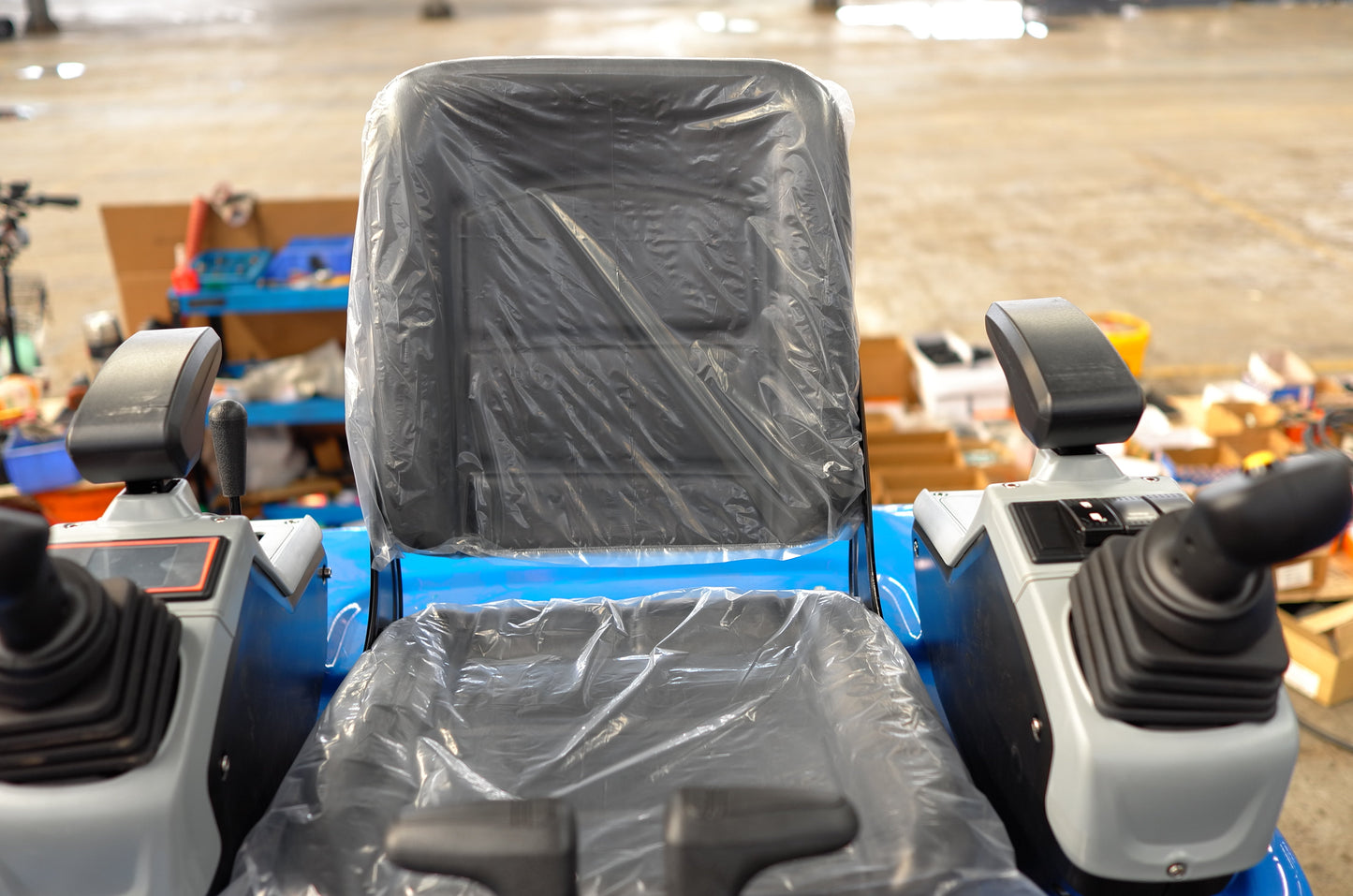

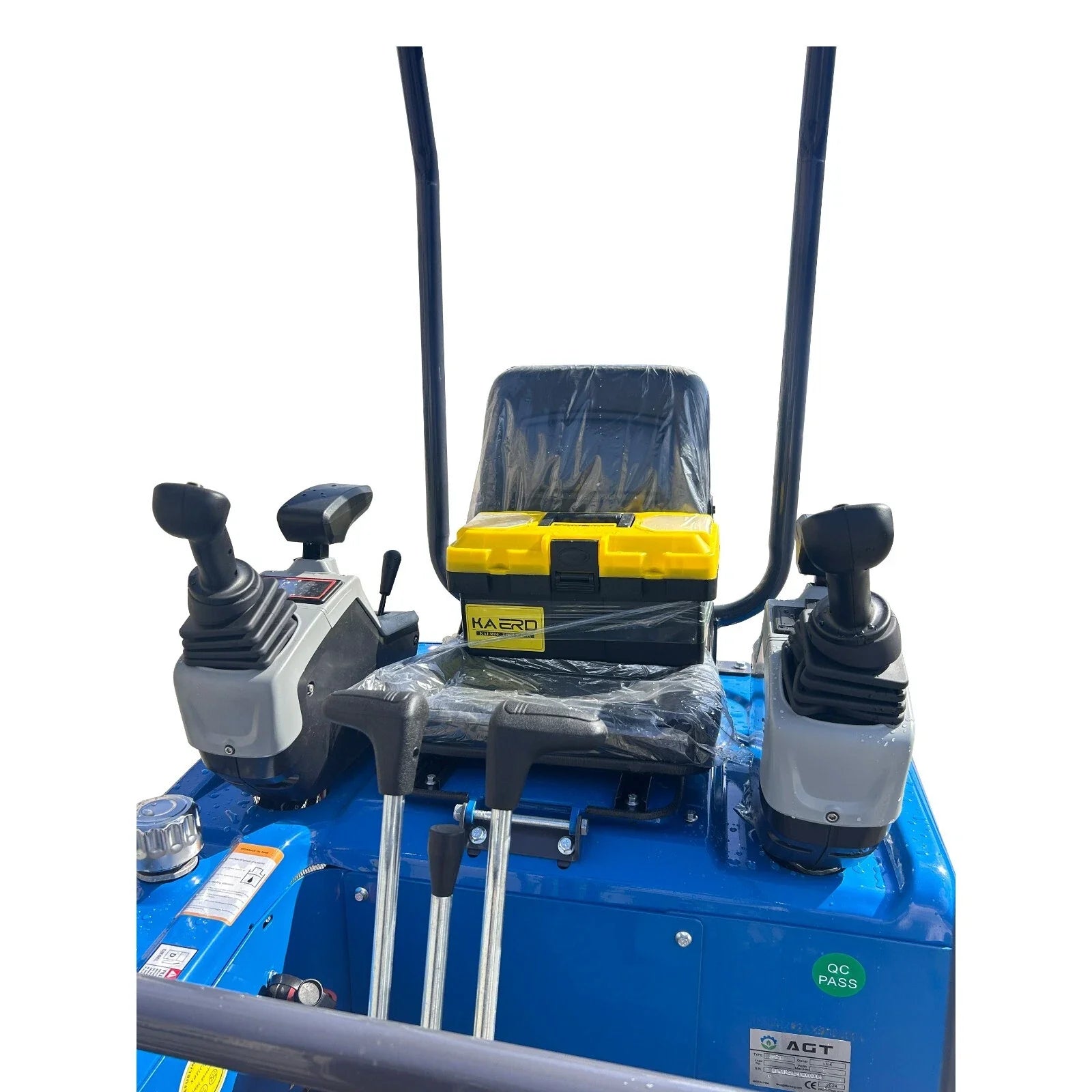

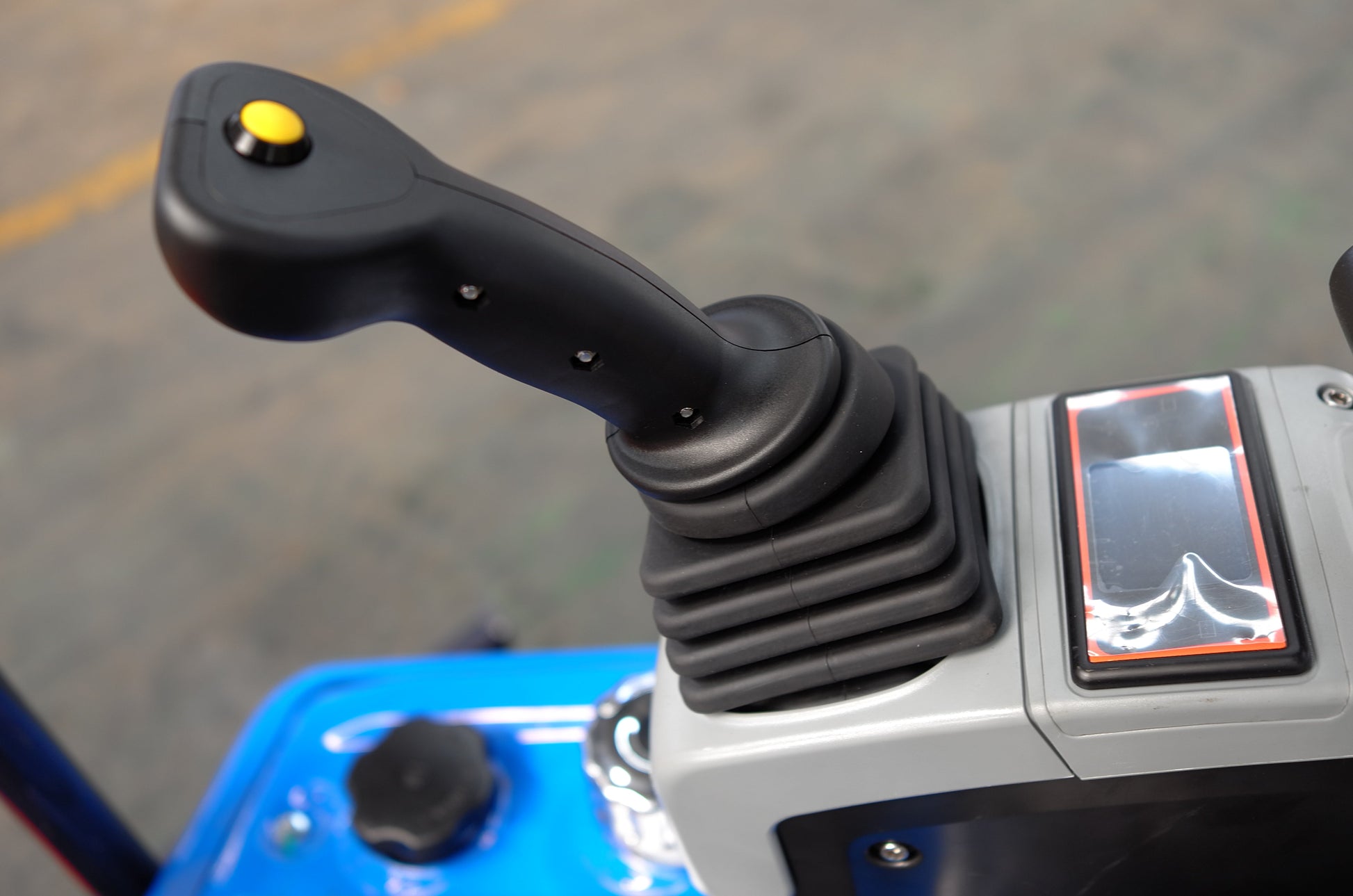

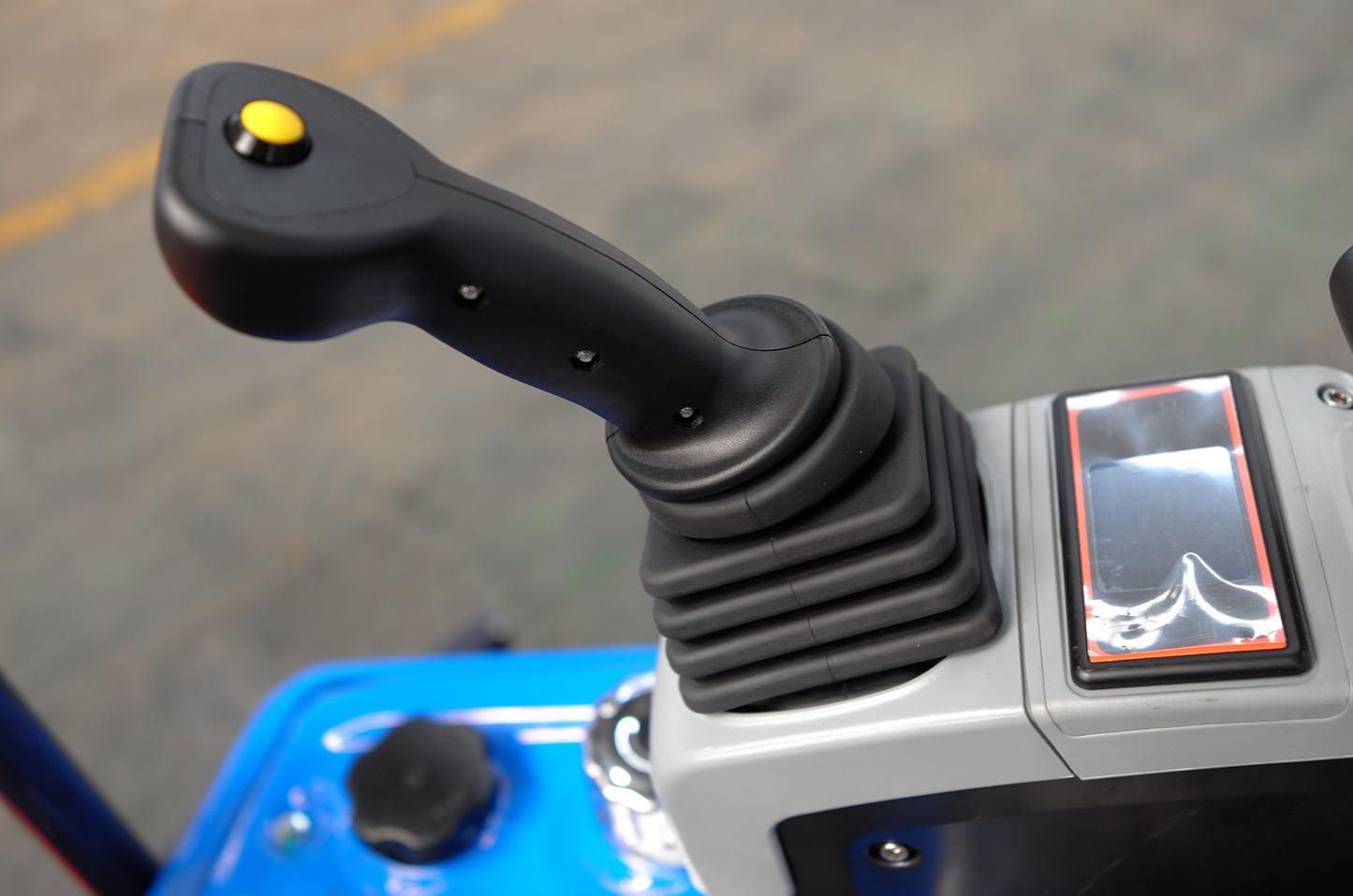

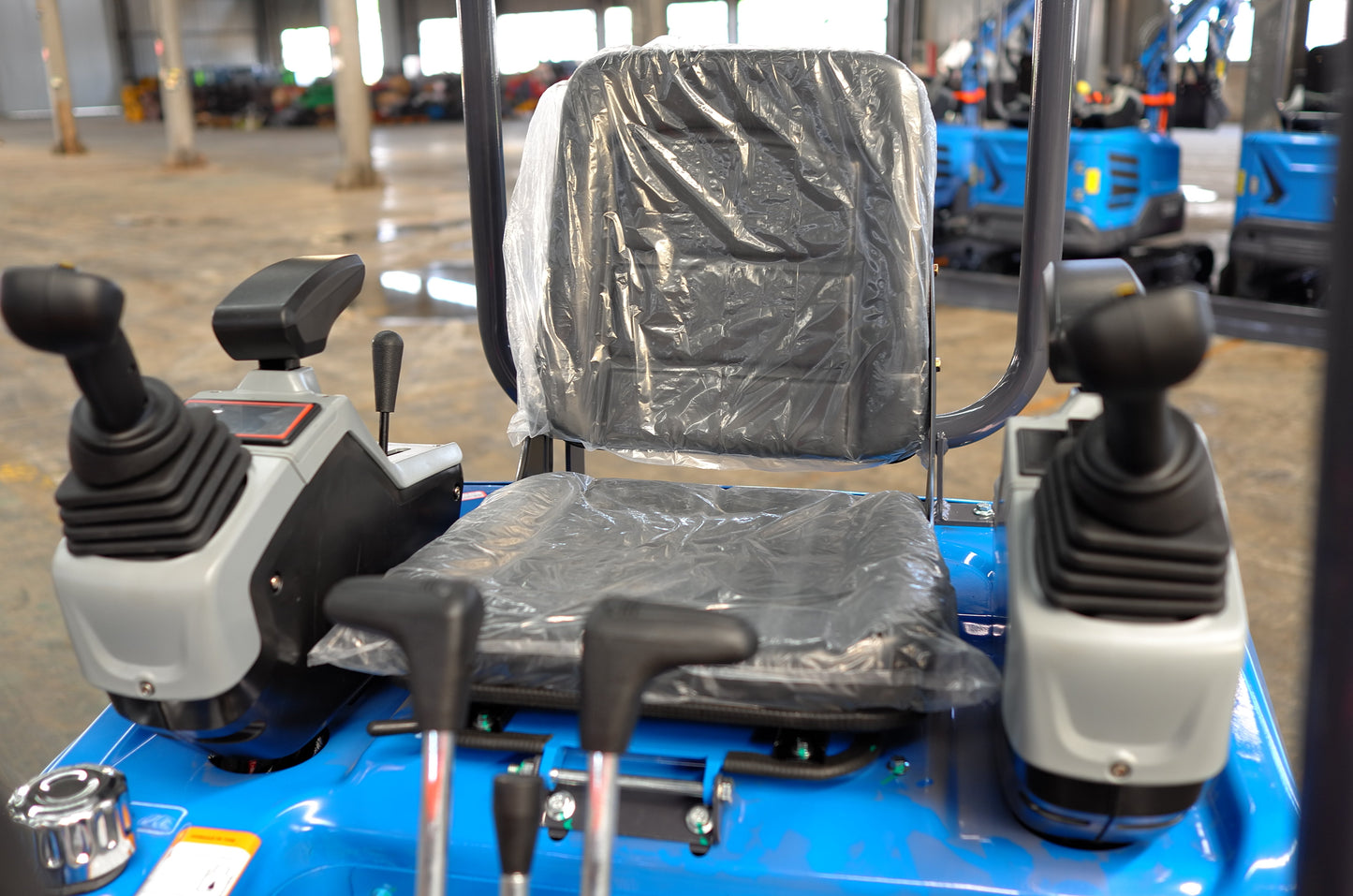

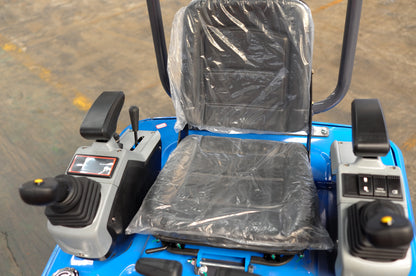

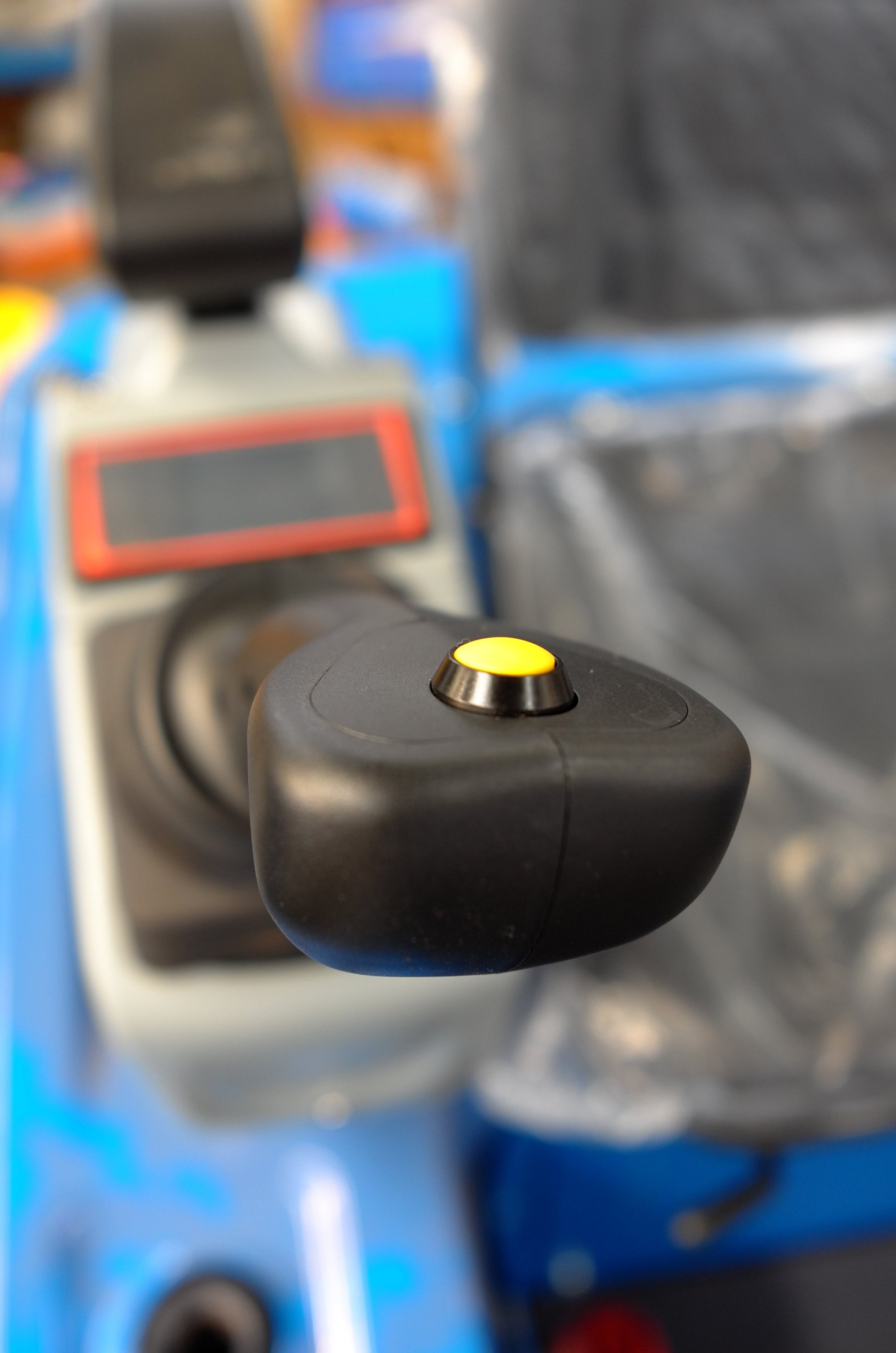

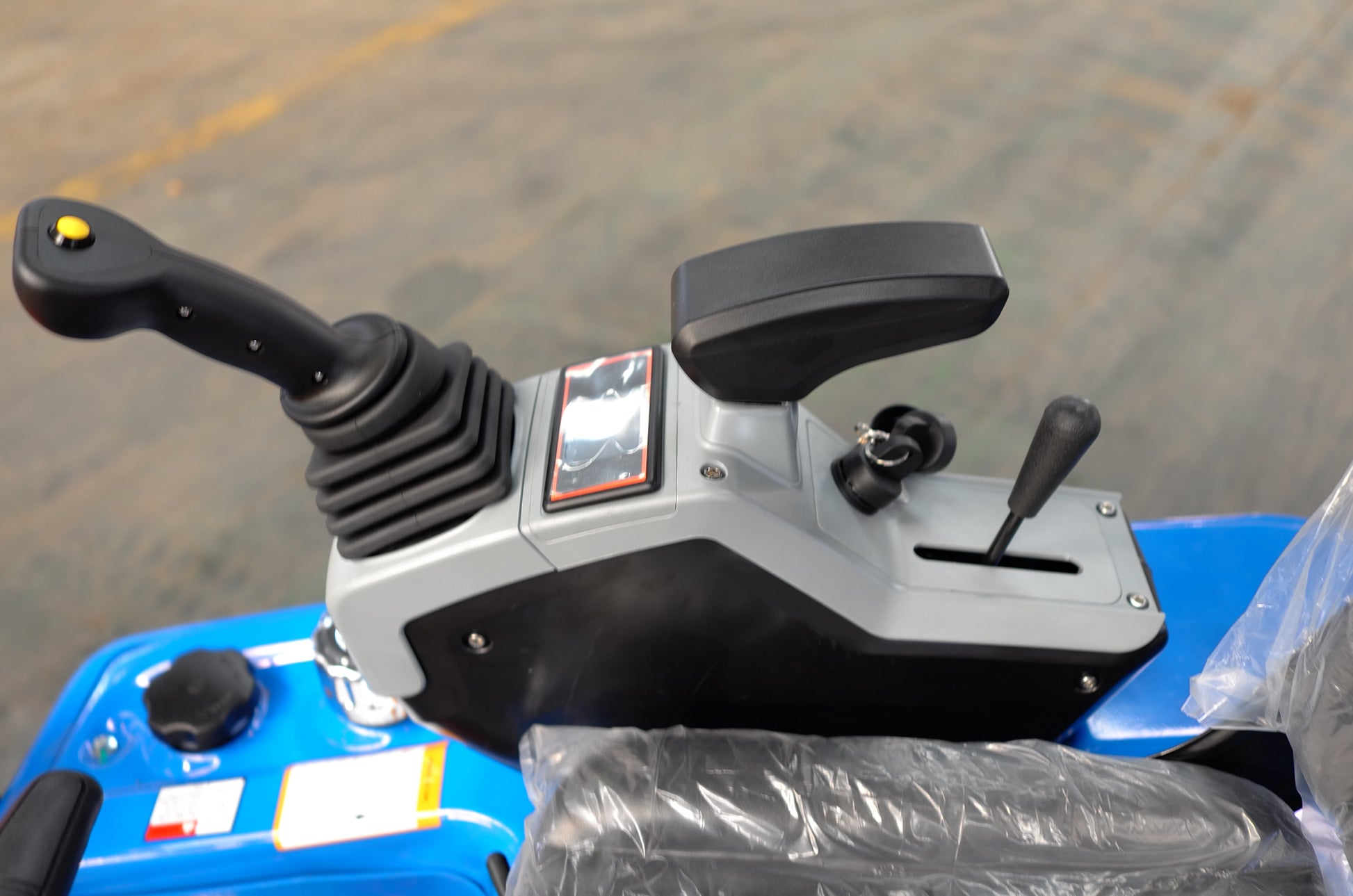

Pilot Control
LED Work Light

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.

Specifications

Model Information
Configuration Status	√ Standard, △ Optional, × None
Model	DM20
Basic Performance Parameters
Working Weight (kg)	1300

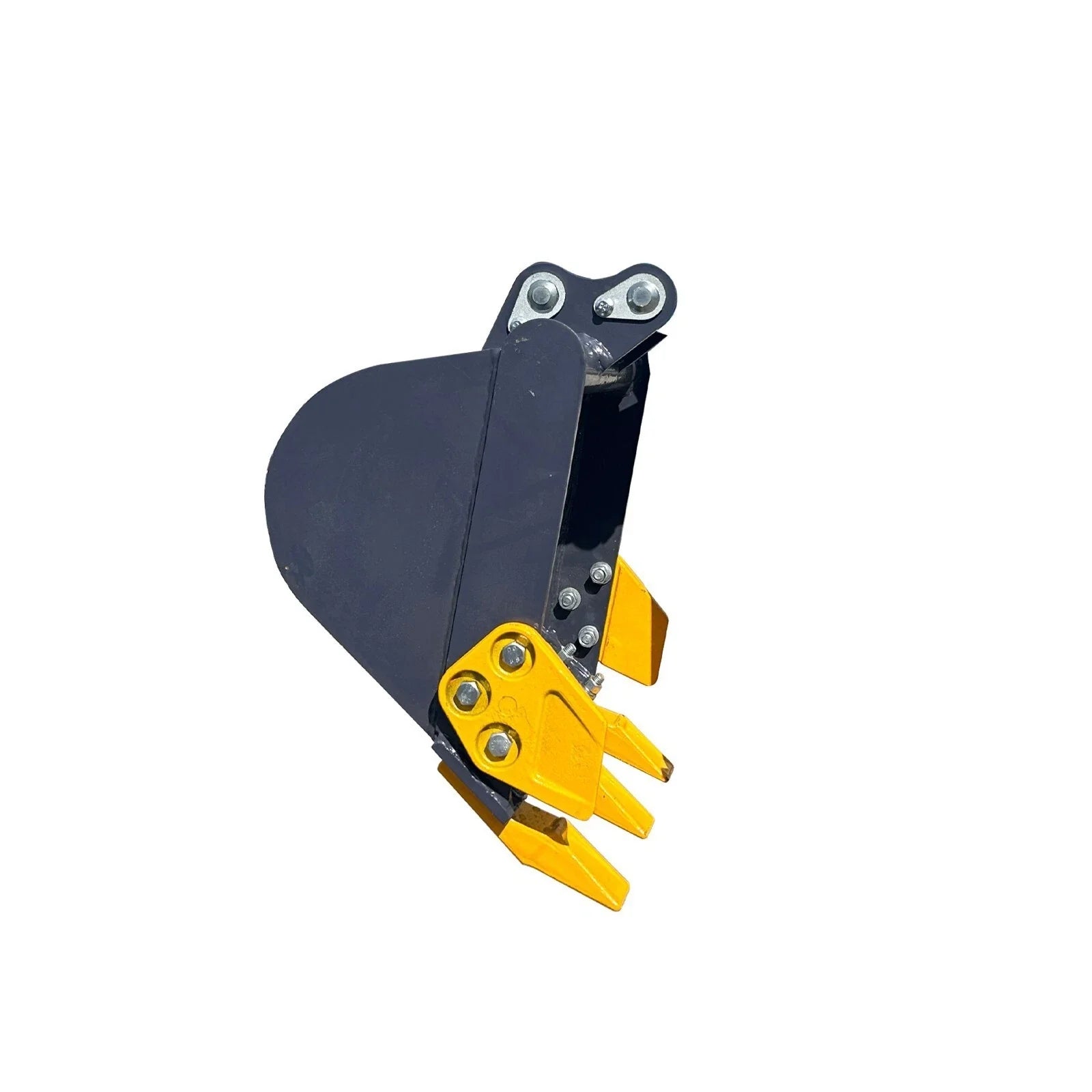

Bucket capacity (m³)	0.03
Travel speed low/high speed (Km/h)	0–2
Climbing ability (%)	30
Turn speed (r/min)	10
A: Maximum Digging Height (mm)	2890
B: Maximum Unloading Height (mm)	1958
C: Maximum Digging Depth (mm)	2257
D: Maximum Vertical Excavation Depth (mm)	2090
E: Maximum Excavation Radius (mm)	3305
F: Minimum radius of Gyration (mm)	1584
G: Minimum tail radius of Gyration (mm)	849
H: Maximum Lifting height of Bulldozer	288
I: Maximum Digging height of Bulldozer	146
Equipment Body
J: Overall Length (mm)	3200
K: Overall Width (mm)	936
L: Overall Height (mm)	2210
Bulldozer Width/Height (mm)	1000 / 180
Engine
Engine Brand	Kubota
Engine model	D722
Maximum horsepower (ps)	13.7
Maximum power (kW)	10.2
Maximum speed (rpm)	2500
Number of cylinders	3
Cooling method	Water cooling
Engine oil replacement (L)	3.8
Fuel type	Diesel
Fuel Label	92#

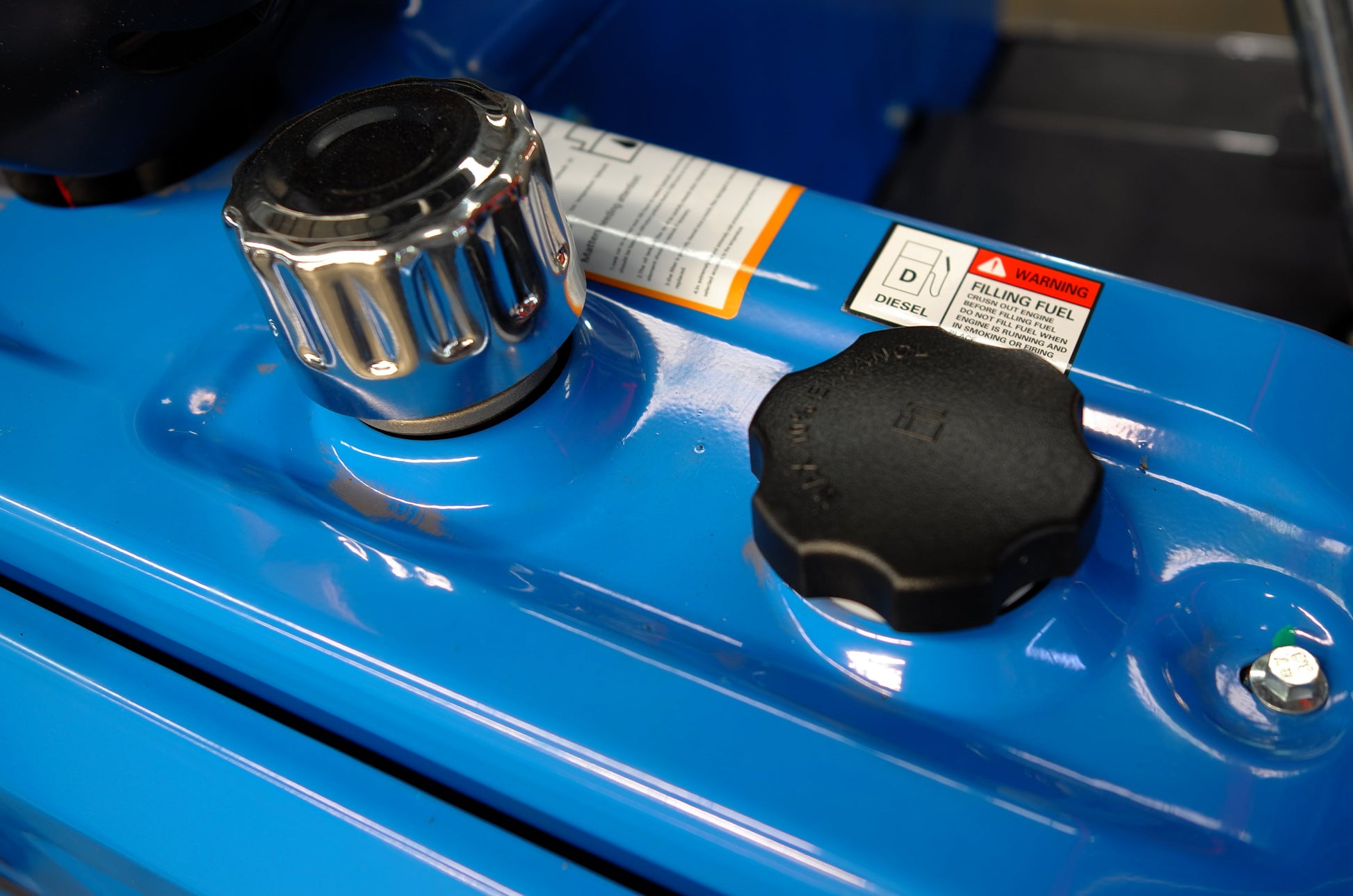

Fuel Tank
Fuel tank (L)	8.7
Hydraulic oil tank (L)	14.2
