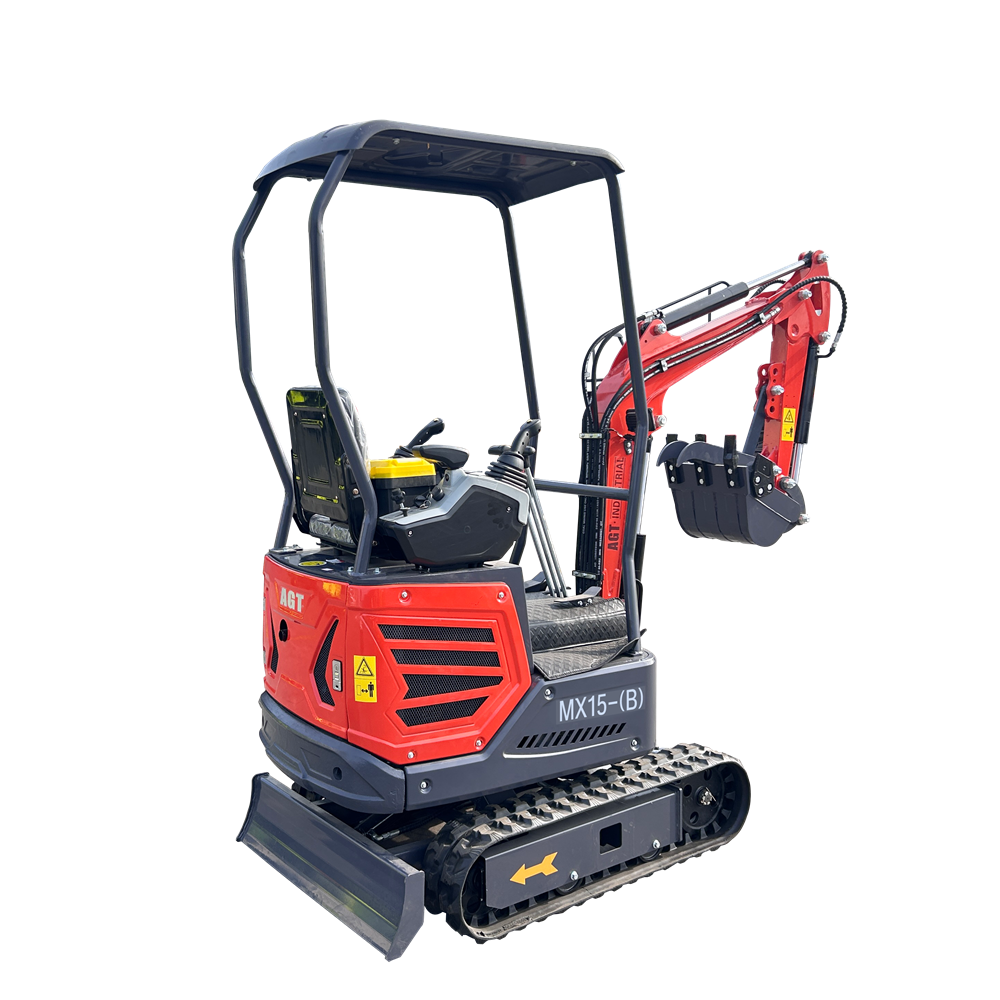

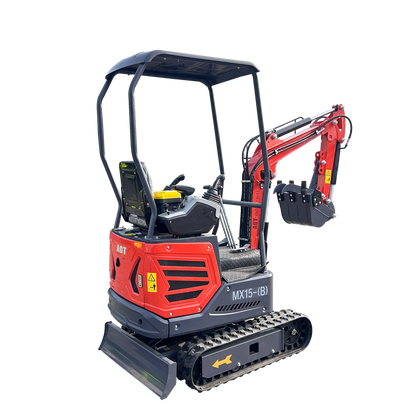

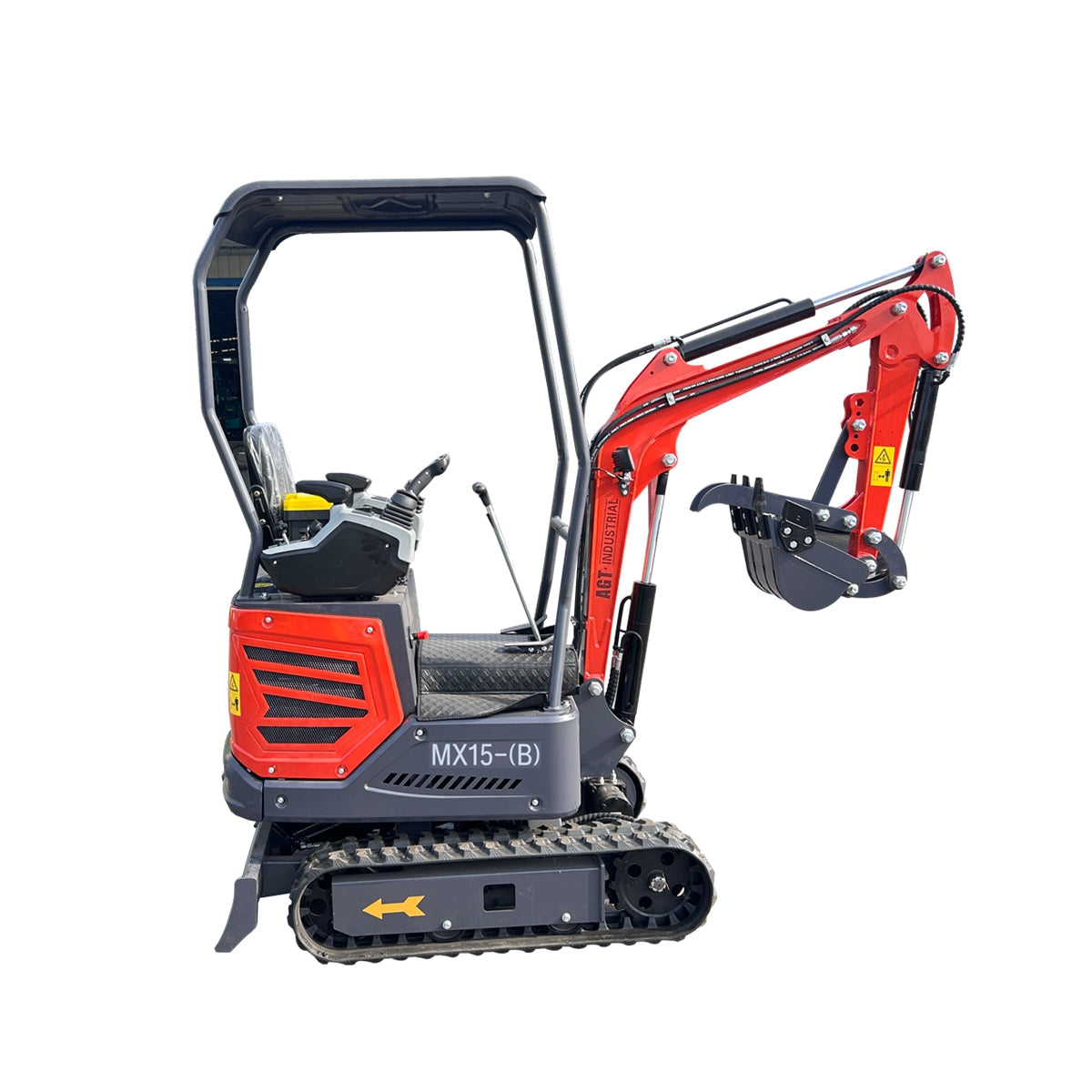

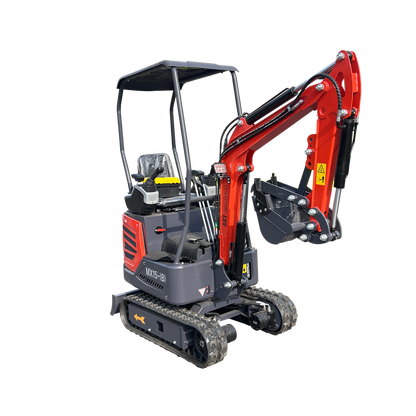

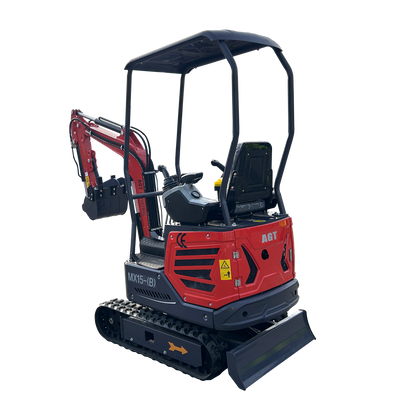

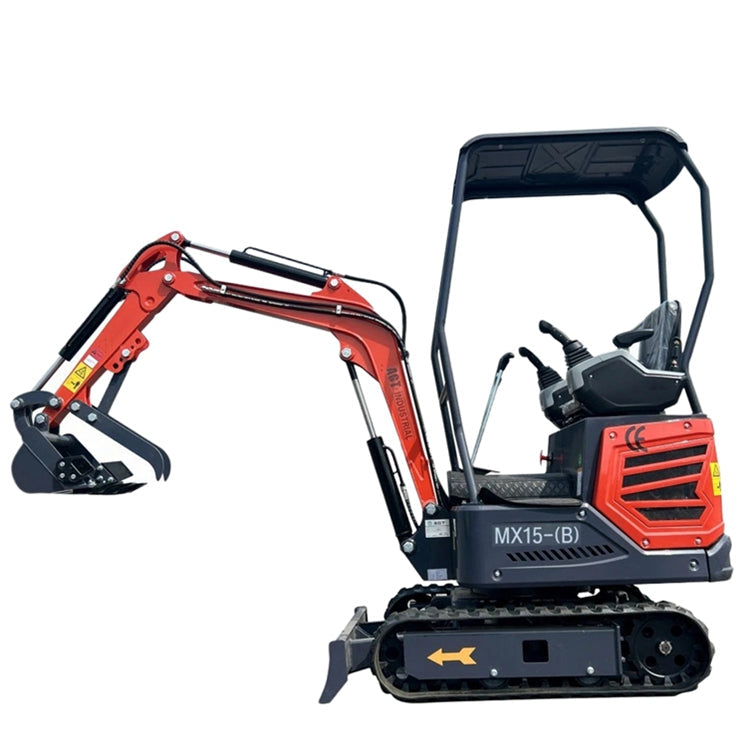

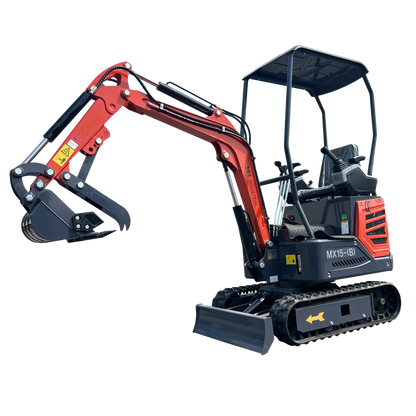

1 Ton 13.5HP B&S Engine Mini Excavator W/ Pilot Control | MX15-B
Regular price
$6,301.99
$7,000.00
Save$698.01
Sold out
SKU:MX15-B
1 Ton 13.5HP B&S Engine Mini Excavator W/ Pilot Control | MX15-B
1 Ton 13.5HP B&S Engine Mini Excavator W/ Pilot Control | MX15-B
Product Overview

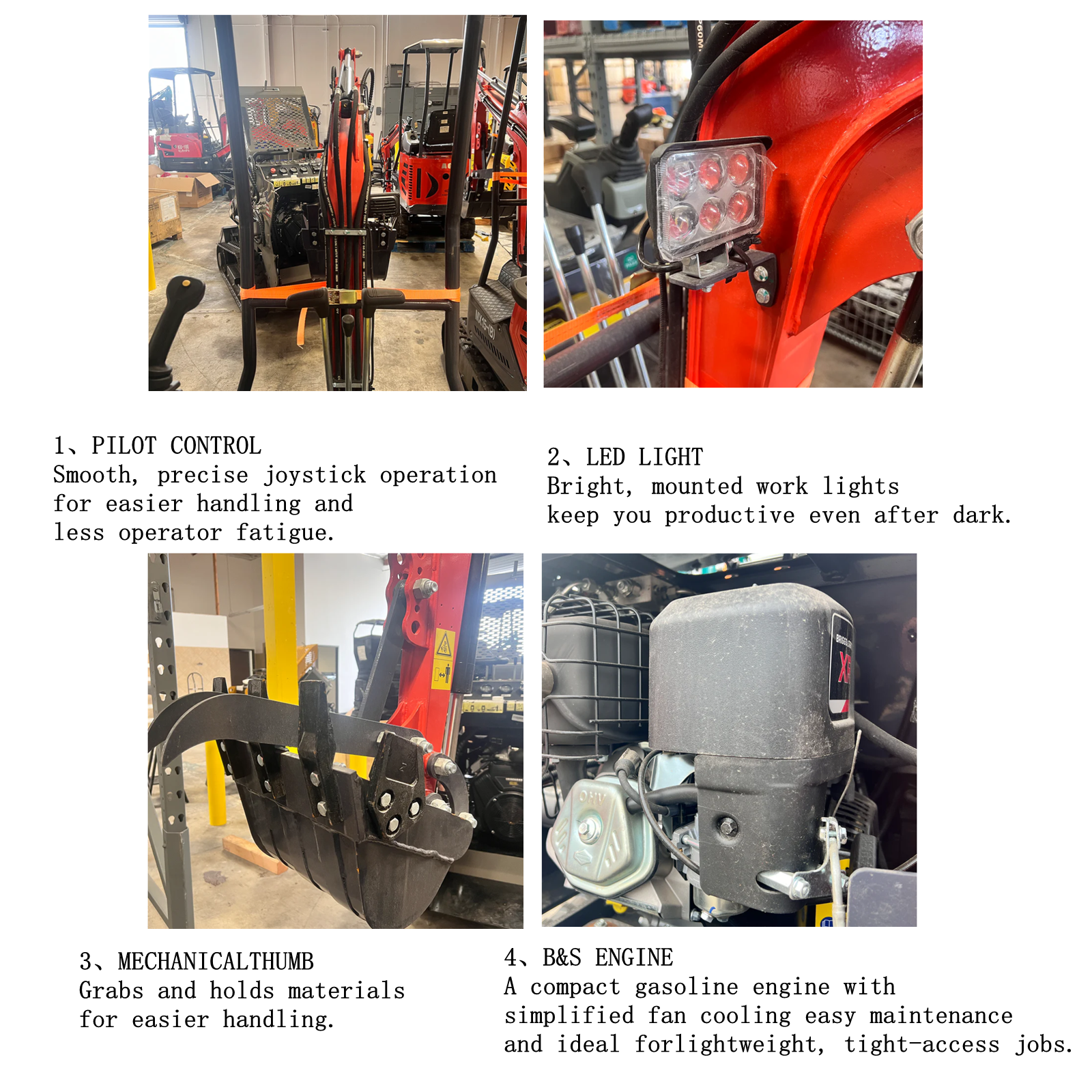

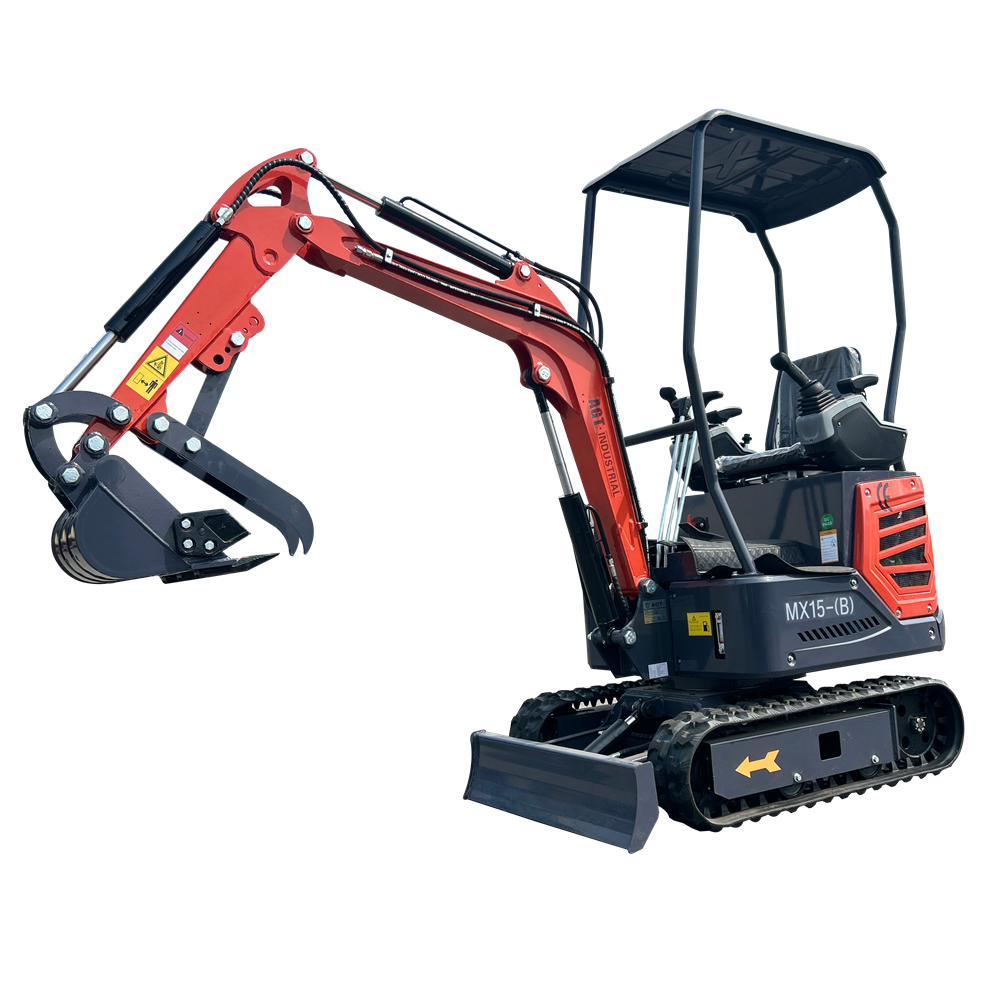

The AGT MX15‑B is a rugged 1‑ton gasoline-powered mini excavator driven by a 13.1 HP engine. Equipped with rubber tracks, manual thumb, side‑swing boom, dual pilot controls, and a hydraulic blade, it offers reliable digging, trenching, and grading capability in tight spaces - well-suited for landscaping, construction, and farming tasks.
Dimension:
Working Range:
Engine:

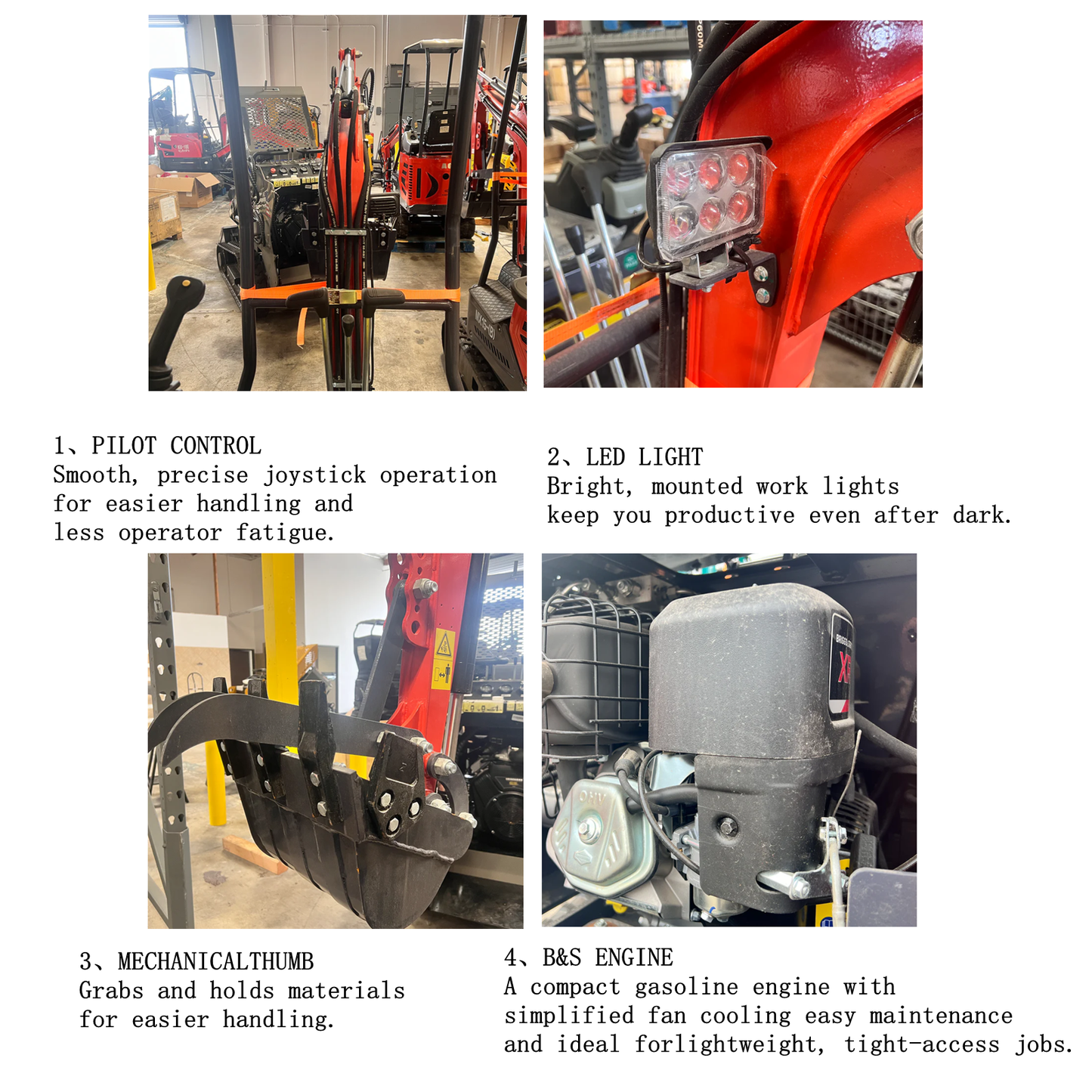

Features:
Product Warranty
Specifications
| Excavator type information | |
|---|---|
| Configuration status | MX15-(B) |
| Basic performance parameters | |
| The working weight of the whole machine (kg) | 900 |
| Bucket capacity (m³) | 0.025 |
| Walking speed low/high speed (Km/h) | 0–2 |
| Climbing ability (%) | 30 |
| Slewing speed (r/min) | 10 |
| Maximum digging force of the bucket (KN) | 6 |
| Maximum digging force of the stick (KN) | 4 |
| A Maximum digging height (mm) | 2583 |
| B Maximum unloading height (mm) | 1742 |
| C Maximum digging depth (mm) | 1769 |
| D Maximum vertical digging depth (mm) | 1638 |
| E Maximum digging radius (mm) | 3041 |
| F Minimum slewing radius (mm) | 1440 |
| G Minimum tail slewing radius (mm) | 828 |
| H Maximum lift height of the dozer blade | 162 |
| I Maximum digging height of the dozer blade | 196 |
| Side swing | / |
| Side swing angle (left/right) | / |
| Chassis telescoping | / |
| Body | |
| J Total length (mm) | 2882 |
| K Total width (mm) | 962 |
| L Total height (mm) | 2219 |
| M Track gauge (mm) | 900 |
| N Rail gauge (mm) | 762 |
| Dozer blade width/height (mm) | 907 / 200 |
| Engine | |
| Engine brand | Briggs & Stratton |
| Engine model | XR2100 |
| Maximum horsepower (ps) | 13.5 |
| Maximum power (kW) | 9.8 |
| Maximum speed (rpm) | 3600 |
| Number of cylinders | 1 |
| Cooling method | Air-cooled |
| Engine oil change volume (L) | 1.1 |
| Fuel type | Gasoline |
| Fuel grade | 92# |
| Theoretical fuel consumption (L/h) | / |
| Hydraulic system | |
| Main pump type/model | 6+3 |
| Main pump brand | 6+3 |
| Rated set pressure (Mpa) | 16 |
| Maximum flow rate of the main pump (L/min) | 21.6 |
| Multi-way valve | 8-way semi-hydraulic control multi-way valve |
| Multi-way valve brand | 8-way semi-hydraulic control |
| Rated set pressure (Mpa) | 16 |
| Travel hydraulic motor type | BMER3-350 |
| Travel motor brand | Hydraulic |
| Motor displacement | 350 |
| Slewing hydraulic motor type | BMI-315 |
| Displacement | 315 |
| Crawler | |
| O – Rubber (width × pitch × number of links) | 180×72×37 |
| O – Steel (width × pitch × number of links) | - |
| Rubber block | - |
| Configuration | |
| Cab | ● |
| Roof | ● |
| Armrest | ● |
| Quick-change | ○ |
| Rake | ○ |
| Log grapple | ○ |
| Ripper | ○ |
| Hydraulic breaker | ○ |
| Thumb clamp | Mechanical thumb clamp |
| Counterweight | ● |
| Tensioning form | Mechanical tensioning |
| Air conditioner | - |
| Fuel tank | |
| Fuel tank (L) | 6.6 |
| Hydraulic oil tank (L) | 15.8 |
