SKU:AGT-B1000

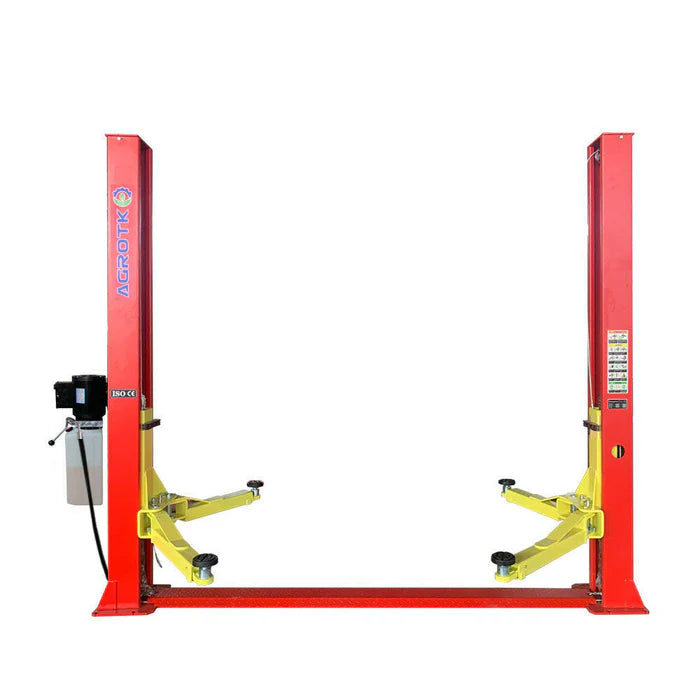

10000 LB Capacity, Two-Post Auto Car Lift | AGT-B1000

10000 LB Capacity, Two-Post Auto Car Lift | AGT-B1000

1 7
$2,527.49
Sold out
FREE SHIPPING, Liftgate service available for an additional fee at checkout.
Details

Free shipping within the U.S. (except Hawaii, Alaska, and Puerto Rico).

Delivery in 5 - 15 Business Days
Details

Please Allow for 2 to 3 Business Days to Process Order, 5 to 15 Business Days to Deliver. Times are for reference only. Specific delivery times will be adjusted based on inventory changes.
Payment:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Afterpay
View full details

Product Overview

SPECIFICATIONS:

Maximum Lifting Height-72"

Maximum Working Width-100"

Minimum Height-4-1/2"

TL Certified Motor 3 HP-220V

No Load Speed-3360 RPM

Maximum Working Pressure-2600 PSI

Fuel Tank Capacity-11 Liter

ISO certification



 Lift Capacity 4500 kg / 10000 lbs

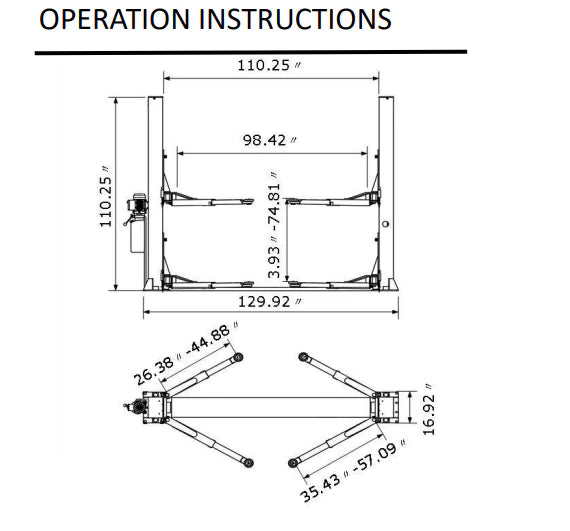

Overall Height 2800 mm/110.25"
Overall Width 3500 mm/137.8"
Maximum Lifting Height W/O Truck Adaptor 1900 mm / 74.81"
Minimum Height  100 mm / 3.93"
Lifting Time 55 s
Outside Column to Outside Column Width 3300 mm / 129.92"
Inside Column Width 2800 mm / 110.25"
Drive Through 2500 mm/98.42"
Column Thickness of Steel 4.75 mm / 0.188"
Carriage Thickness of Steel 4.75 mm / 0.188"
Arms Thickness of Steel 5.5 mm / 0.217"
Cable Diameter 8.2 mm / 0.323"
Voltage 220 v
Power
 2.2 kw / 3 HP
Breaker 30 A
Hydraulic Fluid Requirment 3-5 Gallons AW32/AW46
Equipment Weight  565 kg / 1253 lbs




Packed with boxes A and B



 Box A 110" x 22" x 30", 1190 Ibs
 Box B 31.5" x 10" x 14", 63 |bs



DETAILS:

1. 2 of-Stage arms and 2 of 3-Stage arms

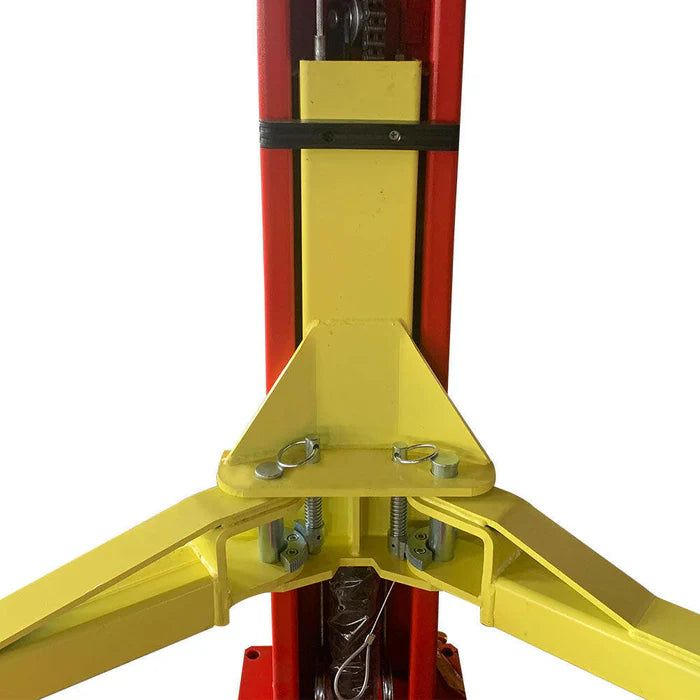

2. Whole-Plate structure reinforced carriage

3. Service (inspection) hole

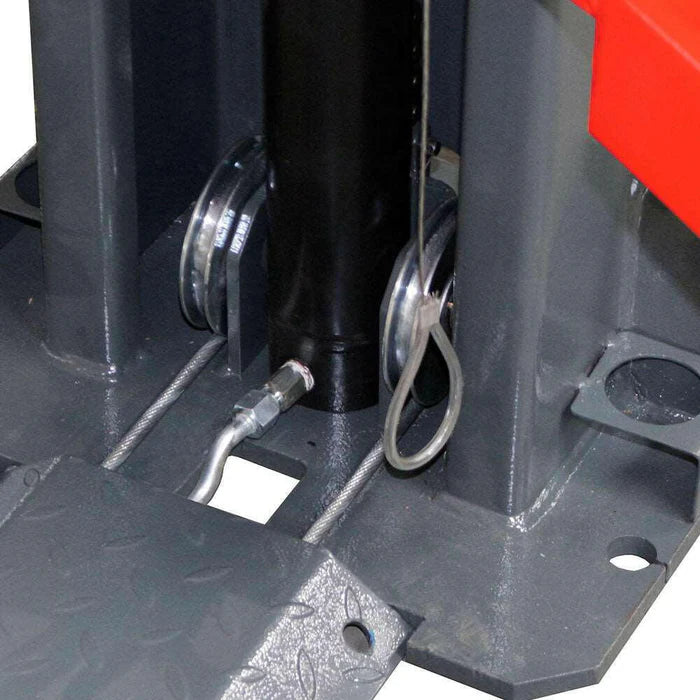

4. Over-Sized pulley

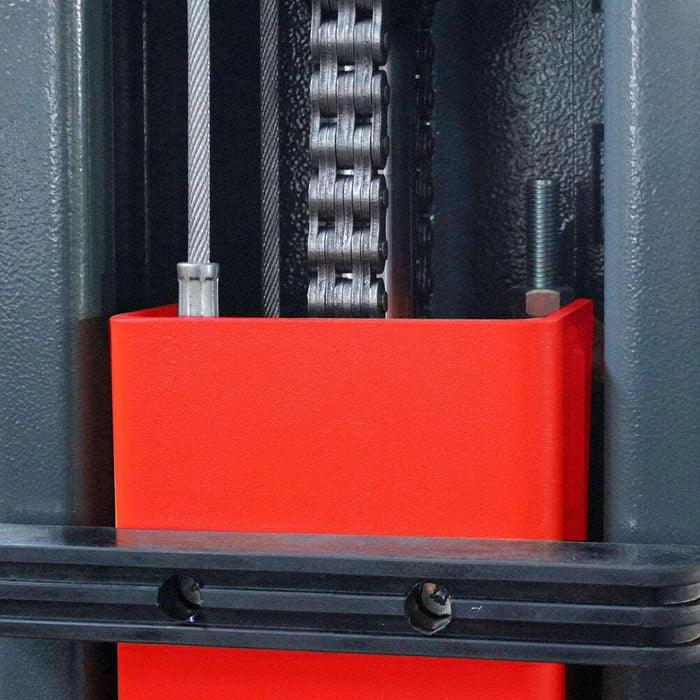

5. Multi-strand non-rotary non-stretchy cable

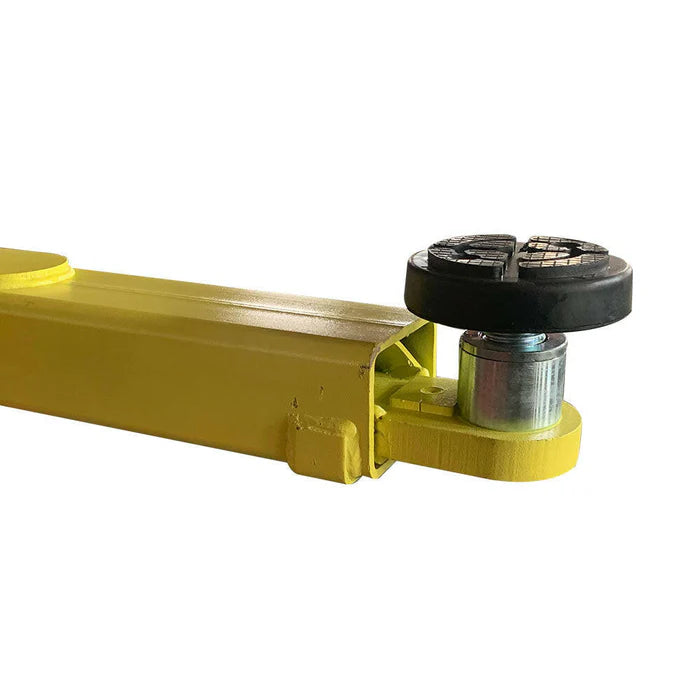

6. 4 Screw-Up rubber pads and 8 truck adapters

Product Warranty

Product Warranty

This product stands up to extreme testing and come with a one-year warranty for machine.
