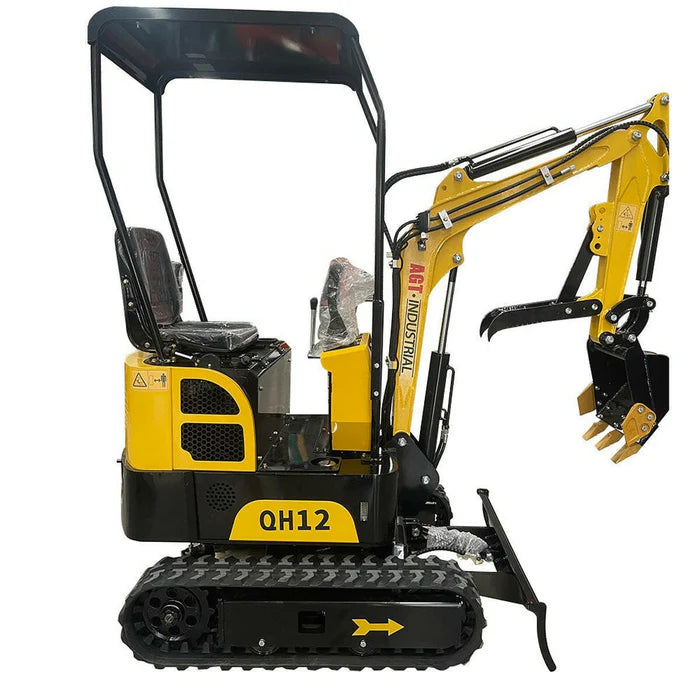

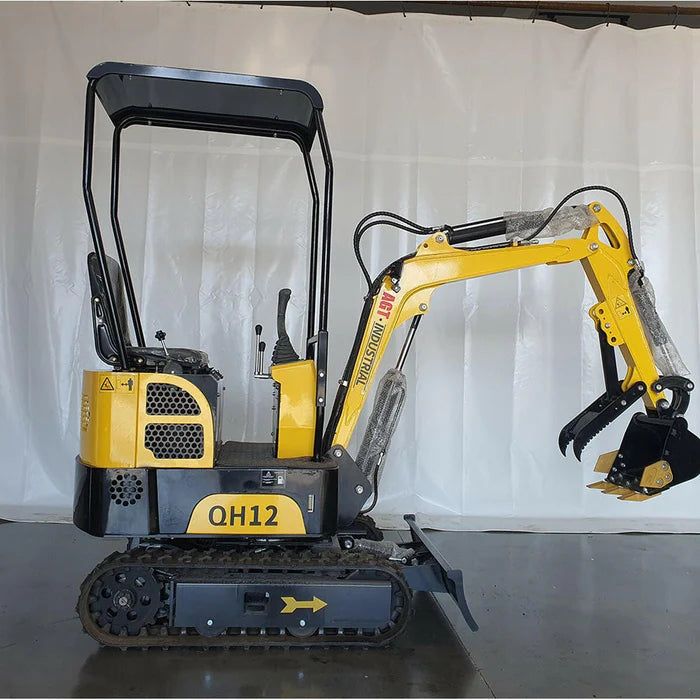

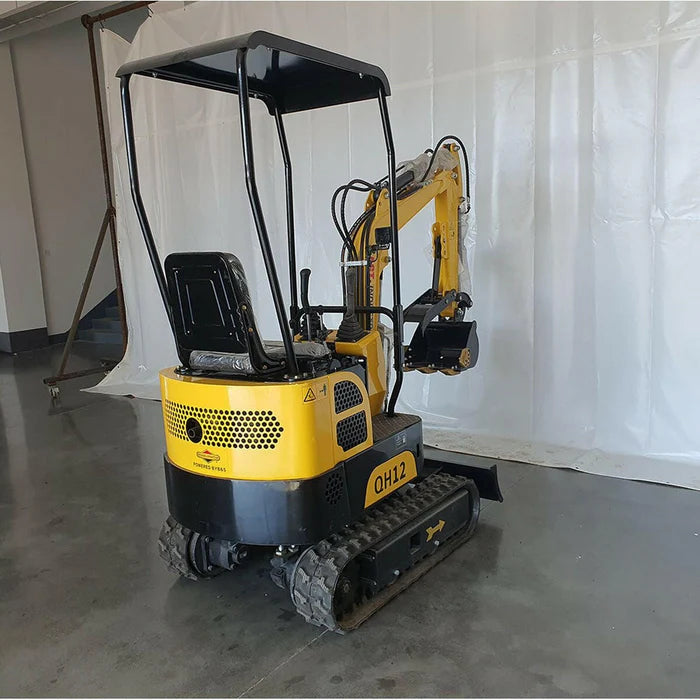

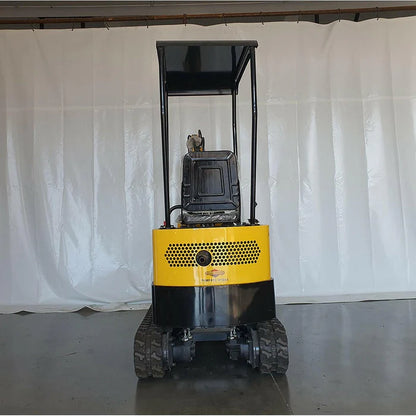

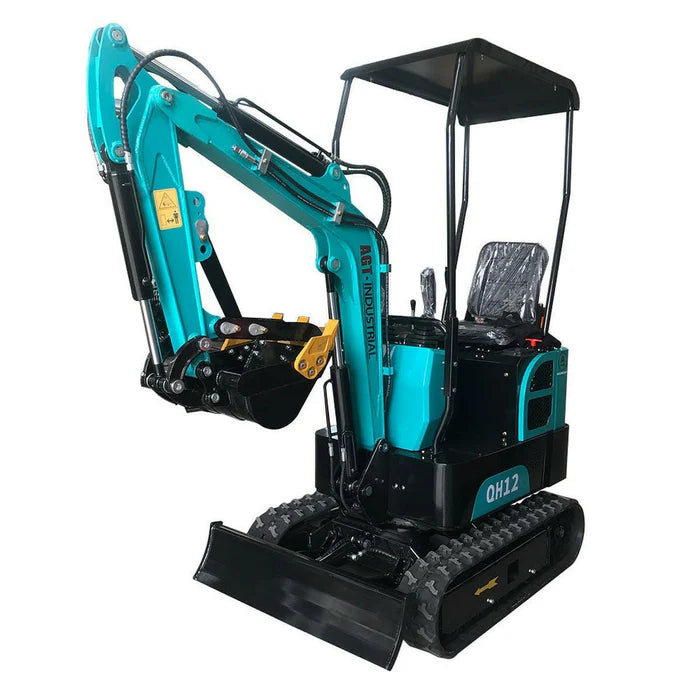

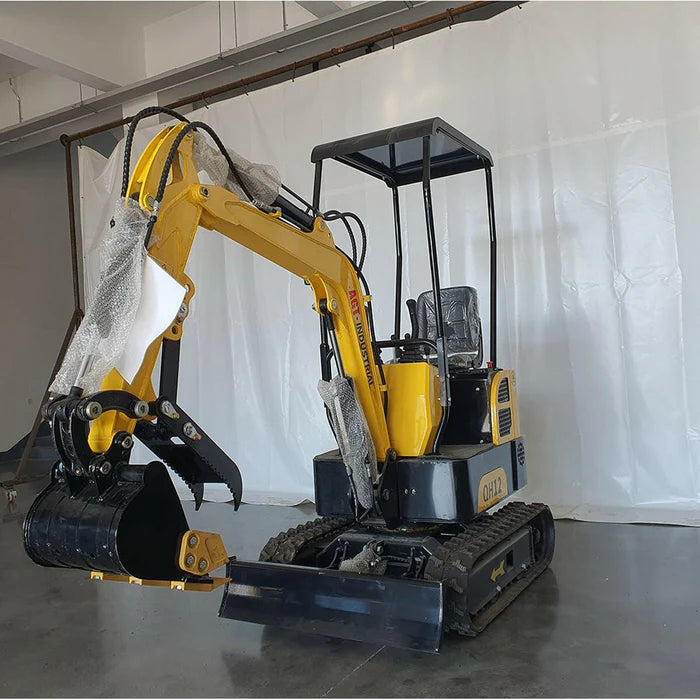

1 TON, B&S ENGINE MINI EXCAVATOR | QH12

The AGT Industrial Mini Excavator is built compact for agility, eliminating management hitches on farms yet large enough for deeper digs. Get yours today!

Manual

In Action Video

Hydraulic Thumb Installation

Fan Installation

DIMENSION

• Operating Weight: 1 Ton (2,200 lbs)

• Overall Length: 2,220 mm (87 in)

• Overall Width: 1.000 mm (39 in)

• Overall Height: 2,220mm (87 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)


WORKING RANGE

• Max Digging Depth: 1,650 mm (65 in)

• Max Digging Height: 2,400mm (94.5 in)

• Max Dumping Height: 1,670 mm (66 in)

• Max Reach at Ground: 3,400mm (134in)

• Dozer Blade Width: 910mm (35 in)

• Dozer Blade Height: 230mm (9in)

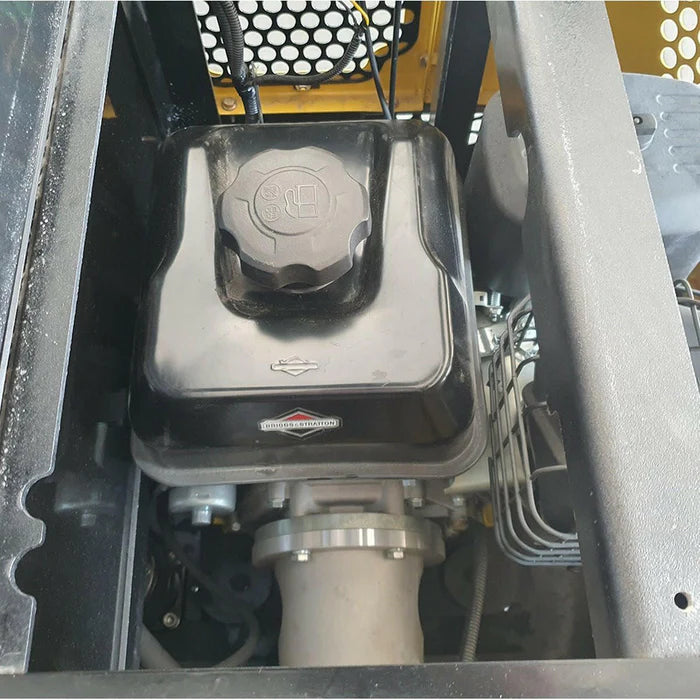

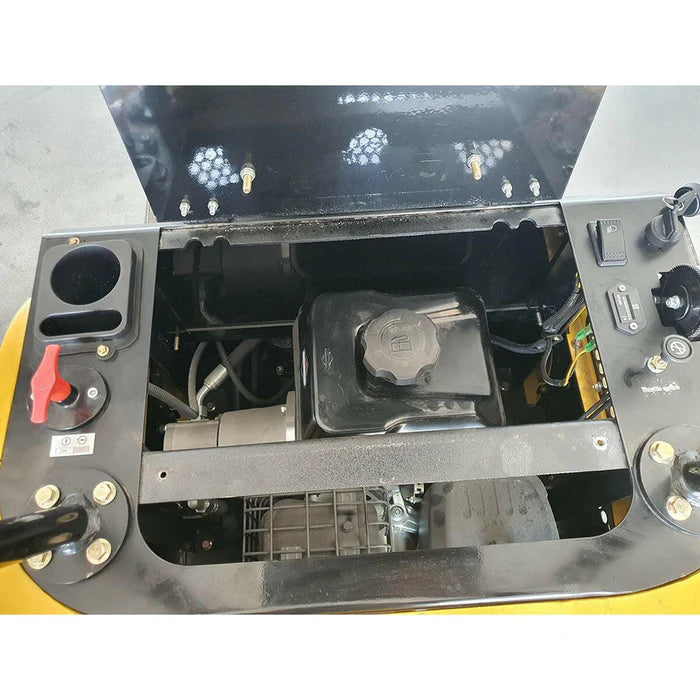

ENGINE

• Engine Brand: B&S
• Fuel Type: Gasoline

• Model: XR

• Rated Power: 10 kW (13.5HP)

• Displacement: 420 cc

• Fuel Capacity: 6.6 L (1.7 gal)
• Fuel Consumption: 0.5-1.2 L/h


FEATURES

• 25.5" Tail Swing
