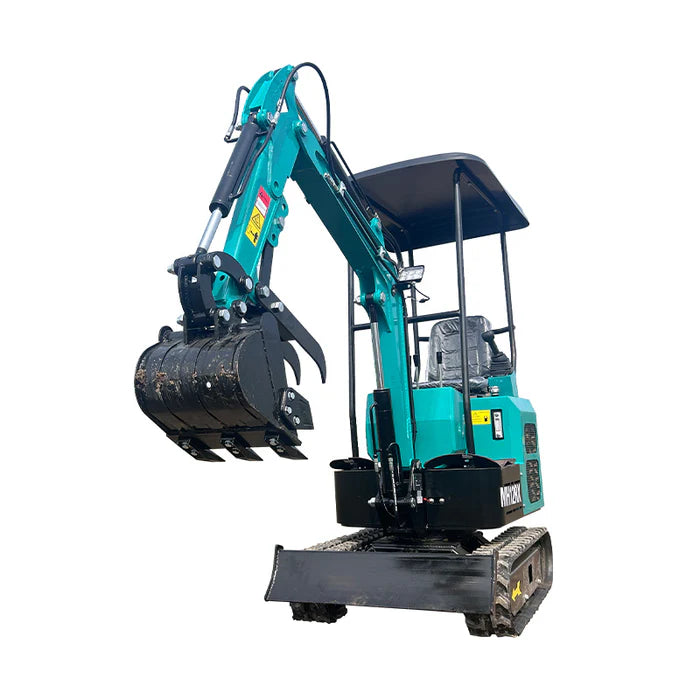

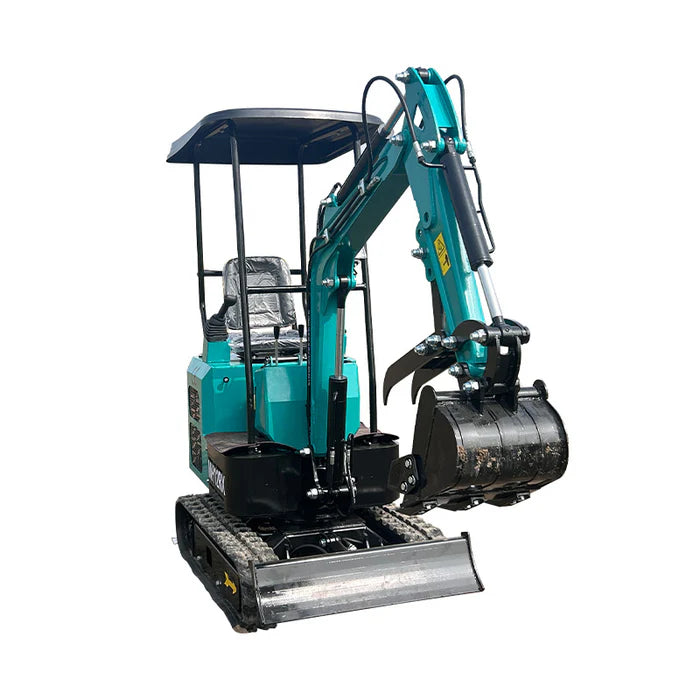

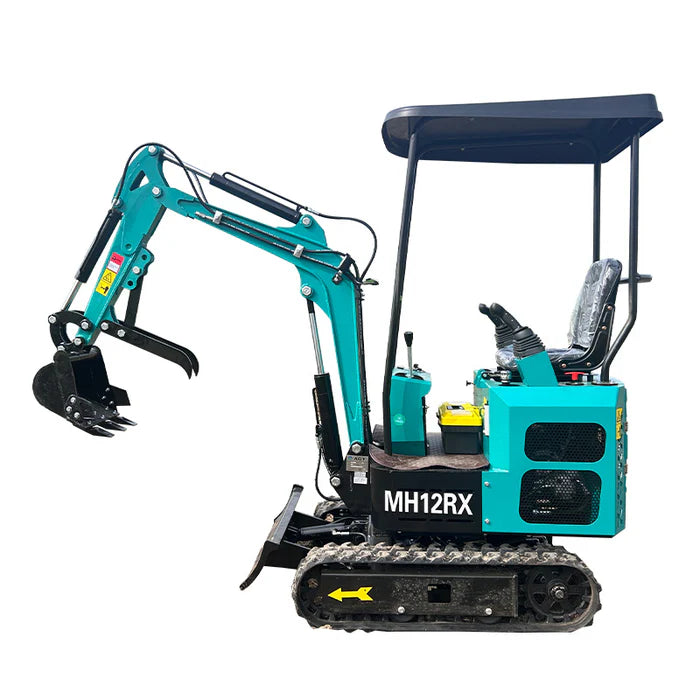

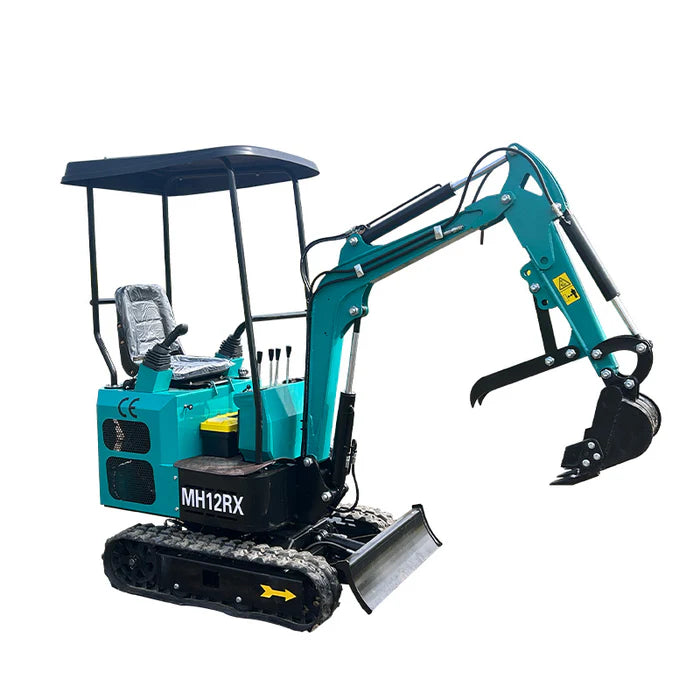

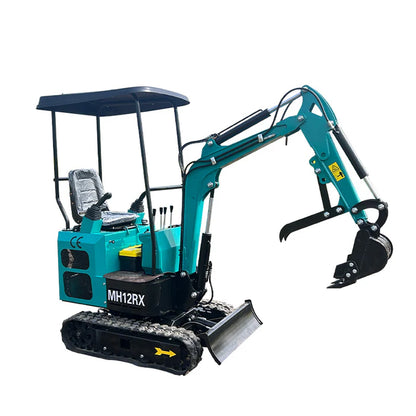

1 TON, RATO ENGINE MINI EXCAVATOR | MH12RX

We will need a direct phone number for the carrier to contact you with for final delivery

In-Action Video

DIMENSION

• Operating Weight: 0.8Ton (1,600 lbs)

• Overall Length: 3,100mm (122 in)

• Overall Width: 1,100mm(43in)
• Overall Height: 2,200 mm (86.5 in)

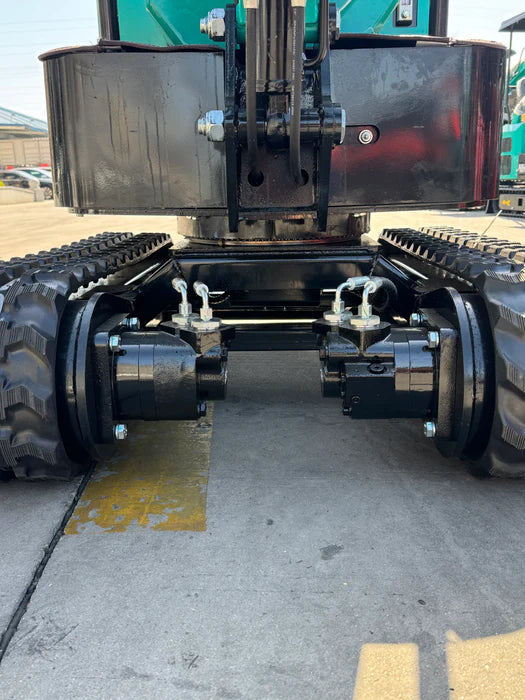

• Track Size: 180*72*37 (Width*Pitch Length*Links)


WORKING RANGE

• Max Digging Depth: 1,800mm (71 in)

• Max Digging Height: 3,000 mm (118 in)
• Max Dumping Height: 2,100 mm (82.5 in)
• Max Reach at Ground: 2,960mm (116.5in)
• Blade Width: 900mm (35 in)
• Blade Height: 200 mm (7.9 in)

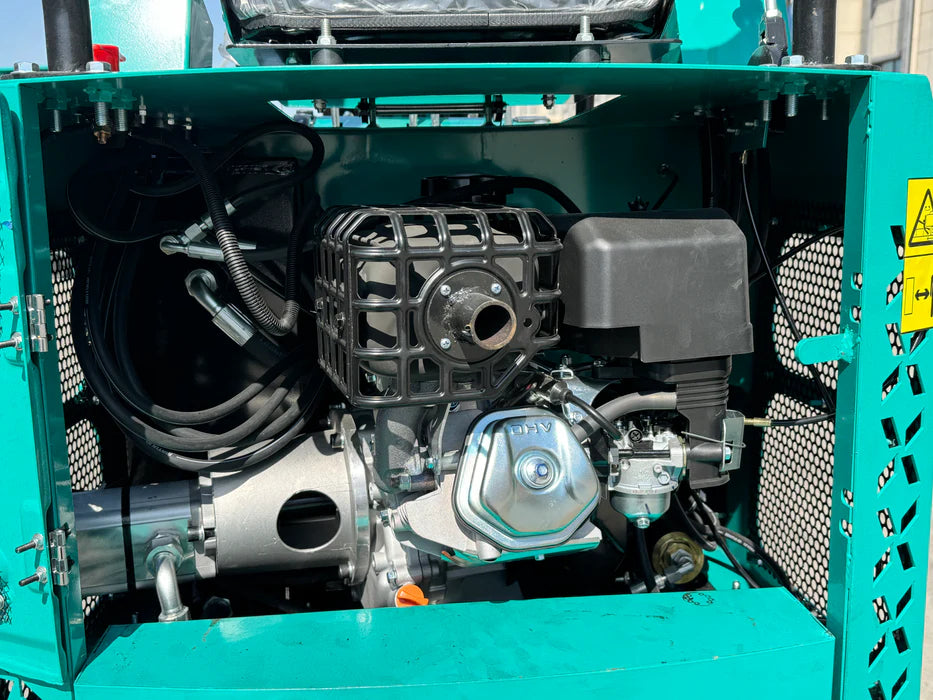

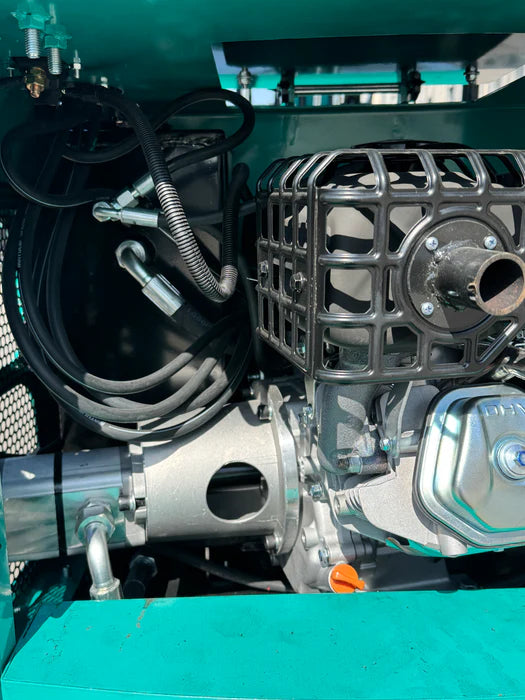

ENGINE

• Engine Brand: Rato

• Fuel Type: Gasoline
• Model: R420D

• Rated Power: 10.5kW (13.5HP)

• Displacement: 420 cc
• Fuel Capacity: 6.6L (1.7gal)
• Fuel Consumption: 0.5-1.2L/hr
• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
• Hydraulic Pressure: 16 MPa (2,320 PSl)
• Hydraulic Tank Capacity: 18L (3.7 gal)


FEATURES

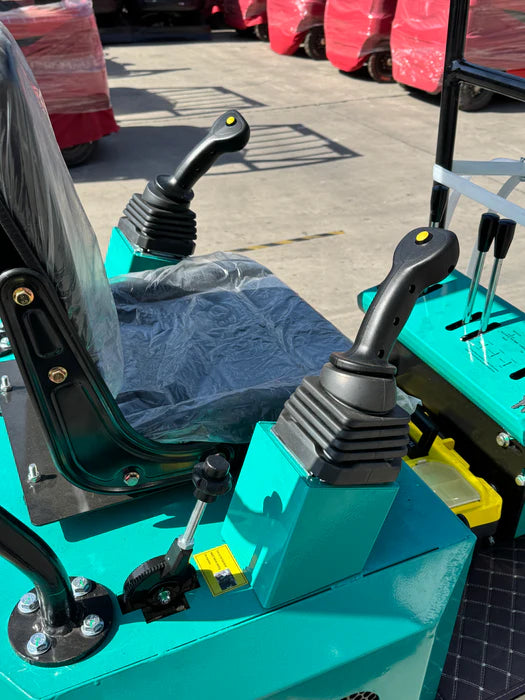

• Pilot Control
