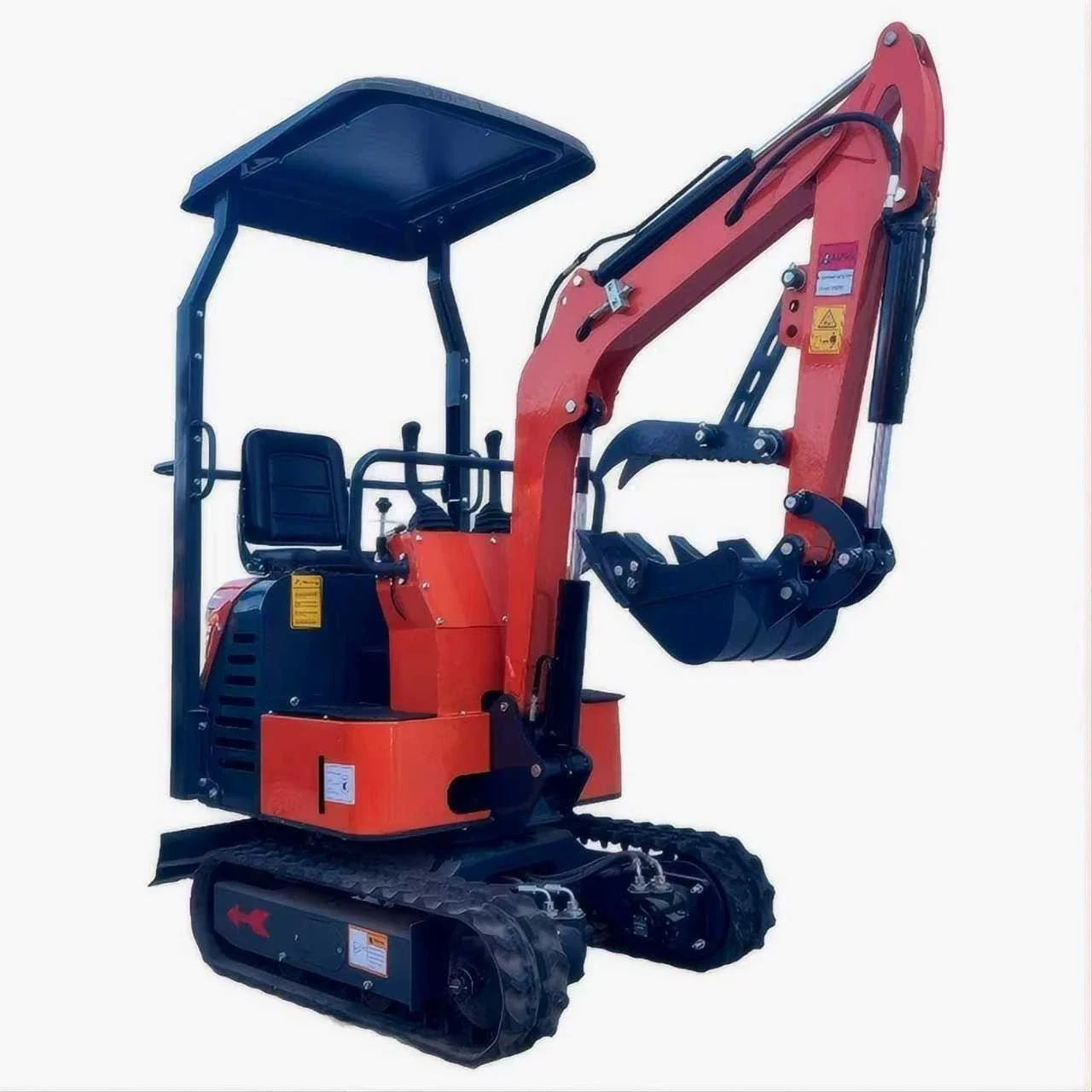

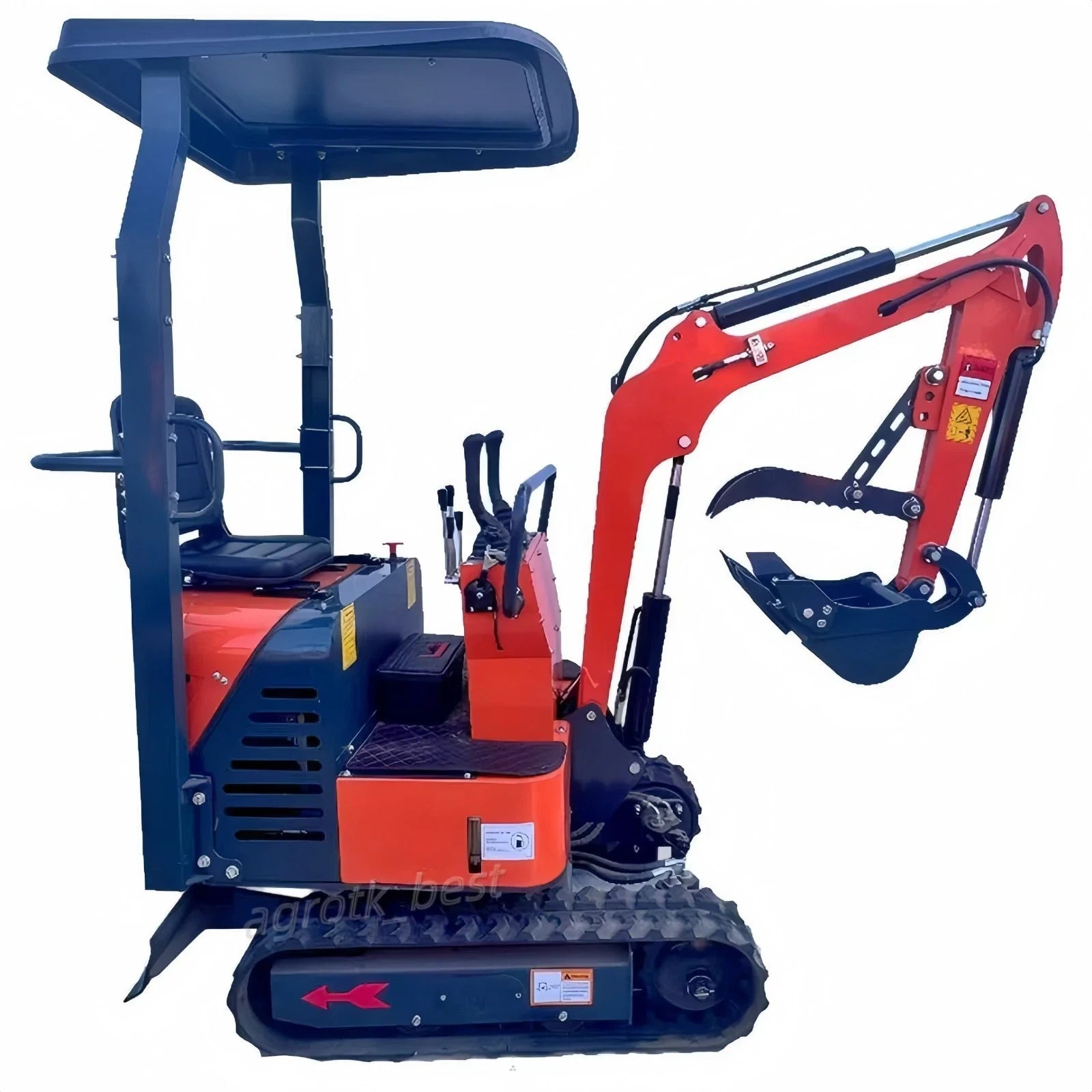

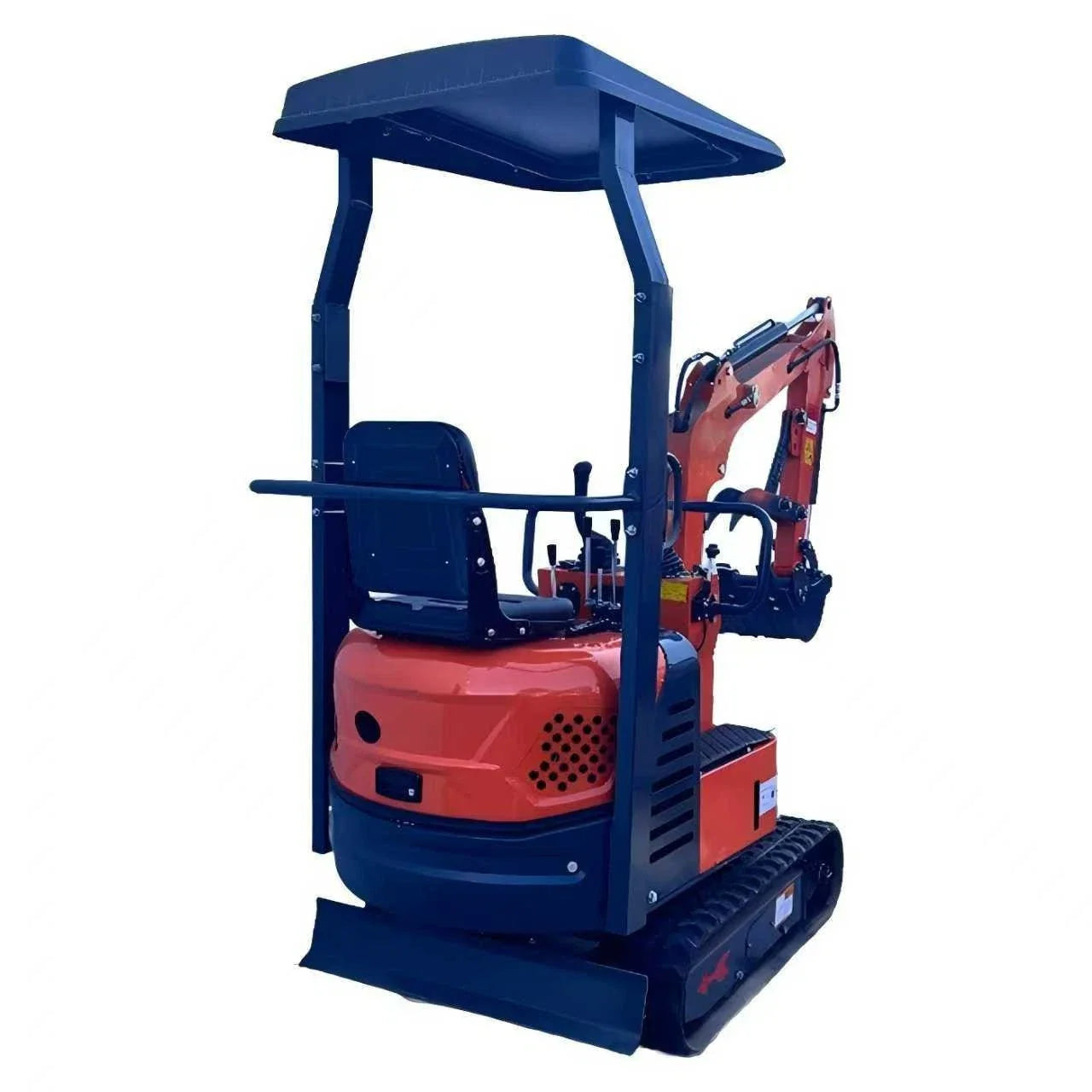

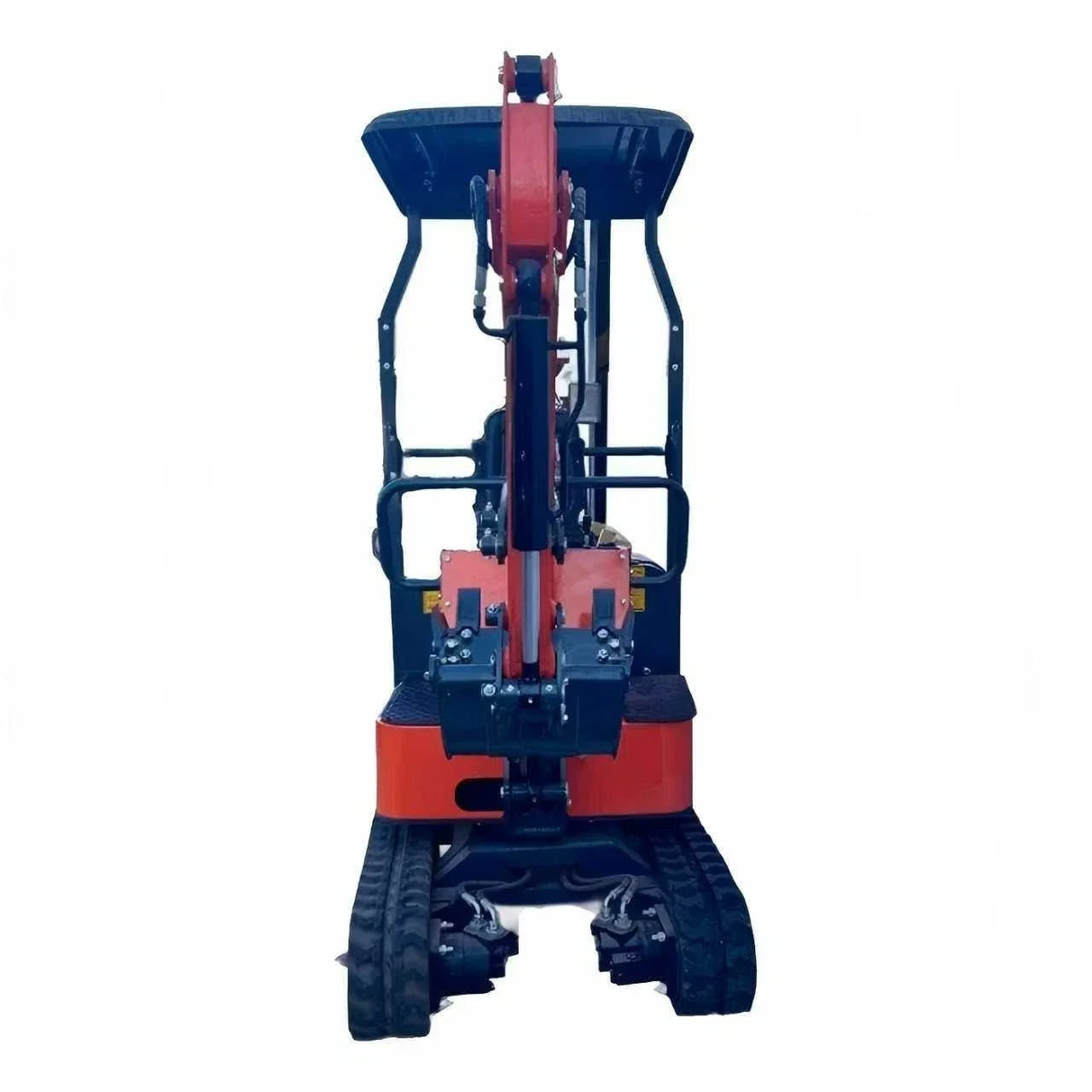

1 Ton Mini Crawler Excavator with B&S 13.5HP Engine | AGT-L12

Looking for a powerful at an unbeatable price Look no further than the AGT 1-ton mini excavator.

AGT-L12 is mainly applied to: farming, landscaping, ditching and fertilization in garden, vegetable, agricultural transformation, indoor demolition, small earthwork, civil engineering, road recovery, and indoor construction, concrete breaking, burying of cable, laying of water supply line, and others.

In Action Video

Manual

Technical Data:

• Operation Weight: 1 Ton
• Engine: B&S
• Horse Power: 13.5
• Max Angle: 30 Degree

Specific Data:

Dimension:

• Operating Weight: 1 Ton (2,000 lbs)
• Overall Length: 2,650 mm (104.3 in)
• Overall Width: 940 mm (37 in)

• Overall Height: 2,650 mm (104.3 in)

• Track Size: 180*72*37 (Width*Pitch Length*Links)

Working Range:

• Max Digging Depth: 1,650 mm (65 in)

• Max Digging Height: 2,490 mm (98 in)

• Max Dumping Height: 1,750 mm (69 in)
• Max Reach at Ground: 2,400 mm (94.5 in)

• Blade Width: 927 mm (36.5 in)

• Blade Height: 128 mm (5 in)

• Blade Max Lifting Height: 325 mm (12.5 in)
• Blade Max Drop Depth: 175 mm (7 in)

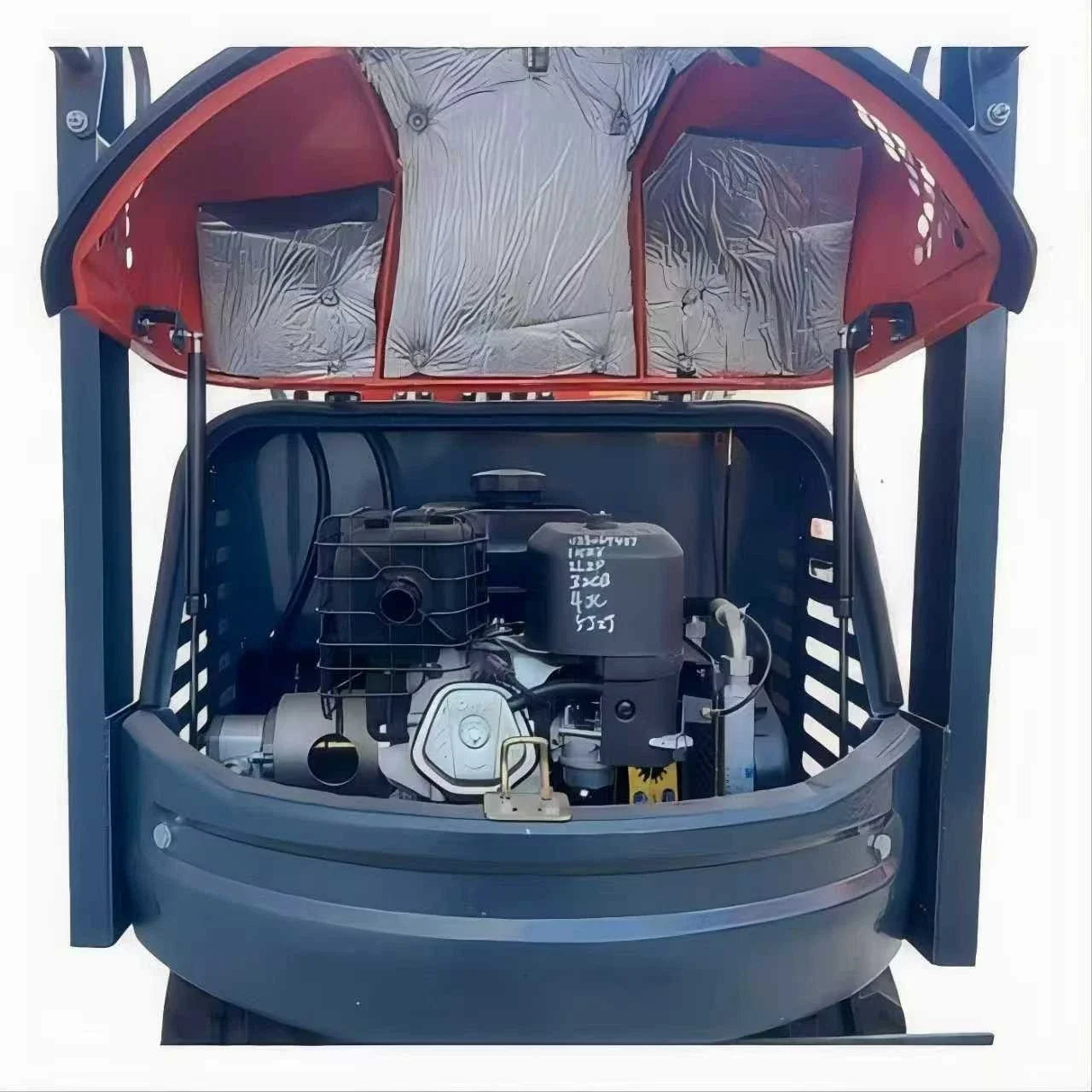

Engine:

• Engine Brand: Briggs & Stratton

• Fuel Type: Gasoline

• Model: XR

• Rated Power: 10.5 kW (13.5 HP)

• Displacement: 420cc

• Fuel Capacity: 6.6 L (1.7 gal)

Features:

• LED Light
