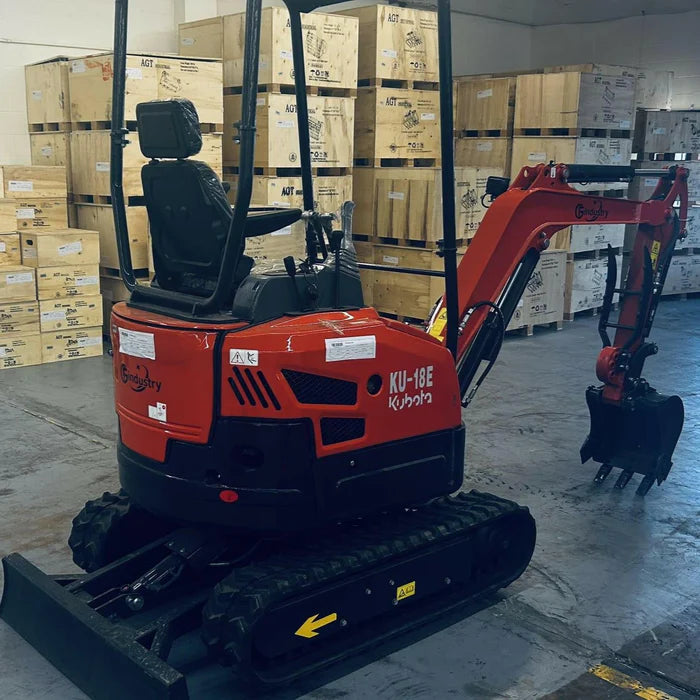

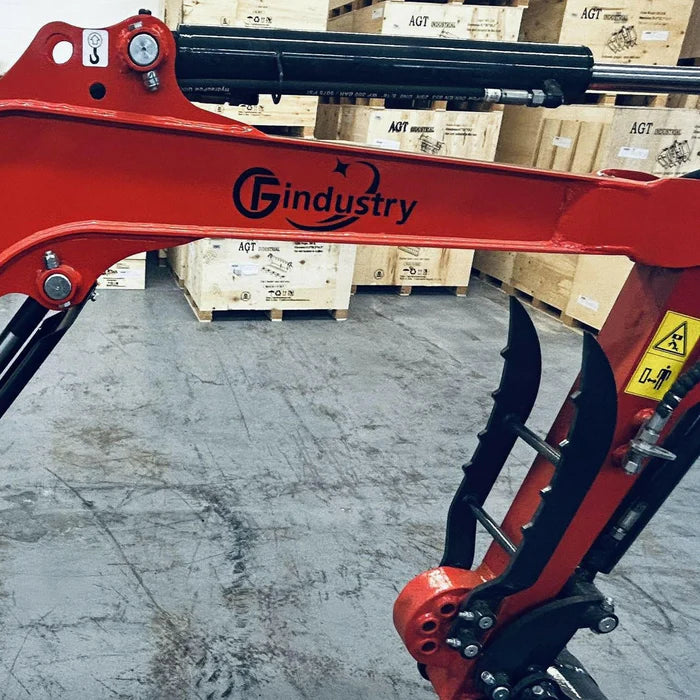

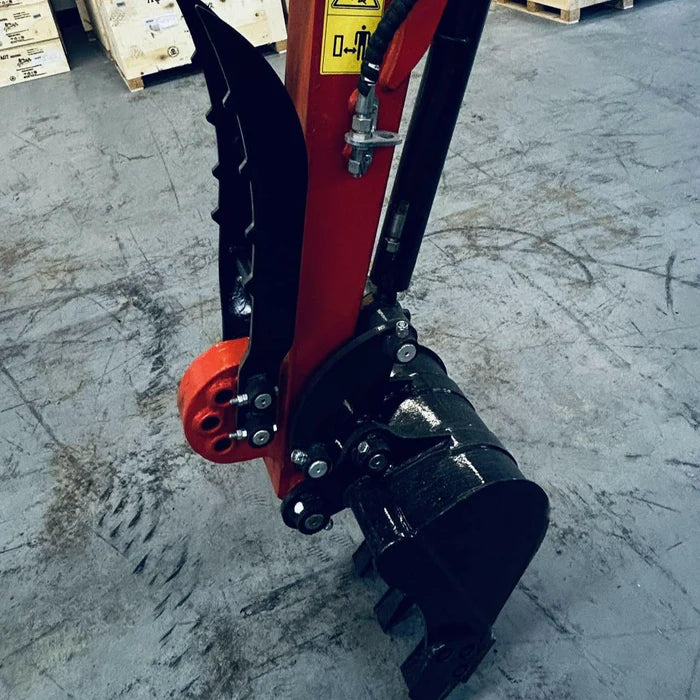

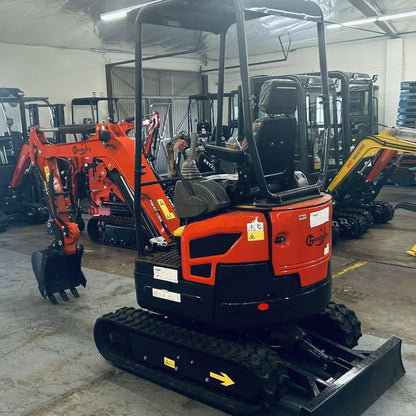

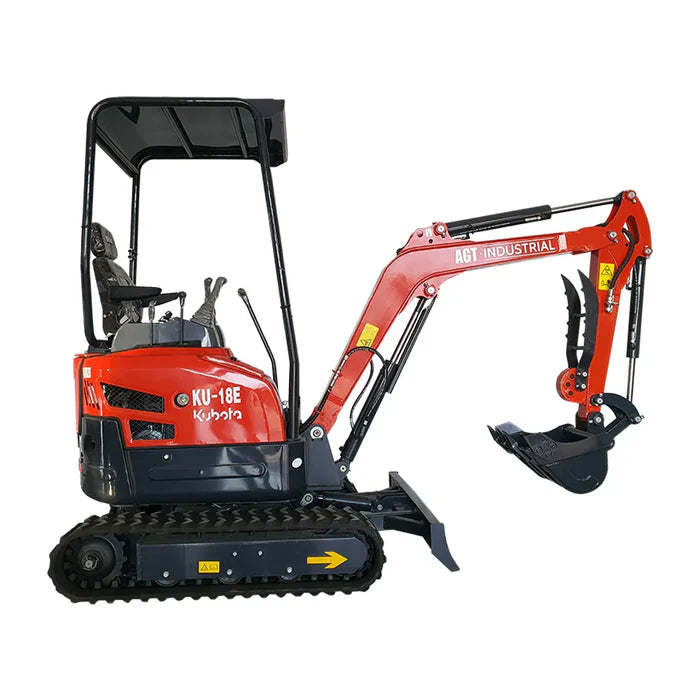

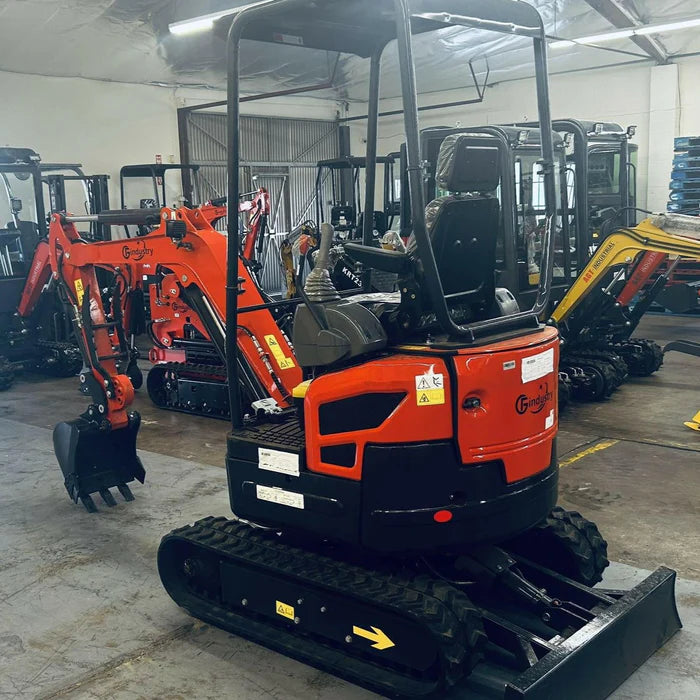

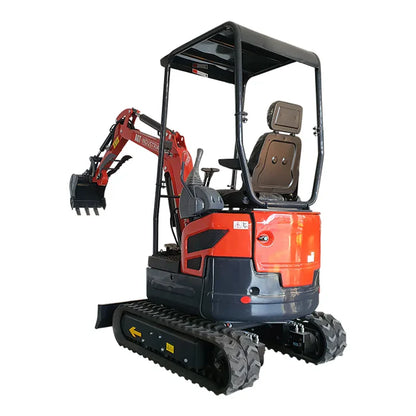

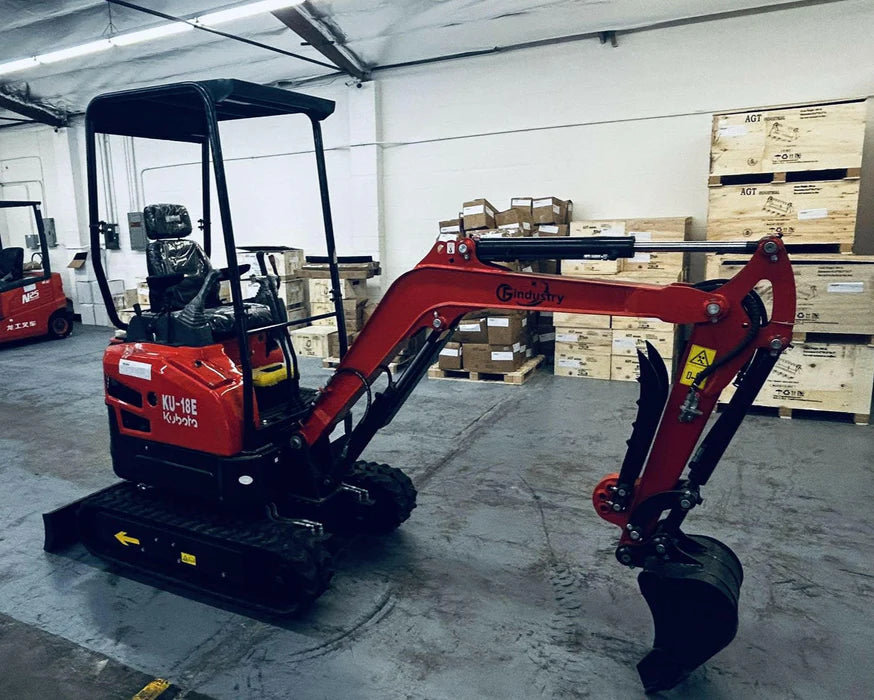

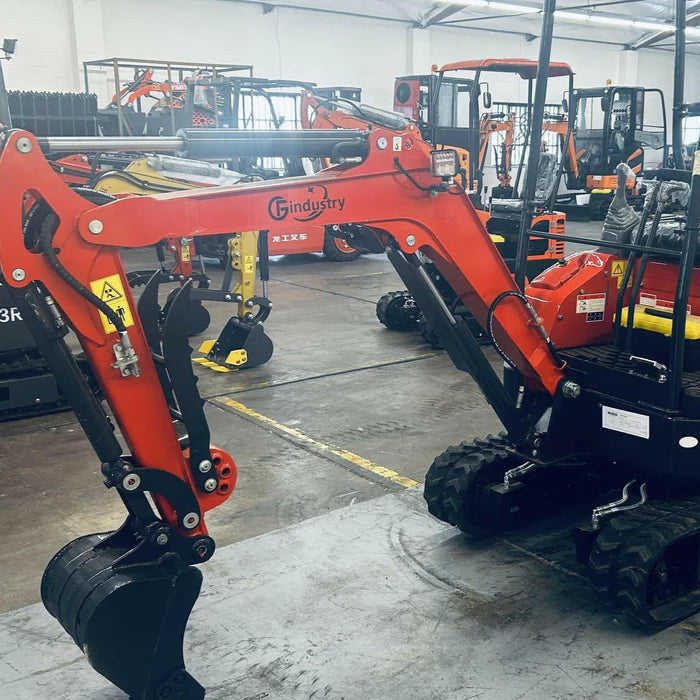

1.8 TON, KUBOTA ENGINE MINI EXCAVATOR | KU18EC

Hydraulic System:

• Rated Set Pressure: 25 MPa

• Main Pump Type: GP510803
• Maximum Flow Rate of Main Pump: 21.6 L/min
• Multi-Circuit Valve: 4 mechanical + 4 hydraulic
• Rotary Hydraulic Motor Type: BM2-315
• Traveling Hydraulic Motor Type: BM6-315


DIMENSION

• Operating Weight: 1.8Ton (3,968 lbs)
• Overall Length: 2,925 mm (115in)

• Overall Width: 958 mm (38 in)

• Overall Height: 2,422 mm (95 in)

• Track Size: 220*72*42 (Width*Pitch Length*Links)


WORKING RANGE

• Max Digging Depth: 2,120 mm (83 in)
• Max Digging Height: 3,310 mm (130 in)
• Max Dumping Height: 2,370 mm (93 in)

• Max Reach at Ground: mm (in)

• Blade Width: mm (in)

• Blade Height: mm (in)

• Blade Max Lifting Height: mm (in)

• Blade Max Drop Depth: mm (in)

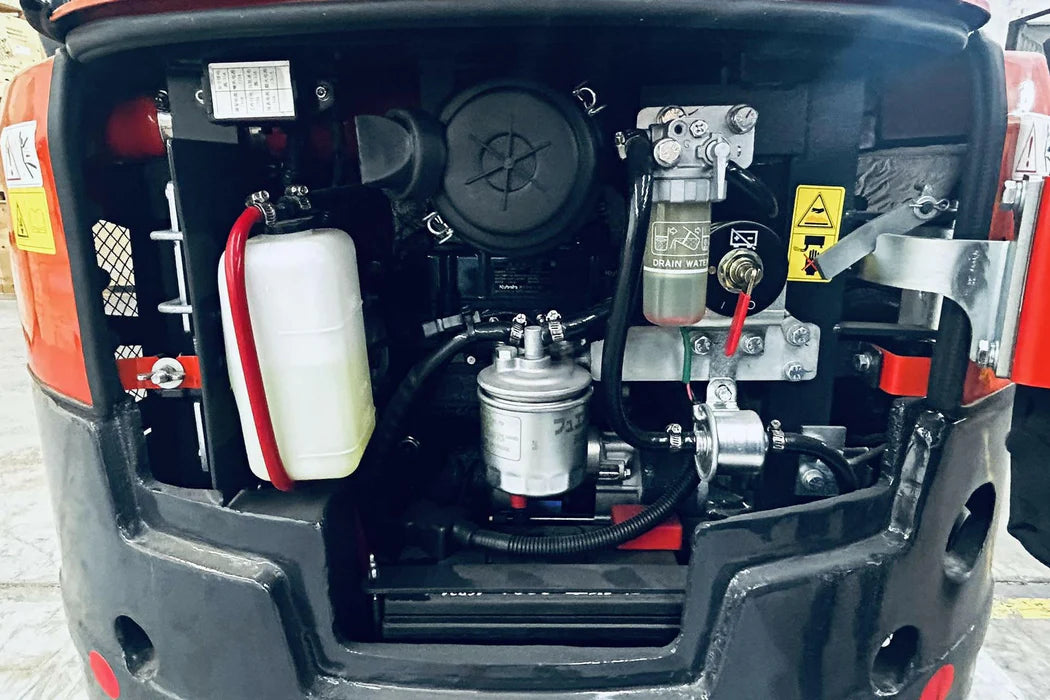

ENGINE

• Engine Brand: Kubota

• Fuel Type: Diesel

• Model: D722-EF18

• Rated Power: 10 kW (13.5 HP)

• Displacement: 720 cc

• Fuel Capacity: L (gal)

• Fuel Consumption: L/hr
• Hydraulic Flow Rate: 21.6 L/min (5.7GPM)
• Hydraulic Pressure: 25 MPa (3,626 PSl)
• Hydraulic Tank Capacity: L (gal)


FEATURES

• Hydraulic Tensioning

• LED Light

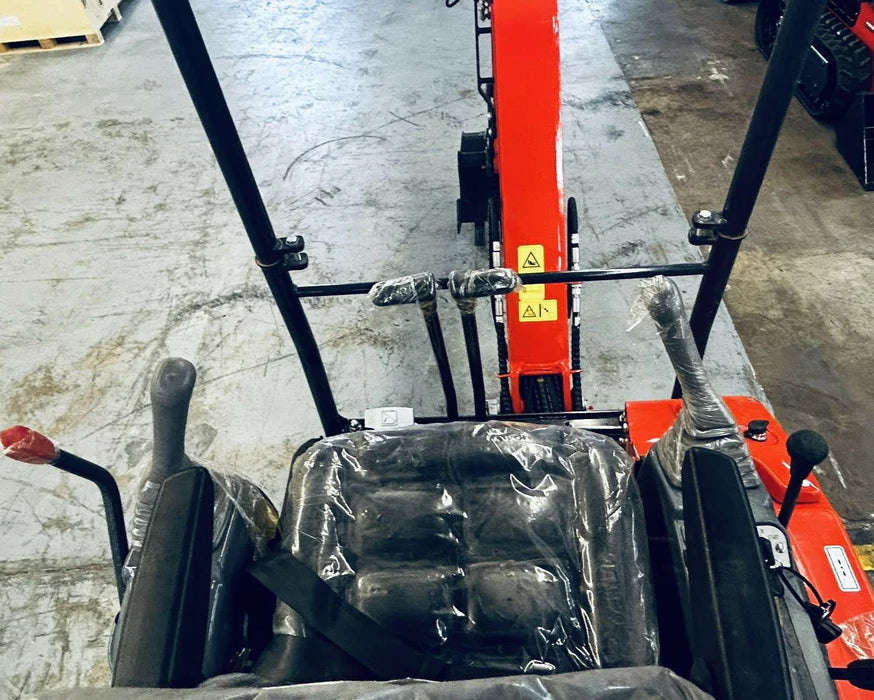

• Pilot Control
