How to Install a Grapple on a Mini Excavator: A Practical Guide

Installing a grapple on a mini excavator is a cost-effective upgrade that significantly expands the machine’s capabilities, it is an effective way to improve productivity, versatility, and jobsite safety. Compared with a standard bucket, a grapple allows operators to grab, lift, and handle materials more efficiently, making it ideal for landscaping, demolition, site cleanup, and material handling.

Below is a practical overview of the key steps and considerations involved in installing a grapple on a mini excavator.

Confirm the Mini Excavator Is Grapple-Ready

Before installation, it’s important to ensure the excavator is properly equipped.

A grapple requires auxiliary hydraulics to operate. Confirm that the mini excavator has an auxiliary hydraulic circuit available. Check that the excavator’s hydraulic flow rate and pressure meet the grapple’s operating requirements to ensure smooth and reliable performance. The grapple’s size and weight should be appropriate for the excavator’s operating weight to maintain stability and safe operation.

Choose the Right Grapple and Mounting Method

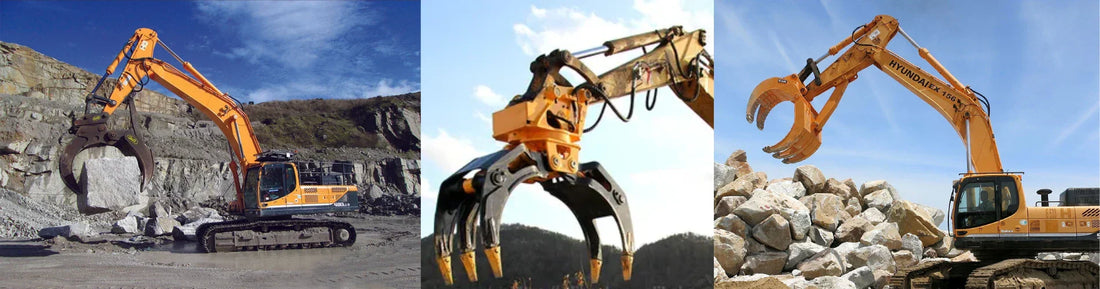

Choose the appropriate type of grab bucket according to the operational requirements. They are divided into standard grab buckets and multi-functional grab buckets.

Connection methods are divided into direct pin connection and quick connector.

Install the Grapple and Connect Hydraulic Lines

Once the mounting method is selected, the grapple can be installed. Secure the grapple to the excavator’s working arm using the correct pins or coupler. Connect the auxiliary hydraulic hoses, ensuring all fittings are clean to prevent contamination. Machines with internal hose routing provide added protection against damage and wear.

Test and Adjust the System

After installation, proper testing is essential. Start the machine and operate the grapple at low speed. Check that opening and closing movements are smooth and responsive. Inspect for hydraulic leaks, unusual noises, or irregular behavior. Fine-tune controls, especially on machines with pilot control systems, to achieve precise operation.

Important Tips After Installation

Regularly inspect hydraulic hoses, fittings, and pins. Avoid overloading the grapple beyond its rated capacity. Maintain the hydraulic system according to the manufacturer’s recommendations.
